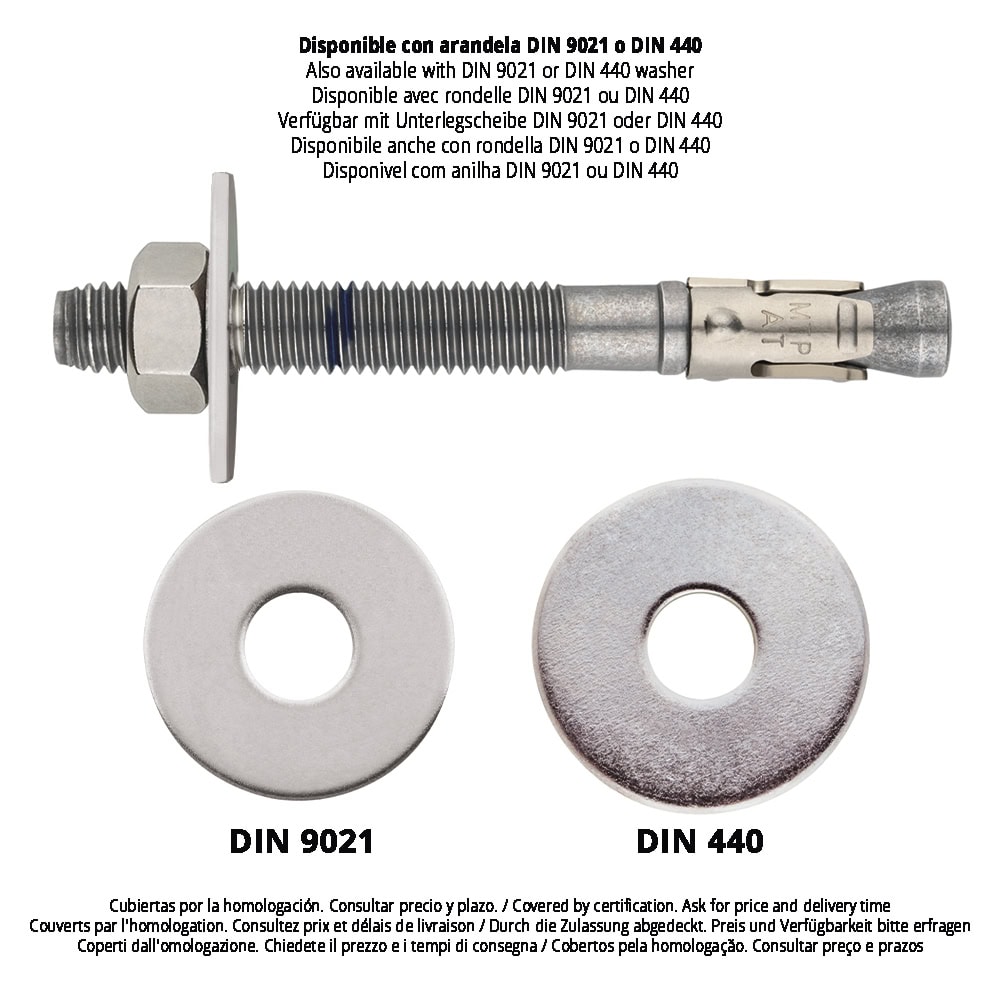

Bucha metálica segmentada homologada MTP-AT

Bucha metálica segmentada para cargas elevadas em betão fissurado e não fissurado. Expansão controlada do binário. Aprovado pela ETE Opt. 1 para fixações estruturais seguras em betão fissurado e não fissurado. Veio em aço revestido de ATLANTIS C4-M com grampo em aço inoxidável A4.

Aprovações e certificados

CÓDIGOMEDIDAESPESSURA MÁX. AFIXAR (mm)LETRA EIXO (LONGITUDE)Uds CaixaUds. MasterboxEANInfo. Técnica
APAT08075M8 x 75 Ø89C1006008423533896520
  • tfix - Espessura máx. a fixar9
  • SW - Chave para instalação13
  • df - Ø Elemento a fixar9
  • Tins - Par de aperto (Nm)20
  • hef - Profundidade efetiva48
  • hnom - Profundidade min. de instalação55
  • h1 - Profundidade min. do furo60
  • d0 - Ø Broca8
  • hmin - Espessura min. do material base100
APAT08095M8 x 95 Ø829E1006008423533896537
  • tfix - Espessura máx. a fixar29
  • SW - Chave para instalação13
  • df - Ø Elemento a fixar9
  • Tins - Par de aperto (Nm)20
  • hef - Profundidade efetiva48
  • hnom - Profundidade min. de instalação55
  • h1 - Profundidade min. do furo60
  • d0 - Ø Broca8
  • hmin - Espessura min. do material base100
APAT08115M8 x 115 Ø849G1004008423533896544
  • tfix - Espessura máx. a fixar49
  • SW - Chave para instalação13
  • df - Ø Elemento a fixar9
  • Tins - Par de aperto (Nm)20
  • hef - Profundidade efetiva48
  • hnom - Profundidade min. de instalação55
  • h1 - Profundidade min. do furo60
  • d0 - Ø Broca8
  • hmin - Espessura min. do material base100
APAT10090M10 x 90 Ø1010E1004008423533896551
  • tfix - Espessura máx. a fixar10
  • SW - Chave para instalação17
  • df - Ø Elemento a fixar12
  • Tins - Par de aperto (Nm)40
  • hef - Profundidade efetiva60
  • hnom - Profundidade min. de instalação68
  • h1 - Profundidade min. do furo75
  • d0 - Ø Broca10
  • hmin - Espessura min. do material base120
APAT10105M10 x 105 Ø1025F503008423533896568
  • tfix - Espessura máx. a fixar25
  • SW - Chave para instalação17
  • df - Ø Elemento a fixar12
  • Tins - Par de aperto (Nm)40
  • hef - Profundidade efetiva60
  • hnom - Profundidade min. de instalação68
  • h1 - Profundidade min. do furo75
  • d0 - Ø Broca10
  • hmin - Espessura min. do material base120
APAT10115M10 x 115 Ø1035G502008423533896575
  • tfix - Espessura máx. a fixar35
  • SW - Chave para instalação17
  • df - Ø Elemento a fixar12
  • Tins - Par de aperto (Nm)40
  • hef - Profundidade efetiva60
  • hnom - Profundidade min. de instalação68
  • h1 - Profundidade min. do furo75
  • d0 - Ø Broca10
  • hmin - Espessura min. do material base120
APAT10135M10 x 135 Ø1055H502008423533896582
  • tfix - Espessura máx. a fixar55
  • SW - Chave para instalação17
  • df - Ø Elemento a fixar12
  • Tins - Par de aperto (Nm)40
  • hef - Profundidade efetiva60
  • hnom - Profundidade min. de instalação68
  • h1 - Profundidade min. do furo75
  • d0 - Ø Broca10
  • hmin - Espessura min. do material base120
APAT10165M10 x 165 Ø1085K502008423533896599
  • tfix - Espessura máx. a fixar85
  • SW - Chave para instalação17
  • df - Ø Elemento a fixar12
  • Tins - Par de aperto (Nm)40
  • hef - Profundidade efetiva60
  • hnom - Profundidade min. de instalação68
  • h1 - Profundidade min. do furo75
  • d0 - Ø Broca10
  • hmin - Espessura min. do material base120
APAT10185M10 x 185 Ø10105L501508423533896605
  • tfix - Espessura máx. a fixar105
  • SW - Chave para instalação17
  • df - Ø Elemento a fixar12
  • Tins - Par de aperto (Nm)40
  • hef - Profundidade efetiva60
  • hnom - Profundidade min. de instalação68
  • h1 - Profundidade min. do furo75
  • d0 - Ø Broca10
  • hmin - Espessura min. do material base120
APAT12100M12 x 100 Ø124E502008423533896612
  • tfix - Espessura máx. a fixar4
  • SW - Chave para instalação19
  • df - Ø Elemento a fixar14
  • Tins - Par de aperto (Nm)60
  • hef - Profundidade efetiva70
  • hnom - Profundidade min. de instalação80
  • h1 - Profundidade min. do furo85
  • d0 - Ø Broca12
  • hmin - Espessura min. do material base140
APAT12110M12 x 110 Ø1214F502008423533896629
  • tfix - Espessura máx. a fixar14
  • SW - Chave para instalação19
  • df - Ø Elemento a fixar14
  • Tins - Par de aperto (Nm)60
  • hef - Profundidade efetiva70
  • hnom - Profundidade min. de instalação80
  • h1 - Profundidade min. do furo85
  • d0 - Ø Broca12
  • hmin - Espessura min. do material base140
APAT12120M12 x 120 Ø1224G502008423533896636
  • tfix - Espessura máx. a fixar24
  • SW - Chave para instalação19
  • df - Ø Elemento a fixar14
  • Tins - Par de aperto (Nm)60
  • hef - Profundidade efetiva70
  • hnom - Profundidade min. de instalação80
  • h1 - Profundidade min. do furo85
  • d0 - Ø Broca12
  • hmin - Espessura min. do material base140
APAT12130M12 x 130 Ø1234H502008423533896643
  • tfix - Espessura máx. a fixar34
  • SW - Chave para instalação19
  • df - Ø Elemento a fixar14
  • Tins - Par de aperto (Nm)60
  • hef - Profundidade efetiva70
  • hnom - Profundidade min. de instalação80
  • h1 - Profundidade min. do furo85
  • d0 - Ø Broca12
  • hmin - Espessura min. do material base140
APAT12150M12 x 150 Ø1254I501008423533896650
  • tfix - Espessura máx. a fixar54
  • SW - Chave para instalação19
  • df - Ø Elemento a fixar14
  • Tins - Par de aperto (Nm)60
  • hef - Profundidade efetiva70
  • hnom - Profundidade min. de instalação80
  • h1 - Profundidade min. do furo85
  • d0 - Ø Broca12
  • hmin - Espessura min. do material base140
APAT12180M12 x 180 Ø1284L501508423533896667
  • tfix - Espessura máx. a fixar84
  • SW - Chave para instalação19
  • df - Ø Elemento a fixar14
  • Tins - Par de aperto (Nm)60
  • hef - Profundidade efetiva70
  • hnom - Profundidade min. de instalação80
  • h1 - Profundidade min. do furo85
  • d0 - Ø Broca12
  • hmin - Espessura min. do material base140
APAT12200M12 x 200 Ø12104M501508423533896674
  • tfix - Espessura máx. a fixar104
  • SW - Chave para instalação19
  • df - Ø Elemento a fixar14
  • Tins - Par de aperto (Nm)60
  • hef - Profundidade efetiva70
  • hnom - Profundidade min. de instalação80
  • h1 - Profundidade min. do furo85
  • d0 - Ø Broca12
  • hmin - Espessura min. do material base140
APAT16145M16 x 145 Ø1628I251008423533896681
  • tfix - Espessura máx. a fixar28
  • SW - Chave para instalação24
  • df - Ø Elemento a fixar18
  • Tins - Par de aperto (Nm)100
  • hef - Profundidade efetiva85
  • hnom - Profundidade min. de instalação97
  • h1 - Profundidade min. do furo105
  • d0 - Ø Broca16
  • hmin - Espessura min. do material base170
APAT16175M16 x 175 Ø1658K25508423533896698
  • tfix - Espessura máx. a fixar58
  • SW - Chave para instalação24
  • df - Ø Elemento a fixar18
  • Tins - Par de aperto (Nm)100
  • hef - Profundidade efetiva85
  • hnom - Profundidade min. de instalação97
  • h1 - Profundidade min. do furo105
  • d0 - Ø Broca16
  • hmin - Espessura min. do material base170
APAT16220M16 x 220 Ø16103O25508423533896704
  • tfix - Espessura máx. a fixar103
  • SW - Chave para instalação24
  • df - Ø Elemento a fixar18
  • Tins - Par de aperto (Nm)100
  • hef - Profundidade efetiva85
  • hnom - Profundidade min. de instalação97
  • h1 - Profundidade min. do furo105
  • d0 - Ø Broca16
  • hmin - Espessura min. do material base170
APAT20170M20 x 170 Ø2032K20408423533896711
  • tfix - Espessura máx. a fixar32
  • SW - Chave para instalação30
  • df - Ø Elemento a fixar22
  • Tins - Par de aperto (Nm)200
  • hef - Profundidade efetiva100
  • hnom - Profundidade min. de instalação114
  • h1 - Profundidade min. do furo125
  • d0 - Ø Broca20
  • hmin - Espessura min. do material base200
APAT20200M20 x 200 Ø2062N20408423533896728
  • tfix - Espessura máx. a fixar62
  • SW - Chave para instalação30
  • df - Ø Elemento a fixar22
  • Tins - Par de aperto (Nm)200
  • hef - Profundidade efetiva100
  • hnom - Profundidade min. de instalação114
  • h1 - Profundidade min. do furo125
  • d0 - Ø Broca20
  • hmin - Espessura min. do material base200
