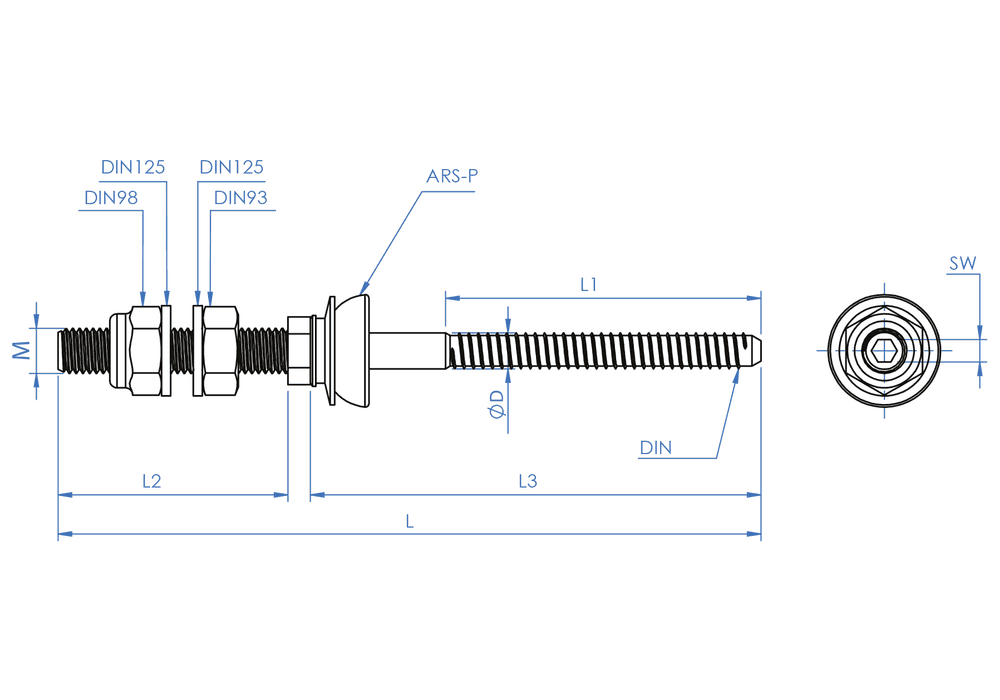

Parafuso metálico de rosca dupla KFS-AU

Parafuso de rosca dupla para fixação de estruturas de painéis solares a subestruturas de aço sob o telhado. Possui uma cabeça hexagonal na sua extremidade superior para instalação com uma chave de fendas e um hexágono central para ajuste. Inclui 1 porca DIN-985, 1 porca DIN-934, 2 anilhas DIN-125 e uma anilha EPDM, que garante a estanquidade. O parafuso, as porcas e as anilhas metálicas são de aço inoxidável A2.
Amplie as informações
CÓDIGOMEDIDACHAVE PARA INSTALAÇÃOUni. vendas mín.Uds CaixaUds. MasterboxEANInfo. Técnica
KFSAU1016010 x 160130251508423533861290
  • SW - Chave para instalação13
  • L - Comprimento160
  • d1 - Ø (mm)8
KFSAU1020010 x 20013025758423533861306
  • SW - Chave para instalação13
  • L - Comprimento200
  • d1 - Ø (mm)8
PR990BI11345 CP KFS AU KFS AU SZ4
PR990BI11303 CP KFS AU KFS AU SZ4
icon book
Fichas Técnicas
FT_GS_IR_KFS-AU_es_rev1.pdf
icon camera
Multimedia
Vídeo
