Estrutura triangular com calhas perfuradas KT-GPX

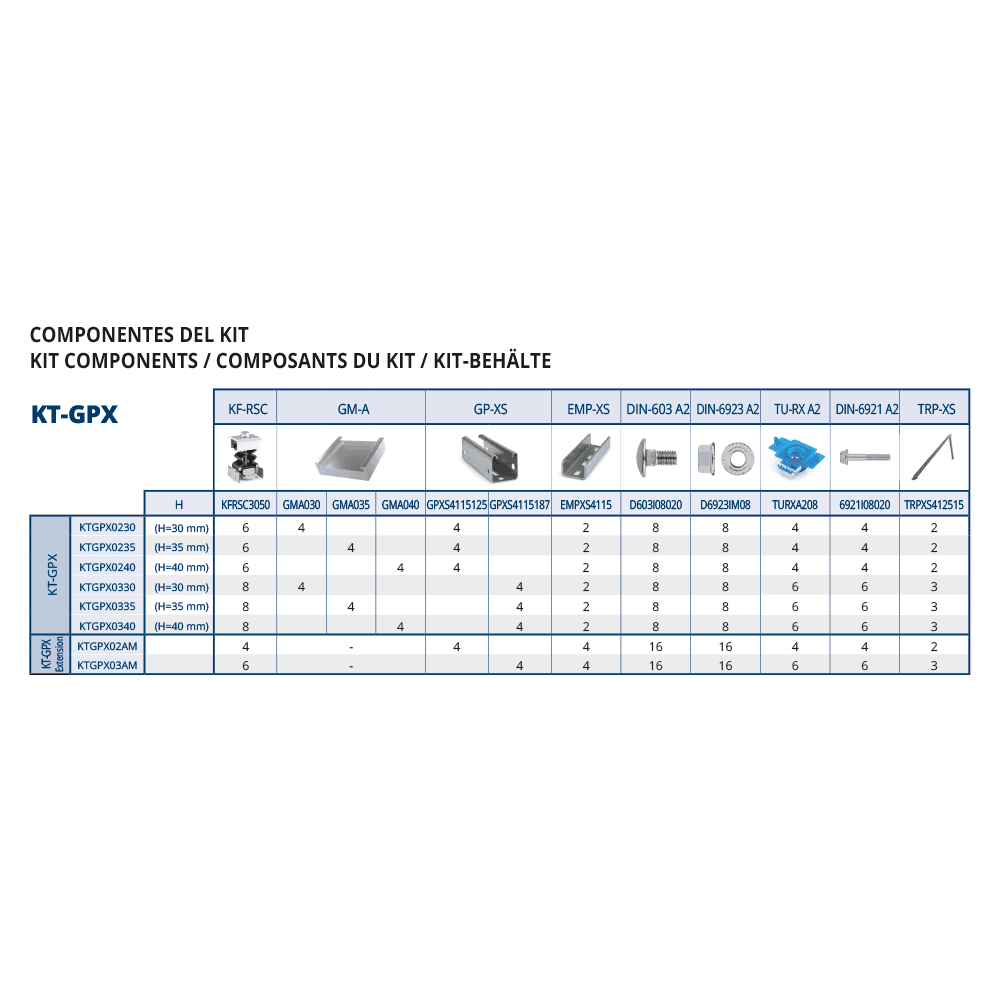

Kit de montagem para instalação de uma estrutura triangular para painéis solares. Permite a fixação dos painéis em telhados planos ou de baixa inclinação. A estrutura triangular pode ser ancorada à subestrutura sob o telhado ou montada numa estrutura auxiliar. O kit foi concebido de acordo com o sistema de montagem coplanar ST-GPX. Inclui triângulos ajustáveis TRP-XS; guias perfuradas GP-XS para montagem contínua; porcas rápidas TU-RXA2 e parafusos DIN-6921 A2 para unir os triângulos às guias; peças de ligação EMP-XS entre guias com porcas DIN-6923 e parafusos DIN-6921; grampos rápidos KFR-SC e calibres GM-A. Estão disponíveis vários modelos, com a possibilidade de instalar 2 ou 3 painéis.
Amplie as informações
CÓDIGOMEDIDAUni. vendas mín.Pcs. x baldeUds CaixaUds. MasterboxEANInfo. Técnica
KTGPX0230x2 (30 mm) - ORIGEN00108423533902627
KTGPX0235x2 (35 mm) - ORIGEN00108423533881106
KTGPX0240x2 (40 mm) - ORIGEN00108423533881113
KTGPX02AMx2 - AMPLIACION00108423533902634
KTGPX0330x3 (30 mm) - ORIGEN00108423533902542
KTGPX0335x3 (35 mm) - ORIGEN00108423533881120
KTGPX0340x3 (40 mm) - ORIGEN00108423533881137
KTGPX03AMx3 - AMPLIACION00108423533902559
PR1005BI11348 CP KT GPX KT GPX SZ4
icon book
Fichas Técnicas
FT_GS_K_KT-GPX_pt_rev3.pdf
FTA_GS_M_ST-GPX_H_pt_rev0.pdf
FTA_GS_M_ST-GPX_C_pt_rev0.pdf
FTA_GS_M_ST-GPX_T_pt_rev1.pdf
