Produtos / Sistemas de Instalação / Abraçadeiras metálicas pesadas / AB-RA / AB-RA
AB-RA
AB-RA

AB-RA

Abraçadeira reforçada M8 aberta. Abraçadeira reforçada M8 aberta

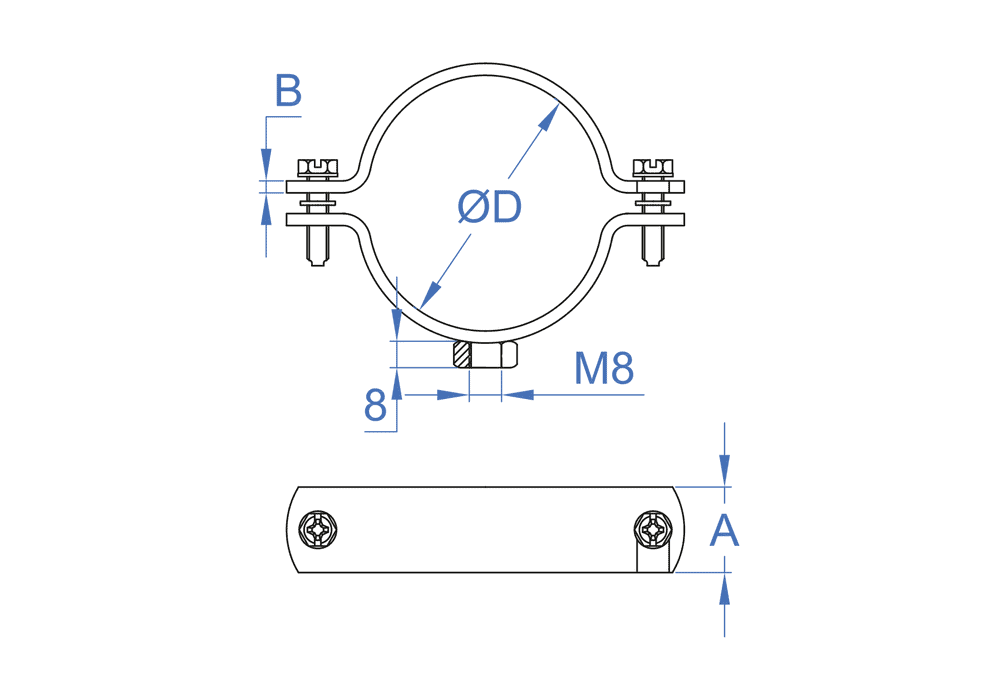

CÓDIGOMEDIDAØD(mm)CARGA MÁXIMAUni. vendas mín.Uds CaixaUds. MasterboxEANInfo. Técnica
ABRA01515 (M8)12-16800503008423533737199
  • d1 - Ø (mm)12-16
  • A x B20 x 1,5
ABRA01818 (M8)15 - 19800503008423533737205
  • d1 - Ø (mm)15 - 19
  • A x B20 x 1,5
ABRA02222 (M8)20 - 25800502008423533737212
  • d1 - Ø (mm)20 - 25
  • A x B20 x 1,5
ABRA02828 (M8)26 - 30800502008423533737229
  • d1 - Ø (mm)26 - 30
  • A x B20 x 1,5
ABRA03535 (M8)32 - 36800501508423533737236
  • d1 - Ø (mm)32 - 36
  • A x B20 x 1,5
ABRA04242 (M8)38 - 43800501508423533737243
  • d1 - Ø (mm)38 - 43
  • A x B20 x 1,5
ABRA04848 (M8)47 - 51800501008423533737250
  • d1 - Ø (mm)47 - 51
  • A x B20 x 1,5
ABRA05454 (M8)53 - 58800251008423533737267
  • d1 - Ø (mm)53 - 58
  • A x B20 x 1,5
ABRA06060 (M8)60 - 6480025758423533737274
  • d1 - Ø (mm)60 - 64
  • A x B20 x 1,5
ABRA07575 (M8)75 - 8080025508423533737281
  • d1 - Ø (mm)75 - 80
  • A x B20 x 1,5
ABRA09090 (M8)87 - 9280025508423533737298
  • d1 - Ø (mm)87 - 92
  • A x B20 x 1,5
ABRA100100 (M8)99 - 10580025508423533737304
  • d1 - Ø (mm)99 - 105
  • A x B20 x 1,5
ABRA110110 (M8)107 - 11280025508423533737311
  • d1 - Ø (mm)107 - 112
  • A x B20 x 1,5
ABRA115115 (M8)113 - 11880025508423533737328
  • d1 - Ø (mm)113 - 118
  • A x B20 x 1,5
ABRA125125 (M8)125 - 13080025508423533737335
  • d1 - Ø (mm)125 - 130
  • A x B20 x 1,5
  • Grampo
  • Suporte de grampo
  • Grampo de tubo
  • Unidades de ar condicionado
  • Grampo de caleira
  • Edifício de betão em construção
icon book
Fichas Técnicas
FT_ABMETP_es_rev4.pdf
