a perfect fixing for your business

AB-RI A4

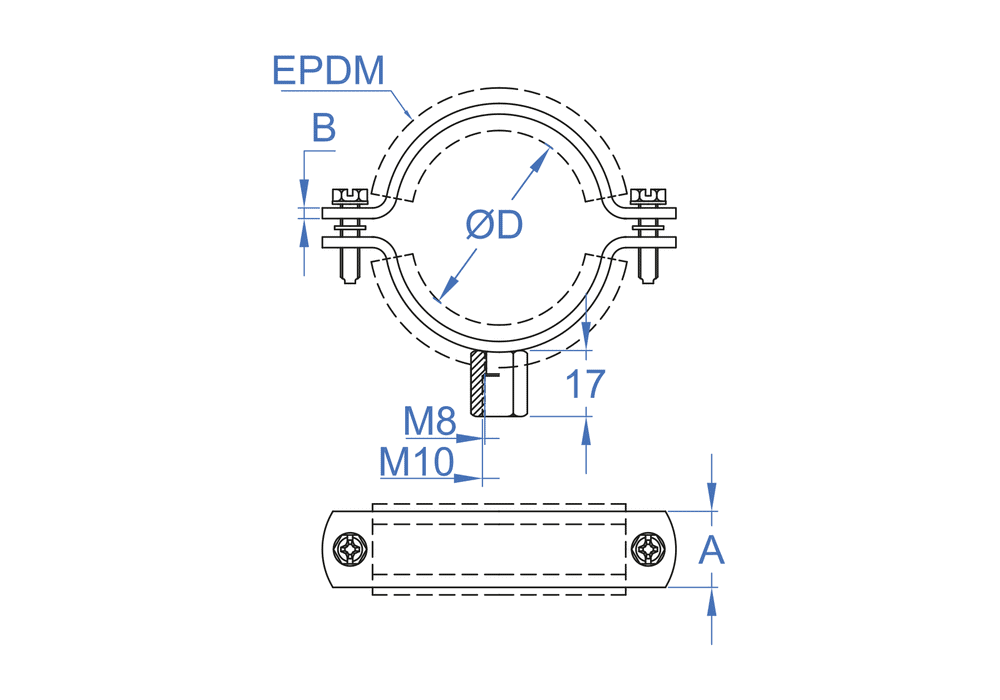

Abraçadeira isofónica reforçada M8 + M10. Inoxidável A4

CÓDIGOMEDIDAØD(mm)CARGA MÁXIMAUni. vendas mín.Uds CaixaUds. MasterboxEANInfo. Técnica
ABRIA401818 (M8+M10)15 - 181500502008423533738936
ABRIA402222 (M8+M10)20 - 241500501508423533738943
ABRIA402828 (M8+M10)26 - 301500501508423533738950
ABRIA403535 (M8+M10)32 - 361500501008423533738967
ABRIA404040 (M8+M10)36 - 42150025758423533738974
ABRIA404848 (M8+M10)47 - 50150025758423533738981
ABRIA405454 (M8+M10)51 - 55150025508423533738998
ABRIA406060 (M8+M10)60 - 64150025508423533739001
ABRIA407575 (M8+M10)75 - 8015002508423533045485
ABRIA409090 (M8+M10)87 - 9215002508423533045515
ABRIA4110110 (M8+M10)106 - 11215002508423533045522
ABRIA4115115 (M8+M10)114 - 11915002508423533045539
ABRIA4125125 (M8+M10)124 - 13115002508423533045546
ABRIA4140140 (M8+M10)133 - 14015002508423533045553
ABRIA4160160 (M8+M10)159 - 16315002508423533045560
  • Grampo
  • Grampo de suporte
  • Grampo de tubo
  • Grampo de flange
  • Unidades de ar condicionado
  • Grampo de caleira
  • Edifício de betão em construção
  • Edifício de betão em construção
