Bucha metálica segmentada inoxidável MTP-A4

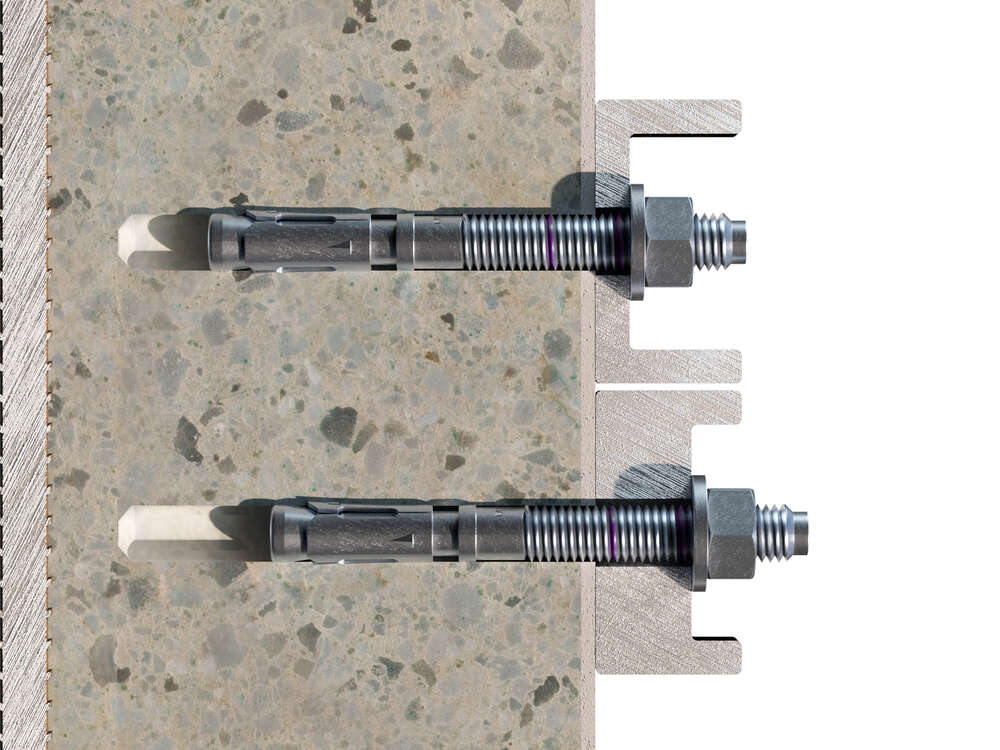

Bucha de expansão segmentada para cargas elevadas em betão fissurado e não fissurado. Instalação por binário controlado. Aprovado pela ETE Opt.1 para fixações estruturais em betão. Veio e clipe em aço inoxidável A4, garantindo durabilidade numa vasta gama de ambientes.

Aprovações e certificados

CÓDIGOMEDIDAESPESSURA MÁX. AFIXAR (mm)LETRA EIXO (LONGITUDE)Uds CaixaUds. MasterboxEANInfo. Técnica
APA408075M8 x 75 Ø89C1006008423533769831
  • tfix - Espessura máx. a fixar9
  • SW - Chave para instalação13
  • df - Ø Elemento a fixar9
  • Tins - Par de aperto (Nm)15
  • hef - Profundidade efetiva48
  • hnom - Profundidade min. de instalação55
  • h1 - Profundidade min. do furo60
  • d0 - Ø Broca8
  • hmin - Espessura min. do material base100
APA408095M8 x 95 Ø829E1006008423533866325
  • tfix - Espessura máx. a fixar29
  • SW - Chave para instalação13
  • df - Ø Elemento a fixar9
  • Tins - Par de aperto (Nm)15
  • hef - Profundidade efetiva48
  • hnom - Profundidade min. de instalação55
  • h1 - Profundidade min. do furo60
  • d0 - Ø Broca8
  • hmin - Espessura min. do material base100
APA408115M8 x 115 Ø849G1004008423533769855
  • tfix - Espessura máx. a fixar49
  • SW - Chave para instalação13
  • df - Ø Elemento a fixar9
  • Tins - Par de aperto (Nm)15
  • hef - Profundidade efetiva48
  • hnom - Profundidade min. de instalação55
  • h1 - Profundidade min. do furo60
  • d0 - Ø Broca8
  • hmin - Espessura min. do material base100
APA408135M8 x 135 Ø869H503008423533769862
  • tfix - Espessura máx. a fixar69
  • SW - Chave para instalação13
  • df - Ø Elemento a fixar9
  • Tins - Par de aperto (Nm)15
  • hef - Profundidade efetiva48
  • hnom - Profundidade min. de instalação55
  • h1 - Profundidade min. do furo60
  • d0 - Ø Broca8
  • hmin - Espessura min. do material base100
APA410090M10 x 90 Ø1010E1004008423533769886
  • tfix - Espessura máx. a fixar10
  • SW - Chave para instalação17
  • df - Ø Elemento a fixar12
  • Tins - Par de aperto (Nm)30
  • hef - Profundidade efetiva60
  • hnom - Profundidade min. de instalação68
  • h1 - Profundidade min. do furo75
  • d0 - Ø Broca10
  • hmin - Espessura min. do material base120
APA410105M10 x 105 Ø1025F503008423533769893
  • tfix - Espessura máx. a fixar25
  • SW - Chave para instalação17
  • df - Ø Elemento a fixar12
  • Tins - Par de aperto (Nm)30
  • hef - Profundidade efetiva60
  • hnom - Profundidade min. de instalação68
  • h1 - Profundidade min. do furo75
  • d0 - Ø Broca10
  • hmin - Espessura min. do material base120
APA410115M10 x 115 Ø1035G503008423533769909
  • tfix - Espessura máx. a fixar35
  • SW - Chave para instalação17
  • df - Ø Elemento a fixar12
  • Tins - Par de aperto (Nm)30
  • hef - Profundidade efetiva60
  • hnom - Profundidade min. de instalação68
  • h1 - Profundidade min. do furo75
  • d0 - Ø Broca10
  • hmin - Espessura min. do material base120
APA410135M10 x 135 Ø1055H503008423533769916
  • tfix - Espessura máx. a fixar55
  • SW - Chave para instalação17
  • df - Ø Elemento a fixar12
  • Tins - Par de aperto (Nm)30
  • hef - Profundidade efetiva60
  • hnom - Profundidade min. de instalação68
  • h1 - Profundidade min. do furo75
  • d0 - Ø Broca10
  • hmin - Espessura min. do material base120
APA410165M10 x 165 Ø1085K501008423533866332
  • tfix - Espessura máx. a fixar85
  • SW - Chave para instalação17
  • df - Ø Elemento a fixar12
  • Tins - Par de aperto (Nm)30
  • hef - Profundidade efetiva60
  • hnom - Profundidade min. de instalação68
  • h1 - Profundidade min. do furo75
  • d0 - Ø Broca10
  • hmin - Espessura min. do material base120
APA410185M10 x 185 Ø10105L501008423533769930
  • tfix - Espessura máx. a fixar105
  • SW - Chave para instalação17
  • df - Ø Elemento a fixar12
  • Tins - Par de aperto (Nm)30
  • hef - Profundidade efetiva60
  • hnom - Profundidade min. de instalação68
  • h1 - Profundidade min. do furo75
  • d0 - Ø Broca10
  • hmin - Espessura min. do material base120
APA412110M12 x 110 Ø1214F502008423533769947
  • tfix - Espessura máx. a fixar14
  • SW - Chave para instalação19
  • df - Ø Elemento a fixar14
  • Tins - Par de aperto (Nm)60
  • hef - Profundidade efetiva70
  • hnom - Profundidade min. de instalação80
  • h1 - Profundidade min. do furo85
  • d0 - Ø Broca12
  • hmin - Espessura min. do material base140
APA412120M12 x 120 Ø1224G502008423533769954
  • tfix - Espessura máx. a fixar24
  • SW - Chave para instalação19
  • df - Ø Elemento a fixar14
  • Tins - Par de aperto (Nm)60
  • hef - Profundidade efetiva70
  • hnom - Profundidade min. de instalação80
  • h1 - Profundidade min. do furo85
  • d0 - Ø Broca12
  • hmin - Espessura min. do material base140
APA412130M12 x 130 Ø1234H502008423533866349
  • tfix - Espessura máx. a fixar34
  • SW - Chave para instalação19
  • df - Ø Elemento a fixar14
  • Tins - Par de aperto (Nm)60
  • hef - Profundidade efetiva70
  • hnom - Profundidade min. de instalação80
  • h1 - Profundidade min. do furo85
  • d0 - Ø Broca12
  • hmin - Espessura min. do material base140
APA412150M12 x 150 Ø1254I501008423533866356
  • tfix - Espessura máx. a fixar54
  • SW - Chave para instalação19
  • df - Ø Elemento a fixar14
  • Tins - Par de aperto (Nm)60
  • hef - Profundidade efetiva70
  • hnom - Profundidade min. de instalação80
  • h1 - Profundidade min. do furo85
  • d0 - Ø Broca12
  • hmin - Espessura min. do material base140
APA412180M12 x 180 Ø1284L501508423533866363
  • tfix - Espessura máx. a fixar84
  • SW - Chave para instalação19
  • df - Ø Elemento a fixar14
  • Tins - Par de aperto (Nm)60
  • hef - Profundidade efetiva70
  • hnom - Profundidade min. de instalação80
  • h1 - Profundidade min. do furo85
  • d0 - Ø Broca12
  • hmin - Espessura min. do material base140
APA412200M12 x 200 Ø12104M501008423533769985
  • tfix - Espessura máx. a fixar104
  • SW - Chave para instalação19
  • df - Ø Elemento a fixar14
  • Tins - Par de aperto (Nm)60
  • hef - Profundidade efetiva70
  • hnom - Profundidade min. de instalação80
  • h1 - Profundidade min. do furo85
  • d0 - Ø Broca12
  • hmin - Espessura min. do material base140
APA416125M16 x 125 Ø168G501008423533866370
  • tfix - Espessura máx. a fixar8
  • SW - Chave para instalação24
  • df - Ø Elemento a fixar18
  • Tins - Par de aperto (Nm)100
  • hef - Profundidade efetiva85
  • hnom - Profundidade min. de instalação97
  • h1 - Profundidade min. do furo105
  • d0 - Ø Broca16
  • hmin - Espessura min. do material base170
APA416145M16 x 145 Ø1628I251008423533866387
  • tfix - Espessura máx. a fixar28
  • SW - Chave para instalação24
  • df - Ø Elemento a fixar18
  • Tins - Par de aperto (Nm)100
  • hef - Profundidade efetiva85
  • hnom - Profundidade min. de instalação97
  • h1 - Profundidade min. do furo105
  • d0 - Ø Broca16
  • hmin - Espessura min. do material base170
APA416175M16 x 175 Ø1658K25508423533866394
  • tfix - Espessura máx. a fixar58
  • SW - Chave para instalação24
  • df - Ø Elemento a fixar18
  • Tins - Par de aperto (Nm)100
  • hef - Profundidade efetiva85
  • hnom - Profundidade min. de instalação97
  • h1 - Profundidade min. do furo105
  • d0 - Ø Broca16
  • hmin - Espessura min. do material base170
APA416190M16 x 190 Ø1673L25508423533866400
  • tfix - Espessura máx. a fixar73
  • SW - Chave para instalação24
  • df - Ø Elemento a fixar18
  • Tins - Par de aperto (Nm)100
  • hef - Profundidade efetiva85
  • hnom - Profundidade min. de instalação97
  • h1 - Profundidade min. do furo105
  • d0 - Ø Broca16
  • hmin - Espessura min. do material base170
APA416220M16 x 220 Ø16103O20408423533770028
  • tfix - Espessura máx. a fixar103
  • SW - Chave para instalação24
  • df - Ø Elemento a fixar18
  • Tins - Par de aperto (Nm)100
  • hef - Profundidade efetiva85
  • hnom - Profundidade min. de instalação97
  • h1 - Profundidade min. do furo105
  • d0 - Ø Broca16
  • hmin - Espessura min. do material base170
APA420200M20 x 200 Ø2062M20408423533866417
  • tfix - Espessura máx. a fixar62
  • SW - Chave para instalação30
  • df - Ø Elemento a fixar22
  • Tins - Par de aperto (Nm)200
  • hef - Profundidade efetiva100
  • hnom - Profundidade min. de instalação114
  • h1 - Profundidade min. do furo125
  • d0 - Ø Broca20
  • hmin - Espessura min. do material base200
APA420240M20 x 240 Ø20102P15308423533866424
  • tfix - Espessura máx. a fixar102
  • SW - Chave para instalação30
  • df - Ø Elemento a fixar22
  • Tins - Par de aperto (Nm)200
  • hef - Profundidade efetiva100
  • hnom - Profundidade min. de instalação114
  • h1 - Profundidade min. do furo125
  • d0 - Ø Broca20
  • hmin - Espessura min. do material base200
APA420285M20 x 285 Ø20147S10208423533866431
  • tfix - Espessura máx. a fixar147
  • SW - Chave para instalação30
  • df - Ø Elemento a fixar22
  • Tins - Par de aperto (Nm)200
  • hef - Profundidade efetiva100
  • hnom - Profundidade min. de instalação114
  • h1 - Profundidade min. do furo125
  • d0 - Ø Broca20
  • hmin - Espessura min. do material base200

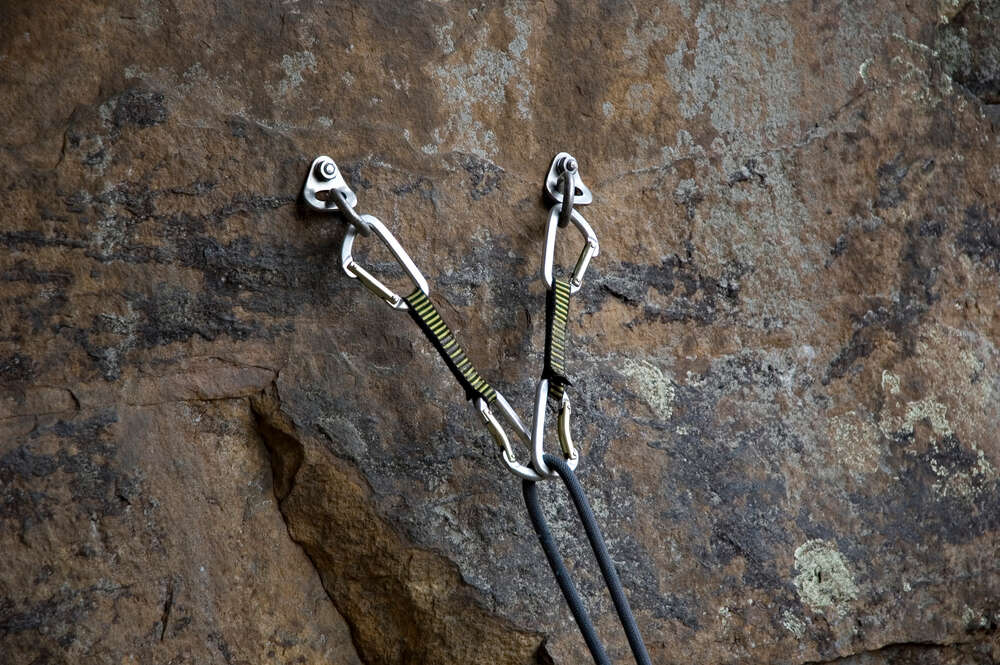

Adequado para equipamento de escalada em áreas exteriores sem problemas de fissuração por corrosão sob tensão. SCC (iões de cloro e enxofre).
  • Fixação de prateleiras

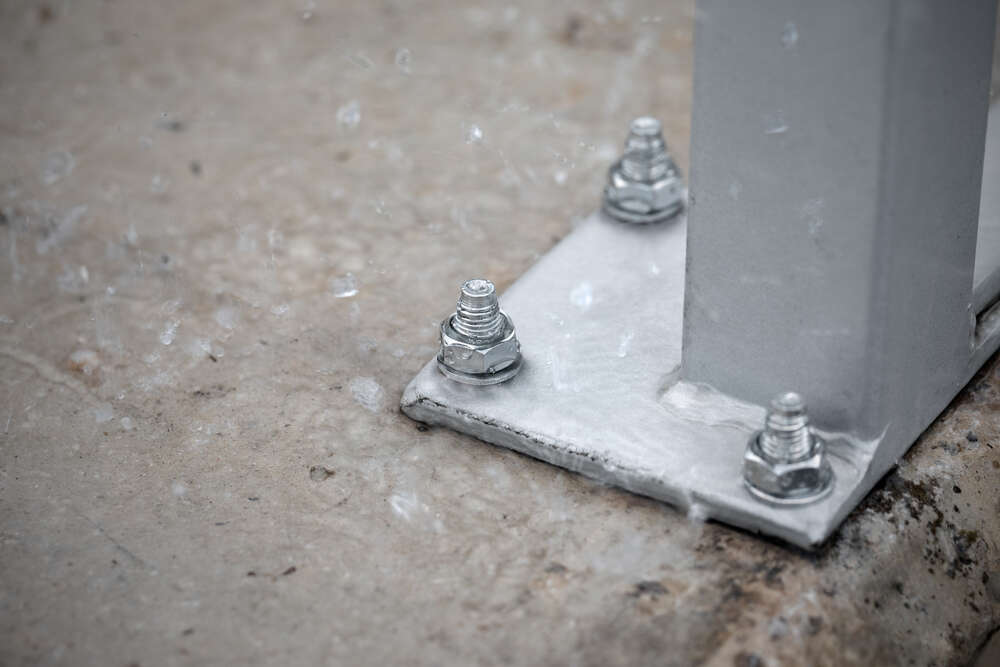

  • Estruturas de aço
  • Protecções
  • Mobiliário urbano
  • Maquinaria
  • Estruturas de madeira
  • Antenas

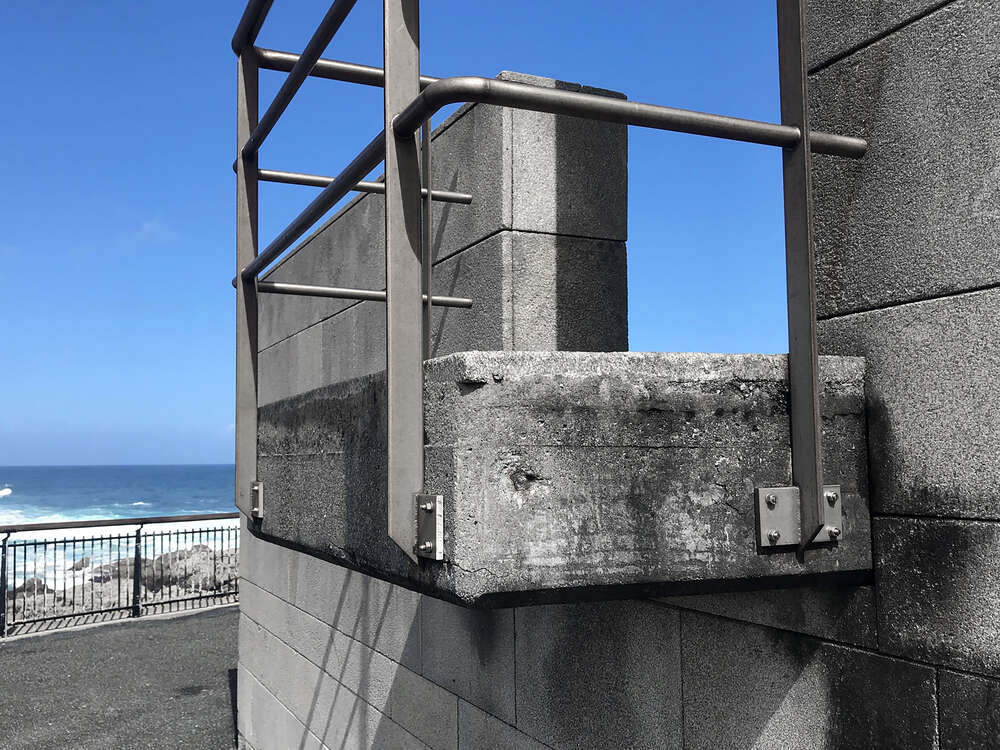

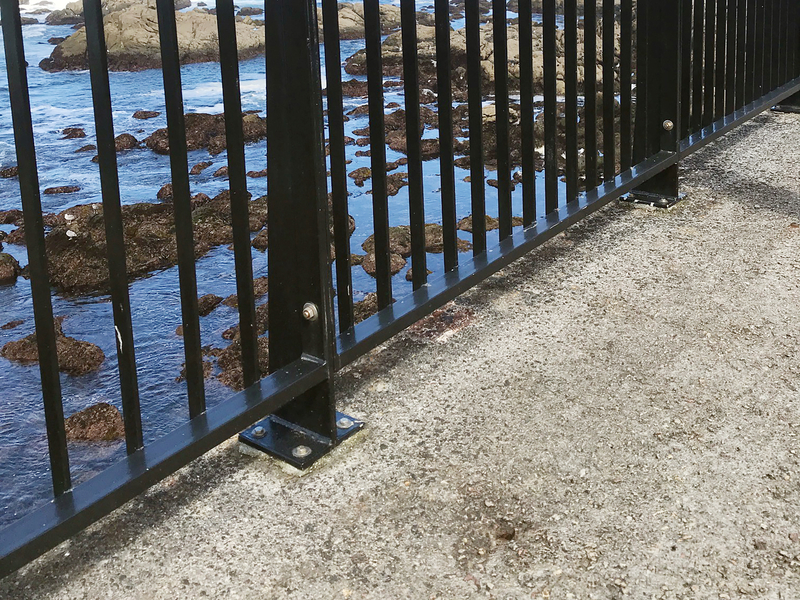

  • Guardas de varanda
  • Guardas de estrada
  • Guardas de madeira
  • Guardas de praia
  • Luzes de tecto
  • Tectos falsos
  • Tectos falsos
  • Luzes de tecto
  • Tectos falsos
  • Luzes de tecto
  • Tectos falsos
  • Tectos
  • Tectos
  • Tectos
  • Tectos
  • Tectos
  • Tectos
icon book
Fichas Técnicas
icon camera
Multimedia
icon table
Declaración de prestaciones
DoP_MTP_en_rev9.pdf

produtos relacionados

Solicitar mais informações

TÉCNICAS EXPANSIVAS S.L. informs that the personal data provided voluntarily on this website will be processed and incorporated into the corresponding files, responsibility of TÉCNICAS EXPANSIVAS S.L, is reported at the time of personal data collection, although, according to the specific case, its purpose may be any of the following: attention to your referred request, complaint or question, established relationship maintenance, comprehensive and commercial customer management, accounting and billing or sending communications, including electronic media, news and activities related to TÉCNICAS EXPANSIVAS S.L.

The data in our files are strictly confidential and shall be treated with the utmost confidentiality and shall comply with all the requirements provided for the General Data Protection Regulation (GDPR) 2016.

According to Data Protection legislation, you are strongly advised not to send high-level personal data, such as those relating to health, as they are not encoded or encrypted. Should these details be sent, it is done so under your sole responsibility.

The user may at any time exercise their rights of access, rectification, cancellation and opposition under the provisions of the General Data Protection Regulation (GDPR) 2016 by sending a letter together with a photocopy of your ID, to P.I. La Portalada II | c/ Segador 13, 26006 | Logroño (La Rioja).
Read more
MTP-A4

MTP-A4

Homologação ATE Opção 1. Eixo e clip em aço inoxidável A4
Fixações metálicas
Buchas químicas
Fixações plásticas
Fixações e acessórios para sistemas de isolamento térmico (ETICS)
Fixações para materiais ocos
Rebites
Acessórios para cabos correntes e vedações
Fixações e acessórios para placa de gesso
Fixação direta
Parafusos para telhados e fachadas
Parafusos broca, rosca chapa e PVC
Parafusos para madeira
Escápulas, pitões/camarões e pontas
Conetores para madeira
Parafusos normalizados
Brocas, pontas e acessórios
Abraçadeiras metálicas pesadas
Abraçadeiras metálicas leves
Sistemas de proteção contra incêndios
Suportes de caleira
Abraçadeiras plásticas
Perfis e suportes
Sistemas de instalação e fixações para painéis solares
Sistemas de fixação rápida a viga
Varão roscado e acessórios de fixação
Fixação para sanitários e climatização
DIY

FORMAÇÃO TÉCNICA

O nosso departamento de engenharia coloca à sua disposição formações específicas e personalizadas nos diferentes temas relacionados com o mundo da fixação: fixações metálicas ou químicas, sistemas de instalação, normas, realização de cálculos…

TÉCNICAS EXPANSIVAS S.L. informs that the personal data provided voluntarily on this website will be processed and incorporated into the corresponding files, responsibility of TÉCNICAS EXPANSIVAS S.L, is reported at the time of personal data collection, although, according to the specific case, its purpose may be any of the following: attention to your referred request, complaint or question, established relationship maintenance, comprehensive and commercial customer management, accounting and billing or sending communications, including electronic media, news and activities related to TÉCNICAS EXPANSIVAS S.L.

The data in our files are strictly confidential and shall be treated with the utmost confidentiality and shall comply with all the requirements provided for the General Data Protection Regulation (GDPR) 2016.

According to Data Protection legislation, you are strongly advised not to send high-level personal data, such as those relating to health, as they are not encoded or encrypted. Should these details be sent, it is done so under your sole responsibility.

The user may at any time exercise their rights of access, rectification, cancellation and opposition under the provisions of the General Data Protection Regulation (GDPR) 2016 by sending a letter together with a photocopy of your ID, to P.I. La Portalada II | c/ Segador 13, 26006 | Logroño (La Rioja).
Ler mais

VISITAS À OBRA

O nosso departamento de engenharia coloca à sua disposição formações específicas e personalizadas nos diferentes temas relacionados com o mundo da fixação: fixações metálicas ou químicas, sistemas de instalação, normas, realização de cálculos…

TÉCNICAS EXPANSIVAS S.L. informs that the personal data provided voluntarily on this website will be processed and incorporated into the corresponding files, responsibility of TÉCNICAS EXPANSIVAS S.L, is reported at the time of personal data collection, although, according to the specific case, its purpose may be any of the following: attention to your referred request, complaint or question, established relationship maintenance, comprehensive and commercial customer management, accounting and billing or sending communications, including electronic media, news and activities related to TÉCNICAS EXPANSIVAS S.L.

The data in our files are strictly confidential and shall be treated with the utmost confidentiality and shall comply with all the requirements provided for the General Data Protection Regulation (GDPR) 2016.

According to Data Protection legislation, you are strongly advised not to send high-level personal data, such as those relating to health, as they are not encoded or encrypted. Should these details be sent, it is done so under your sole responsibility.

The user may at any time exercise their rights of access, rectification, cancellation and opposition under the provisions of the General Data Protection Regulation (GDPR) 2016 by sending a letter together with a photocopy of your ID, to P.I. La Portalada II | c/ Segador 13, 26006 | Logroño (La Rioja).
Ler mais

SERVIÇOS DE ENGENHARIA E REALIZAÇÃO DE CÁLCULOS

TÉCNICAS EXPANSIVAS S.L. informs that the personal data provided voluntarily on this website will be processed and incorporated into the corresponding files, responsibility of TÉCNICAS EXPANSIVAS S.L, is reported at the time of personal data collection, although, according to the specific case, its purpose may be any of the following: attention to your referred request, complaint or question, established relationship maintenance, comprehensive and commercial customer management, accounting and billing or sending communications, including electronic media, news and activities related to TÉCNICAS EXPANSIVAS S.L.

The data in our files are strictly confidential and shall be treated with the utmost confidentiality and shall comply with all the requirements provided for the General Data Protection Regulation (GDPR) 2016.

According to Data Protection legislation, you are strongly advised not to send high-level personal data, such as those relating to health, as they are not encoded or encrypted. Should these details be sent, it is done so under your sole responsibility.

The user may at any time exercise their rights of access, rectification, cancellation and opposition under the provisions of the General Data Protection Regulation (GDPR) 2016 by sending a letter together with a photocopy of your ID, to P.I. La Portalada II | c/ Segador 13, 26006 | Logroño (La Rioja).
Ler mais
