Produtos / Parafusos / Parafusos broca, rosca chapa e PVC / DIN-7981 H / DIN-7981 HP N
DIN-7981 HP N
DIN-7981 HP N

DIN-7981 HP N

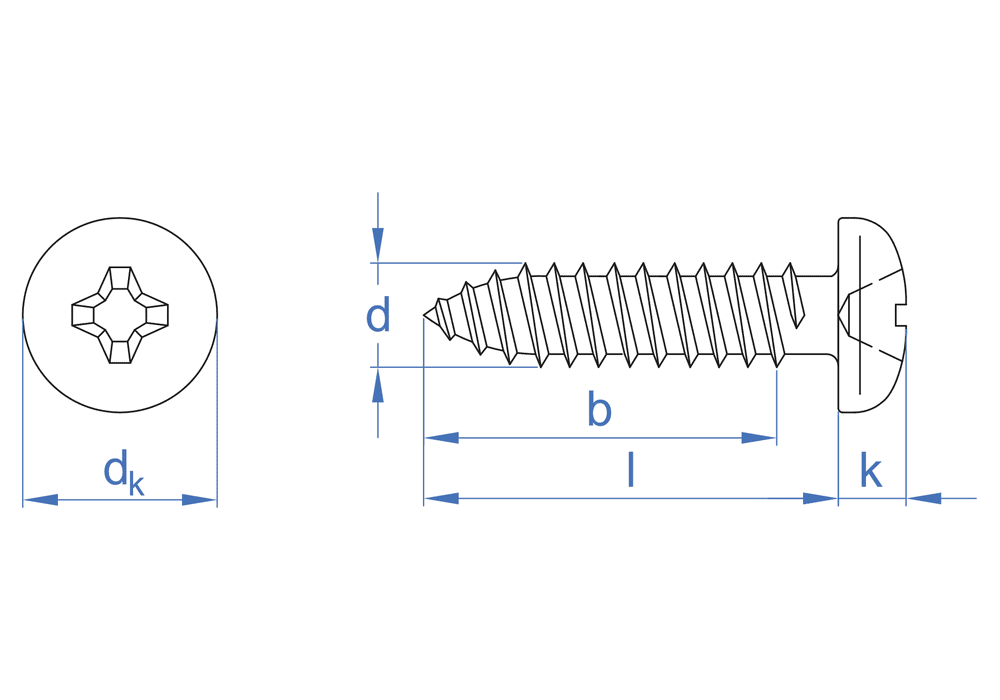

Parafuso autorroscante para chapa cabeça cilíndrica. Preto. PH

CÓDIGOMEDIDANº FENDAUni. vendas mín.Uds CaixaUds. MasterboxEANInfo. Técnica
TZN8129092,9 x 9,5PH101.00030.0008423533160850
  • tfix - Espessura máx. a fixar5,5
  • L - Comprimento9,5
TZN8135133,5 x 13PH2050015.0008423533161659
  • tfix - Espessura máx. a fixar8
  • L - Comprimento13
TZN8135163,5 x 16PH2050012.0008423533161758
  • tfix - Espessura máx. a fixar11
  • L - Comprimento16
TZN8135193,5 x 19PH2050012.0008423533161857
  • tfix - Espessura máx. a fixar14
  • L - Comprimento19
TZN8135253,5 x 25PH202506.0008423533162052
  • tfix - Espessura máx. a fixar20
  • L - Comprimento25
TZN8142164,2 x 16PH2050012.0008423533163653
  • tfix - Espessura máx. a fixar10
  • L - Comprimento16
TZN8142194,2 x 19PH205008.0008423533163752
  • tfix - Espessura máx. a fixar13
  • L - Comprimento19
TZN8142254,2 x 25PH202506.0008423533163950
  • tfix - Espessura máx. a fixar19
  • L - Comprimento25
TZN8142324,2 x 32PH202506.0008423533164056
  • tfix - Espessura máx. a fixar26
  • L - Comprimento32
TZN8142384,2 x 38PH202503.0008423533164155
  • tfix - Espessura máx. a fixar32
  • L - Comprimento38
TZN8148164,8 x 16PH202506.0008423533164858
  • tfix - Espessura máx. a fixar9
  • L - Comprimento16
TZN8148194,8 x 19PH202506.0008423533164957
  • tfix - Espessura máx. a fixar12
  • L - Comprimento19
TZN8148224,8 x 22PH202506.0008423533165053
  • tfix - Espessura máx. a fixar15
  • L - Comprimento22
TZN8148254,8 x 25PH202506.0008423533165152
  • tfix - Espessura máx. a fixar18
  • L - Comprimento25
TZN8148384,8 x 38PH202503.0008423533165350
  • tfix - Espessura máx. a fixar31
  • L - Comprimento38
TZN8148504,8 x 50PH202503.0008423533165558
  • tfix - Espessura máx. a fixar43
  • L - Comprimento50
  • Sinais
  • Montagem de placas
  • Frigorífico
  • Perfis de placas
  • Sinais
  • Ancoragem de vedação
  • Armário de cozinha
  • Grelhas de janelas
icon book
Fichas Técnicas
FT_ROS_es_rev9.pdf
Quais são as causas típicas de falha de um parafuso autoperfurante?
Porque o parafuso inoxidável não perfura aços?
