Produtos / Parafusos / Parafusos broca, rosca chapa e PVC / DIN-7504-N / DIN-7504-N HP A2
DIN-7504-N HP A2
DIN-7504-N HP A2

DIN-7504-N HP A2

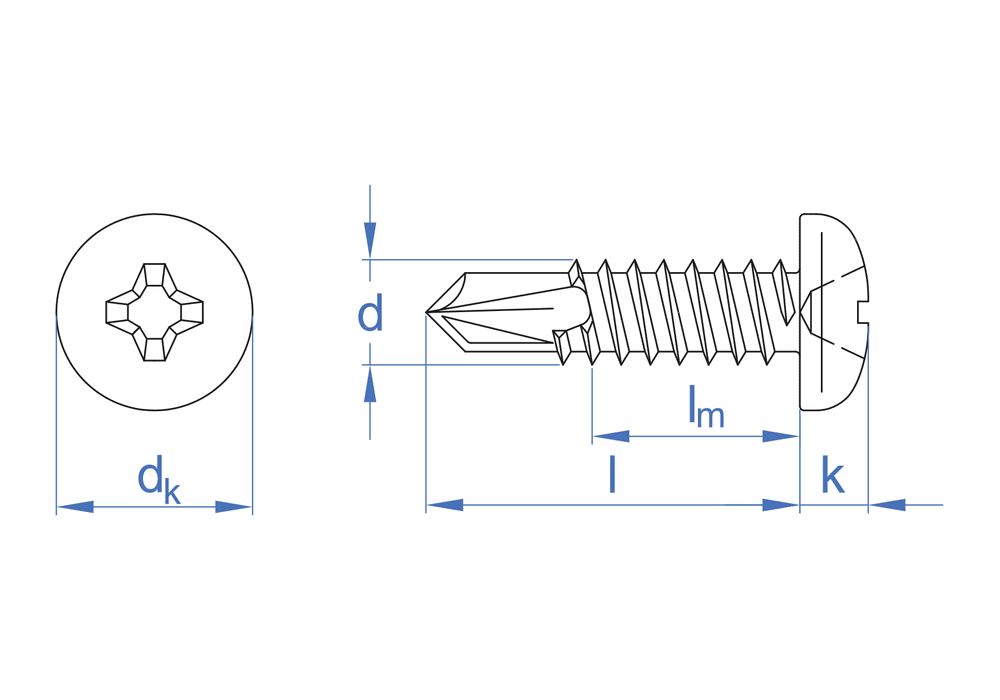

Parafuso autoperfurante cabeça cilíndrica. Aço inoxidável A2. PH

CÓDIGOMEDIDANº FENDAESPESSURA MÁX. AFIXAR (mm)CAPACIDADE DE FURAÇÃOUni. vendas mín.Uds CaixaUds. MasterboxEANInfo. Técnica
ABRA235093,5 x 9,5PH22,850,70-2,2501.00024.0008423533136008
  • tfix - Espessura máx. a fixar2,85
  • L - Comprimento9,5
ABRA235133,5 x 13PH26,20,70-2,25050012.0008423533136107
  • tfix - Espessura máx. a fixar6,2
  • L - Comprimento13
ABRA235193,5 x 19PH212,10,70-2,25050012.0008423533136305
  • tfix - Espessura máx. a fixar12,1
  • L - Comprimento19
ABRA242134,2 x 13PH24,31,75-3,00050012.0008423533136701
  • tfix - Espessura máx. a fixar4,3
  • L - Comprimento13
ABRA242164,2 x 16PH27,31,75-3,00050012.0008423533136800
  • tfix - Espessura máx. a fixar7,3
  • L - Comprimento16
ABRA242194,2 x 19PH210,31,75-3,00050012.0008423533136909
  • tfix - Espessura máx. a fixar10,3
  • L - Comprimento19
ABRA242254,2 x 25PH216,31,75-3,0002506.0008423533137005
  • tfix - Espessura máx. a fixar16,3
  • L - Comprimento25
ABRA248164,8 x 16PH25,51,75-4,4002506.0008423533137104
  • tfix - Espessura máx. a fixar5,5
  • L - Comprimento16
ABRA248194,8 x 19PH28,71,75-4,4002506.0008423533137203
  • tfix - Espessura máx. a fixar8,7
  • L - Comprimento19
ABRA248254,8 x 25PH214,71,75-4,4002506.0008423533137302
  • tfix - Espessura máx. a fixar14,7
  • L - Comprimento25
ABRA248324,8 x 32PH221,51,75-4,4002504.0008423533137401
  • tfix - Espessura máx. a fixar21,5
  • L - Comprimento32
ABRA248384,8 x 38PH227,51,75-4,4002503.0008423533137500
  • tfix - Espessura máx. a fixar27,5
  • L - Comprimento38
ABRA248504,8 x 50PH239,51,75-4,4002503.0008423533137609
  • tfix - Espessura máx. a fixar39,5
  • L - Comprimento50
  • Fixação de prateleiras
  • Instalação de extintores de incêndio
  • Sinais
  • Perfis de chapa
  • Folhas de sanduíche em toldos
  • Sinais
  • Telhado de chapa metálica
  • Parafusos planos
icon book
Fichas Técnicas
FT_BRO_es_rev16.pdf
Quais são as causas típicas de falha de um parafuso autoperfurante?
Porque o parafuso inoxidável não perfura aços?
