Produtos / Sistemas de Instalação / Abraçadeiras metálicas pesadas / AB-GA / AB-GA
AB-GA
AB-GA

AB-GA

Abraçadeira amarela gásmica M8 + M10. Abraçadeira amarela gásmica M8 + M10

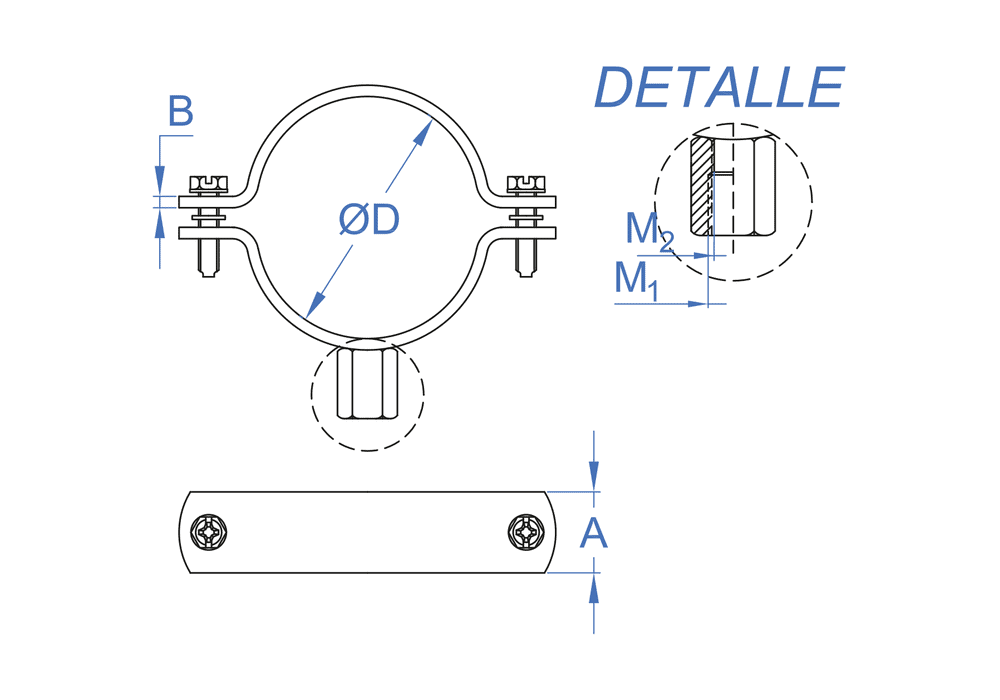

CÓDIGOMEDIDAØD(mm)CARGA MÁXIMAUni. vendas mín.Uds CaixaUds. MasterboxEANInfo. Técnica
ABGA01818 (M8)15 - 182000503008423533736796
  • d1 - Ø (mm)15 - 18
  • A x B20 x 2
ABGA02222 (M8)20 - 242000502008423533736802
  • d1 - Ø (mm)20 - 24
  • A x B20 x 2
ABGA02828 (M8)26 - 302000501508423533736819
  • d1 - Ø (mm)26 - 30
  • A x B20 x 2
ABGA03535 (M8)32 - 362000501008423533736826
  • d1 - Ø (mm)32 - 36
  • A x B20 x 2
ABGA04040 (M8)38 - 422000501008423533736833
  • d1 - Ø (mm)38 - 42
  • A x B20 x 2
ABGA04848 (M8)47 - 502000501008423533736840
  • d1 - Ø (mm)47 - 50
  • A x B20 x 2
ABGA05454 (M8)52 - 56200025758423533736857
  • d1 - Ø (mm)52 - 56
  • A x B20 x 2
ABGA06060 (M8/M10)60 - 64200025758423533736864
  • d1 - Ø (mm)60 - 64
  • A x B20 x 2
ABGA07575 (M8/M10)75 - 80200025508423533736871
  • d1 - Ø (mm)75 - 80
  • A x B20 x 2
ABGA09090 (M8/M10)85 - 9020002508423533043238
  • d1 - Ø (mm)85 - 90
  • A x B20 x 2
ABGA100100 (M8/M10)99 - 10520002508423533043245
  • d1 - Ø (mm)99 - 105
  • A x B20 x 2
ABGA110110 (M8/M10)107 - 11220002508423533043252
  • d1 - Ø (mm)107 - 112
  • A x B20 x 2
ABGA115115 (M8/M10)113 - 11820002508423533043269
  • d1 - Ø (mm)113 - 118
  • A x B20 x 2
ABGA140140 (M8/M10)138 - 14220002508423533043276
  • d1 - Ø (mm)138 - 142
  • A x B20 x 2
ABGA160160 (M8/M10)159 - 16620002508423533736932
  • d1 - Ø (mm)159 - 166
  • A x B20 x 2
  • Grampo
  • Suporte de grampo
  • Grampo de tubo
  • Unidades de ar condicionado
  • Grampo de caleira
  • Edifício de betão em construção
icon book
Fichas Técnicas
FT_ABGASIN_es_rev1.pdf
