Bucha para andaimes e fachadas com cápsula Zamak AN-50 CT

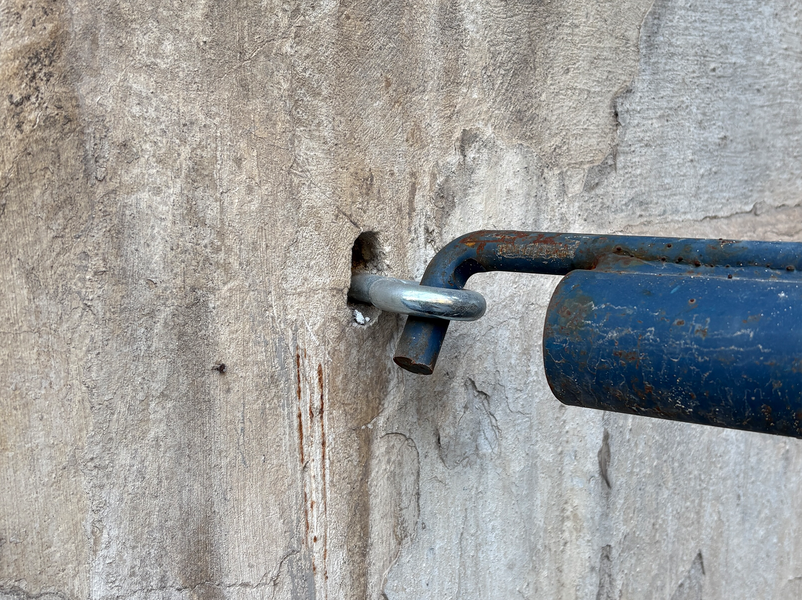

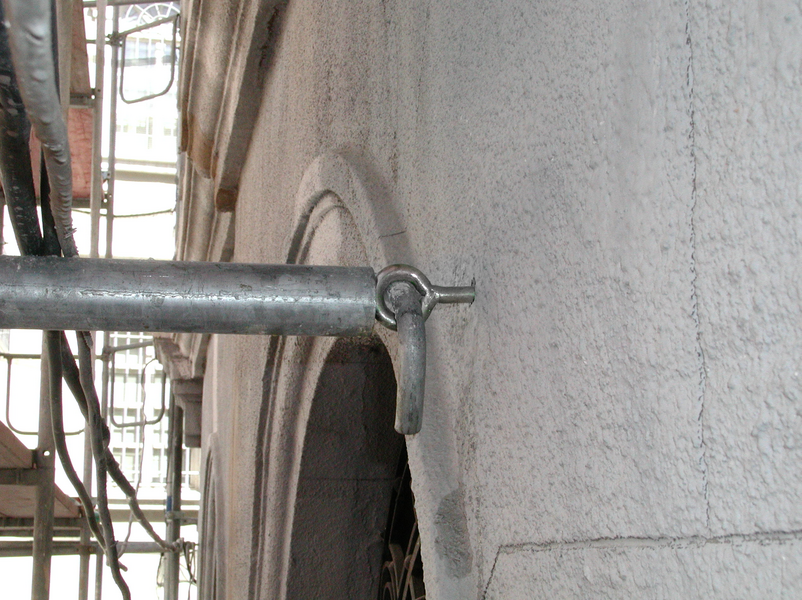

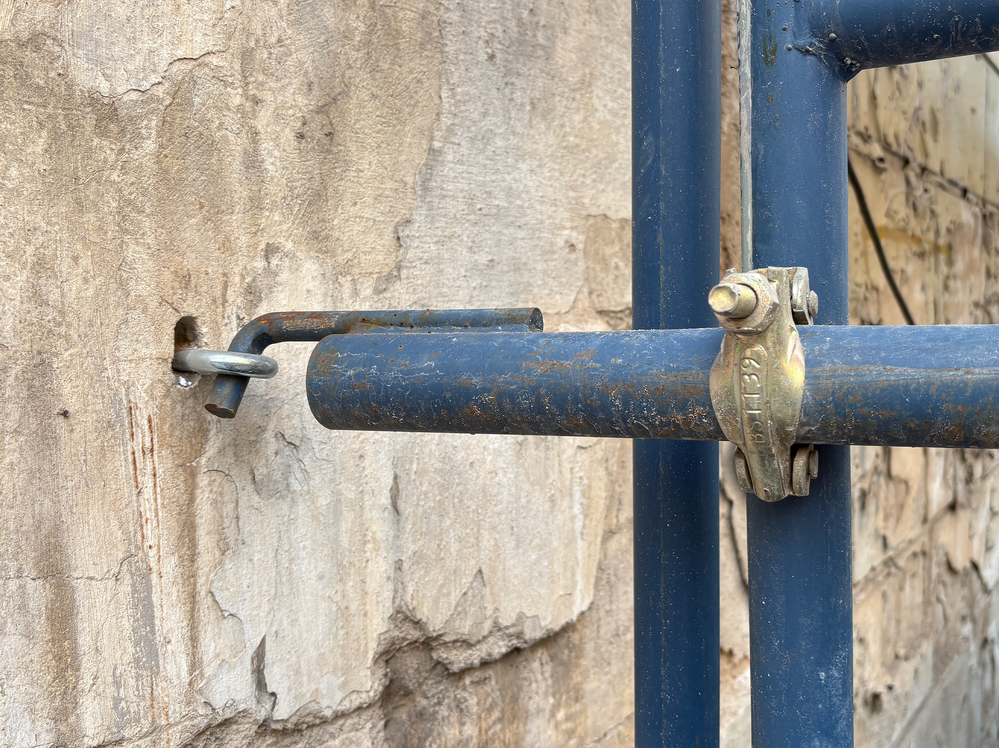

Bucha especialmente concebida para a fixação de andaimes, com parafuso de olhal soldado de 50 mm e cápsula de zamak. Adequado para cargas médias e ligeiras em materiais sólidos ou ocos. Anel com revestimento zincado, que protege o material da corrosão.
CÓDIGOMEDIDAØ TAMPÃOPROFUNDIDADE MIN. DO FUROPROFUNDIDADE MIN.DE INSTALAÇÃOØ OLHALUds CaixaUds. MasterboxEANInfo. Técnica
ANFAZ5021M10 x 210 Ø16210120555010208423533085757
  • tfix - Espessura máx. a fixar77
  • hef - Profundidade efetiva42
  • hnom - Profundidade min. de instalação55
  • h1 - Profundidade min. do furo120
  • hmin - Espessura min. do material base160
  • Andaimes
  • Estandartes
  • Estandartes
  • Marquises
  • Sinais
icon book
Fichas Técnicas
FT_ANFA_es_rev4.pdf
