T-NUX A

Bucha universal de nylon de alto rendimento. Cabeça de embeber. TX. Zincado. Homologação ATE

Aprovações e certificados

CÓDIGOMEDIDANº FENDAESPESSURA MÁX. AFIXAR (mm)Uni. vendas mín.Uds CaixaUds/BlisterUds/Caixa con JanelaUds. MasterboxBlisters/Caixa BLCaixas con Janela/MasterboxEANInfo. Técnica
TNUXA080608 x 60 Ø8TX30100506008423533695185

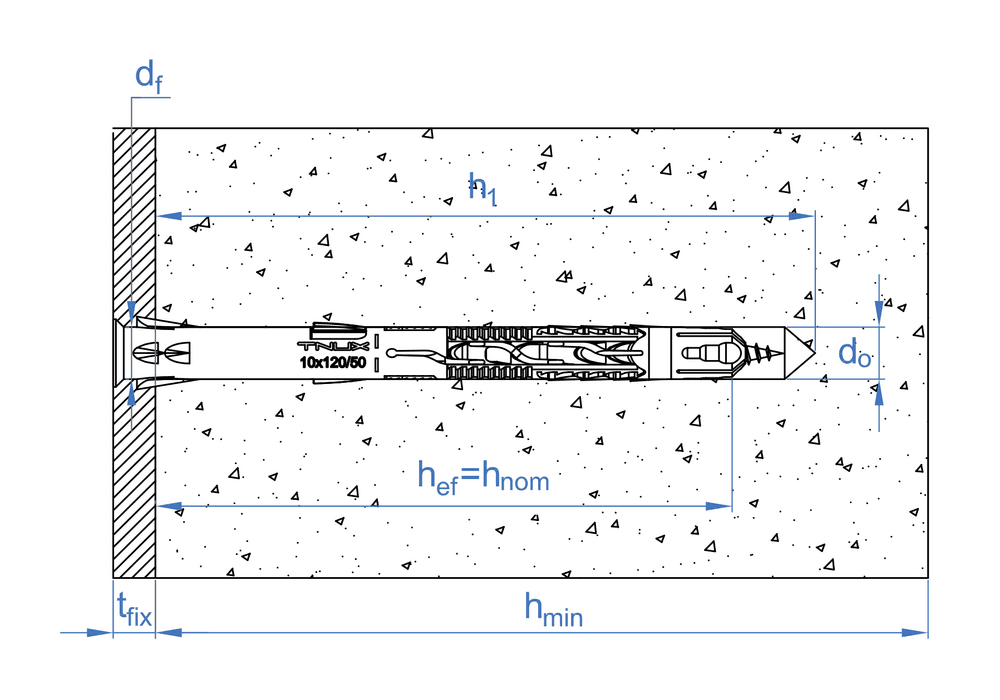

  • tfix - Espessura máx. a fixar10
  • SW - Chave para instalaçãoTX30
  • df - Ø Elemento a fixar8 - 8,5
  • hef - Profundidade efetiva50
  • hnom - Profundidade min. de instalação50
  • h1 - Profundidade min. do furo70
  • d0 - Ø Broca8
  • hmin - Espessura min. do material base100
TNUXA080808 x 80 Ø8TX30100506008423533695192
  • tfix - Espessura máx. a fixar10
  • SW - Chave para instalaçãoTX30
  • df - Ø Elemento a fixar8 - 8,5
  • hef - Profundidade efetiva70
  • hnom - Profundidade min. de instalação70
  • h1 - Profundidade min. do furo90
  • d0 - Ø Broca8
  • hmin - Espessura min. do material base100
TNUXA081008 x 100 Ø8TX30300506008423533695208
  • tfix - Espessura máx. a fixar30
  • SW - Chave para instalaçãoTX30
  • df - Ø Elemento a fixar8 - 8,5
  • hef - Profundidade efetiva70
  • hnom - Profundidade min. de instalação70
  • h1 - Profundidade min. do furo90
  • d0 - Ø Broca8
  • hmin - Espessura min. do material base100
TNUXA081208 x 120 Ø8TX30500503008423533695215
  • tfix - Espessura máx. a fixar50
  • SW - Chave para instalaçãoTX30
  • df - Ø Elemento a fixar8 - 8,5
  • hef - Profundidade efetiva70
  • hnom - Profundidade min. de instalação70
  • h1 - Profundidade min. do furo90
  • d0 - Ø Broca8
  • hmin - Espessura min. do material base100
TNUXA1006010 x 60 Ø10TX40100503008423533695222
  • tfix - Espessura máx. a fixar10
  • SW - Chave para instalaçãoTX40
  • df - Ø Elemento a fixar10 - 11
  • hef - Profundidade efetiva50
  • hnom - Profundidade min. de instalação50
  • h1 - Profundidade min. do furo70
  • d0 - Ø Broca10
  • hmin - Espessura min. do material base100
TNUXA1008010 x 80 Ø10TX40100503008423533695239
  • tfix - Espessura máx. a fixar10
  • SW - Chave para instalaçãoTX40
  • df - Ø Elemento a fixar10 - 11
  • hef - Profundidade efetiva70
  • hnom - Profundidade min. de instalação70
  • h1 - Profundidade min. do furo90
  • d0 - Ø Broca10
  • hmin - Espessura min. do material base100
TNUXA1010010 x 100 Ø10TX40300503008423533695246
  • tfix - Espessura máx. a fixar30
  • SW - Chave para instalaçãoTX40
  • df - Ø Elemento a fixar10 - 11
  • hef - Profundidade efetiva70
  • hnom - Profundidade min. de instalação70
  • h1 - Profundidade min. do furo90
  • d0 - Ø Broca10
  • hmin - Espessura min. do material base100
TNUXA1012010 x 120 Ø10TX40500503008423533695253
  • tfix - Espessura máx. a fixar50
  • SW - Chave para instalaçãoTX40
  • df - Ø Elemento a fixar10 - 11
  • hef - Profundidade efetiva70
  • hnom - Profundidade min. de instalação70
  • h1 - Profundidade min. do furo90
  • d0 - Ø Broca10
  • hmin - Espessura min. do material base100
TNUXA1014010 x 140 Ø10TX40700503008423533695260
  • tfix - Espessura máx. a fixar70
  • SW - Chave para instalaçãoTX40
  • df - Ø Elemento a fixar10 - 11
  • hef - Profundidade efetiva70
  • hnom - Profundidade min. de instalação70
  • h1 - Profundidade min. do furo90
  • d0 - Ø Broca10
  • hmin - Espessura min. do material base100
TNUXA1016010 x 160 Ø10TX40900502008423533695277
  • tfix - Espessura máx. a fixar90
  • SW - Chave para instalaçãoTX40
  • df - Ø Elemento a fixar10 - 11
  • hef - Profundidade efetiva70
  • hnom - Profundidade min. de instalação70
  • h1 - Profundidade min. do furo90
  • d0 - Ø Broca10
  • hmin - Espessura min. do material base100
TNUXA1018010 x 180 Ø10TX401100501508423533695284
  • tfix - Espessura máx. a fixar110
  • SW - Chave para instalaçãoTX40
  • df - Ø Elemento a fixar10 - 11
  • hef - Profundidade efetiva70
  • hnom - Profundidade min. de instalação70
  • h1 - Profundidade min. do furo90
  • d0 - Ø Broca10
  • hmin - Espessura min. do material base100
TNUXA1020010 x 200 Ø10TX401300501508423533695291
  • tfix - Espessura máx. a fixar130
  • SW - Chave para instalaçãoTX40
  • df - Ø Elemento a fixar10 - 11
  • hef - Profundidade efetiva70
  • hnom - Profundidade min. de instalação70
  • h1 - Profundidade min. do furo90
  • d0 - Ø Broca10
  • hmin - Espessura min. do material base100
TNUXA1023010 x 230 Ø10TX401600501008423533695307
  • tfix - Espessura máx. a fixar160
  • SW - Chave para instalaçãoTX40
  • df - Ø Elemento a fixar10 - 11
  • hef - Profundidade efetiva70
  • hnom - Profundidade min. de instalação70
  • h1 - Profundidade min. do furo90
  • d0 - Ø Broca10
  • hmin - Espessura min. do material base100
VTNUXA080808 x 80 Ø8TX30100888423533754073
  • tfix - Espessura máx. a fixar10
  • SW - Chave para instalaçãoTX30
  • df - Ø Elemento a fixar8 - 8,5
  • hef - Profundidade efetiva70
  • hnom - Profundidade min. de instalação70
  • h1 - Profundidade min. do furo90
  • d0 - Ø Broca8
  • hmin - Espessura min. do material base100
VTNUXA081008 x 100 Ø8TX30300888423533755261
  • tfix - Espessura máx. a fixar30
  • SW - Chave para instalaçãoTX30
  • df - Ø Elemento a fixar8 - 8,5
  • hef - Profundidade efetiva70
  • hnom - Profundidade min. de instalação70
  • h1 - Profundidade min. do furo90
  • d0 - Ø Broca8
  • hmin - Espessura min. do material base100
VTNUXA1008010 x 80 Ø10TX40100888423533755278
  • tfix - Espessura máx. a fixar10
  • SW - Chave para instalaçãoTX40
  • df - Ø Elemento a fixar10 - 11
  • hef - Profundidade efetiva70
  • hnom - Profundidade min. de instalação70
  • h1 - Profundidade min. do furo90
  • d0 - Ø Broca10
  • hmin - Espessura min. do material base100
VTNUXA1010010 x 100 Ø10TX40300888423533755285
  • tfix - Espessura máx. a fixar30
  • SW - Chave para instalaçãoTX40
  • df - Ø Elemento a fixar10 - 11
  • hef - Profundidade efetiva70
  • hnom - Profundidade min. de instalação70
  • h1 - Profundidade min. do furo90
  • d0 - Ø Broca10
  • hmin - Espessura min. do material base100
BZTNXA081008 x 100 Ø8TX303002158423533422187
  • tfix - Espessura máx. a fixar30
  • SW - Chave para instalaçãoTX30
  • df - Ø Elemento a fixar8 - 8,5
  • hef - Profundidade efetiva70
  • hnom - Profundidade min. de instalação70
  • h1 - Profundidade min. do furo90
  • d0 - Ø Broca8
  • hmin - Espessura min. do material base100
BZTNXA1012010 x 120 Ø10TX405002158423533422224
  • tfix - Espessura máx. a fixar50
  • SW - Chave para instalaçãoTX40
  • df - Ø Elemento a fixar10 - 11
  • hef - Profundidade efetiva70
  • hnom - Profundidade min. de instalação70
  • h1 - Profundidade min. do furo90
  • d0 - Ø Broca10
  • hmin - Espessura min. do material base100
  • Grampo
  • Grampo de suporte
  • Grampo de tubo
  • Grampo de flange
  • Unidades de ar condicionado
  • âncora de telhado
  • âncora de treliça
  • âncora de cremalheira
  • âncora de prateleira
T-NUX A
icon book
Fichas Técnicas
icon camera
Multimedia
icon table
Declaración de prestaciones
DoP_TNUX_n_es_rev3.pdf
