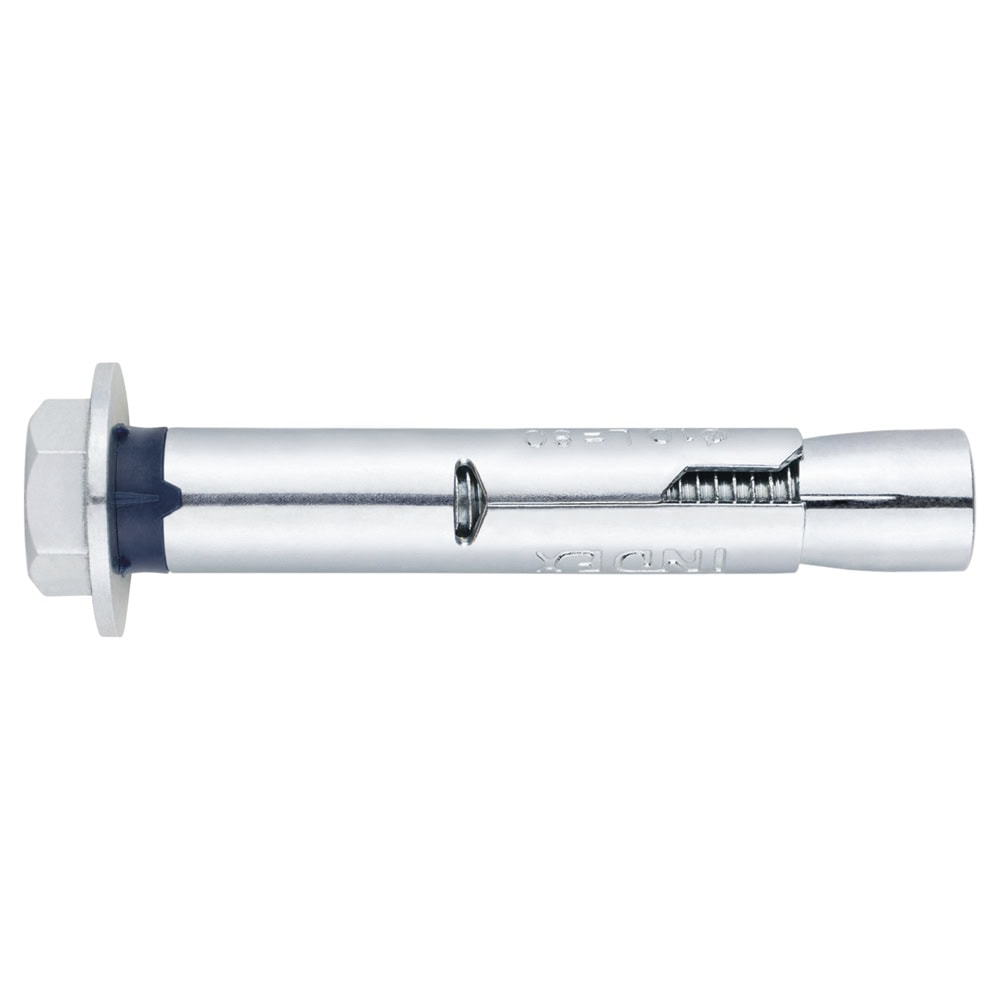

Bucha metálica anti-rotação com parafuso sextavado CH-88

Bucha metálica anti-rotação com parafuso hexagonal 8.8. Para utilização em materiais sólidos. Está equipada com dispositivos anti-rotação que impedem a rotação da bucha durante o aperto. Funciona por meio de expansão mecânica controlada por binário. Fabricado em aço zincado.

Aprovações e certificados

CÓDIGOMEDIDANº FENDAABERTURA GANCHOØ OLHALUds CaixaUds. MasterboxEANInfo. Técnica
ACHT8808CM6 x 45 Ø82001.2008423533584366
  • tfix - Espessura máx. a fixar5
  • SW - Chave para instalação10
  • df - Ø Elemento a fixar9
  • Tins - Par de aperto (Nm)10
  • hef - Profundidade efetiva30
  • hnom - Profundidade min. de instalação39
  • h1 - Profundidade min. do furo45
  • d0 - Ø Broca8
  • hmin - Espessura min. do material base100
ACHT8808LM6 x 60 Ø82008008423533584380
  • tfix - Espessura máx. a fixar20
  • SW - Chave para instalação10
  • df - Ø Elemento a fixar9
  • Tins - Par de aperto (Nm)10
  • hef - Profundidade efetiva30
  • hnom - Profundidade min. de instalação39
  • h1 - Profundidade min. do furo45
  • d0 - Ø Broca8
  • hmin - Espessura min. do material base100
ACHT8810CM8 x 60 Ø101006008423533584410
  • tfix - Espessura máx. a fixar5
  • SW - Chave para instalação13
  • df - Ø Elemento a fixar12
  • Tins - Par de aperto (Nm)20
  • hef - Profundidade efetiva40
  • hnom - Profundidade min. de instalação51
  • h1 - Profundidade min. do furo60
  • d0 - Ø Broca10
  • hmin - Espessura min. do material base100
ACHT8810LM8 x 80 Ø101004008423533584434
  • tfix - Espessura máx. a fixar27
  • SW - Chave para instalação13
  • df - Ø Elemento a fixar12
  • Tins - Par de aperto (Nm)20
  • hef - Profundidade efetiva40
  • hnom - Profundidade min. de instalação51
  • h1 - Profundidade min. do furo60
  • d0 - Ø Broca10
  • hmin - Espessura min. do material base100
ACHT8812CM10 x 70 Ø121002008423533584458
  • tfix - Espessura máx. a fixar5
  • SW - Chave para instalação17
  • df - Ø Elemento a fixar14
  • Tins - Par de aperto (Nm)35
  • hef - Profundidade efetiva48
  • hnom - Profundidade min. de instalação65
  • h1 - Profundidade min. do furo75
  • d0 - Ø Broca12
  • hmin - Espessura min. do material base100
ACHT8812LM10 x 100 Ø12502008423533584472
  • tfix - Espessura máx. a fixar32
  • SW - Chave para instalação17
  • df - Ø Elemento a fixar14
  • Tins - Par de aperto (Nm)35
  • hef - Profundidade efetiva48
  • hnom - Profundidade min. de instalação65
  • h1 - Profundidade min. do furo75
  • d0 - Ø Broca12
  • hmin - Espessura min. do material base100
ACHT8816CM12 x 80 Ø16502008423533584502
  • tfix - Espessura máx. a fixar5
  • SW - Chave para instalação19
  • df - Ø Elemento a fixar18
  • Tins - Par de aperto (Nm)50
  • hef - Profundidade efetiva55
  • hnom - Profundidade min. de instalação70
  • h1 - Profundidade min. do furo80
  • d0 - Ø Broca16
  • hmin - Espessura min. do material base110
ACHT8816LM12 x 110 Ø16501008423533584519
  • tfix - Espessura máx. a fixar37
  • SW - Chave para instalação19
  • df - Ø Elemento a fixar18
  • Tins - Par de aperto (Nm)50
  • hef - Profundidade efetiva55
  • hnom - Profundidade min. de instalação70
  • h1 - Profundidade min. do furo80
  • d0 - Ø Broca16
  • hmin - Espessura min. do material base110
ACHT8820CM16 x 110 Ø2025508423533584533
  • tfix - Espessura máx. a fixar15
  • SW - Chave para instalação24
  • df - Ø Elemento a fixar22
  • Tins - Par de aperto (Nm)140
  • hef - Profundidade efetiva72
  • hnom - Profundidade min. de instalação92
  • h1 - Profundidade min. do furo105
  • d0 - Ø Broca20
  • hmin - Espessura min. do material base145
  • Unidades de ar condicionado
  • Instalação de extintores de incêndio
  • Antenas
  • Mobiliário urbano
  • Corrimões
  • Guardas de varanda
  • Guardas de varanda
  • Guardas de estrada
  • Guardas de madeira
