Bucha metálica anti-rotação aço inoxidável CH-A2

Bucha metálica anti-rotação fabricada em aço inoxidável A2 com parafuso hexagonal para fixação de elementos de carga média em materiais sólidos. Chumbadouro de expansão mecânica, com anti-rotação para evitar a rotação do chumbadouro durante o aperto. Instalação com controlo de binário. Homologada ETE Opt.7. Fabricada em aço inoxidável A2.

Aprovações e certificados

CÓDIGOMEDIDANº FENDAABERTURA GANCHOØ OLHALUds CaixaUds/BlisterUds/Caixa con JanelaUds. MasterboxBlisters/Caixa BLCaixas con Janela/MasterboxEANInfo. Técnica
ACHTA208CM6 x 45 Ø81001.2008423533005601

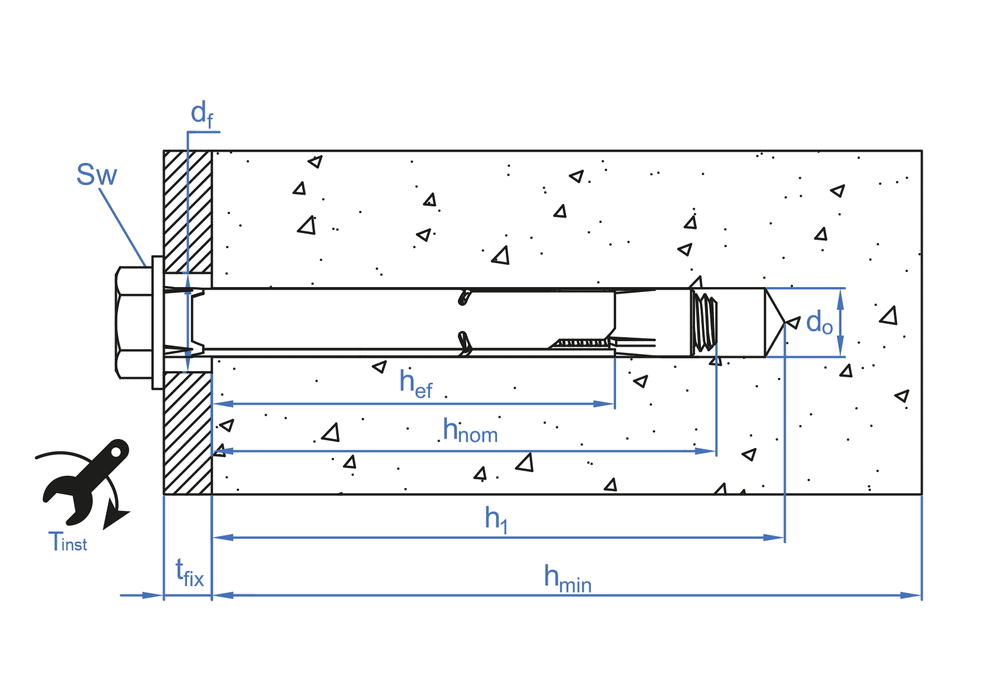

  • tfix - Espessura máx. a fixar5
  • SW - Chave para instalação10
  • df - Ø Elemento a fixar9
  • Tins - Par de aperto (Nm)10
  • hef - Profundidade efetiva30
  • hnom - Profundidade min. de instalação39
  • h1 - Profundidade min. do furo45
  • d0 - Ø Broca8
  • hmin - Espessura min. do material base100
ACHTA208LM6 x 60 Ø81006008423533005700
  • tfix - Espessura máx. a fixar20
  • SW - Chave para instalação10
  • df - Ø Elemento a fixar9
  • Tins - Par de aperto (Nm)10
  • hef - Profundidade efetiva30
  • hnom - Profundidade min. de instalação39
  • h1 - Profundidade min. do furo45
  • d0 - Ø Broca8
  • hmin - Espessura min. do material base100
ACHTA209CM6 x 45 Ø91001.2008423533005809
  • tfix - Espessura máx. a fixar5
  • SW - Chave para instalação10
  • df - Ø Elemento a fixar10
  • Tins - Par de aperto (Nm)10
  • hef - Profundidade efetiva30
  • hnom - Profundidade min. de instalação39
  • h1 - Profundidade min. do furo45
  • d0 - Ø Broca9
  • hmin - Espessura min. do material base100
ACHTA209LM6 x 60 Ø91006008423533005908
  • tfix - Espessura máx. a fixar20
  • SW - Chave para instalação10
  • df - Ø Elemento a fixar10
  • Tins - Par de aperto (Nm)10
  • hef - Profundidade efetiva30
  • hnom - Profundidade min. de instalação39
  • h1 - Profundidade min. do furo45
  • d0 - Ø Broca9
  • hmin - Espessura min. do material base100
ACHTA210CM8 x 60 Ø101006008423533006004
  • tfix - Espessura máx. a fixar5
  • SW - Chave para instalação13
  • df - Ø Elemento a fixar12
  • Tins - Par de aperto (Nm)20
  • hef - Profundidade efetiva40
  • hnom - Profundidade min. de instalação51
  • h1 - Profundidade min. do furo60
  • d0 - Ø Broca10
  • hmin - Espessura min. do material base100
ACHTA210LM8 x 80 Ø101004008423533006103
  • tfix - Espessura máx. a fixar27
  • SW - Chave para instalação13
  • df - Ø Elemento a fixar12
  • Tins - Par de aperto (Nm)20
  • hef - Profundidade efetiva40
  • hnom - Profundidade min. de instalação51
  • h1 - Profundidade min. do furo60
  • d0 - Ø Broca10
  • hmin - Espessura min. do material base100
ACHTA211CM8 x 60 Ø111004008423533006202
  • tfix - Espessura máx. a fixar5
  • SW - Chave para instalação13
  • df - Ø Elemento a fixar13
  • Tins - Par de aperto (Nm)20
  • hef - Profundidade efetiva40
  • hnom - Profundidade min. de instalação51
  • h1 - Profundidade min. do furo60
  • d0 - Ø Broca11
  • hmin - Espessura min. do material base100
ACHTA211LM8 x 80 Ø111004008423533006301
  • tfix - Espessura máx. a fixar27
  • SW - Chave para instalação13
  • df - Ø Elemento a fixar13
  • Tins - Par de aperto (Nm)20
  • hef - Profundidade efetiva40
  • hnom - Profundidade min. de instalação51
  • h1 - Profundidade min. do furo60
  • d0 - Ø Broca11
  • hmin - Espessura min. do material base100
ACHTA212CM10 x 70 Ø121002008423533006400
  • tfix - Espessura máx. a fixar5
  • SW - Chave para instalação17
  • df - Ø Elemento a fixar14
  • Tins - Par de aperto (Nm)35
  • hef - Profundidade efetiva48
  • hnom - Profundidade min. de instalação65
  • h1 - Profundidade min. do furo75
  • d0 - Ø Broca12
  • hmin - Espessura min. do material base100
ACHTA212LM10 x 100 Ø12502008423533006509
  • tfix - Espessura máx. a fixar32
  • SW - Chave para instalação17
  • df - Ø Elemento a fixar14
  • Tins - Par de aperto (Nm)35
  • hef - Profundidade efetiva48
  • hnom - Profundidade min. de instalação65
  • h1 - Profundidade min. do furo75
  • d0 - Ø Broca12
  • hmin - Espessura min. do material base100
ACHTA214CM10 x 70 Ø141003008423533006608
  • tfix - Espessura máx. a fixar5
  • SW - Chave para instalação17
  • df - Ø Elemento a fixar16
  • Tins - Par de aperto (Nm)35
  • hef - Profundidade efetiva48
  • hnom - Profundidade min. de instalação65
  • h1 - Profundidade min. do furo75
  • d0 - Ø Broca14
  • hmin - Espessura min. do material base100
ACHTA214LM10 x 100 Ø14502008423533006707
  • tfix - Espessura máx. a fixar32
  • SW - Chave para instalação17
  • df - Ø Elemento a fixar16
  • Tins - Par de aperto (Nm)35
  • hef - Profundidade efetiva48
  • hnom - Profundidade min. de instalação65
  • h1 - Profundidade min. do furo75
  • d0 - Ø Broca14
  • hmin - Espessura min. do material base100
ACHTA216CM12 x 80 Ø16501008423533006806
  • tfix - Espessura máx. a fixar5
  • SW - Chave para instalação19
  • df - Ø Elemento a fixar18
  • Tins - Par de aperto (Nm)50
  • hef - Profundidade efetiva55
  • hnom - Profundidade min. de instalação70
  • h1 - Profundidade min. do furo80
  • d0 - Ø Broca16
  • hmin - Espessura min. do material base110
ACHTA216LM12 x 110 Ø16501008423533006905
  • tfix - Espessura máx. a fixar37
  • SW - Chave para instalação19
  • df - Ø Elemento a fixar18
  • Tins - Par de aperto (Nm)50
  • hef - Profundidade efetiva55
  • hnom - Profundidade min. de instalação70
  • h1 - Profundidade min. do furo80
  • d0 - Ø Broca16
  • hmin - Espessura min. do material base110
ACHTA220CM16 x 110 Ø2025758423533007001
  • tfix - Espessura máx. a fixar15
  • SW - Chave para instalação24
  • df - Ø Elemento a fixar22
  • Tins - Par de aperto (Nm)140
  • hef - Profundidade efetiva72
  • hnom - Profundidade min. de instalação92
  • h1 - Profundidade min. do furo105
  • d0 - Ø Broca20
  • hmin - Espessura min. do material base145
VACHTA208CM6 x 45 Ø81088423533753779
  • tfix - Espessura máx. a fixar5
  • SW - Chave para instalação10
  • df - Ø Elemento a fixar9
  • Tins - Par de aperto (Nm)10
  • hef - Profundidade efetiva30
  • hnom - Profundidade min. de instalação39
  • h1 - Profundidade min. do furo45
  • d0 - Ø Broca8
  • hmin - Espessura min. do material base100
VACHTA208LM6 x 60 Ø81088423533753786
  • tfix - Espessura máx. a fixar20
  • SW - Chave para instalação10
  • df - Ø Elemento a fixar9
  • Tins - Par de aperto (Nm)10
  • hef - Profundidade efetiva30
  • hnom - Profundidade min. de instalação39
  • h1 - Profundidade min. do furo45
  • d0 - Ø Broca8
  • hmin - Espessura min. do material base100
VACHTA210CM8 x 60 Ø10688423533753793
  • tfix - Espessura máx. a fixar5
  • SW - Chave para instalação13
  • df - Ø Elemento a fixar12
  • Tins - Par de aperto (Nm)20
  • hef - Profundidade efetiva40
  • hnom - Profundidade min. de instalação51
  • h1 - Profundidade min. do furo60
  • d0 - Ø Broca10
  • hmin - Espessura min. do material base100
VACHTA210LM8 x 80 Ø10688423533753809
  • tfix - Espessura máx. a fixar27
  • SW - Chave para instalação13
  • df - Ø Elemento a fixar12
  • Tins - Par de aperto (Nm)20
  • hef - Profundidade efetiva40
  • hnom - Profundidade min. de instalação51
  • h1 - Profundidade min. do furo60
  • d0 - Ø Broca10
  • hmin - Espessura min. do material base100
VACHTA212CM10 x 70 Ø12488423533753816
  • tfix - Espessura máx. a fixar5
  • SW - Chave para instalação17
  • df - Ø Elemento a fixar14
  • Tins - Par de aperto (Nm)35
  • hef - Profundidade efetiva48
  • hnom - Profundidade min. de instalação65
  • h1 - Profundidade min. do furo75
  • d0 - Ø Broca12
  • hmin - Espessura min. do material base100
VACHTA212LM10 x 100 Ø12488423533753823
  • tfix - Espessura máx. a fixar32
  • SW - Chave para instalação17
  • df - Ø Elemento a fixar14
  • Tins - Par de aperto (Nm)35
  • hef - Profundidade efetiva48
  • hnom - Profundidade min. de instalação65
  • h1 - Profundidade min. do furo75
  • d0 - Ø Broca12
  • hmin - Espessura min. do material base100
BZACHTA208CM6 x 45 Ø82158423533421883
  • tfix - Espessura máx. a fixar5
  • SW - Chave para instalação10
  • df - Ø Elemento a fixar9
  • Tins - Par de aperto (Nm)10
  • hef - Profundidade efetiva30
  • hnom - Profundidade min. de instalação39
  • h1 - Profundidade min. do furo45
  • d0 - Ø Broca8
  • hmin - Espessura min. do material base100
BZACHTA208LM6 x 60 Ø82158423533421890
  • tfix - Espessura máx. a fixar20
  • SW - Chave para instalação10
  • df - Ø Elemento a fixar9
  • Tins - Par de aperto (Nm)10
  • hef - Profundidade efetiva30
  • hnom - Profundidade min. de instalação39
  • h1 - Profundidade min. do furo45
  • d0 - Ø Broca8
  • hmin - Espessura min. do material base100
BZACHTA210CM8 x 60 Ø102158423533421906
  • tfix - Espessura máx. a fixar5
  • SW - Chave para instalação13
  • df - Ø Elemento a fixar12
  • Tins - Par de aperto (Nm)20
  • hef - Profundidade efetiva40
  • hnom - Profundidade min. de instalação51
  • h1 - Profundidade min. do furo60
  • d0 - Ø Broca10
  • hmin - Espessura min. do material base100
  • Unidades de ar condicionado
  • Antenas
  • Mobiliário urbano
  • Corrimões
  • Corrimões de varanda
  • Corrimões rodoviários
  • Corrimões de madeira
  • Marquises
  • Tendas
  • Sinalização
  • Banners
