CO-PLANAR STRUCTURES FOR SOLAR PANELS
Frames for solar panels designed for sloping roofs. Enable panels to be easily and securely installed on a range of surfaces, whether vertically or horizontally.
Installation systems for SOLAR PANELS: frames, fixings and accessories
Solar installations need to be fully resistant to outdoor elements. That is why INDEX® offers high-quality products for steel and aluminium solar panel structures, as well as all-in-one installation solutions to simplify component handling and assembly at the installation site.
A reliable system that is easy to assemble and maintain
-
Looking to the future
The development of this new solution has been a challenging research and innovation project that led to the incorporation of cutting-edge technologies in materials/coatings and the need to design new profiles and assembly systems to deliver innovations to today's market.
-
Technical support
The company provides comprehensive advice regarding the different systems, their suitability for the installation location, custom calculations and component breakdowns.
-
Certified and environmentally friendly production in Spain
A large proportion of the products included in the new range is produced in Spain, which is necessary to guarantee the high levels of quality and innovation required.
-
Products adapted to small users
We like to get to know the needs of all our customers to offer the best service.
-
Training
We provide tailored training to show how to correctly use all the options and functions of our products.
Structures for solar panels
TRIANGULAR STRUCTURES FOR SOLAR PANELS
Frames for solar panels designed for flat and low-gradient roofs. Enable panels to be easily and securely installed on a range of surfaces, whether vertically or horizontally.
SC-PSA
Coplanar system with winged aluminium profile (PSA-A). Direct fixing
Qualities and Advantages
- System for sloping roofs with assembly parallel to the roof surface.
- Installation on metal roofs in a raised position to accommodate ribs.
- Portrait panel orientation (vertical).
- Highly effective, rapid installation directly onto the roof.
- Profile available in uncut format to simplify installation planning.
- Joint between profiles using an inner profile and self-drilling screws, without obstructing the fixing of the panels.
- Panel fixing with highly reliable and easy-to-install innovative solutions that are interchangeable between all assembly systems.
System Components
SC-PSD
Coplanar system with winged aluminium profile (PSA-A). Direct fixing using pre-cut profile sections
Qualities and Advantages
- System for sloping roofs with assembly parallel to the roof surface.
- Installation on metal roofs in a raised position to accommodate ribs ≤ 360mm.
- Installation on metal roofs in a raised position to accommodate ribs ≤ 360mm.
- Highly effective, rapid installation directly onto the roof.
- Profile installed in pre-cut sections to reduce the number of metres of profile used.
- Panel fixing with highly reliable and easy-to-install innovative solutions that are interchangeable between all assembly systems.
System Components
SC-PSV
Coplanar system with winged aluminium profile (PSA- AV). Direct fixing in recess using pre-cut profile sections
Qualities and Advantages
- System for sloping roofs with assembly parallel to the roof surface.
- Installation on metal roofs on the lower area of the roof.
- Landscape panel orientation (Horizontal).
- Highly effective, rapid installation directly onto the roof.
- Profile installed in pre-cut sections to reduce the number of metres of profile used.
- Panel fixing with highly reliable and easy-to-install innovative solutions that are interchangeable between all assembly systems.
System Components
SC-PSE
Coplanar system with PSE-A aluminium profile. Pre-assembled fixing
Qualities and Advantages
- System for sloping roofs with assembly parallel to the roof surface.
- Installation on all roof types, assembled on adjustable fixing accessories.
- Portrait (vertical) and landscape (horizontal) panel orientation.
- Fixing of pre-assembled system on adjustable fixing accessories, anchored to the roof or substructure, with a wide range of adjustable fixing accessories available.
- Profile available in uncut format to simplify installation planning.
- Joint between profiles using an inner profile and self-drilling screws, without obstructing the fixing of the panels.
- Panel fixing with highly reliable and easy-to-install innovative solutions that are interchangeable between all assembly systems
System Components
SC-PSC
Coplanar system with PSE-C aluminium profile. Lateral pre-assembled fixing
Qualities and Advantages
- System for sloping roofs with assembly parallel to the roof surface.
- Installation on all roof types, assembled on adjustable fixing accessories and directly on sheet metal.
- Portrait (vertical) and landscape (horizontal) panel orientation.
- Fixing of pre-assembled system on adjustable fixing accessories, anchored to the roof or substructure, with a wide range of adjustable fixing accessories available.
- Profile available in uncut format to simplify installation planning.
- Profile installed in pre-cut sections to reduce the number of metres of profile used.
- Joint between profiles using an inner profile and self-drilling screws, without obstructing the fixing of the panels.
- Panel fixing with highly reliable and easy-to-install innovative solutions that are interchangeable between all assembly systems.
System Components
SC-GPX
Coplanar system with Indextrut Solar GP-XS perforated steel guide with Atlantis C4-M coating
Qualities and Advantages
- System for sloping roofs with assembly parallel to the roof surface.
- Installation on metal roofs in a raised position to accommodate ribs.
- Portrait panel orientation (vertical).
- Highly effective, rapid installation directly onto the roof.
- Profile available in uncut format to simplify installation planning.
- Joint between profiles using an inner profile and self-drilling screws, without obstructing the fixing of the panels.
- Panel fixing with highly reliable and easy-to-install innovative solutions that are interchangeable between all assembly systems.
System Components
SC-GPD
Coplanar system with Indextrut Solar GP-XS perforated guide with Atlantis C4-M coating. Pre-cut guide format
Qualities and Advantages
- System for sloping roofs with assembly parallel to the roof surface.
- Installation on metal roofs raised above the ribs.
- Landscape panel orientation (horizontal).
- Highly effective, rapid installation directly onto the roof.
- Profile available in pre-cut sections to reduce the number of metres of profile used as much as possible.
- Panel fixing with highly reliable and easy-to-install innovative solutions that are interchangeable between all assembly systems.
System Components
SC-GPV
Coplanar system with Indextrut Solar GP-XS perforated steel guide with Atlantis C4-M coating. Direct fixing in recess using pre-cut profile sections
Qualities and Advantages
- System for sloping roofs with assembly parallel to the roof surface.
- Installation on metal roofs on the lower area of the roof.
- Landscape panel orientation (horizontal).
- Highly effective, rapid installation directly onto the roof.
- Profile installed in pre-cut sections to reduce the number of metres of profile used.
- Panel fixing with highly reliable and easy-to-install innovative solutions that are interchangeable between all assembly systems.
System Components
SC-PSI
Coplanar with PSE-C aluminium profile. Lateral discontinuous pre-assembled fixing
Qualities and Advantages
- System for sloping roofs with installation parallel to the roof surface.
- Installation on metal roofs raised above the ribs.
- Landscape orientation of panels (horizontal).
- Highly efficient, rapid fixing of system directly onto the roof itself.
- Profile available in pre-cut sections to reduce the number of metres of profile used as much as possible.
- Fixing of panels with highly reliable and easily installed innovative solutions that are interchangeable between all the assembly systems.
System Components
ST-PSE
Triangular system with PSE-A aluminium profile. Pre-assembled fixing
Qualities and Advantages
- System for flat and low-gradient roofs, mounted at an angle with respect to the roof.
- Installation on all roof types, on pre-assembled triangles with an angle adjustable to 25°, 30° or 35°.
- Portrait panel orientation (vertical).
- Option of fixing the system directly to the substructure by anchoring the feet of the triangle supports.
- Option of mounting the assembled system on an auxiliary profile frame anchored to the substructure, using fast-fixing nuts to the feet of the triangle supports.
- Profile available in uncut format to simplify installation planning.
- Lengthways joint between profiles using an inner profile and self-drilling screws, without obstructing the fixing of the panels.
- Installation of profiles and triangles using pre-assembled fast-fixing solutions.
- Panel fixing with highly reliable and easy-to-install innovative solutions that are interchangeable between all assembly systems.
System Components
DIN-7504-K A2
Self-drilling hex head screw. A2 stainless.
GM-A
Aluminium frame clamp.
KFR-SC
Fast-fixing clamp assembly.
TPA-R
Pre-assembled adjustable aluminium triangle.
KFS-FL
Bracket for lateral fixing. A2 stainless.
PSE-UN
Aluminium joint for PSE-A profile.
PSE-A
Aluminium profile for pre-assembled fixing.
ST-GPX
Triangular system with Indextrut Solar GP-XS perforated guide with Atlantis C4-M coating
Qualities and Advantages
- System for flat and low-gradient roofs, mounted at an angle with respect to the roof.
- Installation on all roof types, on pre-assembled triangles with an angle adjustable to 25° or 35°.
- Portrait (vertical) and landscape (horizontal) panel orientation.
- Option of fixing the system directly to the substructure by anchoring the feet of the triangle supports.
- Option of mounting the assembled system on an auxiliary perforated guide frame anchored to the substructure, using fast-fixing nuts to the feet of the triangle supports.
- Guide available in uncut format to simplify installation planning.
- Lengthways joint between guides using an inner coupling and fast-fixing DIN603 bolts, without obstructing the fixing of the panels.
- Installation of profiles and triangles using fast-fixing bolts.
- Panel fixing with highly reliable and easy-to-install innovative solutions that are interchangeable between all assembly systems.
System Components
DIN-6923 A2
Serrated flange nut DIN-6923. A2 stainless.
DIN-603 A2
Round head square neck bolt. A2 stainless.
GM-A
Aluminium frame clamp.
KFR-SC
Fast-fixing clamp assembly.
DIN-6921 A2
Bolt DIN-6921. Serrated hex head flange bolt. A2 stainless.
TU-RX A2
Indextrut Fast-fixing guide nut. A2 stainless.
TRP-XS
INDEXTRUT pre-assembled adjustable triangle. Steel with Atlantis C4-M coating.
EMP-XS
INDEXTRUT solar joint. Steel Atlantis C4-M.
GP-XS
INDEXTRUT solar perforated guide. Steel Atlantis C4-M.
ST-PTA
Triangular open aluminium system
Qualities and Advantages
- System for flat, metallic and low-gradient roofs, mounted at an angle with respect to the roof.
- Installation on all roof types, on pre-assembled triangles with a fixed angle from 5° to 35°.
- Portrait panel orientation (vertical).
- Option of fixing the system directly to the substructure by anchoring the feet of the triangle supports.
- Profile installed continuously to simplify the planning of the installation.
- Lengthways joint between profiles using an inner profile and self-drilling screws, without obstructing the fixing of the panels.
- Installation of profiles and triangles using pre-assembled fast-fixing solutions.
- Fixing of panels with highly reliable and easily installed innovative solutions that are interchangeable between all the assembly systems.
System Components
DIN-7504-K A2
Self-drilling hex head screw. A2 stainless.
GM-A
Aluminium frame clamp.
KFR-SC
Fast-fixing clamp assembly.
TPA-A
Pre-assembled open aluminium triangle
KFS-FC
PSE-C Bracket for lateral fixing
PSE-CUN
Aluminium joint for PSE-C profile.
PSE-C
Aluminium profile for lateral pre-assembled fixing.
ST-PTC
Triangular closed aluminium system
Qualities and Advantages
- System for flat, metallic and low-gradient roofs, mounted at an angle with respect to the roof.
- Installation on all roof types, on pre-assembled triangles with a fixed angle from 5° to 35°.
- Portrait panel orientation (vertical).
- Option of fixing the system directly to the substructure by anchoring the feet of the triangle supports.
- Profile installed continuously to simplify the planning of the installation.
- Lengthways joint between profiles using an inner profile and self-drilling screws, without obstructing the fixing of the panels.
- Installation of profiles and triangles using pre-assembled fast-fixing solutions.
System Components
DIN-7504-K A2
Self-drilling hex head screw. A2 stainless.
GM-A
Aluminium frame clamp.
KFR-SC
Fast-fixing clamp assembly.
TPA-C
Pre-assembled closed aluminium triangle
KFS-FC
PSE-C Bracket for lateral fixing
PSE-CUN
Aluminium joint for PSE-C profile.
PSE-C
Aluminium profile for lateral pre-assembled fixing.
ST-PSC
Triangular system with PSE-C aluminium profile. Pre-assembled fixing
Qualities and Advantages
- System for flat and low-gradient roofs, mounted at an angle with respect to the roof.
- Installation on all roof types, on pre-assembled triangles with an angle adjustable to 25°, 30° or 35°.
- Portrait panel orientation (vertical).
- Option of fixing the system directly to the substructure by anchoring the feet of the triangle supports.
- Option of mounting the assembled system on an auxiliary profile frame anchored to the substructure, using fast-fixing nuts mounted on the triangle support feet.
- Profile installed continuously to simplify the planning of the installation.
- Lengthways joint between profiles using an inner profile and self-drilling screws, without obstructing the fixing of the panels.
- Installation of profiles and triangles using pre-assembled fast-fixing solutions.
- Fixing of panels with highly reliable and easily installed innovative solutions that are interchangeable between all the assembly systems.
System Components
DIN-7504-K A2
Self-drilling hex head screw. A2 stainless.
GM-A
Aluminium frame clamp.
KFR-SC
Fast-fixing clamp assembly.
TPA-R
Pre-assembled adjustable aluminium triangle.
KFS-FC
PSE-C Bracket for lateral fixing
PSE-CUN
Aluminium joint for PSE-C profile.
PSE-C
Aluminium profile for lateral pre-assembled fixing.
INDEX Solar Fixing: The APP to simplify and optimise your solar panel installation projects
Discover the INDEX Solar Fixing APP, an innovative application designed to simplify and optimise your projects for the installation of SOLAR PANELS. With just a few simple inputs, our application will quickly and accurately provide you with the fixings and installation systems required to carry out your project.
Try app
Range of products for solar installations
CLAMPS AND BRACKETS
For panel installation
PROFILES, JOINTS, GUIDES AND COUPLINGS
For support structures
CONNECTORS AND ACCESSORIES
For installation of solar panel structures
TRIANGLES
For installation of solar panels
ADJUSTABLE ACCESSORIES
For the installation of solar panels
DIRECT FIXING ACCESSORIES
For the installation of solar panels
SEALING ACCESSORIES
Sealing accessories

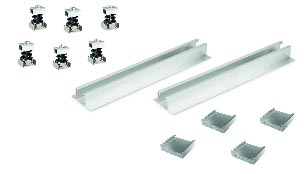

Types of Solar Kits
KC-GPD
Coplanar with INDEXTRUT SOLAR GP-XS perforated guide with Atlantis C4-M coating. Pre-cut guide format.
KC-GPX
Coplanar with INDEXTRUT SOLAR GP-XS perforated steel guide with Atlantis C4-M coating.
KC-PSA
Coplanar with an aluminium wing profile (PSA-A). Direct fixing.
KC-PSC
Coplanar with PSE-C aluminium profile. Lateral pre-assembled fixing.
KC-PSD
Coplanar with a winged aluminium profile (PSA-A). Direct fixing using pre-cut aluminium sections.
KT-GPX
Triangular with INDEXTRUT SOLAR GP-XS perforated guide with Atlantis C4-M coating.
KT-PSE
Triangular with PSE-A aluminium profile. Pre-assembled fixing.
KT-PSC
Triangular with PSE-C aluminium profile. Pre-assembled fixing.
Other anchor fittings for solar panel installations
Metal fixings
Metal expansion fixings or wedged fixings in carbon steel and stainless steel, approved for the installation of elements in cracked concrete, non-cracked concrete, seismic loads and R30-R120 fire resistance in concrete.
Plastic fixings
Made from high-quality Nylon®, plastic fixings are the perfect, cost-effective solution for fixing light and medium weight loads.
Chemical anchors
Chemical injection fixings are the optimal solution for fixing heavy loads on concrete and masonry or where an approved product is required.
Bolts and screws
A wide variety of self-tapping screws and self-threading screws are available, as well as different types of heads, diameters and lengths.
Plastic clamps
Nylon® cable ties and their plastic clamps are some of the most highly demanded products in the world of professional installations.
