Bimetal concrete screw anchor with hexagonal head TXE

Direct fixing screw with hexagonal head. Suitable for fixing high load-bearing elements in cracked and non-cracked concrete. Removable and reusable. ETE Opt.1 approved. Bimetal technology: A4 stainless steel body and hardened carbon steel tip.
Amplify information
> CAD Data

ASSESSMENTS AND CERTIFICATES

+ info
TDDU6BI9296 ETA CU 20 0046 ETA CU 20 0046 SZ6
EKOU2BI8304 HO FUEGO Resistente al fuego SZ7
EKOU10BI8307 HO SEISMIC C1 SEISMIC C1 SZ7
EKOU48BI9379 HO VDS VDS SZ7
EKOU56BI12647 HO CE 23 CE 2023 SZ7
CODESIZENº RECESSTHICKNESS MAX.FIXTURE (mm)Pcs BoxEANTechnical info.
TXE06040Ø6 x 401051008423533855732
  • tfix - Max. fixture thickness5
  • SW - Installation key10
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth35
  • h1 - Drill hole depth min.45
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness80
  • L - Lenght40
TXE06060Ø6 x 601051008423533855749
  • tfix - Max. fixture thickness5
  • SW - Installation key10
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth55
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness80
  • L - Lenght60
TXE08070Ø8 x 70135508423533855756
  • tfix - Max. fixture thickness5
  • SW - Installation key13
  • df - Ø Element to fix12
  • Tins - Torque (Nm)20
  • hnom - Min. anchor depth65
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness80
  • L - Lenght70
TXE08080Ø8 x 801315258423533855763
  • tfix - Max. fixture thickness15
  • SW - Installation key13
  • df - Ø Element to fix12
  • Tins - Torque (Nm)20
  • hnom - Min. anchor depth65
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness80
  • L - Lenght80
TXE08090Ø8 x 901325258423533855770
  • tfix - Max. fixture thickness25
  • SW - Installation key13
  • df - Ø Element to fix12
  • Tins - Torque (Nm)20
  • hnom - Min. anchor depth65
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness80
  • L - Lenght90
TXE08105Ø8 x 1051340258423533855787
  • tfix - Max. fixture thickness40
  • SW - Installation key13
  • df - Ø Element to fix12
  • Tins - Torque (Nm)20
  • hnom - Min. anchor depth65
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness80
  • L - Lenght105
TXE10070Ø10 x 701515508423533855794
  • tfix - Max. fixture thickness15
  • SW - Installation key15
  • df - Ø Element to fix14
  • Tins - Torque (Nm)30
  • hnom - Min. anchor depth55
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness80
  • L - Lenght70
TXE10090Ø10 x 90155258423533855800
  • tfix - Max. fixture thickness5
  • SW - Installation key15
  • df - Ø Element to fix14
  • Tins - Torque (Nm)30
  • hnom - Min. anchor depth85
  • h1 - Drill hole depth min.95
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght90
TXE10100Ø10 x 1001515258423533855817
  • tfix - Max. fixture thickness15
  • SW - Installation key15
  • df - Ø Element to fix14
  • Tins - Torque (Nm)30
  • hnom - Min. anchor depth85
  • h1 - Drill hole depth min.95
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght100
TXE10120Ø10 x 1201535258423533855824
  • tfix - Max. fixture thickness35
  • SW - Installation key15
  • df - Ø Element to fix14
  • Tins - Torque (Nm)30
  • hnom - Min. anchor depth85
  • h1 - Drill hole depth min.95
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght120
TXE12080Ø12 x 80185258423533855831
  • tfix - Max. fixture thickness5
  • SW - Installation key18
  • df - Ø Element to fix16
  • Tins - Torque (Nm)50
  • hnom - Min. anchor depth75
  • h1 - Drill hole depth min.90
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness120
  • L - Lenght80
TXE12110Ø12 x 110185258423533855848
  • tfix - Max. fixture thickness5
  • SW - Installation key18
  • df - Ø Element to fix16
  • Tins - Torque (Nm)50
  • hnom - Min. anchor depth105
  • h1 - Drill hole depth min.120
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness160
  • L - Lenght110
PR960BI11398 CP TXE TXE SZ4

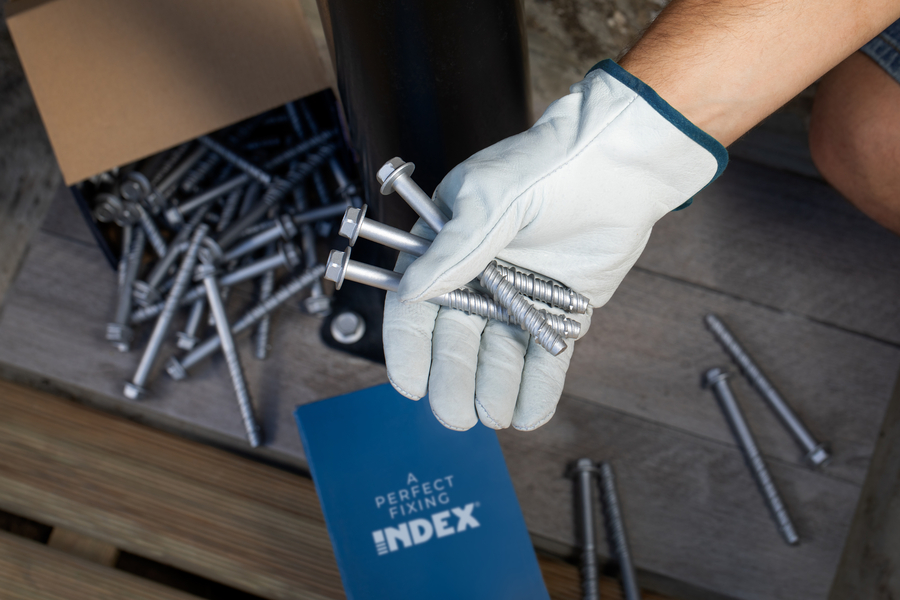

PR960BI11405 CP TXE TXE SZ4

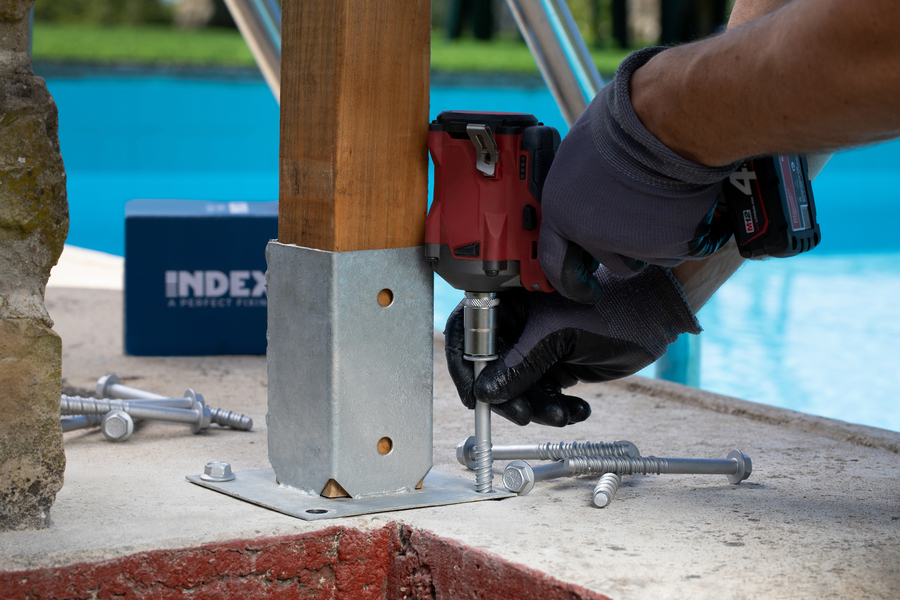

PR960BI11406 CP TXE TXE SZ4

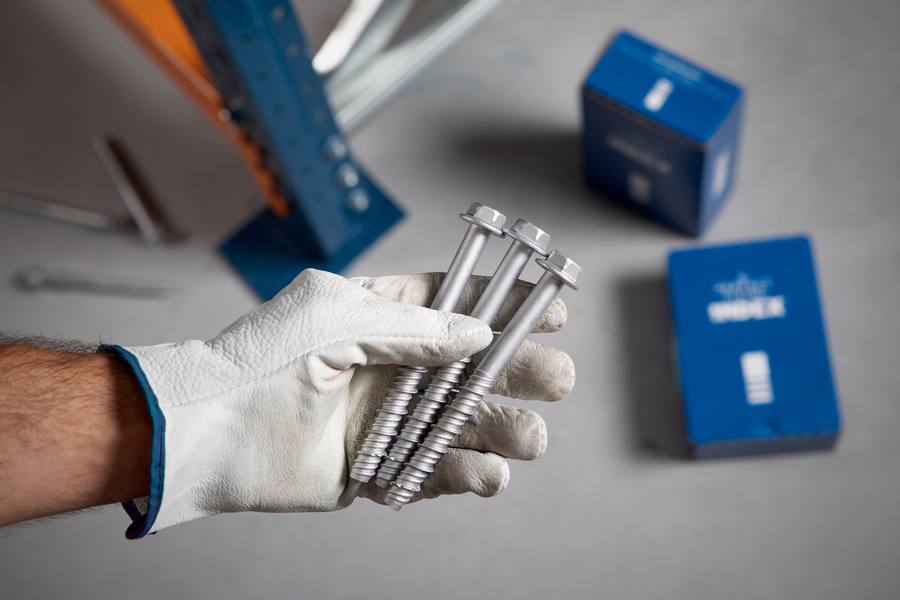

PR960BI11407 CP TXE TXE SZ4

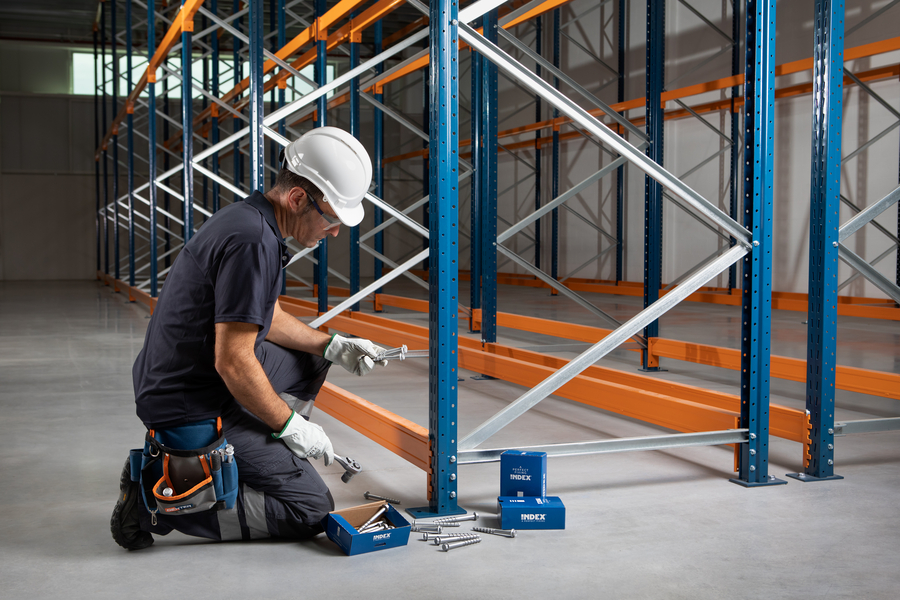

PR960BI11408 CP TXE TXE SZ4
PR960BI11399 CP TXE TXE SZ4
PR960BI11402 CP TXE TXE SZ4

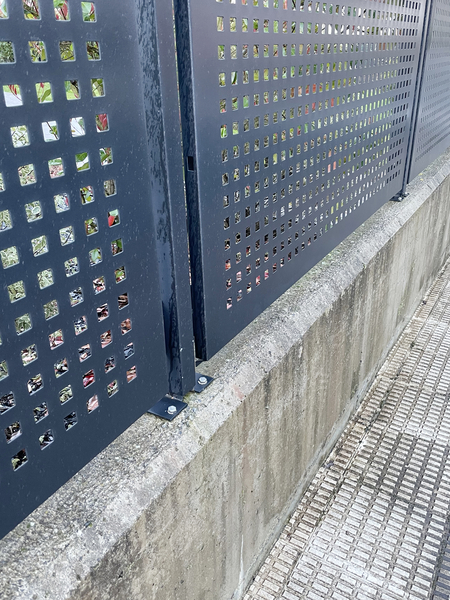

PR960BI11403 CP TXE TXE SZ4
PR960BI12646 CP TXE TXE SZ4
TXE
icon book
Technical Sheets
FT_TXE_en_rev1.pdf
FTA_TXE_en_rev0.pdf
icon security
Assessments
VdS_rev2.pdf
ETA_THE_en_rev5.pdf
icon camera
Multimedia
Video
icon table
Declaration of Performances
DoP_THE_en_rev7.pdf

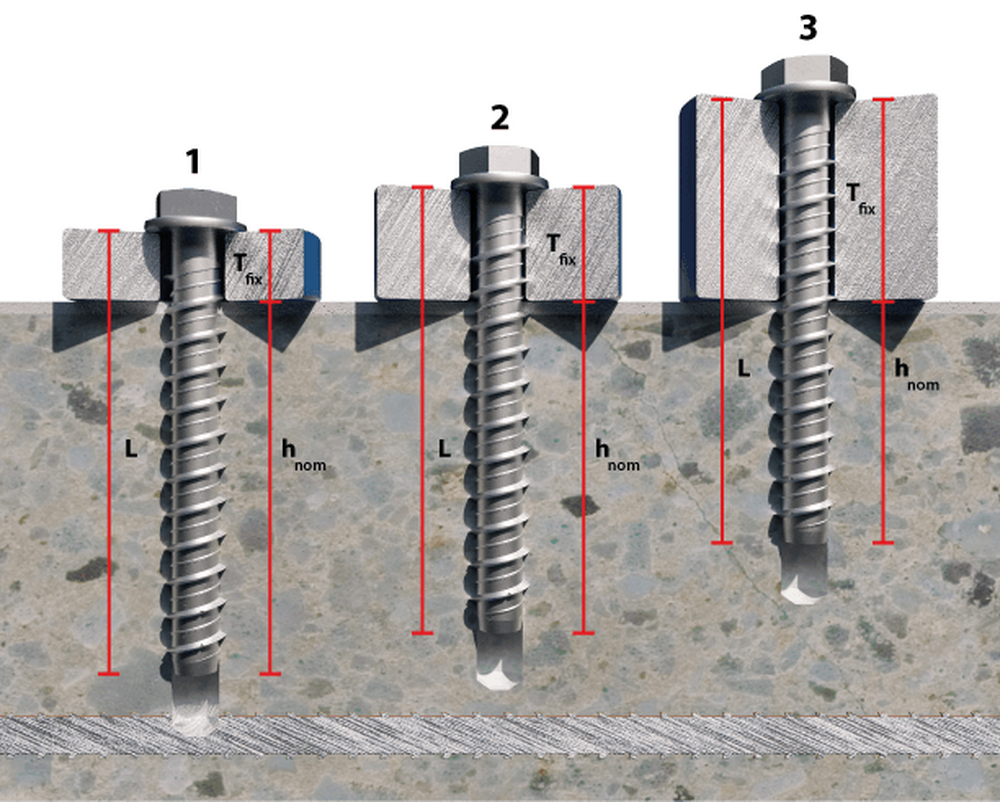

Can you install a mechanical anchor at different depths?
