Products / Anchors / Metal fixings / TF / TFP
TFP
TFP

TFP

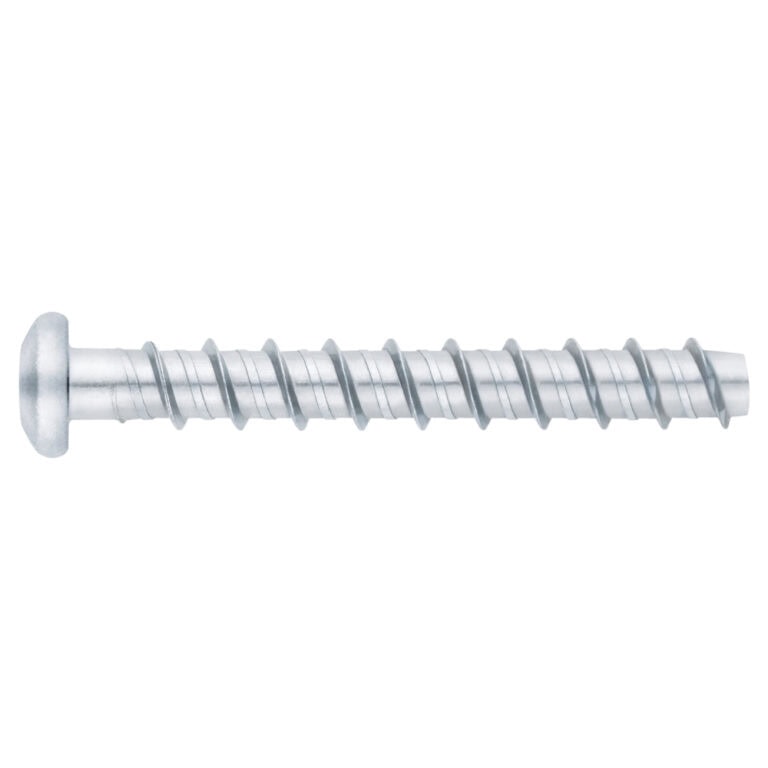

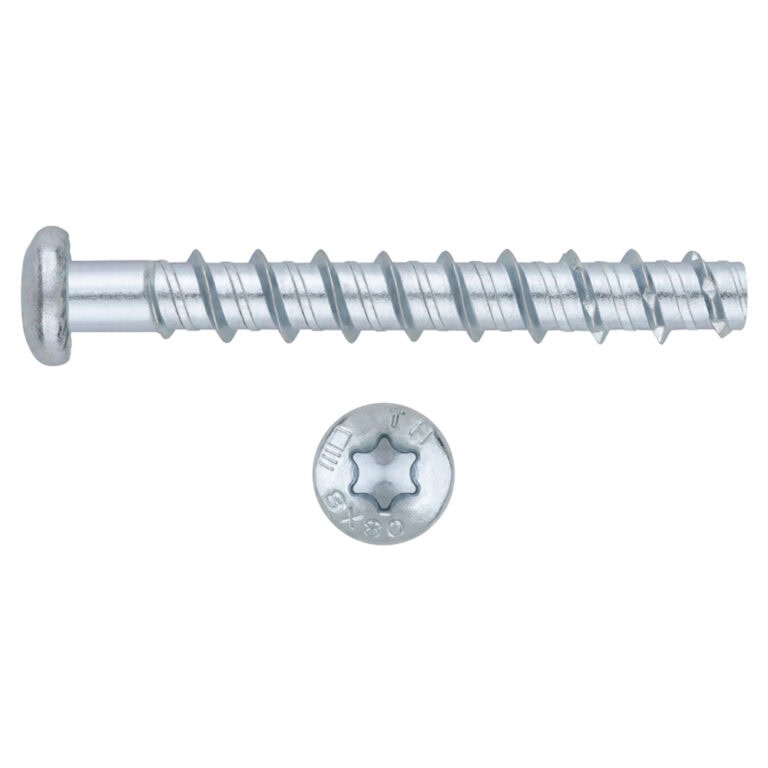

Concrete screw anchor with zinc plated coating. Opt.1 ETA Assessed. Pan head

ASSESSMENTS AND CERTIFICATES

+ info
TDDU6BI9296 ETA CU 20 0046 ETA CU 20 0046 SZ6
TDDU15BI9305 ETA NS 20 0494 ETA NS 20 0494 SZ6
EKOU2BI8304 HO FUEGO Resistente al fuego SZ7
EKOU10BI8307 HO SEISMIC C1 SEISMIC C1 SZ7
EKOU24BI9355 HO CE 20 CE 2020 SZ7
EKOU48BI9379 HO VDS VDS SZ7
CODESIZEMin. Order Qty.Pcs. x jarPcs BoxPcs MasterboxEANTechnical info.
TFP05040Ø5 x 40001002.4008423533918024
  • tfix - Max. fixture thickness5
  • SW - Installation keyTX30
  • df - Ø Element to fix8
  • Tins - Torque (Nm)8
  • hnom - Min. anchor depth35
  • h1 - Drill hole depth min.45
  • d0 - Ø Drill5
  • hmin - Min. substrate thickness80
  • L - Lenght40
TFP05060Ø5 x 60001001.2008423533918031
  • tfix - Max. fixture thickness15
  • SW - Installation keyTX30
  • df - Ø Element to fix8
  • Tins - Torque (Nm)8
  • hnom - Min. anchor depth45
  • h1 - Drill hole depth min.55
  • d0 - Ø Drill5
  • hmin - Min. substrate thickness80
  • L - Lenght60
TFP06040Ø6 x 40001001.2008423533918048
  • tfix - Max. fixture thickness5
  • SW - Installation keyTX40
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth35
  • h1 - Drill hole depth min.45
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght40
TFP06050Ø6 x 50001001.2008423533918055
  • tfix - Max. fixture thickness15
  • SW - Installation keyTX40
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth35
  • h1 - Drill hole depth min.45
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght50
TFP06060Ø6 x 60001001.2008423533918062
  • tfix - Max. fixture thickness5
  • SW - Installation keyTX40
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth55
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght60
TFP06080Ø6 x 8000506008423533918079
  • tfix - Max. fixture thickness25
  • SW - Installation keyTX40
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth55
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght80
TFP06100Ø6 x 10000502008423533918086
  • tfix - Max. fixture thickness45
  • SW - Installation keyTX40
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth55
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght100
TFP08060Ø8 x 6000254008423533918093
  • tfix - Max. fixture thickness10
  • SW - Installation keyTX45
  • df - Ø Element to fix12
  • Tins - Torque (Nm)20
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.60
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght60
TFP08080Ø8 x 8000253008423533647818
  • tfix - Max. fixture thickness15
  • SW - Installation keyTX45
  • df - Ø Element to fix12
  • Tins - Torque (Nm)20
  • hnom - Min. anchor depth65
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght80
TFP
icon book
Technical Sheets
FT_TF_en_rev0.pdf
FTA_TFE_en_rev5.pdf
icon security
Assessments
VdS_rev2.pdf
ETA_THE_en_rev5.pdf
ETA_THE_Part6_en_rev1.pdf
icon table
Declaration of Performances
DoP_THE_en_rev7.pdf
Which anchors should I use for hollow core slabs?
Can you install a mechanical anchor at different depths?
What is the Atlantis coating used in the screw anchor?
Can you reuse concrete screws?
What length of concrete screw should I choose for my installation?
