Products / Anchors / Metal fixings / TF / TFA
TFA
TFA

TFA

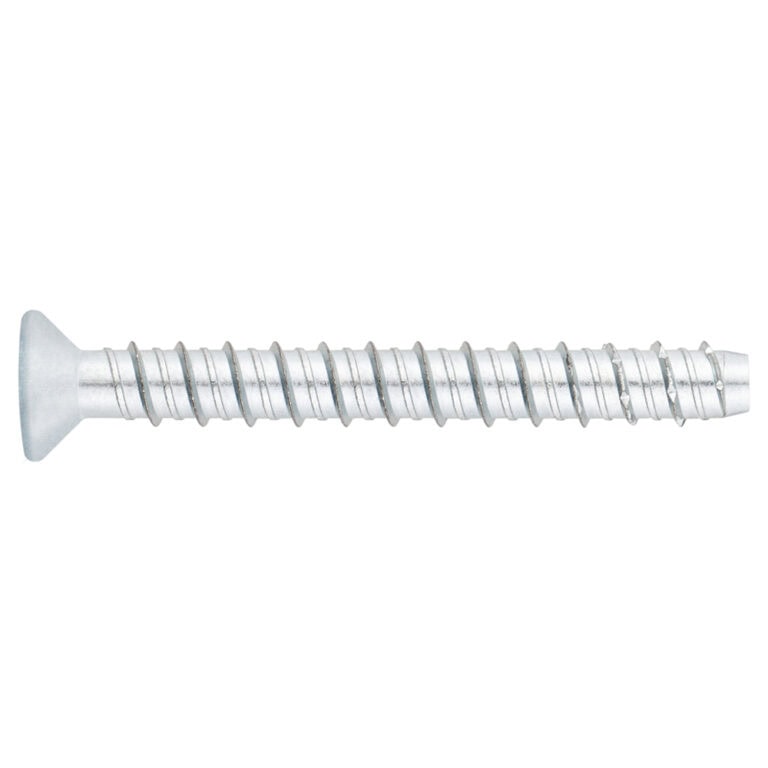

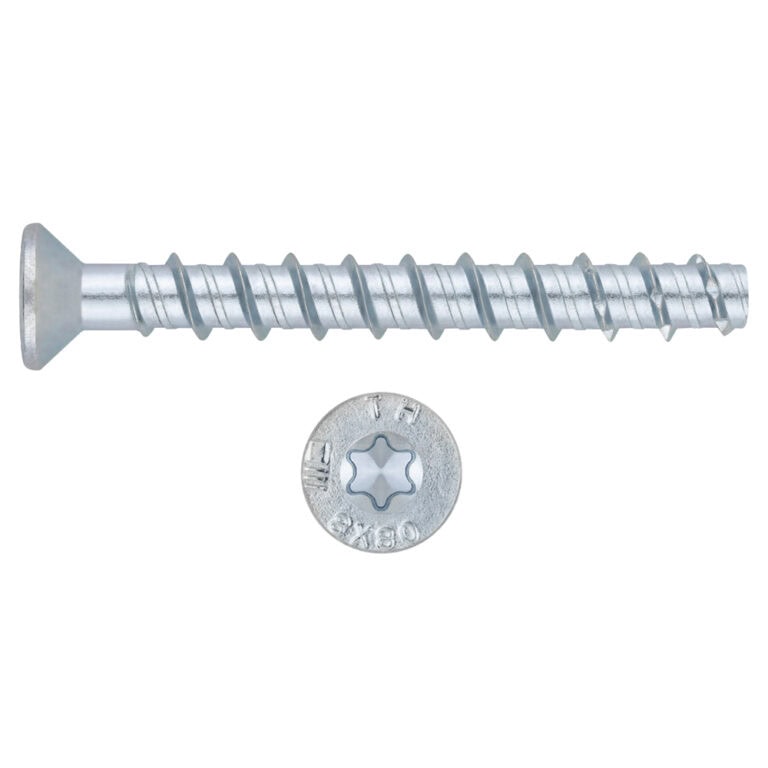

Concrete screw anchor with zinc plated coating. Opt.1 ETA Assessed. Countersunk head

ASSESSMENTS AND CERTIFICATES

+ info
TDDU6BI9296 ETA CU 20 0046 ETA CU 20 0046 SZ6
TDDU15BI9305 ETA NS 20 0494 ETA NS 20 0494 SZ6
EKOU2BI8304 HO FUEGO Resistente al fuego SZ7
EKOU10BI8307 HO SEISMIC C1 SEISMIC C1 SZ7
EKOU11BI8308 HO SEISMIC C1 C2 SEISMIC C1 C2 SZ7
EKOU24BI9355 HO CE 20 CE 2020 SZ7
EKOU48BI9379 HO VDS VDS SZ7
CODESIZEMin. Order Qty.Pcs. x jarPcs BoxPcs MasterboxEANTechnical info.
TFA05040Ø5 x 40001002.4008423533917645

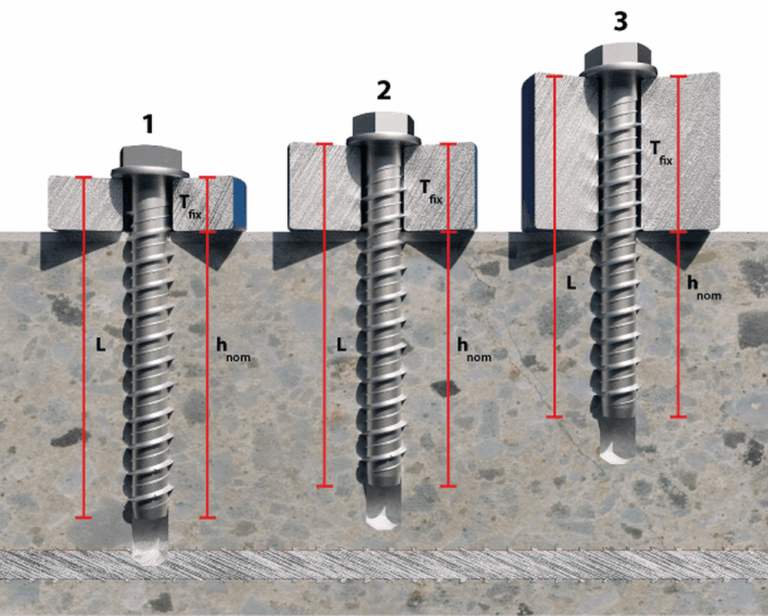

  • tfix - Max. fixture thickness5
  • SW - Installation keyTX25
  • df - Ø Element to fix8
  • Tins - Torque (Nm)8
  • hnom - Min. anchor depth35
  • h1 - Drill hole depth min.45
  • d0 - Ø Drill5
  • hmin - Min. substrate thickness80
  • L - Lenght40
TFA05060Ø5 x 60001001.2008423533917652
  • tfix - Max. fixture thickness15
  • SW - Installation keyTX25
  • df - Ø Element to fix8
  • Tins - Torque (Nm)8
  • hnom - Min. anchor depth45
  • h1 - Drill hole depth min.55
  • d0 - Ø Drill5
  • hmin - Min. substrate thickness80
  • L - Lenght60
TFA05080Ø5 x 8000508008423533917669
  • tfix - Max. fixture thickness35
  • SW - Installation keyTX25
  • df - Ø Element to fix8
  • Tins - Torque (Nm)8
  • hnom - Min. anchor depth45
  • h1 - Drill hole depth min.55
  • d0 - Ø Drill5
  • hmin - Min. substrate thickness80
  • L - Lenght80
TFA05100Ø5 x 10000508008423533917676
  • tfix - Max. fixture thickness55
  • SW - Installation keyTX25
  • df - Ø Element to fix8
  • Tins - Torque (Nm)8
  • hnom - Min. anchor depth45
  • h1 - Drill hole depth min.55
  • d0 - Ø Drill5
  • hmin - Min. substrate thickness80
  • L - Lenght100
TFA06045Ø6 x 45001001.6008423533917683
  • tfix - Max. fixture thickness10
  • SW - Installation keyTX30
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth35
  • h1 - Drill hole depth min.45
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght45
TFA06050Ø6 x 50001001.2008423533917690
  • tfix - Max. fixture thickness15
  • SW - Installation keyTX30
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth35
  • h1 - Drill hole depth min.45
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght50
TFA06060Ø6 x 60001001.2008423533917706
  • tfix - Max. fixture thickness5
  • SW - Installation keyTX30
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth55
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght60
TFA06080Ø6 x 80001006008423533917713
  • tfix - Max. fixture thickness25
  • SW - Installation keyTX30
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth55
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght80
TFA06100Ø6 x 80001006008423533917720
  • tfix - Max. fixture thickness45
  • SW - Installation keyTX30
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth55
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght100
TFA06120Ø6 x 120001004008423533598196
  • tfix - Max. fixture thickness65
  • SW - Installation keyTX30
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth55
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght120
TFA06140Ø6 x 140001006008423533917744
  • tfix - Max. fixture thickness85
  • SW - Installation keyTX30
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth55
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght140
TFA08060Ø8 x 6000502008423533917751
  • tfix - Max. fixture thickness10
  • SW - Installation keyTX45
  • df - Ø Element to fix12
  • Tins - Torque (Nm)20
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.60
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght60
TFA08080Ø8 x 8000254008423533917768
  • tfix - Max. fixture thickness15
  • SW - Installation keyTX45
  • df - Ø Element to fix12
  • Tins - Torque (Nm)20
  • hnom - Min. anchor depth65
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght80
TFA08100Ø8 x 10000254008423533917775
  • tfix - Max. fixture thickness35
  • SW - Installation keyTX45
  • df - Ø Element to fix12
  • Tins - Torque (Nm)20
  • hnom - Min. anchor depth65
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght100
TFA08120Ø8 x 12000254008423533917782
  • tfix - Max. fixture thickness55
  • SW - Installation keyTX45
  • df - Ø Element to fix12
  • Tins - Torque (Nm)20
  • hnom - Min. anchor depth65
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght120
TFA10100Ø10 x 10000253008423533891679
  • tfix - Max. fixture thickness15
  • SW - Installation keyTX50
  • df - Ø Element to fix14
  • Tins - Torque (Nm)30
  • hnom - Min. anchor depth85
  • h1 - Drill hole depth min.95
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness135
  • L - Lenght100
TFA10120Ø10 x 12000252008423533917799
  • tfix - Max. fixture thickness35
  • SW - Installation keyTX50
  • df - Ø Element to fix14
  • Tins - Torque (Nm)30
  • hnom - Min. anchor depth85
  • h1 - Drill hole depth min.95
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness135
  • L - Lenght120
TFA
icon book
Technical Sheets
FT_TF_en_rev0.pdf
FTA_TFE_en_rev5.pdf
icon security
Assessments
VdS_rev2.pdf
ETA_THE_en_rev5.pdf
ETA_THE_Part6_en_rev1.pdf
icon table
Declaration of Performances
DoP_THE_en_rev7.pdf
Which anchors should I use for hollow core slabs?
Can you install a mechanical anchor at different depths?
What is the Atlantis coating used in the screw anchor?
Can you reuse concrete screws?
What length of concrete screw should I choose for my installation?
