Assessed through bolt anchor MTP-AT

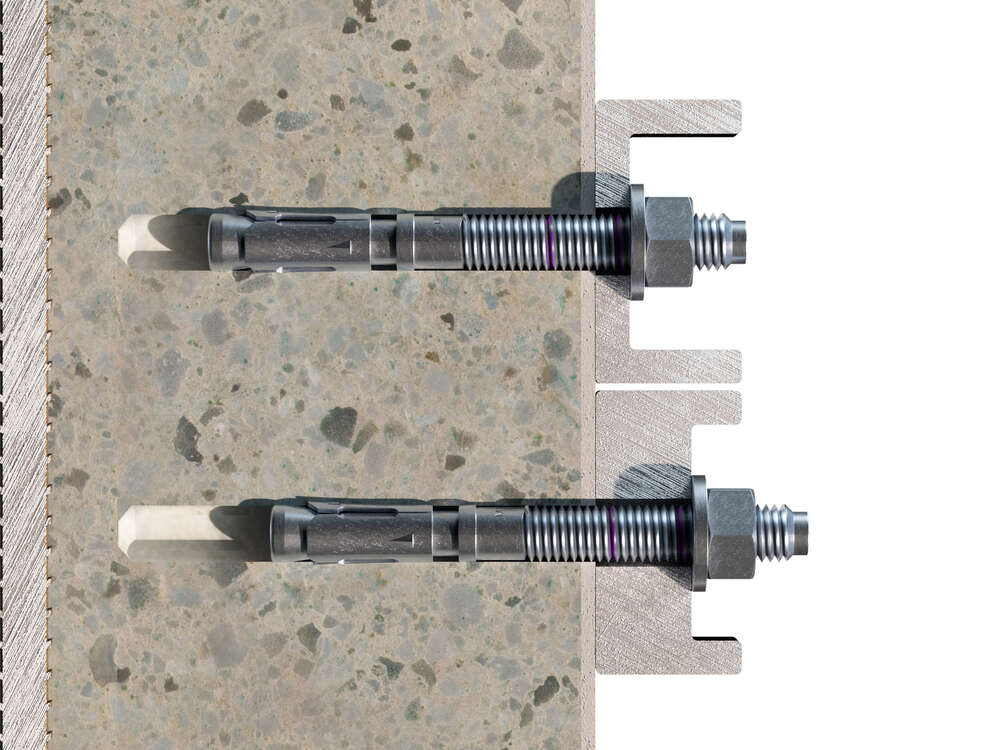

Through bolt anchor for high loads in cracked and non-cracked concrete. Controlled torque expansion. ETE Opt. 1 approved for safe structural fastenings in cracked and non-cracked concrete. Shaft made of ATLANTIS C4-M coated steel with A4 stainless steel clip.

ASSESSMENTS AND CERTIFICATES

+ info

CODE	SIZE	THICKNESS MAX.FIXTURE (mm)	MIN. SUBSTRATE THICKNESS	AXIS LETTER (LENGTH)	Pcs Box	Pcs Masterbox	EAN
APAT08075	M8 x 75 Ø8	9	100	C	100	600	8423533896520

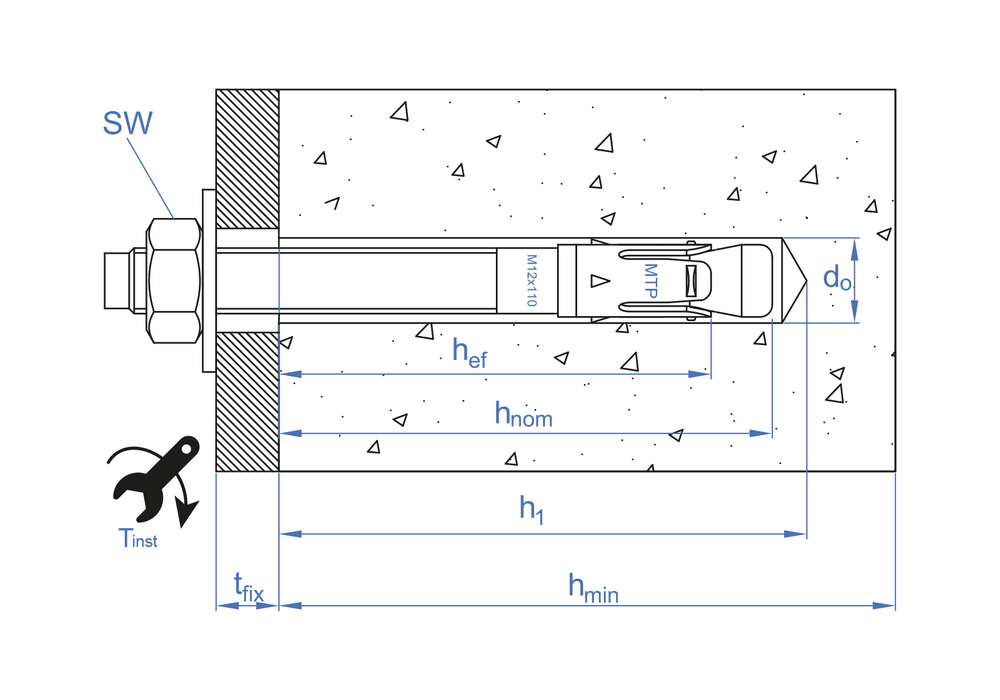

	t_fix- Max. fixture thickness9 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)20 h_ef - Effective depth48 h_nom - Min. anchor depth55 h₁ - Drill hole depth min.60 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght75
APAT08095	M8 x 95 Ø8	29	100	E	100	600	8423533896537
	t_fix- Max. fixture thickness29 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)20 h_ef - Effective depth48 h_nom - Min. anchor depth55 h₁ - Drill hole depth min.60 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght95
APAT08115	M8 x 115 Ø8	49	100	G	100	400	8423533896544
	t_fix- Max. fixture thickness49 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)20 h_ef - Effective depth48 h_nom - Min. anchor depth55 h₁ - Drill hole depth min.60 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght115
APAT10090	M10 x 90 Ø10	10	120	E	100	400	8423533896551
	t_fix- Max. fixture thickness10 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)40 h_ef - Effective depth60 h_nom - Min. anchor depth68 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness120 L - Lenght90
APAT10105	M10 x 105 Ø10	25	120	F	50	300	8423533896568
	t_fix- Max. fixture thickness25 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)40 h_ef - Effective depth60 h_nom - Min. anchor depth68 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness120 L - Lenght105
APAT10115	M10 x 115 Ø10	35	120	G	50	200	8423533896575
	t_fix- Max. fixture thickness35 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)40 h_ef - Effective depth60 h_nom - Min. anchor depth68 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness120 L - Lenght115
APAT10135	M10 x 135 Ø10	55	120	H	50	200	8423533896582
	t_fix- Max. fixture thickness55 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)40 h_ef - Effective depth60 h_nom - Min. anchor depth68 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness120 L - Lenght135
APAT10165	M10 x 165 Ø10	85	120	K	50	200	8423533896599
	t_fix- Max. fixture thickness85 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)40 h_ef - Effective depth60 h_nom - Min. anchor depth68 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness120 L - Lenght165
APAT10185	M10 x 185 Ø10	105	120	L	50	150	8423533896605
	t_fix- Max. fixture thickness105 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)40 h_ef - Effective depth60 h_nom - Min. anchor depth68 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness120 L - Lenght185
APAT12100	M12 x 100 Ø12	4	140	E	50	200	8423533896612
	t_fix- Max. fixture thickness4 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth70 h_nom - Min. anchor depth80 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness140 L - Lenght100
APAT12110	M12 x 110 Ø12	14	140	F	50	200	8423533896629
	t_fix- Max. fixture thickness14 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth70 h_nom - Min. anchor depth80 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness140 L - Lenght110
APAT12120	M12 x 120 Ø12	24	140	G	50	200	8423533896636
	t_fix- Max. fixture thickness24 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth70 h_nom - Min. anchor depth80 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness140 L - Lenght120
APAT12130	M12 x 130 Ø12	34	140	H	50	200	8423533896643
	t_fix- Max. fixture thickness34 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth70 h_nom - Min. anchor depth80 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness140 L - Lenght130
APAT12150	M12 x 150 Ø12	54	140	I	50	100	8423533896650
	t_fix- Max. fixture thickness54 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth70 h_nom - Min. anchor depth80 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness140 L - Lenght150
APAT12180	M12 x 180 Ø12	84	140	L	50	150	8423533896667
	t_fix- Max. fixture thickness84 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth70 h_nom - Min. anchor depth80 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness140 L - Lenght180
APAT12200	M12 x 200 Ø12	104	140	M	50	150	8423533896674
	t_fix- Max. fixture thickness104 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth70 h_nom - Min. anchor depth80 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness140 L - Lenght200
APAT16145	M16 x 145 Ø16	28	170	I	25	100	8423533896681
	t_fix- Max. fixture thickness28 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)100 h_ef - Effective depth85 h_nom - Min. anchor depth97 h₁ - Drill hole depth min.105 d₀ - Ø Drill16 h_min- Min. substrate thickness170 L - Lenght145
APAT16175	M16 x 175 Ø16	58	170	K	25	50	8423533896698
	t_fix- Max. fixture thickness58 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)100 h_ef - Effective depth85 h_nom - Min. anchor depth97 h₁ - Drill hole depth min.105 d₀ - Ø Drill16 h_min- Min. substrate thickness170 L - Lenght175
APAT16220	M16 x 220 Ø16	103	170	O	25	50	8423533896704
	t_fix- Max. fixture thickness103 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)100 h_ef - Effective depth85 h_nom - Min. anchor depth97 h₁ - Drill hole depth min.105 d₀ - Ø Drill16 h_min- Min. substrate thickness170 L - Lenght220
APAT20170	M20 x 170 Ø20	32	200	K	20	40	8423533896711
	t_fix- Max. fixture thickness32 SW - Installation key30 d_f - Ø Element to fix22 T_ins - Torque (Nm)200 h_ef - Effective depth100 h_nom - Min. anchor depth114 h₁ - Drill hole depth min.125 d₀ - Ø Drill20 h_min- Min. substrate thickness200 L - Lenght170
APAT20200	M20 x 200 Ø20	62	200	N	20	40	8423533896728
	t_fix- Max. fixture thickness62 SW - Installation key30 d_f - Ø Element to fix22 T_ins - Torque (Nm)200 h_ef - Effective depth100 h_nom - Min. anchor depth114 h₁ - Drill hole depth min.125 d₀ - Ø Drill20 h_min- Min. substrate thickness200 L - Lenght200
