Products / Screws / Drill, tapping and PVC screws / DIN-7504-P / DIN-7504-P HT Z
DIN-7504-P HT Z
DIN-7504-P HT Z

DIN-7504-P HT Z

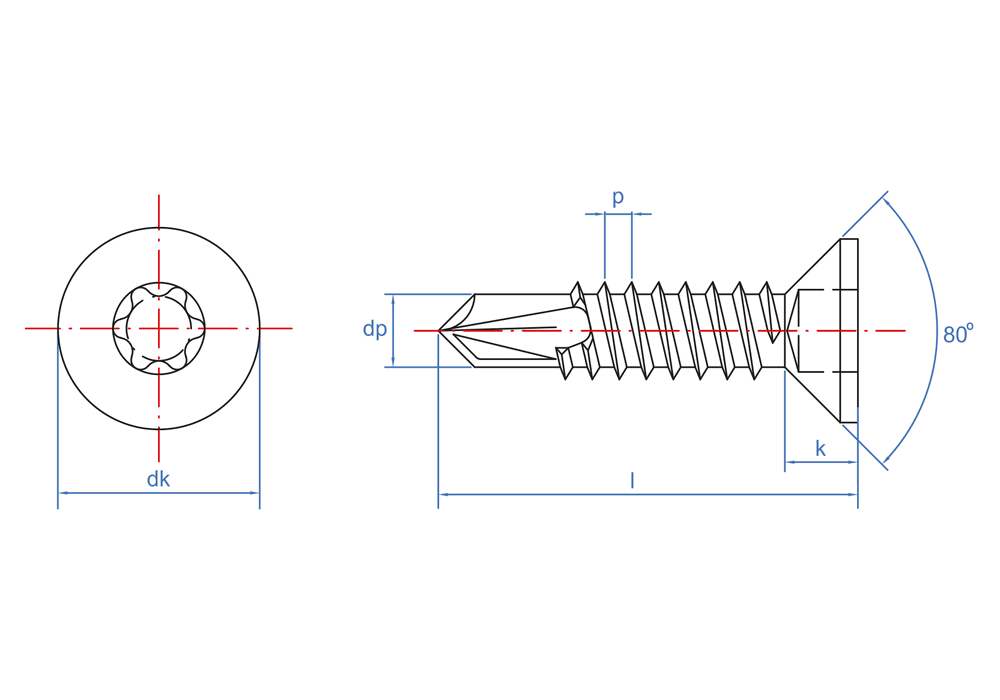

Countersunk head self-drilling screw. Zinc-plated. TX/OXBIT recess

CODESIZENº RECESSTHICKNESS MAX.FIXTURE (mm)DRILL CAPACITYMin. Order Qty.Pcs BoxPcs MasterboxEANTechnical info.
ABPT35133,5 x 13Tx15/OXBIT156,20,70-2,2501.00024.0008423533841759
  • tfix - Max. fixture thickness6,2
  • L - Lenght13
ABPT35163,5 x 16Tx15/OXBIT159,20,70-2,2501.00024.0008423533841766
  • tfix - Max. fixture thickness9,2
  • L - Lenght16
ABPT35193,5 x 19Tx15/OXBIT1512,10,70-2,2501.00012.0008423533841773
  • tfix - Max. fixture thickness12,1
  • L - Lenght19
ABPT39133,9 x 13Tx15/OXBIT155,80,70-2,4001.00024.0008423533841780
  • tfix - Max. fixture thickness5,8
  • L - Lenght13
ABPT39163,9 x 16Tx15/OXBIT158,80,70-2,4001.00012.0008423533841797
  • tfix - Max. fixture thickness8,8
  • L - Lenght16
ABPT42134,2 x 13Tx20/OXBIT204,31,75-3,0001.00012.0008423533841803
  • tfix - Max. fixture thickness4,3
  • L - Lenght13
ABPT42164,2 x 16Tx20/OXBIT207,31,75-3,0001.00012.0008423533841810
  • tfix - Max. fixture thickness7,3
  • L - Lenght16
ABPT42194,2 x 19Tx20/OXBIT2010,31,75-3,0001.00012.0008423533841827
  • tfix - Max. fixture thickness10,3
  • L - Lenght19
ABPT42254,2 x 25Tx20/OXBIT2016,31,75-3,0005006.0008423533841834
  • tfix - Max. fixture thickness16,3
  • L - Lenght25
ABPT42324,2 x 32Tx20/OXBIT20231,75-3,0005006.0008423533841841
  • tfix - Max. fixture thickness23
  • L - Lenght32
ABPT48194,8 x 19Tx25/OXBIT258,71,75-4,4001.0008.0008423533841858
  • tfix - Max. fixture thickness8,7
  • L - Lenght19
ABPT48254,8 x 25Tx25/OXBIT2514,71,75-4,4005006.0008423533841865
  • tfix - Max. fixture thickness14,7
  • L - Lenght25
ABPT48324,8 x 32Tx25/OXBIT2521,51,75-4,4005006.0008423533841872
  • tfix - Max. fixture thickness21,5
  • L - Lenght32
ABPT48384,8 x 38Tx25/OXBIT2527,51,75-4,4005003.0008423533841889
  • tfix - Max. fixture thickness27,5
  • L - Lenght38
ABPT48504,8 x 50Tx25/OXBIT2539,51,75-4,4005003.0008423533841896
  • tfix - Max. fixture thickness39,5
  • L - Lenght50
  • Anchoring shelving
  • Installation of fire extinguishers
  • Signs
  • Sheet metal profiles
  • Sandwich sheets on canopies
  • Signs
  • Sheet metal roofing
  • Flat screws
icon book
Technical Sheets
FT_BRO_en_rev16.pdf
What are the typical causes of failure with self-drilling screws?
Why doesn´t the stainless screw drill through steel?
