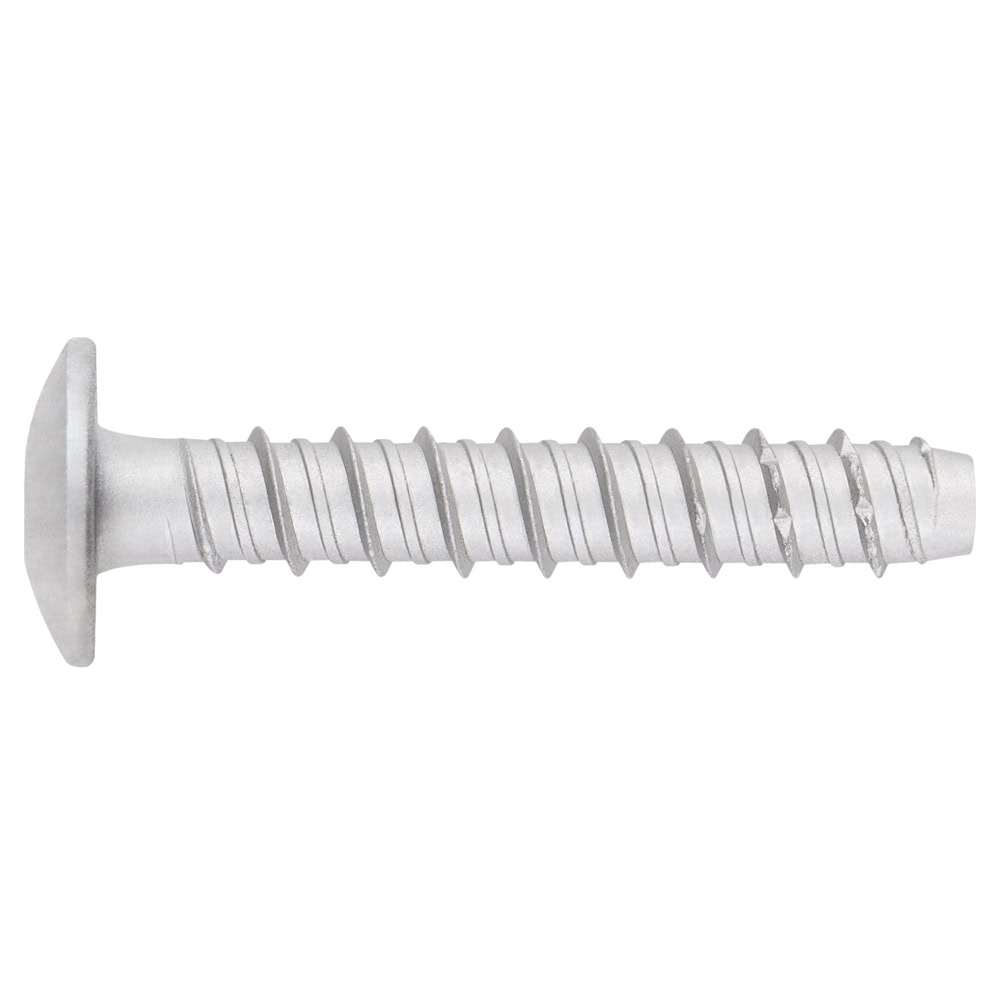

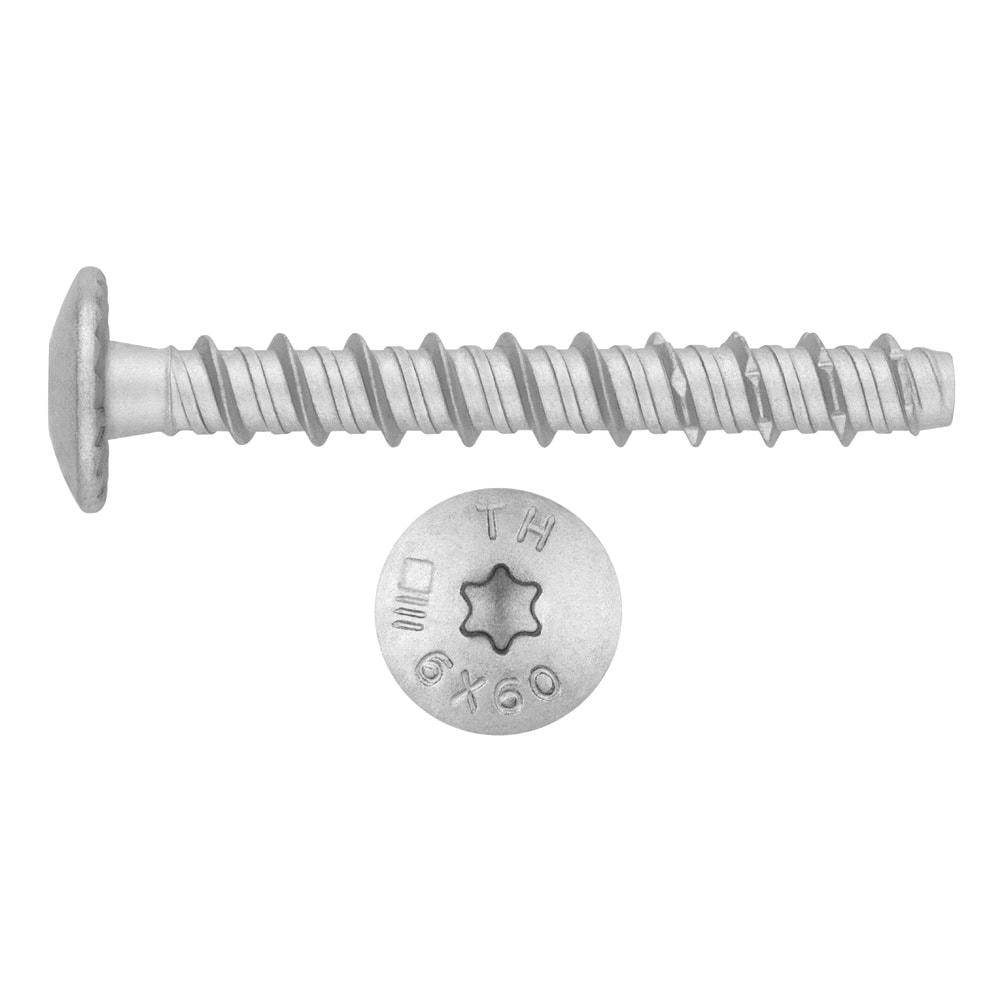

Concrete screw anchor with truss head THT

Direct fixing screw anchor with truss head for cracked and non-cracked concrete. Suitable for fixing high load-bearing elements. Removable and reusable anchorage. ETE Opt.1 approved. Made of steel with ATLANTIS C3-H coating.
Amplify information
> CAD Data

ASSESSMENTS AND CERTIFICATES

+ info
TDDU6BI9296 ETA CU 20 0046 ETA CU 20 0046 SZ6
TDDU15BI9305 ETA NS 20 0494 ETA NS 20 0494 SZ6
EKOU2BI8304 HO FUEGO Resistente al fuego SZ7
EKOU10BI8307 HO SEISMIC C1 SEISMIC C1 SZ7
EKOU24BI9355 HO CE 20 CE 2020 SZ7
CODEDRILL Ø X LENGTHNº RECESSTHICKNESS MAX.FIXTURE (mm)Pcs BoxPcs MasterboxEANTechnical info.
THT06040Ø6 x 40TX3051001.6008423533845016

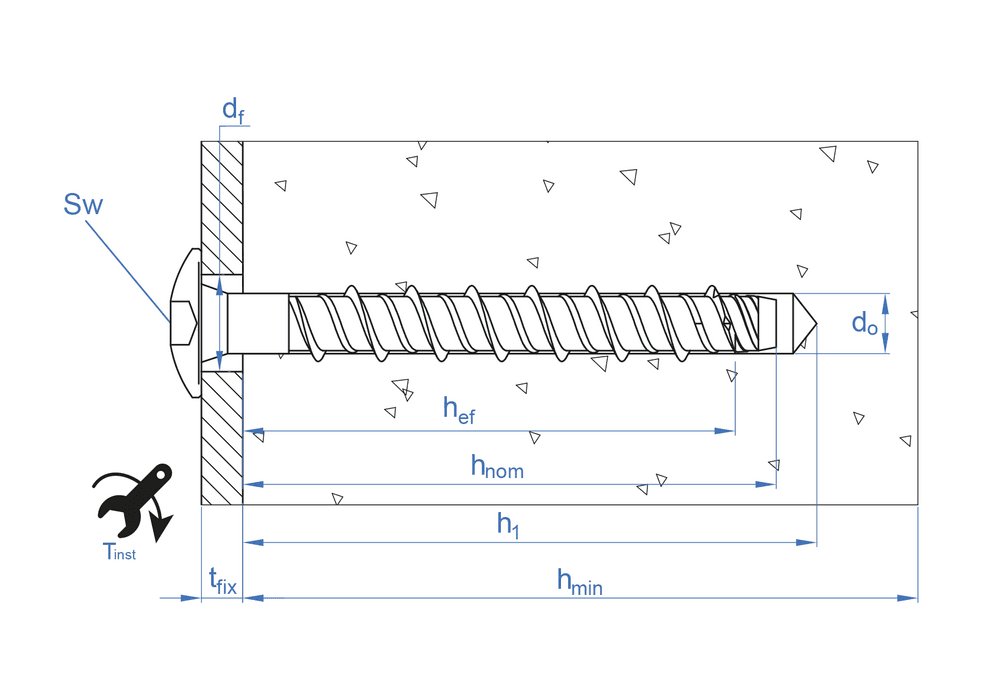

  • tfix - Max. fixture thickness5
  • SW - Installation keyTX30
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth35
  • h1 - Drill hole depth min.45
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght40
THT06050Ø6 x 50TX30151001.2008423533845023
  • tfix - Max. fixture thickness15
  • SW - Installation keyTX30
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth35
  • h1 - Drill hole depth min.45
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght50
THT06060Ø6 x 60TX3051004008423533845030
  • tfix - Max. fixture thickness5
  • SW - Installation keyTX30
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth55
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght60
  • Structural applications
  • Temporary awnings or signage
  • Stadium seating
  • Wood to concrete structures
  • Railings and fencing
  • Shelving and racks
  • Structural beams and pillars
PR830BI10427 CP THT THT SZ4
THT
icon book
Technical Sheets
FT_TH_en_rev0.pdf
FTA_THE_en_rev5.pdf
icon security
Assessments
VdS_rev2.pdf
ETA_THE_en_rev5.pdf
ETA_THE_Part6_en_rev1.pdf
icon camera
Multimedia
Video
icon table
Declaration of Performances
DoP_THE_en_rev7.pdf
Which anchors should I use for hollow core slabs?
How can I check if an anchor has been properly installed?
What are the different types of concrete?

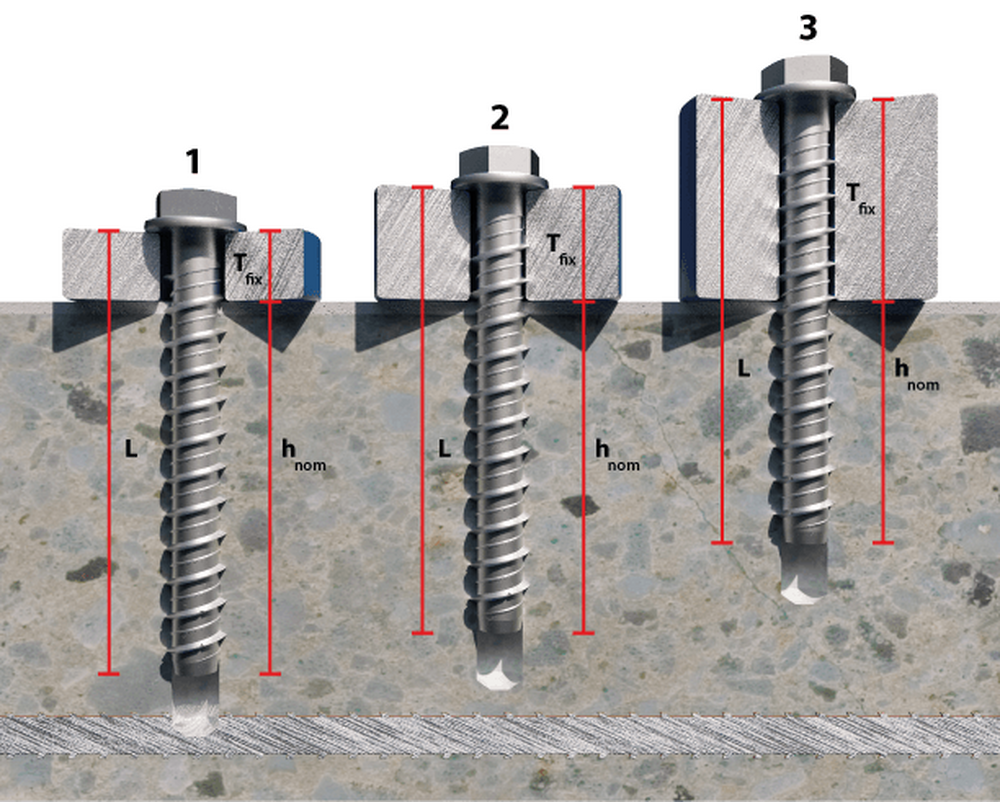

Can you install a mechanical anchor at different depths?
Can you reuse concrete screws?
What length of concrete screw should I choose for my installation?
What testing machines do you recommend for on-site tests?
What should I do in the event a drilling is aborted (e.g

related products

B-HDS

B-HDS

SDS-plus drill bits. High quality. SDS-plus drill bits. High quality
THE

THE

Concrete screw anchor with ATLANTIS C3-H coating. Opt.1 ETA Assessed. Hexagon head
TFE

TFE

Concrete screw anchor with zinc plated coating. Opt.1 ETA Assessed. Hexagon head
THA

THA

Concrete screw anchor with ATLANTIS C3-H coating. Opt.1 ETA Assessed. Countersunk head
THP

THP

Concrete screw anchor with ATLANTIS C3-H coating. Opt.1 ETA Assessed. Pan head
TFS

TFS

Concrete screw anchor with zinc plated coating. Opt.1 ETA Assessed. Stud bolt

Request more information

TÉCNICAS EXPANSIVAS S.L. informs that the personal data provided voluntarily on this website will be processed and incorporated into the corresponding files, responsibility of TÉCNICAS EXPANSIVAS S.L, is reported at the time of personal data collection, although, according to the specific case, its purpose may be any of the following: attention to your referred request, complaint or question, established relationship maintenance, comprehensive and commercial customer management, accounting and billing or sending communications, including electronic media, news and activities related to TÉCNICAS EXPANSIVAS S.L.

The data in our files are strictly confidential and shall be treated with the utmost confidentiality and shall comply with all the requirements provided for the General Data Protection Regulation (GDPR) 2016.

According to Data Protection legislation, you are strongly advised not to send high-level personal data, such as those relating to health, as they are not encoded or encrypted. Should these details be sent, it is done so under your sole responsibility.

The user may at any time exercise their rights of access, rectification, cancellation and opposition under the provisions of the General Data Protection Regulation (GDPR) 2016 by sending a letter together with a photocopy of your ID, to P.I. La Portalada II | c/ Segador 13, 26006 | Logroño (La Rioja).
Read more
logo index blanco

Técnicas Expansivas S.L.

CIF: B-26220491

P. I. La Portalada II, C/ Segador, 13

26006 · Logroño (La Rioja) · SPAIN

Youtube Linkedin-in Twitter X Facebook-f Instagram
featured products
downloads
Logo Lontana Group horizontal blanco SIN FONDO

More products...

THT

THT

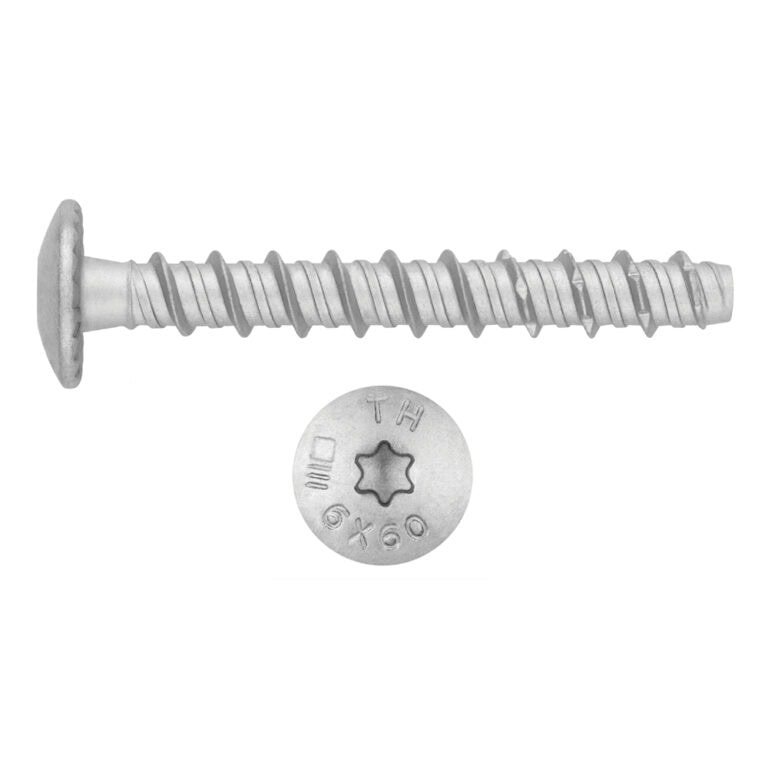

Concrete screw anchor with ATLANTIS C3-H coating
