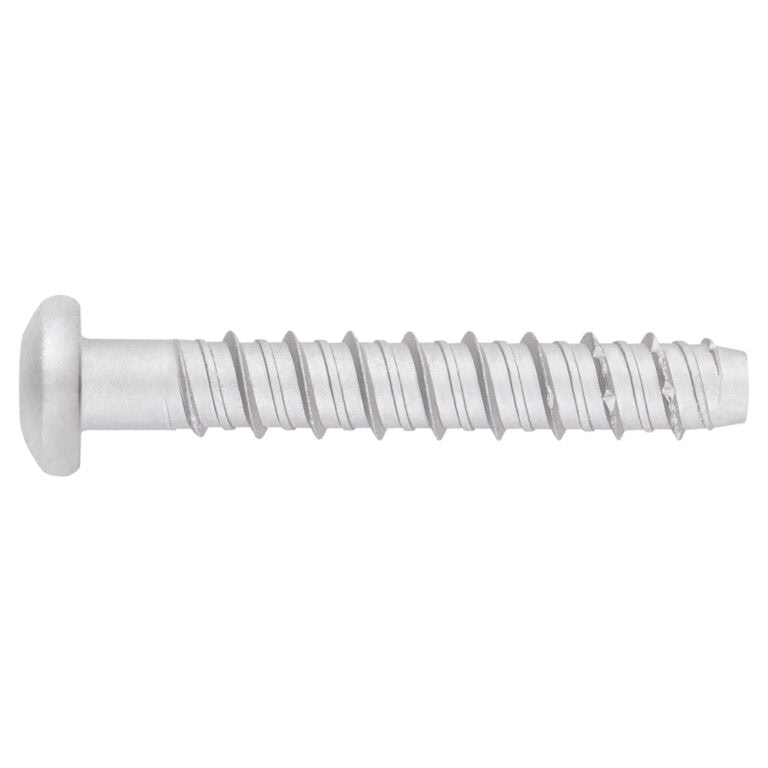

Concrete screw anchor with pan head THP

Direct fixing screw anchor with hexagonal head and stud bolt . Suitable for fixing high load-bearing elements in cracked and non-cracked concrete. Removable and reusable. ETE Opt.1 approved. Made of zinc-plated steel.+I99+I98:M98
Amplify information
> CAD Data

ASSESSMENTS AND CERTIFICATES

+ info
TDDU6BI9296 ETA CU 20 0046 ETA CU 20 0046 SZ6
TDDU15BI9305 ETA NS 20 0494 ETA NS 20 0494 SZ6
EKOU2BI8304 HO FUEGO Resistente al fuego SZ7
EKOU10BI8307 HO SEISMIC C1 SEISMIC C1 SZ7
EKOU11BI8308 HO SEISMIC C1 C2 SEISMIC C1 C2 SZ7
EKOU24BI9355 HO CE 20 CE 2020 SZ7
EKOU48BI9379 HO VDS VDS SZ7
CODEDRILL Ø X LENGTHNº RECESSTHICKNESS MAX.FIXTURE (mm)Pcs BoxPcs MasterboxEANTechnical info.
THP05040Ø5 x 40TX3051002.4008423533845047

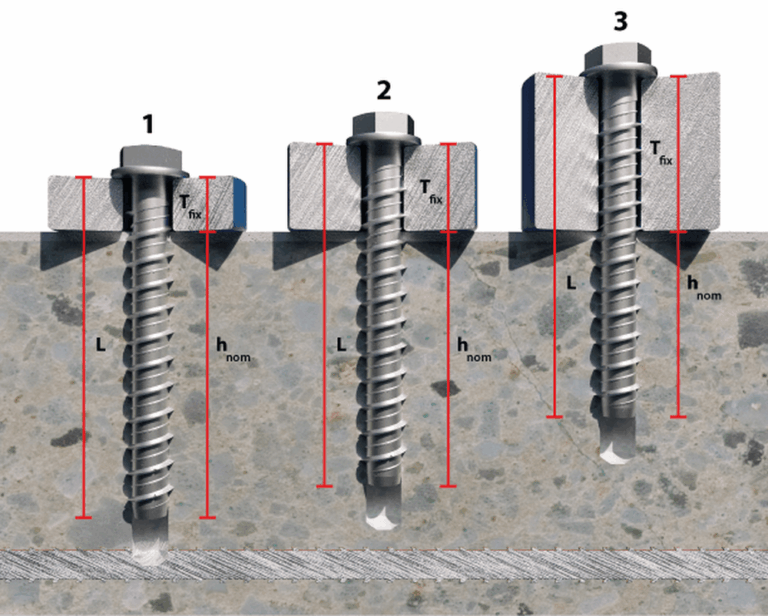

  • tfix - Max. fixture thickness5
  • SW - Installation keyTX30
  • df - Ø Element to fix8
  • Tins - Torque (Nm)8
  • hnom - Min. anchor depth35
  • h1 - Drill hole depth min.45
  • d0 - Ø Drill5
  • hmin - Min. substrate thickness80
  • L - Lenght40
THP05060Ø5 x 60TX30151001.2008423533845061
  • tfix - Max. fixture thickness15
  • SW - Installation keyTX30
  • df - Ø Element to fix8
  • Tins - Torque (Nm)8
  • hnom - Min. anchor depth45
  • h1 - Drill hole depth min.55
  • d0 - Ø Drill5
  • hmin - Min. substrate thickness80
  • L - Lenght60
THP06040Ø6 x 40TX4051001.2008423533479761
  • tfix - Max. fixture thickness5
  • SW - Installation keyTX40
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth35
  • h1 - Drill hole depth min.45
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght40
THP06050Ø6 x 50TX40151001.2008423533845078
  • tfix - Max. fixture thickness15
  • SW - Installation keyTX40
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth35
  • h1 - Drill hole depth min.45
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght50
THP06060Ø6 x 60TX4051001.2008423533845085
  • tfix - Max. fixture thickness5
  • SW - Installation keyTX40
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth55
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght60
THP06080Ø6 x 80TX4025506008423533845092
  • tfix - Max. fixture thickness25
  • SW - Installation keyTX40
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth55
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght80
THP06100Ø6 x 100TX4045502008423533845108
  • tfix - Max. fixture thickness45
  • SW - Installation keyTX40
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth55
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght100
THP08060Ø8 x 60TX4510254008423533845115
  • tfix - Max. fixture thickness10
  • SW - Installation keyTX45
  • df - Ø Element to fix12
  • Tins - Torque (Nm)20
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.60
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght60
THP08080Ø8 x 80TX4515253008423533845122
  • tfix - Max. fixture thickness15
  • SW - Installation keyTX45
  • df - Ø Element to fix12
  • Tins - Torque (Nm)20
  • hnom - Min. anchor depth65
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght80
  • Structural applications
  • Temporary awnings or signage
  • Stadium seating
  • Wood to concrete structures
  • Railings and fencing
  • Shelving and racks
  • Structural beams and pillars
PR831BI10426 CP THP THP SZ4
THP
icon book
Technical Sheets
FT_TH_en_rev0.pdf
FTA_THE_en_rev5.pdf
icon security
Assessments
VdS_rev2.pdf
ETA_THE_en_rev5.pdf
ETA_THE_Part6_en_rev1.pdf
icon camera
Multimedia
Video
icon table
Declaration of Performances
DoP_THE_en_rev7.pdf
Which anchors should I use for hollow core slabs?
How can I check if an anchor has been properly installed?
What are the different types of concrete?
Can you install a mechanical anchor at different depths?
Can you reuse concrete screws?
What length of concrete screw should I choose for my installation?
What testing machines do you recommend for on-site tests?
What should I do in the event a drilling is aborted (e.g

related products

B-HDS

B-HDS

SDS-plus drill bits. High quality. SDS-plus drill bits. High quality
THE

THE

Concrete screw anchor with ATLANTIS C3-H coating. Opt.1 ETA Assessed. Hexagon head
TFE

TFE

Concrete screw anchor with zinc plated coating. Opt.1 ETA Assessed. Hexagon head
THA

THA

Concrete screw anchor with ATLANTIS C3-H coating. Opt.1 ETA Assessed. Countersunk head
THT

THT

Concrete screw anchor with ATLANTIS C3-H coating. Opt.1 ETA Assessed. Truss head
TFS

TFS

Concrete screw anchor with zinc plated coating. Opt.1 ETA Assessed. Stud bolt
