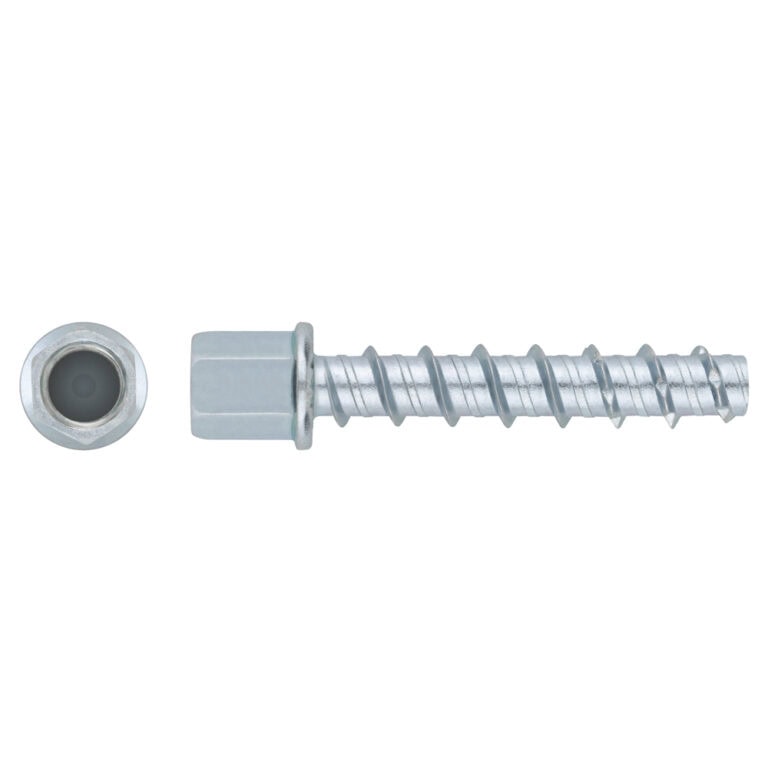

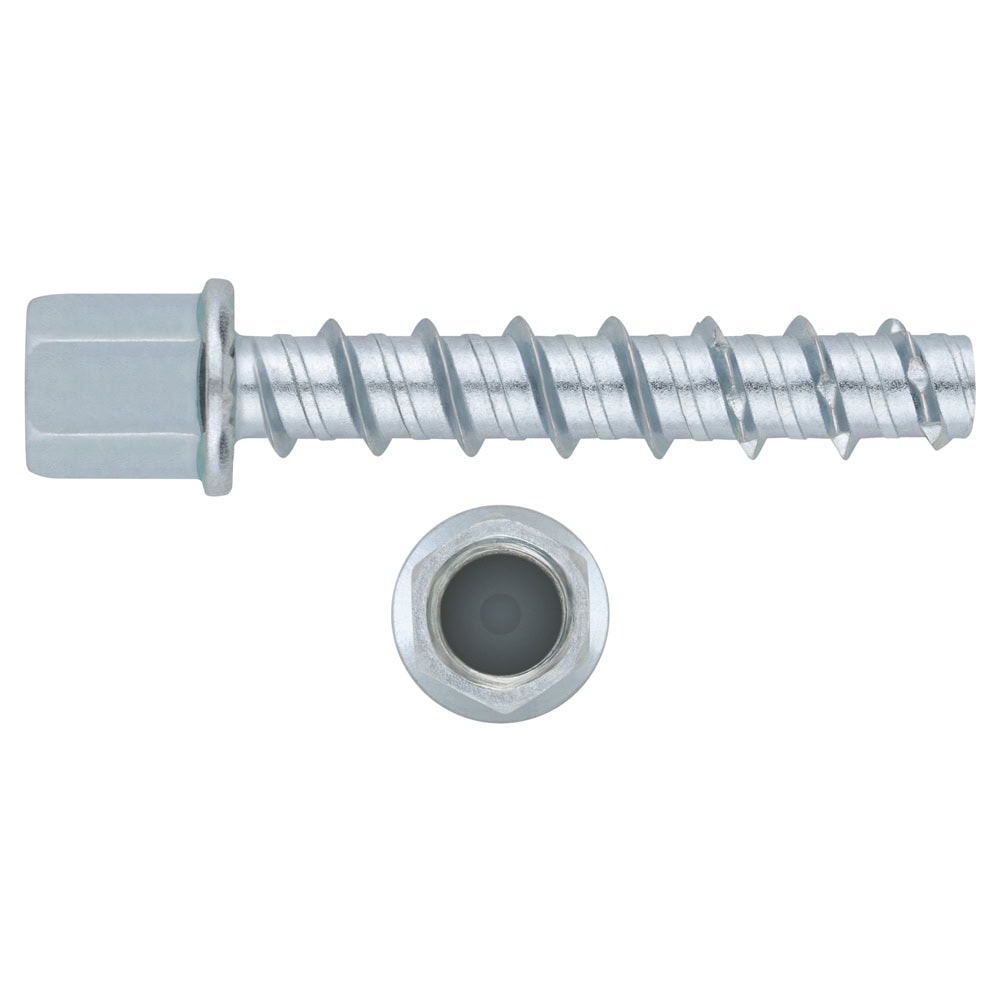

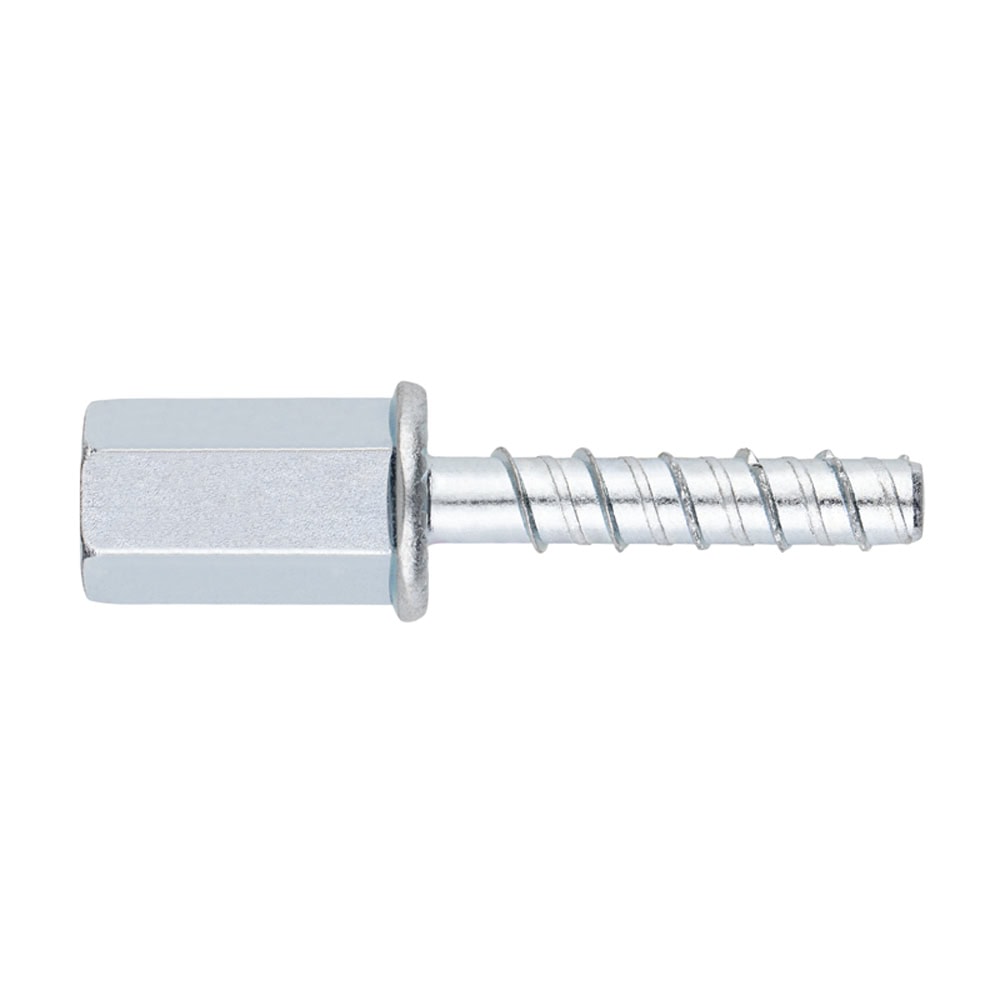

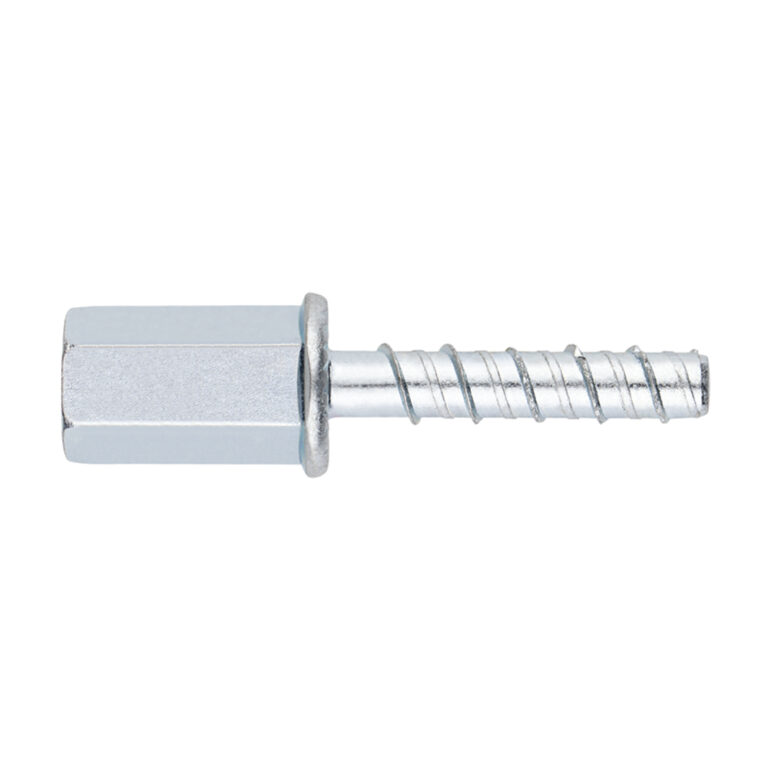

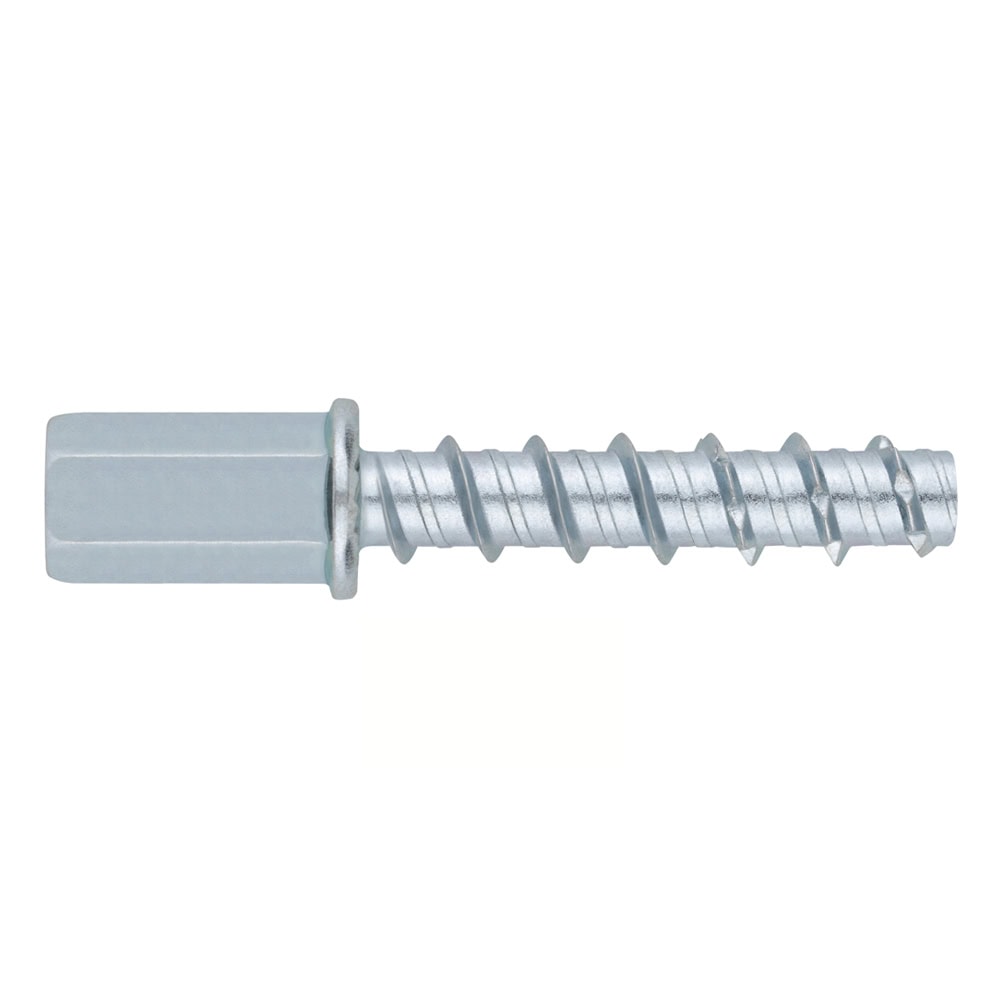

Concrete screw anchor with hanger female TFF

Direct fixing screw anchor with hexagonal head and stud bolt . Suitable for fixing high load-bearing elements in cracked and non-cracked concrete. Removable and reusable. ETE Opt.1 approved. Made of zinc-plated steel.
Amplify information
> CAD Data

ASSESSMENTS AND CERTIFICATES

+ info
TDDU6BI9296 ETA CU 20 0046 ETA CU 20 0046 SZ6
TDDU15BI9305 ETA NS 20 0494 ETA NS 20 0494 SZ6
EKOU2BI8304 HO FUEGO Resistente al fuego SZ7
EKOU24BI9355 HO CE 20 CE 2020 SZ7
EKOU48BI9379 HO VDS VDS SZ7
CODEDRILL Ø X LENGTHNº RECESSTHICKNESS MAX.FIXTURE (mm)Pcs BoxPcs MasterboxEANTechnical info.
TFF05035SØ5 x 35 (M6)10--501.2008423533918574
  • tfix - Max. fixture thickness--
  • SW - Installation key10
  • df - Ø Element to fix8
  • Tins - Torque (Nm)8
  • hnom - Min. anchor depth35
  • h1 - Drill hole depth min.45
  • d0 - Ø Drill5
  • hmin - Min. substrate thickness80
  • L - Lenght35
TFF06035Ø6 x 35 (M8-M10)13--502008423533845801
  • tfix - Max. fixture thickness--
  • SW - Installation key13
  • df - Ø Element to fix--
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth35
  • h1 - Drill hole depth min.45
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght35
TFF06040Ø6 x 40 (M8-M10)13--502008423533900104
  • tfix - Max. fixture thickness--
  • SW - Installation key13
  • df - Ø Element to fix--
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth35
  • h1 - Drill hole depth min.45
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght40
TFF06055Ø6 x 55 (M8-M10)13--502008423533845818
  • tfix - Max. fixture thickness--
  • SW - Installation key13
  • df - Ø Element to fix--
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth55
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght55
TFF08050TØ8 x 50 (M10)13--506008423533918130
  • tfix - Max. fixture thickness--
  • SW - Installation key13
  • df - Ø Element to fix--
  • Tins - Torque (Nm)20
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.60
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght50
TFF08050WØ8 x 50 (M12)17--503008423533918147
  • tfix - Max. fixture thickness--
  • SW - Installation key17
  • df - Ø Element to fix--
  • Tins - Torque (Nm)20
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.60
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght50
  • Fixing of pipes
  • Air conditioning units ducts
  • Electrical trays or wiring systems
  • Installations in hollow concrete ceilings
  • Installations in hollow-core slab ceilings
