Concrete screw anchor with Stud bolt TFM

Direct fixing screw anchor with hexagonal head and stud bolt . Suitable for fixing high load-bearing elements in cracked and non-cracked concrete. Removable and reusable. ETE Opt.1 approved. Made of zinc-plated steel.
Amplify information
> CAD Data

ASSESSMENTS AND CERTIFICATES

+ info
TDDU6BI9296 ETA CU 20 0046 ETA CU 20 0046 SZ6
TDDU15BI9305 ETA NS 20 0494 ETA NS 20 0494 SZ6
EKOU2BI8304 HO FUEGO Resistente al fuego SZ7
EKOU24BI9355 HO CE 20 CE 2020 SZ7
CODEDRILL Ø X LENGTHNº RECESSTHICKNESS MAX.FIXTURE (mm)Pcs BoxPcs MasterboxEANTechnical info.
TFM06035Ø6 x 35 (M8)13--1004008423533845788

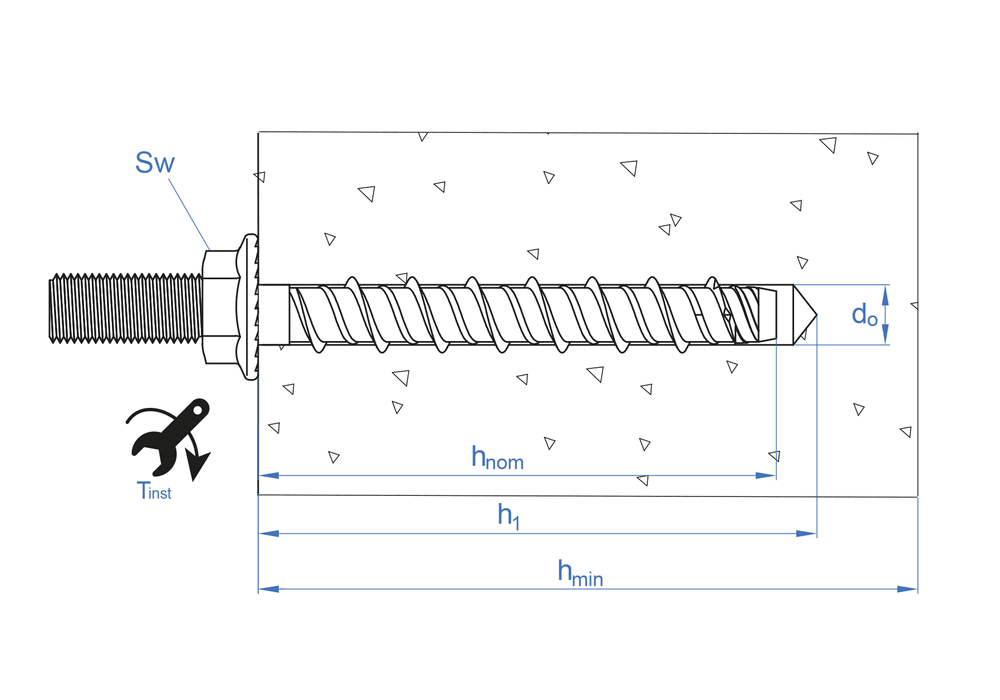

  • tfix - Max. fixture thickness--
  • SW - Installation key13
  • df - Ø Element to fix--
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth35
  • h1 - Drill hole depth min.45
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght35
TFM06055Ø6 x 55 (M10)13--1006008423533845795
  • tfix - Max. fixture thickness--
  • SW - Installation key13
  • df - Ø Element to fix--
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth55
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght55
  • Fixing of pipes
  • Air conditioning units ducts
  • Electrical trays or wiring systems
  • Installations in hollow concrete ceilings
  • Installations in hollow-core slab ceilings
PR833BI10421 CP TFM TFM SZ4
