Concrete screw anchor with projecting bolt TFS

Direct fixing screw anchor with threaded stud for cracked and non-cracked concrete. ETE Opt.1 approved. Suitable for high loads. Removable and reusable. Made of zinc-coated steel.
Amplify information
> CAD Data

ASSESSMENTS AND CERTIFICATES

+ info
TDDU6BI9296 ETA CU 20 0046 ETA CU 20 0046 SZ6
TDDU15BI9305 ETA NS 20 0494 ETA NS 20 0494 SZ6
EKOU2BI8304 HO FUEGO Resistente al fuego SZ7
EKOU10BI8307 HO SEISMIC C1 SEISMIC C1 SZ7
EKOU11BI8308 HO SEISMIC C1 C2 SEISMIC C1 C2 SZ7
EKOU24BI9355 HO CE 20 CE 2020 SZ7
EKOU48BI9379 HO VDS VDS SZ7
CODEDRILL Ø X LENGTHNº RECESSTHICKNESS MAX.FIXTURE (mm)Pcs BoxPcs MasterboxEANTechnical info.
TFS06100Ø6 x 100 (M8)531508008423533845689

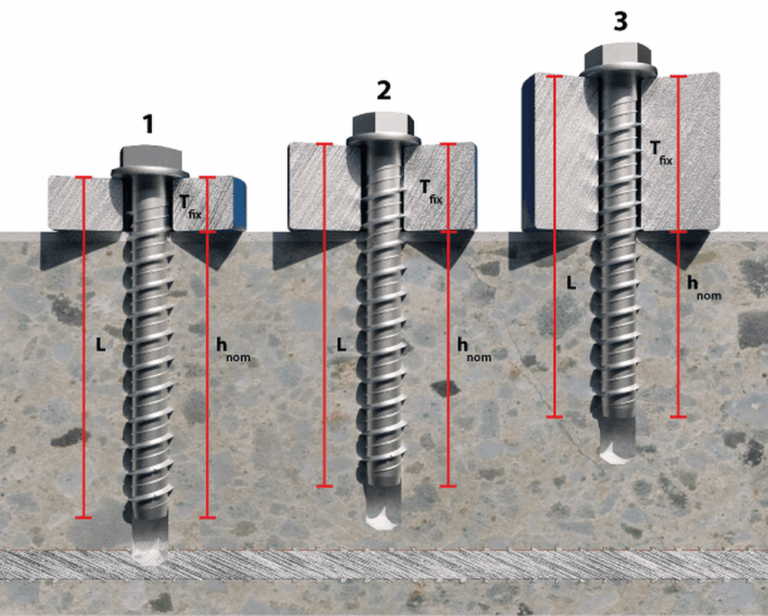

  • tfix - Max. fixture thickness31
  • SW - Installation key5
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth55
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght100
TFS06120Ø6 x 120 (M8)551506008423533845696
  • tfix - Max. fixture thickness51
  • SW - Installation key5
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth55
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght120
TFS08110Ø8 x 110 (M10)729504008423533845702
  • tfix - Max. fixture thickness29
  • SW - Installation key7
  • df - Ø Element to fix12
  • Tins - Torque (Nm)20
  • hnom - Min. anchor depth65
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght110
TFS08130Ø8 x 130 (M10)749504008423533845719
  • tfix - Max. fixture thickness49
  • SW - Installation key7
  • df - Ø Element to fix12
  • Tins - Torque (Nm)20
  • hnom - Min. anchor depth65
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght130
TFS10120Ø10 x 120 (M12)826252008423533845726
  • tfix - Max. fixture thickness26
  • SW - Installation key8
  • df - Ø Element to fix14
  • Tins - Torque (Nm)30
  • hnom - Min. anchor depth75
  • h1 - Drill hole depth min.85
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness120
  • L - Lenght120
TFS10140Ø10 x 140 (M12)846252008423533845733
  • tfix - Max. fixture thickness46
  • SW - Installation key8
  • df - Ø Element to fix14
  • Tins - Torque (Nm)30
  • hnom - Min. anchor depth75
  • h1 - Drill hole depth min.85
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness120
  • L - Lenght140
  • Structural applications
  • Temporary awnings or signage
  • Stadium seating
  • Wood to concrete structures
  • Railings and fencing
  • Shelving and racks
  • Structural beams and pillars
PR834BI10422 CP TFS TFS SZ4
TFS
icon book
Technical Sheets
FT_TF_en_rev0.pdf
FTA_TFE_en_rev5.pdf
icon security
Assessments
VdS_rev2.pdf
ETA_THE_en_rev5.pdf
ETA_THE_Part6_en_rev1.pdf
icon camera
Multimedia
Video
icon table
Declaration of Performances
DoP_THE_en_rev7.pdf
Which anchors should I use for hollow core slabs?
Can you install a mechanical anchor at different depths?
What is the Atlantis coating used in the screw anchor?
Can you reuse concrete screws?
What length of concrete screw should I choose for my installation?
