Products / Installation Systems / Fire protection systems / AB-CH / AB-CH
AB-CH
AB-CH
AB-CH
AB-CH
AB-CH
AB-CH
AB-CH
AB-CH

AB-CH

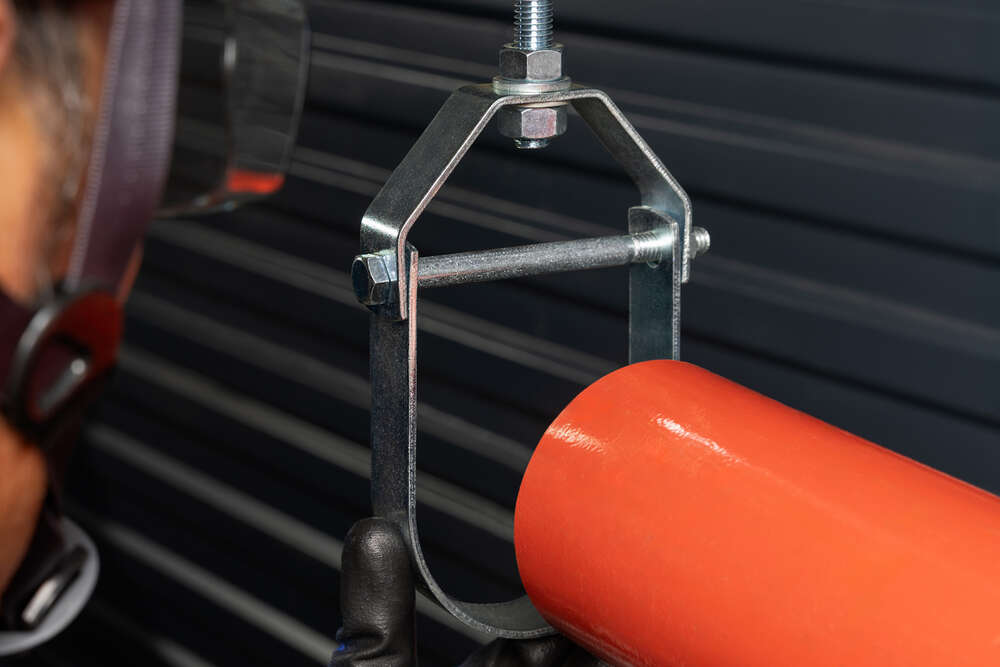

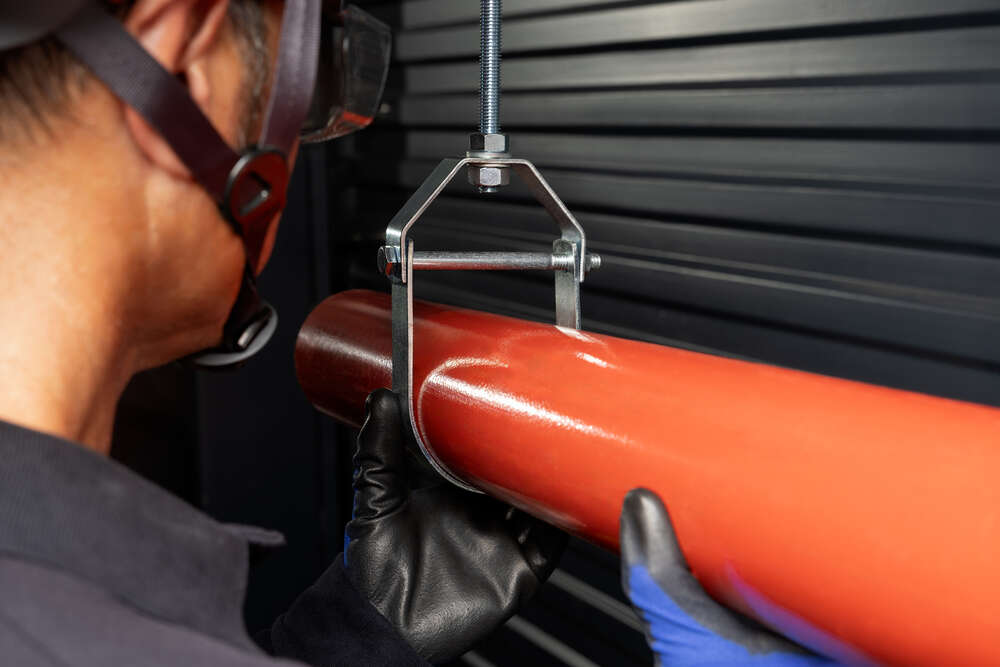

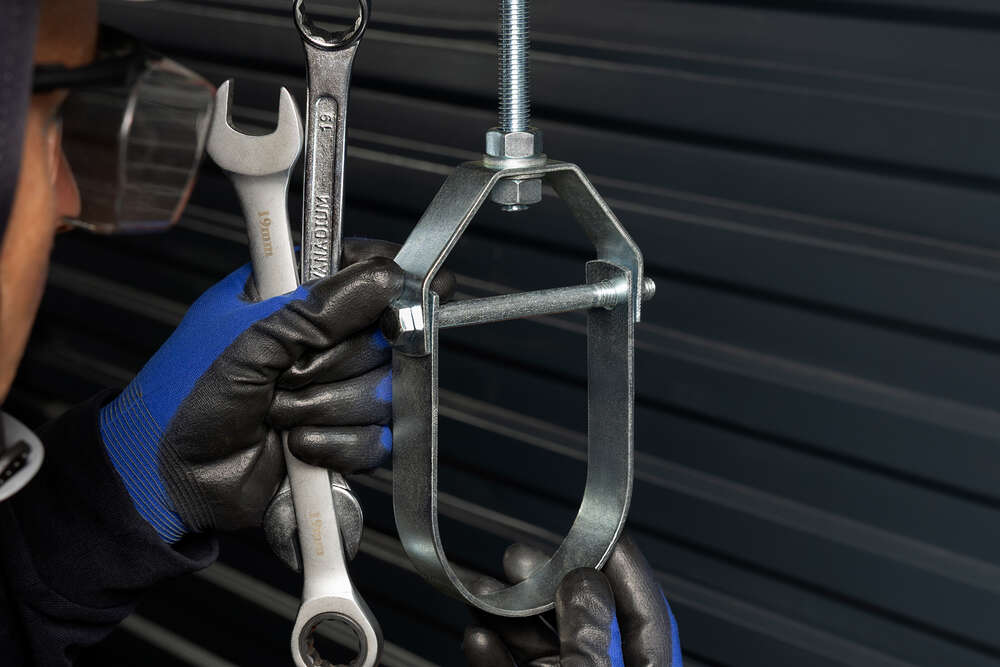

Clevis hanger clamp. Clevis hanger clamp

ASSESSMENTS AND CERTIFICATES

CODEASSESSMENTSIZEØD(mm)MAXIMUN LOADMin. Order Qty.Pcs BoxPcs MasterboxEANTechnical info.
ABCH00034HO_UL3/4"28005008423533825704
ABCH01000HO_UL1"35005008423533825711
ABCH01012HO_UL1 1/2"48005008423533825735
ABCH01014HO_UL1 1/4"42005008423533467805
ABCH02000HO_UL2"60005008423533825742
ABCH02012HO_UL,HO_FM2 1/2"75003008423533825759
ABCH03000HO_UL,HO_FM3"90002508423533825766
ABCH04000HO_UL,HO_FM4"115002508423533825773
ABCH05000HO_UL,HO_FM5"140002508423533825780
ABCH06000HO_UL,HO_FM6"160001008423533825797
ABCH08000HO_UL,HO_FM8"220001008423533825803
ABCH10000HO_UL10"27500108423533825810
ABCH12000HO_UL12"32500108423533825827
ABCH1400014"35500108423533825834
ABCH1600016"40500108423533825841
  • Installation of heavy pipes
  • Installation of fire extinguishing pipes
  • Installation of fire extinguishing pipes
icon book
Technical Sheets
FT_ABSP_en_rev1.pdf
icon security
Assessments
FM_ABCH_en_rev0.pdf
UL_ABCH_en_rev0.pdf
