Products / Installation Systems / Heavy metal clamps / AB-RE / AB-RE
AB-RE
AB-RE

AB-RE

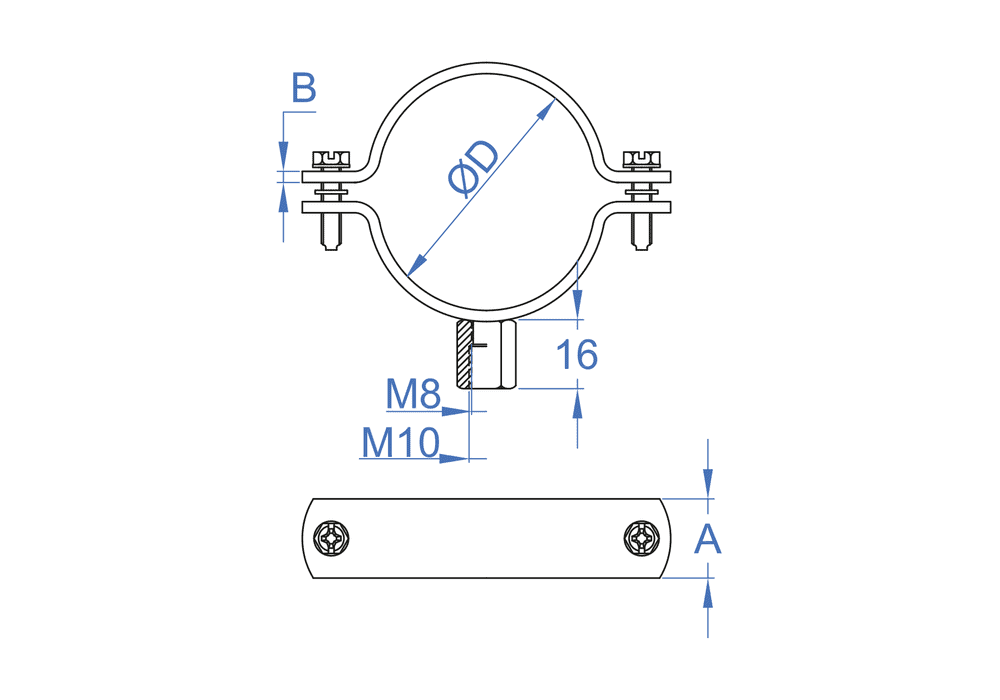

Reinforced pipe clamp M8 + M10. Zinc-plated

CODESIZEØD(mm)MAXIMUN LOADMin. Order Qty.Pcs BoxPcs MasterboxEANTechnical info.
ABRE01818 (M8+M10)15 - 19800503008423533219206
ABRE02222 (M8+M10)20 - 25800502008423533219305
ABRE02828 (M8+M10)26 - 30800501508423533219404
ABRE03535 (M8+M10)32 - 36800501008423533219503
ABRE04040 (M8+M10)38 - 43800251008423533219602
ABRE04848 (M8+M10)47 - 51800251008423533219701
ABRE05454 (M8+M10)53 - 5680025758423533219800
ABRE06060 (M8+M10)60 - 6480025758423533219909
ABRE07070 (M8+M10)68 - 7280025508423533220004
ABRE07575 (M8+M10)75 - 80150025508423533220103
ABRE08383 (M8+M10)81 - 8615002508423533220202
ABRE09090 (M8+M10)87 - 9215002508423533220301
ABRE100100 (M8+M10)99 - 10515002508423533220400
ABRE110110 (M8+M10)107 - 11215002508423533220509
ABRE115115 (M8+M10)113 - 11820002508423533220608
ABRE125125 (M8+M10)125 - 13020002508423533220707
ABRE133133 (M8+M10)132 - 13720002508423533220806
ABRE140140 (M8+M10)138 - 14220002508423533220905
ABRE150150 (M8+M10)148 - 15220002508423533221001
ABRE160160 (M8+M10)159 - 16620002508423533221100
ABRE180180 (M8+M10)179 - 18420002508423533045973
ABRE200200 (M8+M10)199 - 21220002508423533221209
ABRE220220 (M8+M10)215 - 22620002508423533221308
ABRE250250 (M8+M10)245 - 25420002508423533045980
ABRE280280 (M8+M10)278 - 28420002508423533831644
ABRE300300 (M8+M10)299 - 30420002508423533046017
ABRE315315 (M8+M10)314 - 31920002508423533046024
ABRE355355 (M8+M10)354 - 35920002508423533046031
  • Clamp
  • Clamp bracket
  • Pipe clamp
  • Air conditioning units
  • Gutter clamp
  • Concrete building under construction
icon book
Technical Sheets
FT_ABMETP_en_rev4.pdf
