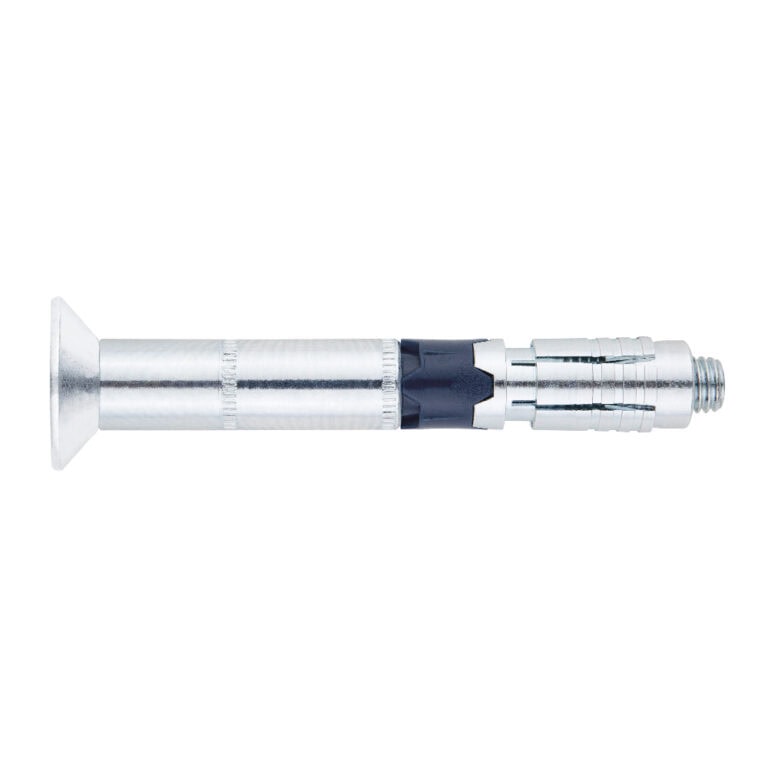

Heavy duty anchor for high perfomance with countersunkl head SL-PC

Heavy duty anchor for high perfomance in concrete. Opt.1 ETA Assessed. Countersunk head

> CAD Data

ASSESSMENTS AND CERTIFICATES

+ info
TDDU5BI9295 ETA CU 18 1108 ETA CU 18 1108 SZ6
EKOU2BI8304 HO FUEGO Resistente al fuego SZ7
EKOU23BI9354 HO CE 18 CE 2018 SZ7
EKOU48BI9379 HO VDS VDS SZ7
CODESIZETHICKNESS MAX.FIXTURE (mm)MIN. SUBSTRATE THICKNESSAXIS LETTER (LENGTH)Pcs BoxPcs MasterboxEANInfo. Técnica
SLPC10070M6 x 70 Ø1010100506008423533828033
  • tfix - Max. fixture thickness10
  • SW - Installation key4
  • df - Ø Element to fix12
  • Tins - Torque (Nm)15
  • hef - Effective depth50
  • hnom - Min. anchor depth59
  • h1 - Drill hole depth min.70
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght70
SLPC10080M6 x 80 Ø1020100506008423533828040
  • tfix - Max. fixture thickness20
  • SW - Installation key4
  • df - Ø Element to fix12
  • Tins - Torque (Nm)15
  • hef - Effective depth50
  • hnom - Min. anchor depth59
  • h1 - Drill hole depth min.70
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght80
SLPC10100M6 x 100 Ø1040100503008423533828422
  • tfix - Max. fixture thickness40
  • SW - Installation key4
  • df - Ø Element to fix12
  • Tins - Torque (Nm)15
  • hef - Effective depth50
  • hnom - Min. anchor depth59
  • h1 - Drill hole depth min.70
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght100
SLPC12100M8 x 100 Ø1225120502008423533828057
  • tfix - Max. fixture thickness25
  • SW - Installation key5
  • df - Ø Element to fix14
  • Tins - Torque (Nm)30
  • hef - Effective depth60
  • hnom - Min. anchor depth72
  • h1 - Drill hole depth min.85
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness120
  • L - Lenght100
SLPC16100M10 x 100 Ø1615140251508423533828064
  • tfix - Max. fixture thickness15
  • SW - Installation key6
  • df - Ø Element to fix18
  • Tins - Torque (Nm)50
  • hef - Effective depth70
  • hnom - Min. anchor depth83
  • h1 - Drill hole depth min.95
  • d0 - Ø Drill16
  • hmin - Min. substrate thickness140
  • L - Lenght100
SLPC16120M10 x 120 Ø1635140251008423533828071
  • tfix - Max. fixture thickness35
  • SW - Installation key6
  • df - Ø Element to fix18
  • Tins - Torque (Nm)50
  • hef - Effective depth70
  • hnom - Min. anchor depth83
  • h1 - Drill hole depth min.95
  • d0 - Ø Drill16
  • hmin - Min. substrate thickness140
  • L - Lenght120
SLPC18120M12 x 120 Ø182017020808423533828088
  • tfix - Max. fixture thickness20
  • SW - Installation key8
  • df - Ø Element to fix20
  • Tins - Torque (Nm)80
  • hef - Effective depth85
  • hnom - Min. anchor depth97
  • h1 - Drill hole depth min.110
  • d0 - Ø Drill18
  • hmin - Min. substrate thickness170
  • L - Lenght120
  • Scaffolding
  • Antennae
  • Road guardrails
  • Concrete building under construction
  • Site hoist
  • Industrial shelving
  • Street lamp
  • Road lamp
SL-PC
icon book
Technical Sheets
FT_SL_en_rev4.pdf
FTA_SL_en_rev1.pdf
icon security
Assessments
VdS_rev2.pdf
ETA_SL_en_rev2.pdf
icon camera
Multimedia
Video
icon table
Declaration of Performances
DoP_SL_en_rev2.pdf
How can I check if an anchor has been properly installed?
Can an expansion anchor be retightened to its nominal torque once installed?
What installation torque should you apply to an anchor?
What are the different types of concrete?
What testing machines do you recommend for on-site tests?
What should I do in the event a drilling is aborted (e.g
