Products / Anchors / Plastic fixings / T-NUX / T-FUX E
T-FUX E
Play Video
T-FUX E
video thumbnails placeholder
T-FUX E
Play Video
T-FUX E
video thumbnails placeholder

T-FUX E cylinder head screw plugs

High-performance nylon dowel with cylindrical head screw and TX footprint. It allows the fastening of medium-load elements in solid and hollow materials. It is approved for non-structural applications. The screw is made of zinc-plated steel.
Amplify information

ASSESSMENTS AND CERTIFICATES

+ info
TDDU13BI9303 ETA NS 14 0467 ETA NS 14 0467 SZ6
EKOU2BI8304 HO FUEGO Resistente al fuego SZ7
EKOU19BI9350 HO CE 14 CE 2014 SZ7
CODESIZENº RECESSTHICKNESS MAX.FIXTURE (mm)Min. Order Qty.Pcs BoxPcs MasterboxEANTechnical info.
TFUXE1008010 x 80 Ø10SW13/TX40100503008423533818485

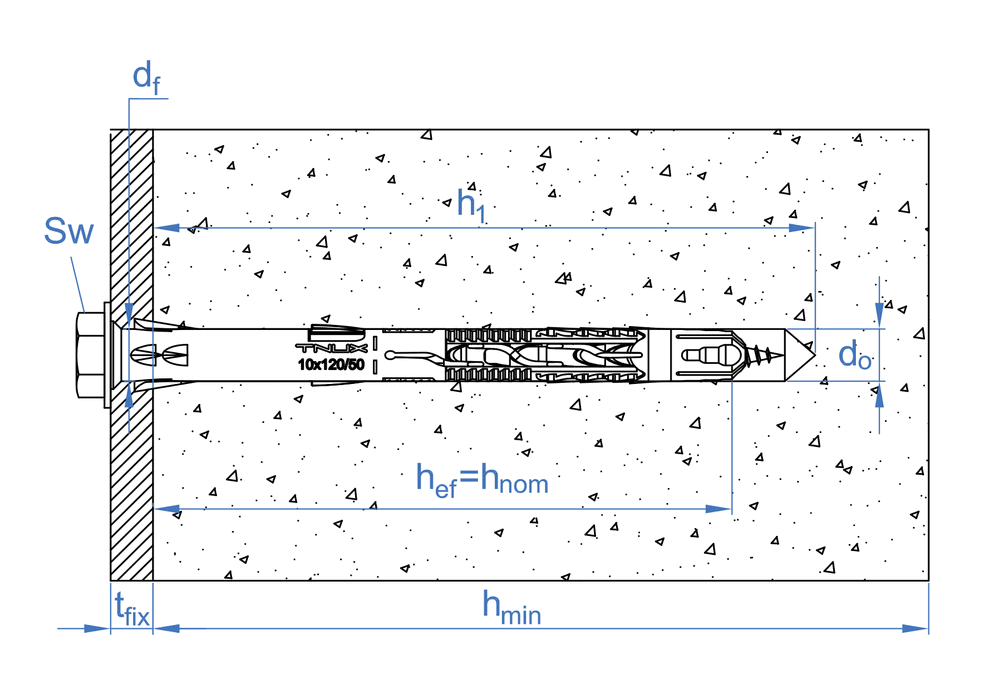

  • tfix - Max. fixture thickness10
  • SW - Installation keySW13/TX40
  • df - Ø Element to fix10 - 11
  • hef - Effective depth70
  • hnom - Min. anchor depth70
  • h1 - Drill hole depth min.90
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght80
TFUXE1010010 x 100 Ø10SW13/TX40300502008423533818492
  • tfix - Max. fixture thickness30
  • SW - Installation keySW13/TX40
  • df - Ø Element to fix10 - 11
  • hef - Effective depth70
  • hnom - Min. anchor depth70
  • h1 - Drill hole depth min.90
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght100
TFUXE1012010 x 120 Ø10SW13/TX40500502008423533818508
  • tfix - Max. fixture thickness50
  • SW - Installation keySW13/TX40
  • df - Ø Element to fix10 - 11
  • hef - Effective depth70
  • hnom - Min. anchor depth70
  • h1 - Drill hole depth min.90
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght120
TFUXE1014010 x 140 Ø10SW13/TX40700502008423533916105
  • tfix - Max. fixture thickness70
  • SW - Installation keySW13/TX40
  • df - Ø Element to fix10 - 11
  • hef - Effective depth70
  • hnom - Min. anchor depth70
  • h1 - Drill hole depth min.90
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght140
  • Clamp
  • Support clamp
  • Pipe clamp
  • Flange clamp
  • Air conditioning units
  • Roof anchor
  • Trellis anchor
  • Rack anchor
  • Shelf anchor
