TC-CA EP
TC-CA EP
TC-CA EP
TC-CA EP
TC-CA EP
TC-CA EP
TC-CA EP
TC-CA EP
TC-CA EP
TC-CA EP
TC-CA EP
TC-CA EP
TC-CA EP
TC-CA EP
TC-CA EP
TC-CA EP

TC-CA EP countersunk countersunk screw dowel TC-CA EP

Nailing dowels, pre-drilled with PZ countersunk screws. They can be used in both solid and hollow materials. Their harpoon-type thread and point mean that they can be installed with a hammer blow. They incorporate a countersunk collar, which allows them to be flush with the base material after installation. The plugs are made of nylon and the screws are made of zinc-plated steel.
CODESIZENº RECESSTHICKNESS MAX.FIXTURE (mm)Min. Order Qty.Pcs. x jarpicto_embalaje_grandeEANTechnical info.
TCCAEP50305 x 30 Ø5PZ35275008423533687302

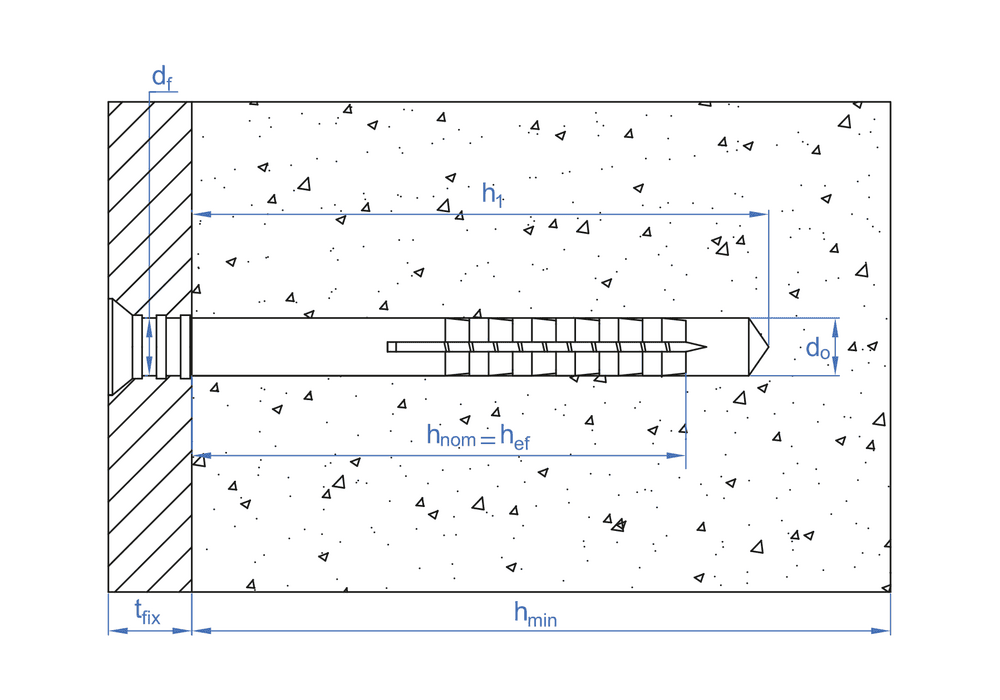

  • tfix - Max. fixture thickness5
  • SW - Installation keyPZ 2
  • h1 - Drill hole depth min.30
  • d0 - Ø Drill5
  • L - Lenght30
TCCAEP60406 x 40 Ø6PZ310250008423533687319
  • tfix - Max. fixture thickness10
  • SW - Installation keyPZ 2
  • h1 - Drill hole depth min.35
  • d0 - Ø Drill6
  • L - Lenght40
  • Anchoring of trellises
  • Anchoring of shelves
  • Installation of fire extinguishers
  • Clothesline
  • Handrails
  • Signs
  • Lanterns
PR683BI11436 CP TC CA EP TC CA EP SZ4
PR683BI10418 CP TC CA EP TC CA EP SZ4
icon book
Technical Sheets
FT_TC_en_rev13.pdf
