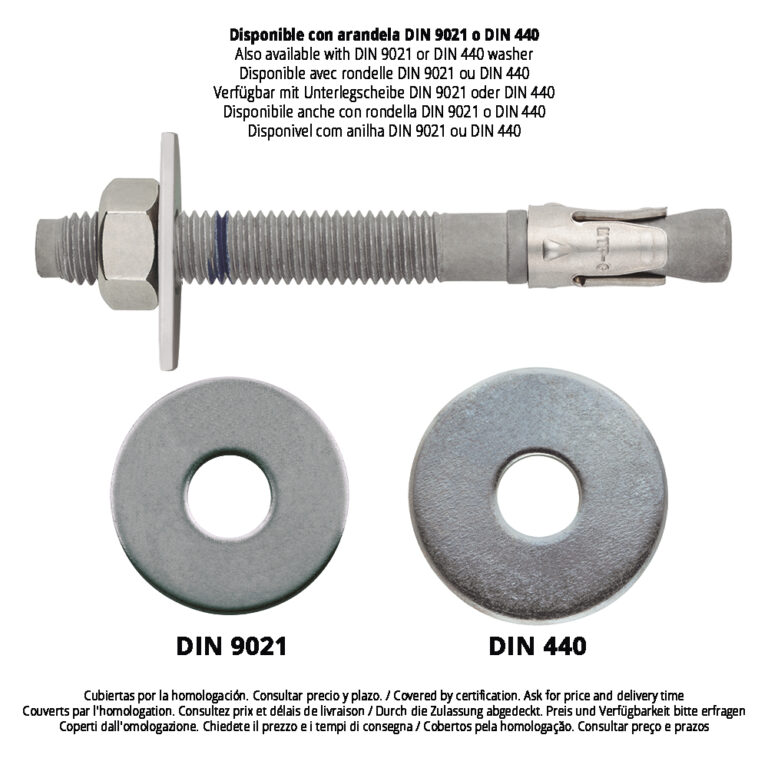

Assessed through bolt anchor MTP-G

Metal expansion anchor with male thread, for high loads in cracked and non-cracked concrete. Torque-controlled installation. ETE Opt. 1 approved for structural fastenings in concrete. Shaft made of ATLANTIS C3-L coated steel and A4 stainless steel clip.

ASSESSMENTS AND CERTIFICATES

+ info

CODE	SIZE	THICKNESS MAX.FIXTURE (mm)	MIN. SUBSTRATE THICKNESS	AXIS LETTER (LENGTH)	Pcs Box	Pcs Masterbox	EAN
APG06060	M6 x 60 Ø6	10	100	B	200	1.200	8423533751478
	t_fix- Max. fixture thickness10 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth46 h₁ - Drill hole depth min.50 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght60
APG06070	M6 x 70 Ø6	20	100	C	200	1.200	8423533751485
	t_fix- Max. fixture thickness20 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth46 h₁ - Drill hole depth min.50 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght70
APG06100	M6 x 100 Ø6	50	100	E	200	800	8423533751492
	t_fix- Max. fixture thickness50 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth46 h₁ - Drill hole depth min.50 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght100
APG08050	M8 x 50 Ø8	2	100	A	100	800	8423533749734
	t_fix- Max. fixture thickness2 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)15 h_ef - Effective depth30 h_nom - Min. anchor depth37 h₁ - Drill hole depth min.40 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght50
APG08060	M8 x 60 Ø8	12	100	B	100	800	8423533751447
	t_fix- Max. fixture thickness12 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)15 h_ef - Effective depth30 h_nom - Min. anchor depth37 h₁ - Drill hole depth min.40 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght60
APG08075	M8 x 75 Ø8	9	100	C	100	600	8423533725448
	t_fix- Max. fixture thickness9 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)15 h_ef - Effective depth48 h_nom - Min. anchor depth55 h₁ - Drill hole depth min.60 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght75
APG08095	M8 x 95 Ø8	29	100	E	100	600	8423533749741
	t_fix- Max. fixture thickness29 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)15 h_ef - Effective depth48 h_nom - Min. anchor depth55 h₁ - Drill hole depth min.60 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght95
APG08115	M8 x 115 Ø8	49	100	G	100	400	8423533749758
	t_fix- Max. fixture thickness49 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)15 h_ef - Effective depth48 h_nom - Min. anchor depth55 h₁ - Drill hole depth min.60 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght115
APG10070	M10 x 70 Ø10	5	100	C	100	400	8423533751454
	t_fix- Max. fixture thickness5 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)40 h_ef - Effective depth45 h_nom - Min. anchor depth53 h₁ - Drill hole depth min.60 d₀ - Ø Drill10 h_min- Min. substrate thickness100 L - Lenght70
APG10090	M10 x 90 Ø10	10	120	E	100	400	8423533725479
	t_fix- Max. fixture thickness10 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)40 h_ef - Effective depth60 h_nom - Min. anchor depth68 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness120 L - Lenght90
APG10105	M10 x 105 Ø10	25	120	F	50	300	8423533749765
	t_fix- Max. fixture thickness25 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)40 h_ef - Effective depth60 h_nom - Min. anchor depth68 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness120 L - Lenght105
APG10115	M10 x 115 Ø10	35	120	G	50	200	8423533749772
	t_fix- Max. fixture thickness35 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)40 h_ef - Effective depth60 h_nom - Min. anchor depth68 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness120 L - Lenght115
APG10135	M10 x 135 Ø10	55	120	H	50	200	8423533749789
	t_fix- Max. fixture thickness55 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)40 h_ef - Effective depth60 h_nom - Min. anchor depth68 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness120 L - Lenght135
APG10165	M10 x 165 Ø10	85	120	K	50	200	8423533749796
	t_fix- Max. fixture thickness85 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)40 h_ef - Effective depth60 h_nom - Min. anchor depth68 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness120 L - Lenght165
APG10185	M10 x 185 Ø10	105	120	L	50	150	8423533749802
	t_fix- Max. fixture thickness105 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)40 h_ef - Effective depth60 h_nom - Min. anchor depth68 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness120 L - Lenght185
APG12080	M12 x 80 Ø12	4	100	D	50	300	8423533749819
	t_fix- Max. fixture thickness4 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth50 h_nom - Min. anchor depth60 h₁ - Drill hole depth min.65 d₀ - Ø Drill12 h_min- Min. substrate thickness100 L - Lenght80
APG12110	M12 x 110 Ø12	14	140	F	50	200	8423533725523
	t_fix- Max. fixture thickness14 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth70 h_nom - Min. anchor depth80 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness140 L - Lenght110
APG12130	M12 x 130 Ø12	34	140	H	50	200	8423533749833
	t_fix- Max. fixture thickness34 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth70 h_nom - Min. anchor depth80 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness140 L - Lenght130
APG12150	M12 x 150 Ø12	54	140	I	50	100	8423533749840
	t_fix- Max. fixture thickness54 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth70 h_nom - Min. anchor depth80 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness140 L - Lenght150
APG12180	M12 x 180 Ø12	84	140	L	50	150	8423533725554
	t_fix- Max. fixture thickness84 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth70 h_nom - Min. anchor depth80 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness140 L - Lenght180
APG12200	M12 x 200 Ø12	104	140	M	50	150	8423533749857
	t_fix- Max. fixture thickness104 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth70 h_nom - Min. anchor depth80 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness140 L - Lenght200
APG16125	M16 x 125 Ø16	8	170	G	25	100	8423533725561
	t_fix- Max. fixture thickness8 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)100 h_ef - Effective depth85 h_nom - Min. anchor depth97 h₁ - Drill hole depth min.105 d₀ - Ø Drill16 h_min- Min. substrate thickness170 L - Lenght125
APG16145	M16 x 145 Ø16	28	170	I	25	100	8423533725578
	t_fix- Max. fixture thickness28 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)100 h_ef - Effective depth85 h_nom - Min. anchor depth97 h₁ - Drill hole depth min.105 d₀ - Ø Drill16 h_min- Min. substrate thickness170 L - Lenght145
APG16175	M16 x 175 Ø16	58	170	K	25	50	8423533749864
	t_fix- Max. fixture thickness58 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)100 h_ef - Effective depth85 h_nom - Min. anchor depth97 h₁ - Drill hole depth min.105 d₀ - Ø Drill16 h_min- Min. substrate thickness170 L - Lenght175
APG16220	M16 x 220 Ø16	103	170	O	25	50	8423533725592
	t_fix- Max. fixture thickness103 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)100 h_ef - Effective depth85 h_nom - Min. anchor depth97 h₁ - Drill hole depth min.105 d₀ - Ø Drill16 h_min- Min. substrate thickness170 L - Lenght220
APG20170	M20 x 170 Ø20	32	200	K	20	40	8423533749888
	t_fix- Max. fixture thickness32 SW - Installation key30 d_f - Ø Element to fix22 T_ins - Torque (Nm)200 h_ef - Effective depth100 h_nom - Min. anchor depth114 h₁ - Drill hole depth min.125 d₀ - Ø Drill20 h_min- Min. substrate thickness200 L - Lenght170
APG20200	M20 x 200 Ø20	62	200	M	20	40	8423533751461
	t_fix- Max. fixture thickness62 SW - Installation key30 d_f - Ø Element to fix22 T_ins - Torque (Nm)200 h_ef - Effective depth100 h_nom - Min. anchor depth114 h₁ - Drill hole depth min.125 d₀ - Ø Drill20 h_min- Min. substrate thickness200 L - Lenght200
