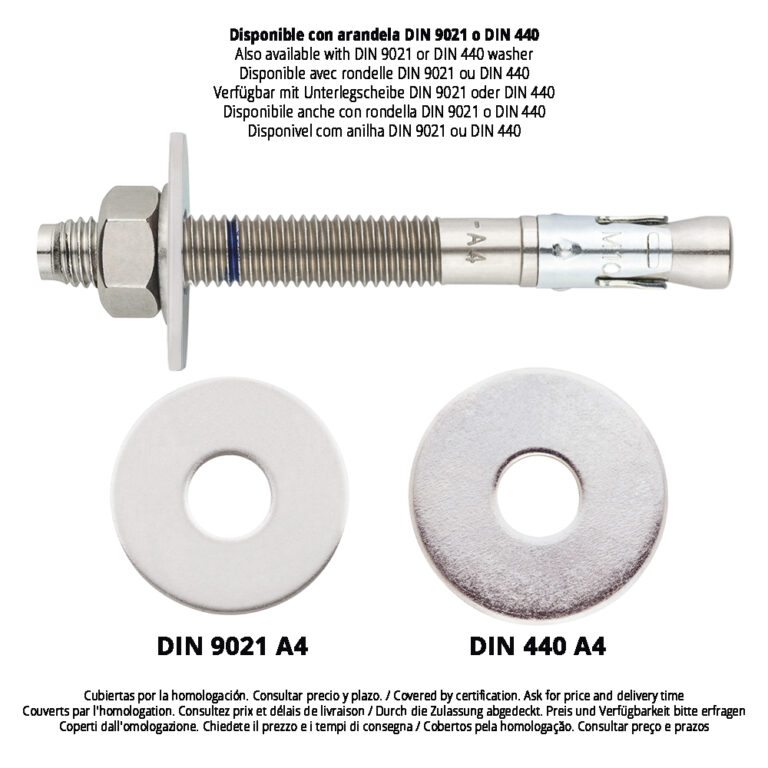

Stainless steel through bolt anchor MTP-A4

Metal expansion anchor with male thread for high loads in cracked and non-cracked concrete. Installation by controlled torque. ETE Opt.1 approved for structural fixings in concrete. Shaft and clip made of A4 stainless steel, ensuring durability in a wide range of environments.

ASSESSMENTS AND CERTIFICATES

+ info

CODE	SIZE	THICKNESS MAX.FIXTURE (mm)	MIN. SUBSTRATE THICKNESS	AXIS LETTER (LENGTH)	Pcs Box	Pcs Masterbox	EAN
APA408075	M8 x 75 Ø8	9	100	C	100	600	8423533769831
	t_fix- Max. fixture thickness9 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)15 h_ef - Effective depth48 h_nom - Min. anchor depth55 h₁ - Drill hole depth min.60 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght75
APA408095	M8 x 95 Ø8	29	100	E	100	600	8423533866325
	t_fix- Max. fixture thickness29 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)15 h_ef - Effective depth48 h_nom - Min. anchor depth55 h₁ - Drill hole depth min.60 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght95
APA408115	M8 x 115 Ø8	49	100	G	100	400	8423533769855
	t_fix- Max. fixture thickness49 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)15 h_ef - Effective depth48 h_nom - Min. anchor depth55 h₁ - Drill hole depth min.60 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght115
APA408135	M8 x 135 Ø8	69	100	H	50	300	8423533769862
	t_fix- Max. fixture thickness69 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)15 h_ef - Effective depth48 h_nom - Min. anchor depth55 h₁ - Drill hole depth min.60 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght135
APA410090	M10 x 90 Ø10	10	120	E	100	400	8423533769886
	t_fix- Max. fixture thickness10 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)30 h_ef - Effective depth60 h_nom - Min. anchor depth68 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness120 L - Lenght90
APA410105	M10 x 105 Ø10	25	120	F	50	300	8423533769893
	t_fix- Max. fixture thickness25 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)30 h_ef - Effective depth60 h_nom - Min. anchor depth68 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness120 L - Lenght105
APA410115	M10 x 115 Ø10	35	120	G	50	300	8423533769909
	t_fix- Max. fixture thickness35 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)30 h_ef - Effective depth60 h_nom - Min. anchor depth68 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness120 L - Lenght115
APA410135	M10 x 135 Ø10	55	120	H	50	300	8423533769916
	t_fix- Max. fixture thickness55 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)30 h_ef - Effective depth60 h_nom - Min. anchor depth68 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness120 L - Lenght135
APA410165	M10 x 165 Ø10	85	120	K	50	100	8423533866332
	t_fix- Max. fixture thickness85 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)30 h_ef - Effective depth60 h_nom - Min. anchor depth68 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness120 L - Lenght165
APA410185	M10 x 185 Ø10	105	120	L	50	100	8423533769930
	t_fix- Max. fixture thickness105 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)30 h_ef - Effective depth60 h_nom - Min. anchor depth68 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness120 L - Lenght185
APA412110	M12 x 110 Ø12	14	140	F	50	200	8423533769947
	t_fix- Max. fixture thickness14 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth70 h_nom - Min. anchor depth80 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness140 L - Lenght110
APA412120	M12 x 120 Ø12	24	140	G	50	200	8423533769954
	t_fix- Max. fixture thickness24 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth70 h_nom - Min. anchor depth80 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness140 L - Lenght120
APA412130	M12 x 130 Ø12	34	140	H	50	200	8423533866349
	t_fix- Max. fixture thickness34 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth70 h_nom - Min. anchor depth80 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness140 L - Lenght130
APA412150	M12 x 150 Ø12	54	140	I	50	100	8423533866356
	t_fix- Max. fixture thickness54 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth70 h_nom - Min. anchor depth80 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness140 L - Lenght150
APA412180	M12 x 180 Ø12	84	140	L	50	150	8423533866363
	t_fix- Max. fixture thickness84 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth70 h_nom - Min. anchor depth80 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness140 L - Lenght180
APA412200	M12 x 200 Ø12	104	140	M	50	100	8423533769985
	t_fix- Max. fixture thickness104 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth70 h_nom - Min. anchor depth80 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness140 L - Lenght200
APA416125	M16 x 125 Ø16	8	170	G	50	100	8423533866370
	t_fix- Max. fixture thickness8 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)100 h_ef - Effective depth85 h_nom - Min. anchor depth97 h₁ - Drill hole depth min.105 d₀ - Ø Drill16 h_min- Min. substrate thickness170 L - Lenght125
APA416145	M16 x 145 Ø16	28	170	I	25	100	8423533866387
	t_fix- Max. fixture thickness28 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)100 h_ef - Effective depth85 h_nom - Min. anchor depth97 h₁ - Drill hole depth min.105 d₀ - Ø Drill16 h_min- Min. substrate thickness170 L - Lenght145
APA416175	M16 x 175 Ø16	58	170	K	25	50	8423533866394
	t_fix- Max. fixture thickness58 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)100 h_ef - Effective depth85 h_nom - Min. anchor depth97 h₁ - Drill hole depth min.105 d₀ - Ø Drill16 h_min- Min. substrate thickness170 L - Lenght175
APA416190	M16 x 190 Ø16	73	170	L	25	50	8423533866400
	t_fix- Max. fixture thickness73 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)100 h_ef - Effective depth85 h_nom - Min. anchor depth97 h₁ - Drill hole depth min.105 d₀ - Ø Drill16 h_min- Min. substrate thickness170 L - Lenght190
APA416220	M16 x 220 Ø16	103	170	O	20	40	8423533770028
	t_fix- Max. fixture thickness103 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)100 h_ef - Effective depth85 h_nom - Min. anchor depth97 h₁ - Drill hole depth min.105 d₀ - Ø Drill16 h_min- Min. substrate thickness170 L - Lenght220
APA420200	M20 x 200 Ø20	62	200	M	20	40	8423533866417
	t_fix- Max. fixture thickness62 SW - Installation key30 d_f - Ø Element to fix22 T_ins - Torque (Nm)200 h_ef - Effective depth100 h_nom - Min. anchor depth114 h₁ - Drill hole depth min.125 d₀ - Ø Drill20 h_min- Min. substrate thickness200 L - Lenght200
APA420240	M20 x 240 Ø20	102	200	P	15	30	8423533866424
	t_fix- Max. fixture thickness102 SW - Installation key30 d_f - Ø Element to fix22 T_ins - Torque (Nm)200 h_ef - Effective depth100 h_nom - Min. anchor depth114 h₁ - Drill hole depth min.125 d₀ - Ø Drill20 h_min- Min. substrate thickness200 L - Lenght240
APA420285	M20 x 285 Ø20	147	200	S	10	20	8423533866431
	t_fix- Max. fixture thickness147 SW - Installation key30 d_f - Ø Element to fix22 T_ins - Torque (Nm)200 h_ef - Effective depth100 h_nom - Min. anchor depth114 h₁ - Drill hole depth min.125 d₀ - Ø Drill20 h_min- Min. substrate thickness200 L - Lenght285

Suitable for climbing equipment in outdoor areas without stress corrosion corrosion cracking problems. SCC (chlorine and sulphur ions).
