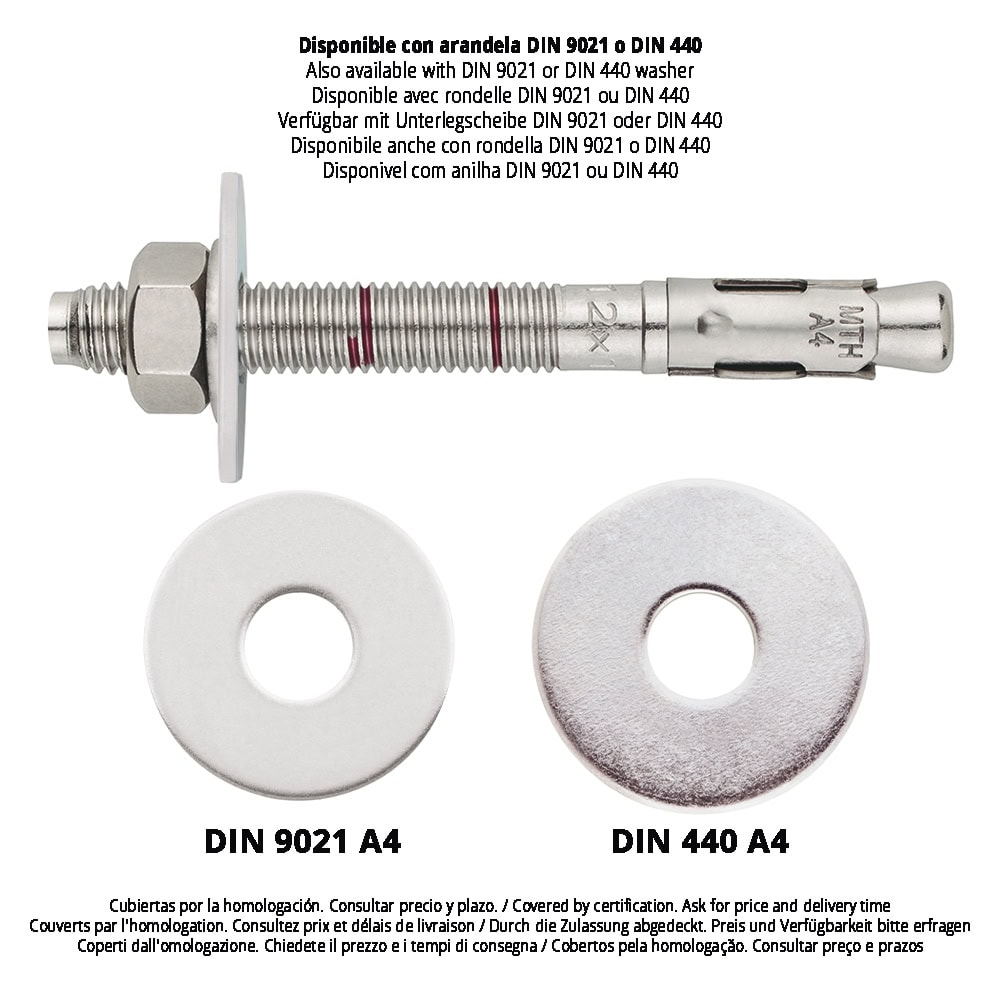

Stainless steel through bolt anchor MTH-A4

Through bolt anchor, for high loads in non-cracked concrete. Works by controlled torque expansion. ETE Opt. 7 for structural applications. Shaft and clip made of A4 stainless steel, which gives the anchor high corrosion protection.

ASSESSMENTS AND CERTIFICATES

CODESIZETHICKNESS MAX.FIXTURE (mm)MIN. SUBSTRATE THICKNESSAXIS LETTER (LENGTH)Pcs BoxPcs/Window BoxPcs MasterboxWindow boxes/MasterboxEANTechnical info.
MIA406045M6 x 45 Ø61100A2001.2008423533579645
  • tfix - Max. fixture thickness1
  • SW - Installation key10
  • df - Ø Element to fix7
  • Tins - Torque (Nm)7
  • hef - Effective depth25
  • hnom - Min. anchor depth35
  • h1 - Drill hole depth min.40
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght45
MIA406060M6 x 60 Ø62100B2001.2008423533579652
  • tfix - Max. fixture thickness2
  • SW - Installation key10
  • df - Ø Element to fix7
  • Tins - Torque (Nm)7
  • hef - Effective depth40
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.55
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght60
MIA406080M6 x 80 Ø622100D2001.2008423533579669
  • tfix - Max. fixture thickness22
  • SW - Installation key10
  • df - Ø Element to fix7
  • Tins - Torque (Nm)7
  • hef - Effective depth40
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.55
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght80
MIA408050M8 x 50 Ø84100A1008008423533579676
  • tfix - Max. fixture thickness4
  • SW - Installation key13
  • df - Ø Element to fix9
  • Tins - Torque (Nm)20
  • hef - Effective depth23
  • hnom - Min. anchor depth35
  • h1 - Drill hole depth min.40
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght50
MIA408075M8 x 75 Ø85100C1006008423533087713
  • tfix - Max. fixture thickness5
  • SW - Installation key13
  • df - Ø Element to fix9
  • Tins - Torque (Nm)20
  • hef - Effective depth48
  • hnom - Min. anchor depth60
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght75
MIA408090M8 x 90 Ø820100E1006008423533579683
  • tfix - Max. fixture thickness20
  • SW - Installation key13
  • df - Ø Element to fix9
  • Tins - Torque (Nm)20
  • hef - Effective depth48
  • hnom - Min. anchor depth60
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght90
MIA408115M8 x 115 Ø845100G1004008423533579690
  • tfix - Max. fixture thickness45
  • SW - Installation key13
  • df - Ø Element to fix9
  • Tins - Torque (Nm)20
  • hef - Effective depth48
  • hnom - Min. anchor depth60
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght115
MIA410070M10 x 70 Ø103100C1004008423533579706
  • tfix - Max. fixture thickness3
  • SW - Installation key17
  • df - Ø Element to fix12
  • Tins - Torque (Nm)35
  • hef - Effective depth42
  • hnom - Min. anchor depth54
  • h1 - Drill hole depth min.60
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght70
MIA410090M10 x 90 Ø1010110E1004008423533087706
  • tfix - Max. fixture thickness10
  • SW - Installation key17
  • df - Ø Element to fix12
  • Tins - Torque (Nm)35
  • hef - Effective depth55
  • hnom - Min. anchor depth67
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness110
  • L - Lenght90
MIA410120M10 x 120 Ø1040110G503008423533579713
  • tfix - Max. fixture thickness40
  • SW - Installation key17
  • df - Ø Element to fix12
  • Tins - Torque (Nm)35
  • hef - Effective depth55
  • hnom - Min. anchor depth67
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness110
  • L - Lenght120
MIA410150M10 x 150 Ø1070110I502008423533579720
  • tfix - Max. fixture thickness70
  • SW - Installation key17
  • df - Ø Element to fix12
  • Tins - Torque (Nm)35
  • hef - Effective depth55
  • hnom - Min. anchor depth67
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness110
  • L - Lenght150
MIA412075M12 x 75 Ø125100C503008423533579737
  • tfix - Max. fixture thickness5
  • SW - Installation key19
  • df - Ø Element to fix14
  • Tins - Torque (Nm)60
  • hef - Effective depth43
  • hnom - Min. anchor depth55
  • h1 - Drill hole depth min.60
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness100
  • L - Lenght75
MIA412090M12 x 90 Ø1213100D502008423533579744
  • tfix - Max. fixture thickness13
  • SW - Installation key19
  • df - Ø Element to fix14
  • Tins - Torque (Nm)60
  • hef - Effective depth50
  • hnom - Min. anchor depth62
  • h1 - Drill hole depth min.70
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness100
  • L - Lenght90
MIA412110M12 x 110 Ø1218130F502008423533087812
  • tfix - Max. fixture thickness18
  • SW - Installation key19
  • df - Ø Element to fix14
  • Tins - Torque (Nm)60
  • hef - Effective depth65
  • hnom - Min. anchor depth77
  • h1 - Drill hole depth min.85
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness130
  • L - Lenght110
MIA412140M12 x 140 Ø1248130I502008423533579751
  • tfix - Max. fixture thickness48
  • SW - Installation key19
  • df - Ø Element to fix14
  • Tins - Torque (Nm)60
  • hef - Effective depth65
  • hnom - Min. anchor depth77
  • h1 - Drill hole depth min.85
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness130
  • L - Lenght140
MIA416090M16 x 90 Ø164100D251508423533579768
  • tfix - Max. fixture thickness4
  • SW - Installation key24
  • df - Ø Element to fix18
  • Tins - Torque (Nm)120
  • hef - Effective depth49
  • hnom - Min. anchor depth69
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill16
  • hmin - Min. substrate thickness100
  • L - Lenght90
MIA416145M16 x 145 Ø1623168I251008423533579775
  • tfix - Max. fixture thickness23
  • SW - Installation key24
  • df - Ø Element to fix18
  • Tins - Torque (Nm)120
  • hef - Effective depth84
  • hnom - Min. anchor depth104
  • h1 - Drill hole depth min.110
  • d0 - Ø Drill16
  • hmin - Min. substrate thickness168
  • L - Lenght145
MIA416170M16 x 170 Ø1648168K25758423533579782
  • tfix - Max. fixture thickness48
  • SW - Installation key24
  • df - Ø Element to fix18
  • Tins - Torque (Nm)120
  • hef - Effective depth84
  • hnom - Min. anchor depth104
  • h1 - Drill hole depth min.110
  • d0 - Ø Drill16
  • hmin - Min. substrate thickness168
  • L - Lenght170
MIA420120M20 x 120 Ø205145G20408423533579799
  • tfix - Max. fixture thickness5
  • SW - Installation key30
  • df - Ø Element to fix22
  • Tins - Torque (Nm)240
  • hef - Effective depth71
  • hnom - Min. anchor depth93
  • h1 - Drill hole depth min.105
  • d0 - Ø Drill20
  • hmin - Min. substrate thickness145
  • L - Lenght120
MIA420170M20 x 170 Ø2023206K20408423533579805
  • tfix - Max. fixture thickness23
  • SW - Installation key30
  • df - Ø Element to fix22
  • Tins - Torque (Nm)240
  • hef - Effective depth103
  • hnom - Min. anchor depth125
  • h1 - Drill hole depth min.135
  • d0 - Ø Drill20
  • hmin - Min. substrate thickness206
  • L - Lenght170
MIA420220M20 x 220 Ø2073206O20408423533579812
  • tfix - Max. fixture thickness73
  • SW - Installation key30
  • df - Ø Element to fix22
  • Tins - Torque (Nm)240
  • hef - Effective depth103
  • hnom - Min. anchor depth125
  • h1 - Drill hole depth min.135
  • d0 - Ø Drill20
  • hmin - Min. substrate thickness206
  • L - Lenght220
VMIA408075M8 x 75 Ø85100C1088423533753830
  • tfix - Max. fixture thickness5
  • SW - Installation key13
  • df - Ø Element to fix9
  • Tins - Torque (Nm)20
  • hef - Effective depth48
  • hnom - Min. anchor depth60
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght75
VMIA410090M10 x 90 Ø1010110E888423533753847
  • tfix - Max. fixture thickness10
  • SW - Installation key17
  • df - Ø Element to fix12
  • Tins - Torque (Nm)35
  • hef - Effective depth55
  • hnom - Min. anchor depth67
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness110
  • L - Lenght90
VMIA412110M12 x 110 Ø1218130F688423533753854
  • tfix - Max. fixture thickness18
  • SW - Installation key19
  • df - Ø Element to fix14
  • Tins - Torque (Nm)60
  • hef - Effective depth65
  • hnom - Min. anchor depth77
  • h1 - Drill hole depth min.85
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness130
  • L - Lenght110
Suitable for climbing equipment in outdoor areas without stress corrosion corrosion cracking problems. SCC (chlorine and sulphur ions). Recommendations are according to UNE EN:959 2021.
  • Fixing of shelves
  • Steel structures
  • Protections
  • Street furniture
  • Machinery
  • Wooden structures
  • Antennae
  • Balcony railings
  • Road railings
  • Wooden railings
  • Beach railings
  • Ceiling lights
  • False ceilings
  • Ceilings
