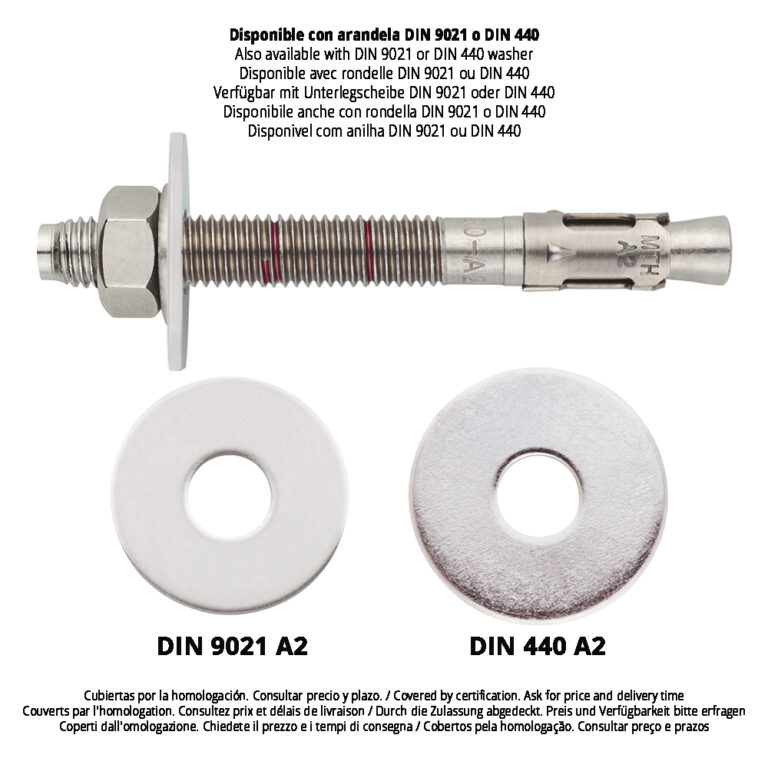

Stainless steel through bolt anchor MTH-A2

Metal expansion through bolt anchor for high loads in non-cracked concrete. ETE Opt. 7 for structural applications. Shaft and clip made of A2 stainless steel, which ensures the anchor’s durability against corrosion.

ASSESSMENTS AND CERTIFICATES

+ info

CODE	SIZE	THICKNESS MAX.FIXTURE (mm)	MIN. SUBSTRATE THICKNESS	AXIS LETTER (LENGTH)	Pcs BoxPcs/BlisterPcs/Window Box	Pcs MasterboxBlisters/Bisters boxWindow boxes/Masterbox	EAN
MI06045	M6 x 45 Ø6	1	100	A	200	1.200	8423533019103
	t_fix- Max. fixture thickness1 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth25 h_nom - Min. anchor depth35 h₁ - Drill hole depth min.40 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght45
MI06060	M6 x 60 Ø6	2	100	B	200	1.200	8423533029683
	t_fix- Max. fixture thickness2 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght60
MI06080	M6 x 80 Ø6	22	100	D	200	1.200	8423533019202
	t_fix- Max. fixture thickness22 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght80
MI06120	M6 x 120 Ø6	62	100	G	100	600	8423533072702
	t_fix- Max. fixture thickness62 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght120
MI06140	M6 x 140 Ø6	82	100	I	100	600	8423533072801
	t_fix- Max. fixture thickness82 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght140
MI06160	M6 x 160 Ø6	102	100	J	100	400	8423533072832
	t_fix- Max. fixture thickness102 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght160
MI06170	M6 x 170 Ø6	112	100	K	100	400	8423533766199
	t_fix- Max. fixture thickness112 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght170
MI06180	M6 x 180 Ø6	122	100	L	100	300	8423533122643
	t_fix- Max. fixture thickness122 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght180
MI08050	M8 x 50 Ø8	4	100	A	100	800	8423533019301
	t_fix- Max. fixture thickness4 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)20 h_ef - Effective depth23 h_nom - Min. anchor depth35 h₁ - Drill hole depth min.40 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght50
MI08075	M8 x 75 Ø8	5	100	C	100	600	8423533019400
	t_fix- Max. fixture thickness5 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)20 h_ef - Effective depth48 h_nom - Min. anchor depth60 h₁ - Drill hole depth min.65 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght75
MI08090	M8 x 90 Ø8	20	100	E	100	600	8423533019509
	t_fix- Max. fixture thickness20 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)20 h_ef - Effective depth48 h_nom - Min. anchor depth60 h₁ - Drill hole depth min.65 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght90
MI08115	M8 x 115 Ø8	45	100	G	100	400	8423533019608
	t_fix- Max. fixture thickness45 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)20 h_ef - Effective depth48 h_nom - Min. anchor depth60 h₁ - Drill hole depth min.65 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght115
MI10070	M10 x 70 Ø10	3	100	C	100	400	8423533019707
	t_fix- Max. fixture thickness3 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)35 h_ef - Effective depth42 h_nom - Min. anchor depth54 h₁ - Drill hole depth min.60 d₀ - Ø Drill10 h_min- Min. substrate thickness100 L - Lenght70
MI10090	M10 x 90 Ø10	10	110	E	100	400	8423533019806
	t_fix- Max. fixture thickness10 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)35 h_ef - Effective depth55 h_nom - Min. anchor depth67 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness110 L - Lenght90
MI10120	M10 x 120 Ø10	40	110	G	50	300	8423533019905
	t_fix- Max. fixture thickness40 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)35 h_ef - Effective depth55 h_nom - Min. anchor depth67 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness110 L - Lenght120
MI10150	M10 x 150 Ø10	70	110	I	50	200	8423533020000
	t_fix- Max. fixture thickness70 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)35 h_ef - Effective depth55 h_nom - Min. anchor depth67 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness110 L - Lenght150
MI12075	M12 x 75 Ø12	5	100	C	50	300	8423533020109
	t_fix- Max. fixture thickness5 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth43 h_nom - Min. anchor depth55 h₁ - Drill hole depth min.60 d₀ - Ø Drill12 h_min- Min. substrate thickness100 L - Lenght75
MI12090	M12 x 90 Ø12	13	120	D	50	200	8423533020208
	t_fix- Max. fixture thickness13 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth50 h_nom - Min. anchor depth62 h₁ - Drill hole depth min.70 d₀ - Ø Drill12 h_min- Min. substrate thickness120 L - Lenght90
MI12110	M12 x 110 Ø12	18	130	F	50	200	8423533020307
	t_fix- Max. fixture thickness18 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth65 h_nom - Min. anchor depth77 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness130 L - Lenght110
MI12140	M12 x 140 Ø12	48	130	I	50	200	8423533025623
	t_fix- Max. fixture thickness48 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth65 h_nom - Min. anchor depth77 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness130 L - Lenght140
MI16090	M16 x 90 Ø16	4	100	D	25	150	8423533579621
	t_fix- Max. fixture thickness4 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)120 h_ef - Effective depth49 h_nom - Min. anchor depth69 h₁ - Drill hole depth min.75 d₀ - Ø Drill16 h_min- Min. substrate thickness100 L - Lenght90
MI16145	M16 x 145 Ø16	23	168	I	25	100	8423533020406
	t_fix- Max. fixture thickness23 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)120 h_ef - Effective depth84 h_nom - Min. anchor depth104 h₁ - Drill hole depth min.110 d₀ - Ø Drill16 h_min- Min. substrate thickness168 L - Lenght145
MI16170	M16 x 170 Ø16	48	168	K	25	75	8423533071002
	t_fix- Max. fixture thickness48 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)120 h_ef - Effective depth84 h_nom - Min. anchor depth104 h₁ - Drill hole depth min.110 d₀ - Ø Drill16 h_min- Min. substrate thickness168 L - Lenght170
MI20120	M20 x 120 Ø20	5	145	G	20	40	8423533579638
	t_fix- Max. fixture thickness5 SW - Installation key30 d_f - Ø Element to fix22 T_ins - Torque (Nm)240 h_ef - Effective depth71 h_nom - Min. anchor depth93 h₁ - Drill hole depth min.105 d₀ - Ø Drill20 h_min- Min. substrate thickness145 L - Lenght120
MI20170	M20 x 170 Ø20	23	206	K	20	40	8423533071200
	t_fix- Max. fixture thickness23 SW - Installation key30 d_f - Ø Element to fix22 T_ins - Torque (Nm)240 h_ef - Effective depth103 h_nom - Min. anchor depth125 h₁ - Drill hole depth min.135 d₀ - Ø Drill20 h_min- Min. substrate thickness206 L - Lenght170
MI20220	M20 x 220 Ø20	73	206	O	20	40	8423533071309
	t_fix- Max. fixture thickness73 SW - Installation key30 d_f - Ø Element to fix22 T_ins - Torque (Nm)240 h_ef - Effective depth103 h_nom - Min. anchor depth125 h₁ - Drill hole depth min.135 d₀ - Ø Drill20 h_min- Min. substrate thickness206 L - Lenght220
VMI08075	M8 x 75 Ø8	5	100	C	10	8	8423533753861
	t_fix- Max. fixture thickness5 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)20 h_ef - Effective depth48 h_nom - Min. anchor depth60 h₁ - Drill hole depth min.65 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght75
VMI08090	M8 x 90 Ø8	20	100	E	10	8	8423533753878
	t_fix- Max. fixture thickness20 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)20 h_ef - Effective depth48 h_nom - Min. anchor depth60 h₁ - Drill hole depth min.65 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght90
VMI10070	M10 x 70 Ø10	3	100	C	8	8	8423533753885
	t_fix- Max. fixture thickness3 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)35 h_ef - Effective depth42 h_nom - Min. anchor depth54 h₁ - Drill hole depth min.60 d₀ - Ø Drill10 h_min- Min. substrate thickness100 L - Lenght70
VMI10090	M10 x 90 Ø10	10	110	E	8	8	8423533753892
	t_fix- Max. fixture thickness10 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)35 h_ef - Effective depth55 h_nom - Min. anchor depth67 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness110 L - Lenght90
VMI10120	M10 x 120 Ø10	40	110	G	6	8	8423533753908
	t_fix- Max. fixture thickness40 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)35 h_ef - Effective depth55 h_nom - Min. anchor depth67 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness110 L - Lenght120
VMI12110	M12 x 110 Ø12	18	130	F	6	8	8423533753915
	t_fix- Max. fixture thickness18 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth65 h_nom - Min. anchor depth77 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness130 L - Lenght110
BZMI08075	M8 x 75 Ø8	5	100	C	2	12	8423533421944
	t_fix- Max. fixture thickness5 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)20 h_ef - Effective depth48 h_nom - Min. anchor depth60 h₁ - Drill hole depth min.65 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght75
BZMI10090	M10 x 90 Ø10	10	110	E	2	10	8423533421951
	t_fix- Max. fixture thickness10 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)35 h_ef - Effective depth55 h_nom - Min. anchor depth67 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness110 L - Lenght90
