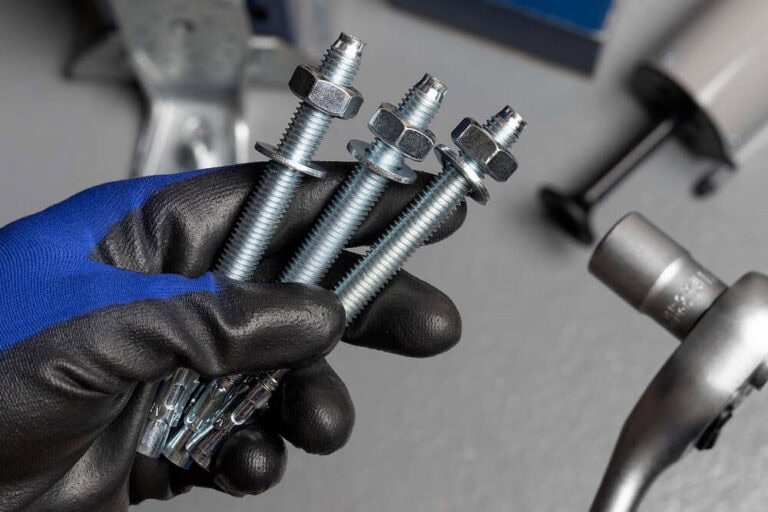

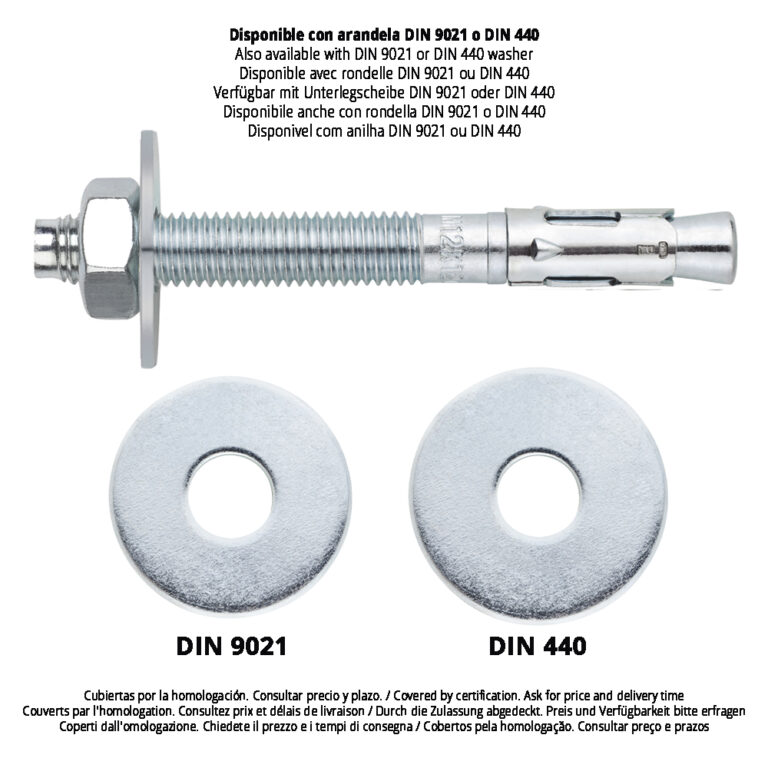

Zinc-plated through bolt anchor MTA

Metal expansion through bolt anchor for high loads. The shaft and clips are made of zinc plated steel and allow secure and strong fixings in materials such as uncracked concrete, reinforced concrete or stone.
CODESIZETHICKNESS MAX.FIXTURE (mm)MIN. SUBSTRATE THICKNESSAXIS LETTER (LENGTH)Pcs BoxPcs/BlisterPcs/Window BoxPcs MasterboxBlisters/Bisters boxWindow boxes/MasterboxEANTechnical info.
AM06045M6 x 45 Ø611002001.2008423533008701

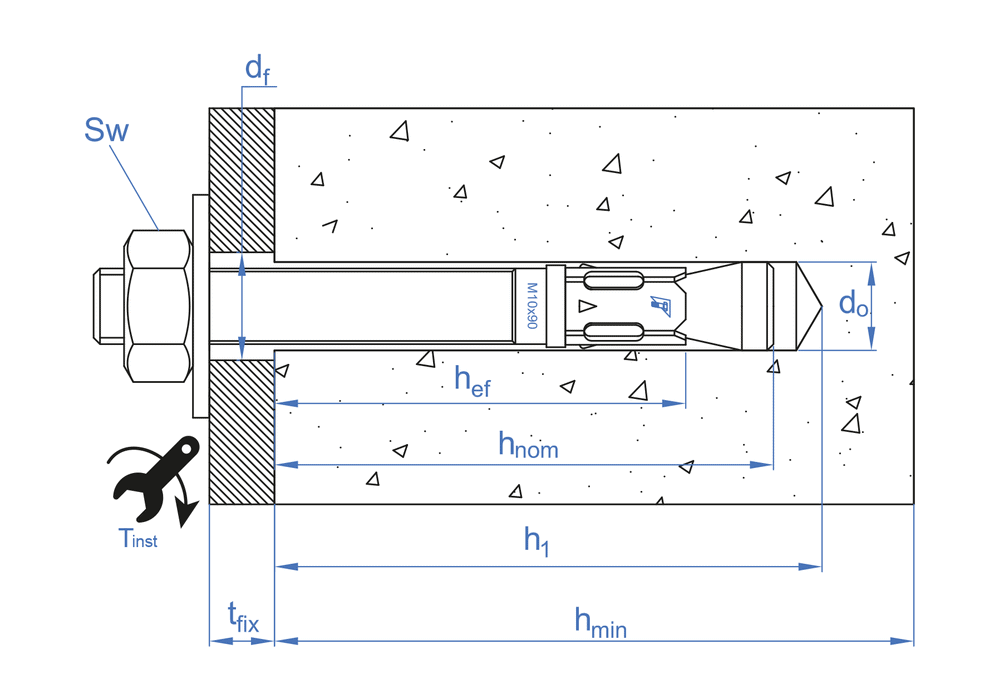

  • tfix - Max. fixture thickness1
  • SW - Installation key10
  • df - Ø Element to fix7
  • Tins - Torque (Nm)7
  • hef - Effective depth25
  • hnom - Min. anchor depth35
  • h1 - Drill hole depth min.40
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght45
AM06055M6 x 55 Ø6111002001.2008423533034632
  • tfix - Max. fixture thickness11
  • SW - Installation key10
  • df - Ø Element to fix7
  • Tins - Torque (Nm)7
  • hef - Effective depth25
  • hnom - Min. anchor depth35
  • h1 - Drill hole depth min.40
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght55
AM06060M6 x 60 Ø621002001.2008423533008800
  • tfix - Max. fixture thickness2
  • SW - Installation key10
  • df - Ø Element to fix7
  • Tins - Torque (Nm)7
  • hef - Effective depth40
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.55
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght60
AM06065M6 x 65 Ø671002001.2008423533532626
  • tfix - Max. fixture thickness7
  • SW - Installation key10
  • df - Ø Element to fix7
  • Tins - Torque (Nm)7
  • hef - Effective depth40
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.55
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght65
AM06070M6 x 70 Ø6121002001.2008423533008909
  • tfix - Max. fixture thickness12
  • SW - Installation key10
  • df - Ø Element to fix7
  • Tins - Torque (Nm)7
  • hef - Effective depth40
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.55
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght70
AM06080M6 x 80 Ø6221002001.2008423533009005
  • tfix - Max. fixture thickness22
  • SW - Installation key10
  • df - Ø Element to fix7
  • Tins - Torque (Nm)7
  • hef - Effective depth40
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.55
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght80
AM06085M6 x 85 Ø6271002001.2008423533034649
  • tfix - Max. fixture thickness27
  • SW - Installation key10
  • df - Ø Element to fix7
  • Tins - Torque (Nm)7
  • hef - Effective depth40
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.55
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght85
AM06090M6 x 90 Ø6321002001.2008423533009104
  • tfix - Max. fixture thickness32
  • SW - Installation key10
  • df - Ø Element to fix7
  • Tins - Torque (Nm)7
  • hef - Effective depth40
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.55
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght90
AM06100M6 x 100 Ø6421002008008423533009203
  • tfix - Max. fixture thickness42
  • SW - Installation key10
  • df - Ø Element to fix7
  • Tins - Torque (Nm)7
  • hef - Effective depth40
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.55
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght100
AM06110M6 x 110 Ø6521002008008423533009302
  • tfix - Max. fixture thickness52
  • SW - Installation key10
  • df - Ø Element to fix7
  • Tins - Torque (Nm)7
  • hef - Effective depth40
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.55
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght110
AM06120M6 x 120 Ø6621001006008423533009401
  • tfix - Max. fixture thickness62
  • SW - Installation key10
  • df - Ø Element to fix7
  • Tins - Torque (Nm)7
  • hef - Effective depth40
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.55
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght120
AM06130M6 x 130 Ø6721001006008423533009500
  • tfix - Max. fixture thickness72
  • SW - Installation key10
  • df - Ø Element to fix7
  • Tins - Torque (Nm)7
  • hef - Effective depth40
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.55
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght130
AM06140M6 x 140 Ø6821001006008423533009609
  • tfix - Max. fixture thickness82
  • SW - Installation key10
  • df - Ø Element to fix7
  • Tins - Torque (Nm)7
  • hef - Effective depth40
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.55
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght140
AM06150M6 x 150 Ø6921001006008423533009708
  • tfix - Max. fixture thickness92
  • SW - Installation key10
  • df - Ø Element to fix7
  • Tins - Torque (Nm)7
  • hef - Effective depth40
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.55
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght150
AM06160M6 x 160 Ø61021001004008423533009807
  • tfix - Max. fixture thickness102
  • SW - Installation key10
  • df - Ø Element to fix7
  • Tins - Torque (Nm)7
  • hef - Effective depth40
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.55
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght160
AM06170M6 x 170 Ø61121001004008423533009906
  • tfix - Max. fixture thickness112
  • SW - Installation key10
  • df - Ø Element to fix7
  • Tins - Torque (Nm)7
  • hef - Effective depth40
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.55
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght170
AM06180M6 x 180 Ø61221001003008423533010001
  • tfix - Max. fixture thickness122
  • SW - Installation key10
  • df - Ø Element to fix7
  • Tins - Torque (Nm)7
  • hef - Effective depth40
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.55
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght180
AM08050M8 x 50 Ø841001008008423533010100
  • tfix - Max. fixture thickness4
  • SW - Installation key13
  • df - Ø Element to fix9
  • Tins - Torque (Nm)20
  • hef - Effective depth23
  • hnom - Min. anchor depth35
  • h1 - Drill hole depth min.40
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght50
AM08060M8 x 60 Ø831001008008423533010209
  • tfix - Max. fixture thickness3
  • SW - Installation key13
  • df - Ø Element to fix9
  • Tins - Torque (Nm)20
  • hef - Effective depth35
  • hnom - Min. anchor depth47
  • h1 - Drill hole depth min.50
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght60
AM08065M8 x 65 Ø881001006008423533034663
  • tfix - Max. fixture thickness8
  • SW - Installation key13
  • df - Ø Element to fix9
  • Tins - Torque (Nm)20
  • hef - Effective depth35
  • hnom - Min. anchor depth47
  • h1 - Drill hole depth min.50
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght65
AM08075M8 x 75 Ø851001006008423533010308
  • tfix - Max. fixture thickness5
  • SW - Installation key13
  • df - Ø Element to fix9
  • Tins - Torque (Nm)20
  • hef - Effective depth48
  • hnom - Min. anchor depth60
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght75
AM08090M8 x 90 Ø8201001006008423533010407
  • tfix - Max. fixture thickness20
  • SW - Installation key13
  • df - Ø Element to fix9
  • Tins - Torque (Nm)20
  • hef - Effective depth48
  • hnom - Min. anchor depth60
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght90
AM08115M8 x 115 Ø8451001004008423533010506
  • tfix - Max. fixture thickness45
  • SW - Installation key13
  • df - Ø Element to fix9
  • Tins - Torque (Nm)20
  • hef - Effective depth48
  • hnom - Min. anchor depth60
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght115
AM08120M8 x 120 Ø8501001004008423533071903
  • tfix - Max. fixture thickness50
  • SW - Installation key13
  • df - Ø Element to fix9
  • Tins - Torque (Nm)20
  • hef - Effective depth48
  • hnom - Min. anchor depth60
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght120
AM08130M8 x 130 Ø8601001004008423533010605
  • tfix - Max. fixture thickness60
  • SW - Installation key13
  • df - Ø Element to fix9
  • Tins - Torque (Nm)20
  • hef - Effective depth48
  • hnom - Min. anchor depth60
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght130
AM08155M8 x 155 Ø8851001002008423533010704
  • tfix - Max. fixture thickness85
  • SW - Installation key13
  • df - Ø Element to fix9
  • Tins - Torque (Nm)20
  • hef - Effective depth48
  • hnom - Min. anchor depth60
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght155
AM10065M10 x 65 Ø1011001004008423533034670
  • tfix - Max. fixture thickness1
  • SW - Installation key17
  • df - Ø Element to fix12
  • Tins - Torque (Nm)35
  • hef - Effective depth40
  • hnom - Min. anchor depth52
  • h1 - Drill hole depth min.55
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght65
AM10070M10 x 70 Ø1031001004008423533010803
  • tfix - Max. fixture thickness3
  • SW - Installation key17
  • df - Ø Element to fix12
  • Tins - Torque (Nm)35
  • hef - Effective depth42
  • hnom - Min. anchor depth54
  • h1 - Drill hole depth min.60
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght70
AM10080M10 x 80 Ø10131001004008423533035325
  • tfix - Max. fixture thickness13
  • SW - Installation key17
  • df - Ø Element to fix12
  • Tins - Torque (Nm)35
  • hef - Effective depth42
  • hnom - Min. anchor depth54
  • h1 - Drill hole depth min.60
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght80
AM10090M10 x 90 Ø10101101004008423533010902
  • tfix - Max. fixture thickness10
  • SW - Installation key17
  • df - Ø Element to fix12
  • Tins - Torque (Nm)35
  • hef - Effective depth55
  • hnom - Min. anchor depth67
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness110
  • L - Lenght90
AM10100M10 x 100 Ø10201101004008423533023742
  • tfix - Max. fixture thickness20
  • SW - Installation key17
  • df - Ø Element to fix12
  • Tins - Torque (Nm)35
  • hef - Effective depth55
  • hnom - Min. anchor depth67
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness110
  • L - Lenght100
AM10120M10 x 120 Ø1040110503008423533011008
  • tfix - Max. fixture thickness40
  • SW - Installation key17
  • df - Ø Element to fix12
  • Tins - Torque (Nm)35
  • hef - Effective depth55
  • hnom - Min. anchor depth67
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness110
  • L - Lenght120
AM10140M10 x 140 Ø1060110502008423533034731
  • tfix - Max. fixture thickness60
  • SW - Installation key17
  • df - Ø Element to fix12
  • Tins - Torque (Nm)35
  • hef - Effective depth55
  • hnom - Min. anchor depth67
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness110
  • L - Lenght140
AM10150M10 x 150 Ø1070110502008423533011107
  • tfix - Max. fixture thickness70
  • SW - Installation key17
  • df - Ø Element to fix12
  • Tins - Torque (Nm)35
  • hef - Effective depth55
  • hnom - Min. anchor depth67
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness110
  • L - Lenght150
AM10160M10 x 160 Ø1080110502008423533034748
  • tfix - Max. fixture thickness80
  • SW - Installation key17
  • df - Ø Element to fix12
  • Tins - Torque (Nm)35
  • hef - Effective depth55
  • hnom - Min. anchor depth67
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness110
  • L - Lenght160
AM10170M10 x 170 Ø1090110502008423533011206
  • tfix - Max. fixture thickness90
  • SW - Installation key17
  • df - Ø Element to fix12
  • Tins - Torque (Nm)35
  • hef - Effective depth55
  • hnom - Min. anchor depth67
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness110
  • L - Lenght170
AM10210M10 x 210 Ø10130110501508423533011305
  • tfix - Max. fixture thickness130
  • SW - Installation key17
  • df - Ø Element to fix12
  • Tins - Torque (Nm)35
  • hef - Effective depth55
  • hnom - Min. anchor depth67
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness110
  • L - Lenght210
AM10230M10 x 230 Ø10150110501008423533011404
  • tfix - Max. fixture thickness150
  • SW - Installation key17
  • df - Ø Element to fix12
  • Tins - Torque (Nm)35
  • hef - Effective depth55
  • hnom - Min. anchor depth67
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness110
  • L - Lenght230
AM12075M12 x 75 Ø125100503008423533011503
  • tfix - Max. fixture thickness5
  • SW - Installation key19
  • df - Ø Element to fix14
  • Tins - Torque (Nm)60
  • hef - Effective depth43
  • hnom - Min. anchor depth55
  • h1 - Drill hole depth min.60
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness100
  • L - Lenght75
AM12080M12 x 80 Ø123100503008423533035349
  • tfix - Max. fixture thickness3
  • SW - Installation key19
  • df - Ø Element to fix14
  • Tins - Torque (Nm)60
  • hef - Effective depth50
  • hnom - Min. anchor depth62
  • h1 - Drill hole depth min.70
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness100
  • L - Lenght80
AM12090M12 x 90 Ø1213100502008423533011602
  • tfix - Max. fixture thickness13
  • SW - Installation key19
  • df - Ø Element to fix14
  • Tins - Torque (Nm)60
  • hef - Effective depth50
  • hnom - Min. anchor depth62
  • h1 - Drill hole depth min.70
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness100
  • L - Lenght90
AM12100M12 x 100 Ø128130502008423533532664
  • tfix - Max. fixture thickness8
  • SW - Installation key19
  • df - Ø Element to fix14
  • Tins - Torque (Nm)60
  • hef - Effective depth65
  • hnom - Min. anchor depth77
  • h1 - Drill hole depth min.85
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness130
  • L - Lenght100
AM12110M12 x 110 Ø1218130502008423533011701
  • tfix - Max. fixture thickness18
  • SW - Installation key19
  • df - Ø Element to fix14
  • Tins - Torque (Nm)60
  • hef - Effective depth65
  • hnom - Min. anchor depth77
  • h1 - Drill hole depth min.85
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness130
  • L - Lenght110
AM12120M12 x 120 Ø1228130502008423533532688
  • tfix - Max. fixture thickness28
  • SW - Installation key19
  • df - Ø Element to fix14
  • Tins - Torque (Nm)60
  • hef - Effective depth65
  • hnom - Min. anchor depth77
  • h1 - Drill hole depth min.85
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness130
  • L - Lenght120
AM12140M12 x 140 Ø1248130502008423533011800
  • tfix - Max. fixture thickness48
  • SW - Installation key19
  • df - Ø Element to fix14
  • Tins - Torque (Nm)60
  • hef - Effective depth65
  • hnom - Min. anchor depth77
  • h1 - Drill hole depth min.85
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness130
  • L - Lenght140
AM12160M12 x 160 Ø1268130501008423533011909
  • tfix - Max. fixture thickness68
  • SW - Installation key19
  • df - Ø Element to fix14
  • Tins - Torque (Nm)60
  • hef - Effective depth65
  • hnom - Min. anchor depth77
  • h1 - Drill hole depth min.85
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness130
  • L - Lenght160
AM12180M12 x 180 Ø1288130501508423533012005
  • tfix - Max. fixture thickness88
  • SW - Installation key19
  • df - Ø Element to fix14
  • Tins - Torque (Nm)60
  • hef - Effective depth65
  • hnom - Min. anchor depth77
  • h1 - Drill hole depth min.85
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness130
  • L - Lenght180
AM12220M12 x 220 Ø12128130501008423533012104
  • tfix - Max. fixture thickness128
  • SW - Installation key19
  • df - Ø Element to fix14
  • Tins - Torque (Nm)60
  • hef - Effective depth65
  • hnom - Min. anchor depth77
  • h1 - Drill hole depth min.85
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness130
  • L - Lenght220
AM12250M12 x 250 Ø1215813025508423533012203
  • tfix - Max. fixture thickness158
  • SW - Installation key19
  • df - Ø Element to fix14
  • Tins - Torque (Nm)60
  • hef - Effective depth65
  • hnom - Min. anchor depth77
  • h1 - Drill hole depth min.85
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness130
  • L - Lenght250
AM14080M14 x 80 Ø145100502008423533012302
  • tfix - Max. fixture thickness5
  • SW - Installation key22
  • df - Ø Element to fix16
  • Tins - Torque (Nm)90
  • hef - Effective depth42
  • hnom - Min. anchor depth59
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill14
  • hmin - Min. substrate thickness100
  • L - Lenght80
AM14100M14 x 100 Ø145125501008423533012401
  • tfix - Max. fixture thickness5
  • SW - Installation key22
  • df - Ø Element to fix16
  • Tins - Torque (Nm)90
  • hef - Effective depth62
  • hnom - Min. anchor depth69
  • h1 - Drill hole depth min.85
  • d0 - Ø Drill14
  • hmin - Min. substrate thickness125
  • L - Lenght100
AM14120M14 x 120 Ø1412150251008423533012500
  • tfix - Max. fixture thickness12
  • SW - Installation key22
  • df - Ø Element to fix16
  • Tins - Torque (Nm)90
  • hef - Effective depth75
  • hnom - Min. anchor depth91
  • h1 - Drill hole depth min.100
  • d0 - Ø Drill14
  • hmin - Min. substrate thickness150
  • L - Lenght120
AM14145M14 x 145 Ø1437150251008423533012609
  • tfix - Max. fixture thickness37
  • SW - Installation key22
  • df - Ø Element to fix16
  • Tins - Torque (Nm)90
  • hef - Effective depth75
  • hnom - Min. anchor depth91
  • h1 - Drill hole depth min.100
  • d0 - Ø Drill14
  • hmin - Min. substrate thickness150
  • L - Lenght145
AM14170M14 x 170 Ø1462150251008423533012708
  • tfix - Max. fixture thickness62
  • SW - Installation key22
  • df - Ø Element to fix16
  • Tins - Torque (Nm)90
  • hef - Effective depth75
  • hnom - Min. anchor depth91
  • h1 - Drill hole depth min.100
  • d0 - Ø Drill14
  • hmin - Min. substrate thickness150
  • L - Lenght170
AM14220M14 x 220 Ø1411215025758423533012807
  • tfix - Max. fixture thickness112
  • SW - Installation key22
  • df - Ø Element to fix16
  • Tins - Torque (Nm)90
  • hef - Effective depth75
  • hnom - Min. anchor depth91
  • h1 - Drill hole depth min.100
  • d0 - Ø Drill14
  • hmin - Min. substrate thickness150
  • L - Lenght220
AM14250M14 x 250 Ø1414215025508423533012906
  • tfix - Max. fixture thickness142
  • SW - Installation key22
  • df - Ø Element to fix16
  • Tins - Torque (Nm)90
  • hef - Effective depth75
  • hnom - Min. anchor depth91
  • h1 - Drill hole depth min.100
  • d0 - Ø Drill14
  • hmin - Min. substrate thickness150
  • L - Lenght250
AM16090M16 x 90 Ø164100251508423533013002
  • tfix - Max. fixture thickness4
  • SW - Installation key24
  • df - Ø Element to fix18
  • Tins - Torque (Nm)120
  • hef - Effective depth49
  • hnom - Min. anchor depth69
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill16
  • hmin - Min. substrate thickness100
  • L - Lenght90
AM16110M16 x 110 Ø167100251008423533532718
  • tfix - Max. fixture thickness7
  • SW - Installation key24
  • df - Ø Element to fix18
  • Tins - Torque (Nm)120
  • hef - Effective depth49
  • hnom - Min. anchor depth69
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill16
  • hmin - Min. substrate thickness100
  • L - Lenght110
AM16125M16 x 125 Ø163168251008423533013101
  • tfix - Max. fixture thickness3
  • SW - Installation key24
  • df - Ø Element to fix18
  • Tins - Torque (Nm)120
  • hef - Effective depth84
  • hnom - Min. anchor depth104
  • h1 - Drill hole depth min.110
  • d0 - Ø Drill16
  • hmin - Min. substrate thickness168
  • L - Lenght125
AM16145M16 x 145 Ø1623168251008423533013200
  • tfix - Max. fixture thickness23
  • SW - Installation key24
  • df - Ø Element to fix18
  • Tins - Torque (Nm)120
  • hef - Effective depth84
  • hnom - Min. anchor depth104
  • h1 - Drill hole depth min.110
  • d0 - Ø Drill16
  • hmin - Min. substrate thickness168
  • L - Lenght145
AM16170M16 x 170 Ø164816825508423533013309
  • tfix - Max. fixture thickness48
  • SW - Installation key24
  • df - Ø Element to fix18
  • Tins - Torque (Nm)120
  • hef - Effective depth84
  • hnom - Min. anchor depth104
  • h1 - Drill hole depth min.110
  • d0 - Ø Drill16
  • hmin - Min. substrate thickness168
  • L - Lenght170
AM16220M16 x 220 Ø169816825508423533013408
  • tfix - Max. fixture thickness98
  • SW - Installation key24
  • df - Ø Element to fix18
  • Tins - Torque (Nm)120
  • hef - Effective depth84
  • hnom - Min. anchor depth104
  • h1 - Drill hole depth min.110
  • d0 - Ø Drill16
  • hmin - Min. substrate thickness168
  • L - Lenght220
AM16250M16 x 250 Ø1612816825508423533013507
  • tfix - Max. fixture thickness128
  • SW - Installation key24
  • df - Ø Element to fix18
  • Tins - Torque (Nm)120
  • hef - Effective depth84
  • hnom - Min. anchor depth104
  • h1 - Drill hole depth min.110
  • d0 - Ø Drill16
  • hmin - Min. substrate thickness168
  • L - Lenght250
AM16280M16 x 280 Ø1615816825508423533013606
  • tfix - Max. fixture thickness158
  • SW - Installation key24
  • df - Ø Element to fix18
  • Tins - Torque (Nm)120
  • hef - Effective depth84
  • hnom - Min. anchor depth104
  • h1 - Drill hole depth min.110
  • d0 - Ø Drill16
  • hmin - Min. substrate thickness168
  • L - Lenght280
AM20120M20 x 120 Ø20514520408423533013705
  • tfix - Max. fixture thickness5
  • SW - Installation key30
  • df - Ø Element to fix22
  • Tins - Torque (Nm)240
  • hef - Effective depth71
  • hnom - Min. anchor depth93
  • h1 - Drill hole depth min.105
  • d0 - Ø Drill20
  • hmin - Min. substrate thickness145
  • L - Lenght120
AM20170M20 x 170 Ø202320620408423533013804
  • tfix - Max. fixture thickness23
  • SW - Installation key30
  • df - Ø Element to fix22
  • Tins - Torque (Nm)240
  • hef - Effective depth103
  • hnom - Min. anchor depth125
  • h1 - Drill hole depth min.135
  • d0 - Ø Drill20
  • hmin - Min. substrate thickness206
  • L - Lenght170
AM20220M20 x 220 Ø207320620408423533013903
  • tfix - Max. fixture thickness73
  • SW - Installation key30
  • df - Ø Element to fix22
  • Tins - Torque (Nm)240
  • hef - Effective depth103
  • hnom - Min. anchor depth125
  • h1 - Drill hole depth min.135
  • d0 - Ø Drill20
  • hmin - Min. substrate thickness206
  • L - Lenght220
AM20270M20 x 270 Ø2012320620408423533014009
  • tfix - Max. fixture thickness123
  • SW - Installation key30
  • df - Ø Element to fix22
  • Tins - Torque (Nm)240
  • hef - Effective depth103
  • hnom - Min. anchor depth125
  • h1 - Drill hole depth min.135
  • d0 - Ø Drill20
  • hmin - Min. substrate thickness206
  • L - Lenght270
AM24180M24 x 180 Ø241025010208423533082206
  • tfix - Max. fixture thickness10
  • SW - Installation key36
  • df - Ø Element to fix26
  • Tins - Torque (Nm)250
  • hef - Effective depth125
  • hnom - Min. anchor depth143
  • h1 - Drill hole depth min.155
  • d0 - Ø Drill24
  • hmin - Min. substrate thickness250
  • L - Lenght180
AM24260M24 x 260 Ø248025010208423533082305
  • tfix - Max. fixture thickness80
  • SW - Installation key36
  • df - Ø Element to fix26
  • Tins - Torque (Nm)250
  • hef - Effective depth125
  • hnom - Min. anchor depth143
  • h1 - Drill hole depth min.155
  • d0 - Ø Drill24
  • hmin - Min. substrate thickness250
  • L - Lenght260
VAM06060M6 x 60 Ø621002088423533753922
  • tfix - Max. fixture thickness2
  • SW - Installation key10
  • df - Ø Element to fix7
  • Tins - Torque (Nm)7
  • hef - Effective depth40
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.55
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght60
VAM08075M8 x 75 Ø851001288423533753939
  • tfix - Max. fixture thickness5
  • SW - Installation key13
  • df - Ø Element to fix9
  • Tins - Torque (Nm)20
  • hef - Effective depth48
  • hnom - Min. anchor depth60
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght75
VAM08090M8 x 90 Ø8201001288423533753946
  • tfix - Max. fixture thickness20
  • SW - Installation key13
  • df - Ø Element to fix9
  • Tins - Torque (Nm)20
  • hef - Effective depth48
  • hnom - Min. anchor depth60
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght90
VAM10070M10 x 70 Ø103100688423533753953
  • tfix - Max. fixture thickness3
  • SW - Installation key17
  • df - Ø Element to fix12
  • Tins - Torque (Nm)35
  • hef - Effective depth42
  • hnom - Min. anchor depth54
  • h1 - Drill hole depth min.60
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght70
VAM10090M10 x 90 Ø1010110688423533753960
  • tfix - Max. fixture thickness10
  • SW - Installation key17
  • df - Ø Element to fix12
  • Tins - Torque (Nm)35
  • hef - Effective depth55
  • hnom - Min. anchor depth67
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness110
  • L - Lenght90
VAM10120M10 x 120 Ø1040110688423533753977
  • tfix - Max. fixture thickness40
  • SW - Installation key17
  • df - Ø Element to fix12
  • Tins - Torque (Nm)35
  • hef - Effective depth55
  • hnom - Min. anchor depth67
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness110
  • L - Lenght120
VAM12090M12 x 90 Ø1213100688423533753984
  • tfix - Max. fixture thickness13
  • SW - Installation key19
  • df - Ø Element to fix14
  • Tins - Torque (Nm)60
  • hef - Effective depth50
  • hnom - Min. anchor depth62
  • h1 - Drill hole depth min.70
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness100
  • L - Lenght90
VAM12110M12 x 110 Ø1218130688423533753991
  • tfix - Max. fixture thickness18
  • SW - Installation key19
  • df - Ø Element to fix14
  • Tins - Torque (Nm)60
  • hef - Effective depth65
  • hnom - Min. anchor depth77
  • h1 - Drill hole depth min.85
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness130
  • L - Lenght110
BZAM06060M6 x 60 Ø621002208423533421968
  • tfix - Max. fixture thickness2
  • SW - Installation key10
  • df - Ø Element to fix7
  • Tins - Torque (Nm)7
  • hef - Effective depth40
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.55
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght60
BZAM06080M6 x 80 Ø6221002208423533421975
  • tfix - Max. fixture thickness22
  • SW - Installation key10
  • df - Ø Element to fix7
  • Tins - Torque (Nm)7
  • hef - Effective depth40
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.55
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght80
BZAM08050M8 x 50 Ø841002158423533421982
  • tfix - Max. fixture thickness4
  • SW - Installation key13
  • df - Ø Element to fix9
  • Tins - Torque (Nm)20
  • hef - Effective depth23
  • hnom - Min. anchor depth35
  • h1 - Drill hole depth min.40
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght50
BZAM08075M8 x 75 Ø851002158423533421999
  • tfix - Max. fixture thickness5
  • SW - Installation key13
  • df - Ø Element to fix9
  • Tins - Torque (Nm)20
  • hef - Effective depth48
  • hnom - Min. anchor depth60
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght75
BZAM08090M8 x 90 Ø8201002158423533422002
  • tfix - Max. fixture thickness20
  • SW - Installation key13
  • df - Ø Element to fix9
  • Tins - Torque (Nm)20
  • hef - Effective depth48
  • hnom - Min. anchor depth60
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght90
BZAM10070M10 x 70 Ø1031002128423533422019
  • tfix - Max. fixture thickness3
  • SW - Installation key17
  • df - Ø Element to fix12
  • Tins - Torque (Nm)35
  • hef - Effective depth42
  • hnom - Min. anchor depth54
  • h1 - Drill hole depth min.60
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght70
BZAM10090M10 x 90 Ø10101102128423533422026
  • tfix - Max. fixture thickness10
  • SW - Installation key17
  • df - Ø Element to fix12
  • Tins - Torque (Nm)35
  • hef - Effective depth55
  • hnom - Min. anchor depth67
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness110
  • L - Lenght90
BZAM10120M10 x 120 Ø10401102128423533422033
  • tfix - Max. fixture thickness40
  • SW - Installation key17
  • df - Ø Element to fix12
  • Tins - Torque (Nm)35
  • hef - Effective depth55
  • hnom - Min. anchor depth67
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness110
  • L - Lenght120
BZAM12090M12 x 90 Ø12131002108423533422040
  • tfix - Max. fixture thickness13
  • SW - Installation key19
  • df - Ø Element to fix14
  • Tins - Torque (Nm)60
  • hef - Effective depth50
  • hnom - Min. anchor depth62
  • h1 - Drill hole depth min.70
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness100
  • L - Lenght90
BZAM12110M12 x 110 Ø12181302108423533422057
  • tfix - Max. fixture thickness18
  • SW - Installation key19
  • df - Ø Element to fix14
  • Tins - Torque (Nm)60
  • hef - Effective depth65
  • hnom - Min. anchor depth77
  • h1 - Drill hole depth min.85
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness130
  • L - Lenght110
BZAM12140M12 x 140 Ø12481302108423533422064
  • tfix - Max. fixture thickness48
  • SW - Installation key19
  • df - Ø Element to fix14
  • Tins - Torque (Nm)60
  • hef - Effective depth65
  • hnom - Min. anchor depth77
  • h1 - Drill hole depth min.85
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness130
  • L - Lenght140
CARACTERÍSTICAS

  • 【FUNCIONAMIENTO POR ROZAMIENTO】 Anclaje metálico de expansión por par controlado tipo cuña (funcionamiento por rozamiento) con rosca externa. Soporta importantes cargas gracias al funcionamiento por rozamiento.
  • 【VERSATILIDAD】 Indicado para realizar anclajes muy variados, como estanterías, soportes de tuberías, mobiliario urbano, vallas, barandillas, balcones y fijaciones en general.
  • 【MATERIALES DE USO】 Recomendado para la instalación de cargas altas. Recomendado para su instalación en hormigón no fisurado y/o hormigón armado. (Hormigón de calidad C20/25 a C50/60 no fisurado). Válido para dos profundidades de instalación y para cargas estáticas o cuasi-estáticas.
  • 【FABRICACIÓN DE CALIDAD】 Fabricado con acero al carbono estampado y recubrimiento cincado (apto para uso en condiciones interiores sin condensación (categoría C1 según la norma ISO 9223), por un periodo de 50 años).
  • 【DIFERENTES MEDIDAS】 Variedad de longitudes y diámetros, desde M6 x 45 mm. a M24 x 260 mm.

Detalle Tuerca anclaje MT Detalle borde del eje anclaje MT Detalle de la identificación del modelo y medida anclaje MT
Tuerca. La rosca interna permite acoplar el tornillo, facilitando la sujeción y la unión de elementos desmontables. Se suministra premontada. Borde del eje. Permite que el clip se mantenga en su posición durante la instalación. Identificación. Modelo y medida del mismo indicado en el clip.

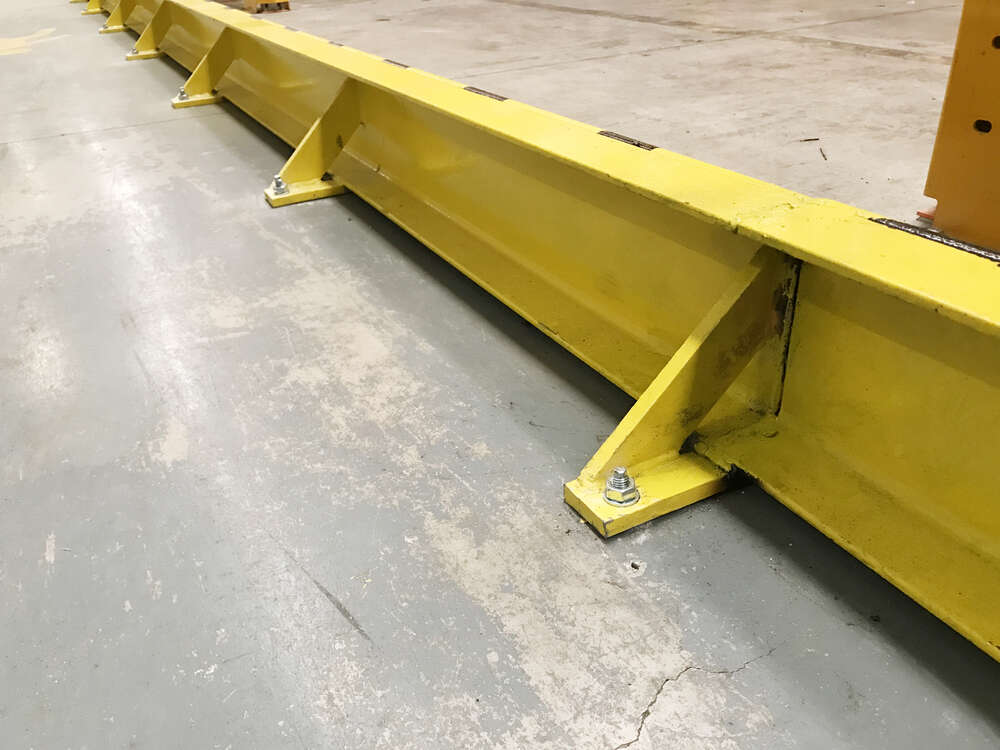

  • Fixing of shelves
  • Steel structures
  • Protections
  • Street furniture

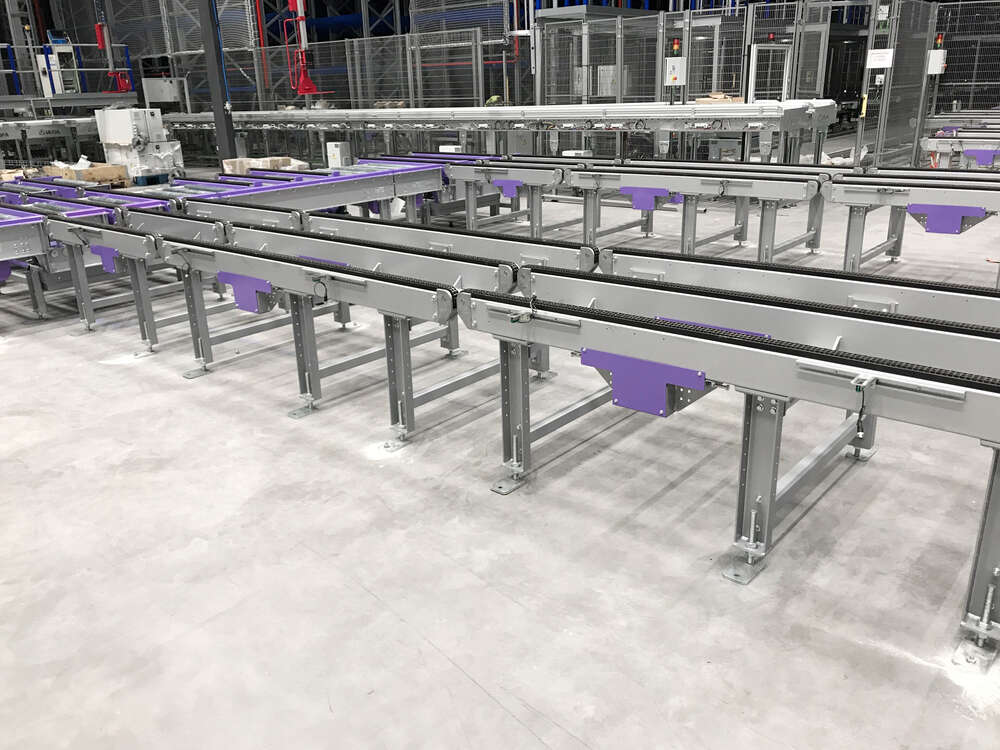

  • Machinery
  • Wooden structures
  • Antennae

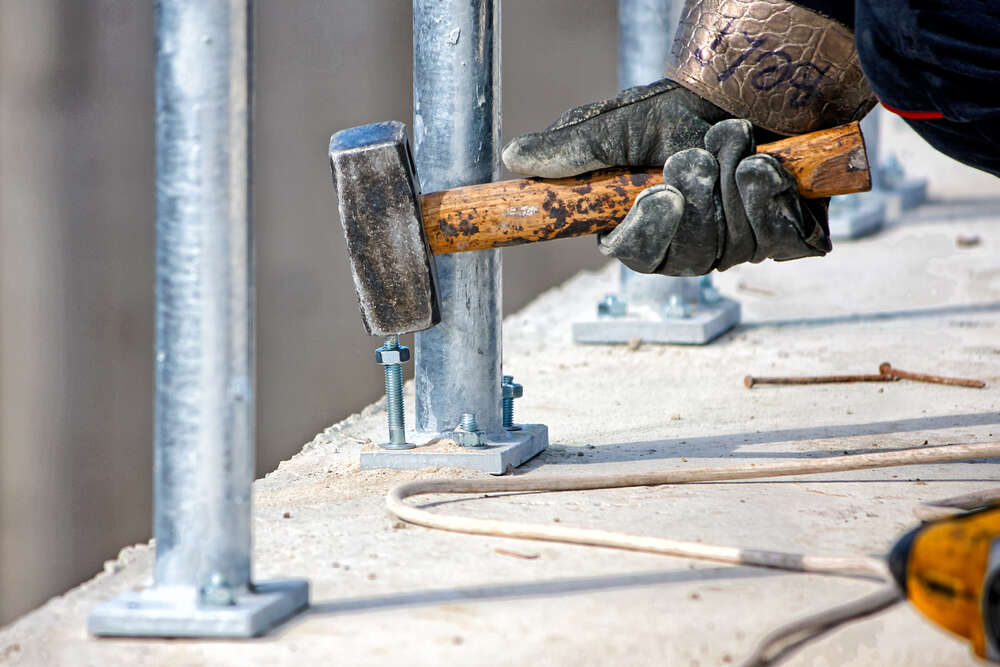

  • Balcony railings
  • Road railings
  • Wooden railings
  • Beach railings
  • Ceiling lights
  • False ceilings
  • Ceilings
MTA
icon book
Technical Sheets
icon camera
Multimedia

related products

Request more information

TÉCNICAS EXPANSIVAS S.L. informs that the personal data provided voluntarily on this website will be processed and incorporated into the corresponding files, responsibility of TÉCNICAS EXPANSIVAS S.L, is reported at the time of personal data collection, although, according to the specific case, its purpose may be any of the following: attention to your referred request, complaint or question, established relationship maintenance, comprehensive and commercial customer management, accounting and billing or sending communications, including electronic media, news and activities related to TÉCNICAS EXPANSIVAS S.L.

The data in our files are strictly confidential and shall be treated with the utmost confidentiality and shall comply with all the requirements provided for the General Data Protection Regulation (GDPR) 2016.

According to Data Protection legislation, you are strongly advised not to send high-level personal data, such as those relating to health, as they are not encoded or encrypted. Should these details be sent, it is done so under your sole responsibility.

The user may at any time exercise their rights of access, rectification, cancellation and opposition under the provisions of the General Data Protection Regulation (GDPR) 2016 by sending a letter together with a photocopy of your ID, to P.I. La Portalada II | c/ Segador 13, 26006 | Logroño (La Rioja).
Read more
MTA

MTA

Through bolt anchor for heavy loads

Metal expansion through bolt anchor for high loads. The shaft and clips are made of zinc plated steel and allow secure and strong fixings in materials such as uncracked concrete, reinforced concrete or stone.
Mostrar distribuidores con stock disponible
Metal fixings
Chemical fixings
Plastic fixings
Fixings and accessories for thermal insulation systems (ETICS)
Fixings & accesories for plasterboard
Rivets
Rigging hardware and fencing
Accesories for fences and trellis
Fixings & accesories for Drywall
Direct fixing
Screws for decking and façades
Drill, tapping and PVC screws
Wood screws
Nails and bolts
Wood connectors
Standardized nuts and bolts
Plugs, tips and accessories
Heavy metal clamps
Light metal clamps
Fire protection systems
Gutter supports
Plastic clamps
Profiles and supports
Installation systems and fixings for solar panels
Quick beam attachament system
Threaded rod and fixing accesories
Bathroom and air conditioning fixings
DIY

TECHNICAL TRAINING

Our engineering department provides specific and personalised training on the different topics related to fixing systems: metallic or chemical fixings, installation systems, regulations, calculations, etc.



TÉCNICAS EXPANSIVAS S.L. informs that the personal data provided voluntarily on this website will be processed and incorporated into the corresponding files, responsibility of TÉCNICAS EXPANSIVAS S.L, is reported at the time of personal data collection, although, according to the specific case, its purpose may be any of the following: attention to your referred request, complaint or question, established relationship maintenance, comprehensive and commercial customer management, accounting and billing or sending communications, including electronic media, news and activities related to TÉCNICAS EXPANSIVAS S.L.

The data in our files are strictly confidential and shall be treated with the utmost confidentiality and shall comply with all the requirements provided for the General Data Protection Regulation (GDPR) 2016.

According to Data Protection legislation, you are strongly advised not to send high-level personal data, such as those relating to health, as they are not encoded or encrypted. Should these details be sent, it is done so under your sole responsibility.

The user may at any time exercise their rights of access, rectification, cancellation and opposition under the provisions of the General Data Protection Regulation (GDPR) 2016 by sending a letter together with a photocopy of your ID, to P.I. La Portalada II | c/ Segador 13, 26006 | Logroño (La Rioja).
Read more

site visits

The relationship with our customers does not end with the sale of our products. At INDEX® we understand that it is often necessary to accompany them on site, where our experience is the best ally to ensure fits works perfectly. Our engineers and technicians support the managers of each project in planning and selecting the best solution for effectively saving time and money.

TÉCNICAS EXPANSIVAS S.L. informs that the personal data provided voluntarily on this website will be processed and incorporated into the corresponding files, responsibility of TÉCNICAS EXPANSIVAS S.L, is reported at the time of personal data collection, although, according to the specific case, its purpose may be any of the following: attention to your referred request, complaint or question, established relationship maintenance, comprehensive and commercial customer management, accounting and billing or sending communications, including electronic media, news and activities related to TÉCNICAS EXPANSIVAS S.L.

The data in our files are strictly confidential and shall be treated with the utmost confidentiality and shall comply with all the requirements provided for the General Data Protection Regulation (GDPR) 2016.

According to Data Protection legislation, you are strongly advised not to send high-level personal data, such as those relating to health, as they are not encoded or encrypted. Should these details be sent, it is done so under your sole responsibility.

The user may at any time exercise their rights of access, rectification, cancellation and opposition under the provisions of the General Data Protection Regulation (GDPR) 2016 by sending a letter together with a photocopy of your ID, to P.I. La Portalada II | c/ Segador 13, 26006 | Logroño (La Rioja).
Read more

ENGINEERING SERVICES AND CALCULATIONS

TÉCNICAS EXPANSIVAS S.L. informs that the personal data provided voluntarily on this website will be processed and incorporated into the corresponding files, responsibility of TÉCNICAS EXPANSIVAS S.L, is reported at the time of personal data collection, although, according to the specific case, its purpose may be any of the following: attention to your referred request, complaint or question, established relationship maintenance, comprehensive and commercial customer management, accounting and billing or sending communications, including electronic media, news and activities related to TÉCNICAS EXPANSIVAS S.L.

The data in our files are strictly confidential and shall be treated with the utmost confidentiality and shall comply with all the requirements provided for the General Data Protection Regulation (GDPR) 2016.

According to Data Protection legislation, you are strongly advised not to send high-level personal data, such as those relating to health, as they are not encoded or encrypted. Should these details be sent, it is done so under your sole responsibility.

The user may at any time exercise their rights of access, rectification, cancellation and opposition under the provisions of the General Data Protection Regulation (GDPR) 2016 by sending a letter together with a photocopy of your ID, to P.I. La Portalada II | c/ Segador 13, 26006 | Logroño (La Rioja).
Read more
