High performance plug T-NUX

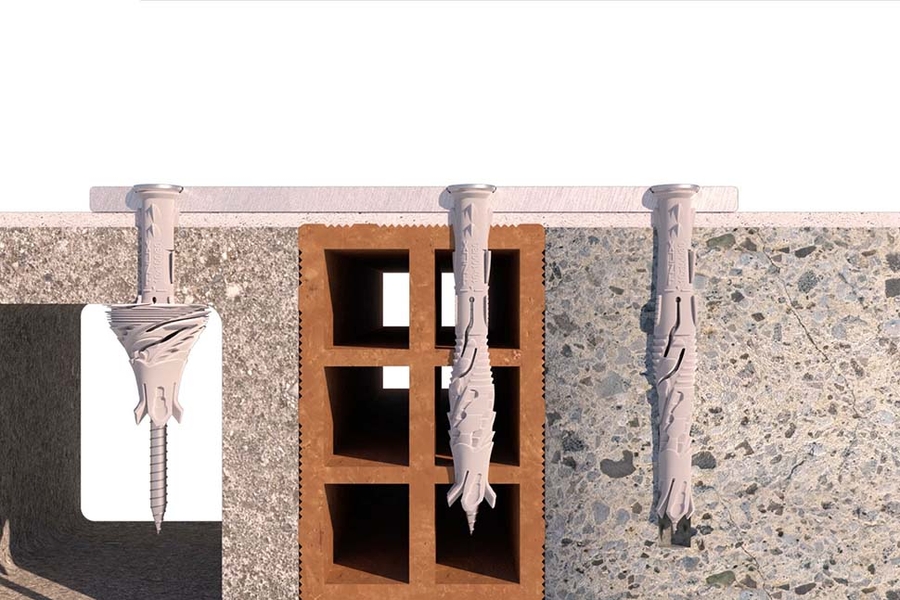

High performance nylon dowel. It allows medium-load elements to be fixed to solid and hollow materials with maximum guarantees. Its controlled expansion allows the load to be distributed throughout the dowel. It is approved for non-structural applications.
Amplify information
> CAD Data
CODESIZENº RECESSTHICKNESS MAX.FIXTURE (mm)Min. Order Qty.Pcs BoxPcs MasterboxEANTechnical info.
TNUX080608 x 60-0508008423533441003
  • tfix - Max. fixture thickness-
  • df - Ø Element to fix8 - 8,5
  • hef - Effective depth50
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.70
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100

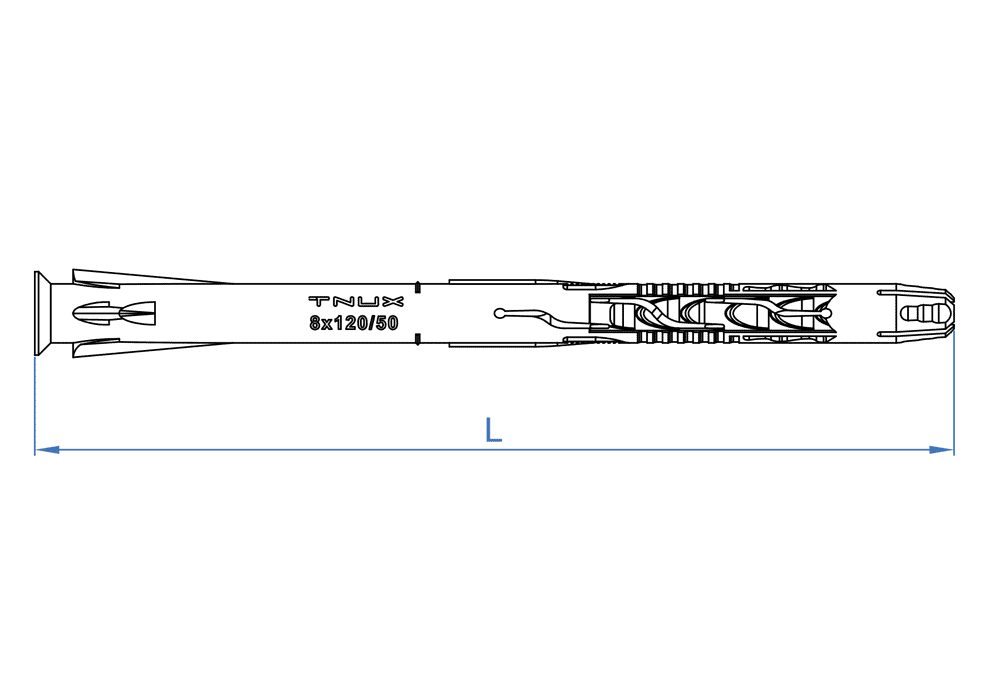

  • L - Lenght60
TNUX080808 x 80-0506008423533441027
  • tfix - Max. fixture thickness-
  • df - Ø Element to fix8 - 8,5
  • hef - Effective depth70
  • hnom - Min. anchor depth70
  • h1 - Drill hole depth min.90
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght80
TNUX081008 x 100-0506008423533705907
  • tfix - Max. fixture thickness-
  • df - Ø Element to fix8 - 8,5
  • hef - Effective depth70
  • hnom - Min. anchor depth70
  • h1 - Drill hole depth min.90
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght100
TNUX081208 x 120-0506008423533441096
  • tfix - Max. fixture thickness-
  • df - Ø Element to fix8 - 8,5
  • hef - Effective depth70
  • hnom - Min. anchor depth70
  • h1 - Drill hole depth min.90
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght120
TNUX1006010 x 60-0506008423533441119
  • tfix - Max. fixture thickness-
  • df - Ø Element to fix10 - 11
  • hef - Effective depth50
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.70
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght60
TNUX1008010 x 80-0506008423533441133
  • tfix - Max. fixture thickness-
  • df - Ø Element to fix10 - 11
  • hef - Effective depth70
  • hnom - Min. anchor depth70
  • h1 - Drill hole depth min.90
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght80
TNUX1010010 x 100-0506008423533705945
  • tfix - Max. fixture thickness-
  • df - Ø Element to fix10 - 11
  • hef - Effective depth70
  • hnom - Min. anchor depth70
  • h1 - Drill hole depth min.90
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght100
TNUX1012010 x 120-0506008423533441157
  • tfix - Max. fixture thickness-
  • df - Ø Element to fix10 - 11
  • hef - Effective depth70
  • hnom - Min. anchor depth70
  • h1 - Drill hole depth min.90
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght120
TNUX1014010 x 140-0503008423533441072
  • tfix - Max. fixture thickness-
  • df - Ø Element to fix10 - 11
  • hef - Effective depth70
  • hnom - Min. anchor depth70
  • h1 - Drill hole depth min.90
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght140
  • Anchoring of shelves
  • Kitchen cupboard
  • Signs
PR632BI10429 CP T NUX T NUX SZ4
PR632BI10431 CP T NUX T NUX SZ4
icon book
Technical Sheets
FT_TNUX_en_rev7.pdf
FTA_TNUX_en_rev0.pdf
icon security
Assessments
ETA_TNUX-n-en-rev3.pdf
icon camera
Multimedia
Video
icon table
Declaration of Performances
DoP_TNUX_n_en_rev3.pdf
How can I check if an anchor has been properly installed?
Correct installation of TNUX
What testing machines do you recommend for on-site tests?
What should I do in the event a drilling is aborted (e.g
