Products / Screws / Wood screws / FS / FS 8019
FS 8019
FS 8019
FS 8019
FS 8019
FS 8019
FS 8019
FS 8019
FS 8019

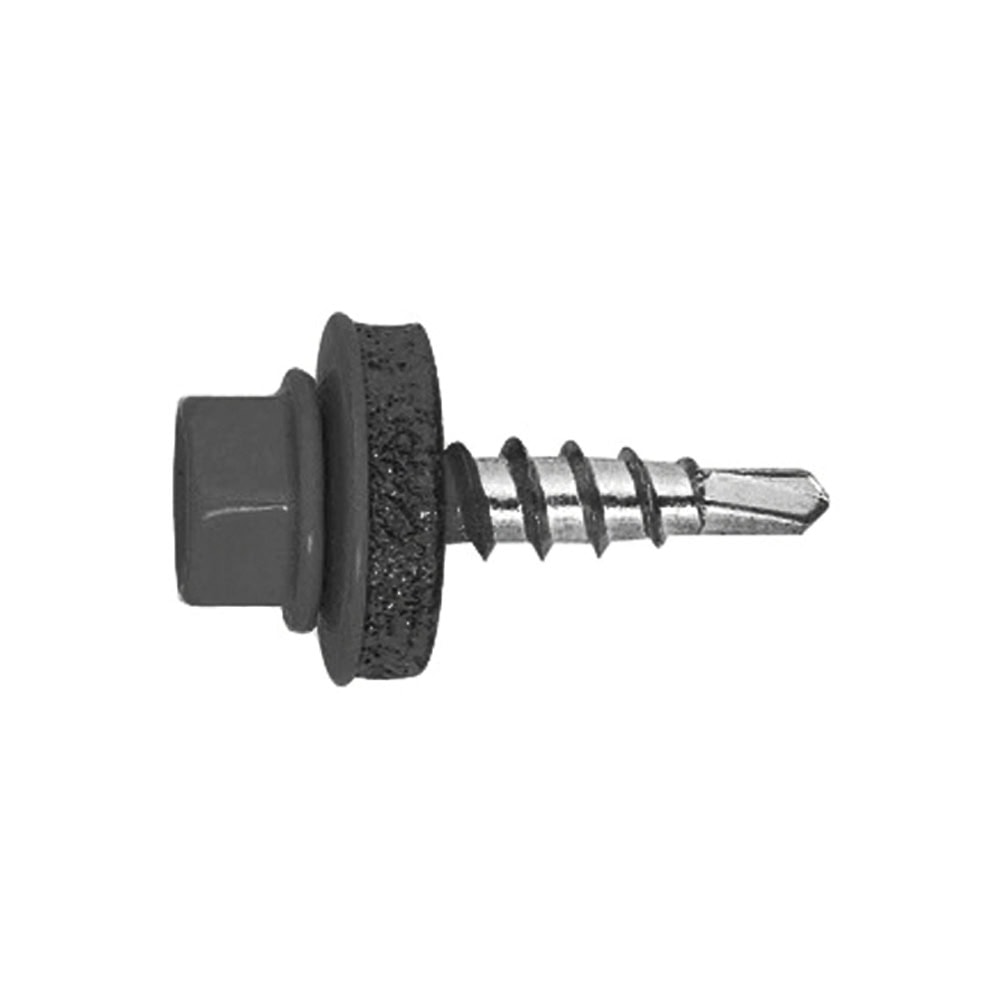

Farmer screw metal-wood. RAL 8019. Grey brown

Self-drilling screw for fixing sheet metal to wood. It can be used to install sheet metal roofing on wooden structures. It consists of a hexagonal head with a stamped washer, a 60º metal thread and a drill point, which allows the material to be drilled without pre-drilling holes. Made of zinc-plated steel. The head and washer are lacquered in brownish grey (RAL 8019).
CODESIZENº RECESSMin. Order Qty.Pcs BoxPcs MasterboxEANTechnical info.
AFPG1448194,8 x 19 P14 8019802503.0008423533719805

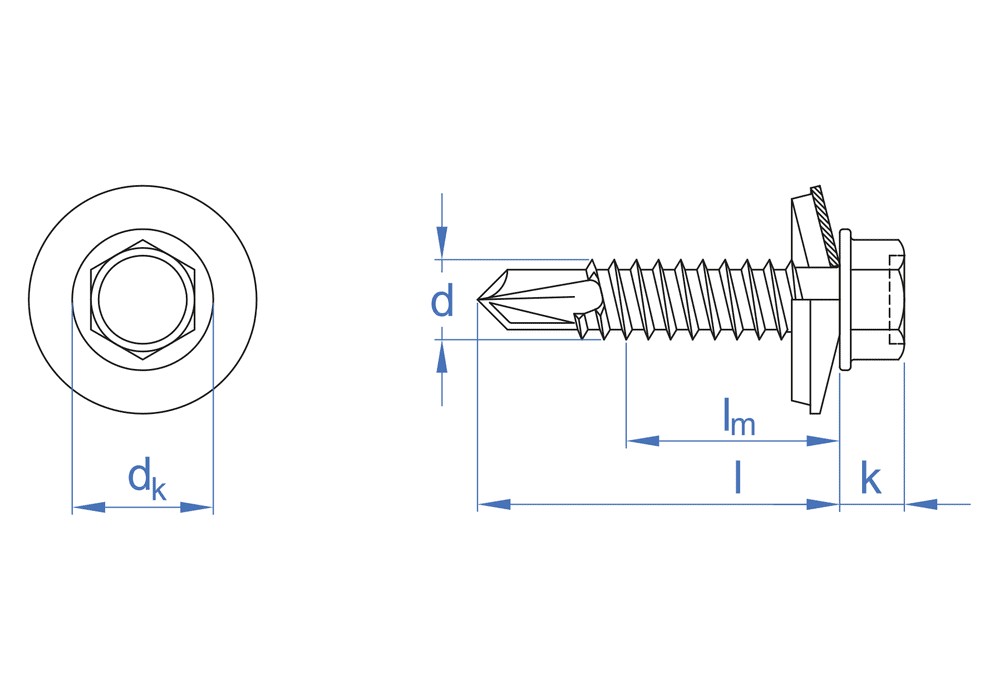

  • tfix - Max. fixture thickness16,5
  • SW - Installation key8
  • L - Lenght19
  • h - Washer thickness1.1
AFPG1448284,8 x 28 P14 8019802503.0008423533719812
  • tfix - Max. fixture thickness7,6
  • SW - Installation key8
  • L - Lenght28
  • h - Washer thickness1.1
AFPG1448354,8 x 35 P14 8019802503.0008423533719829
  • tfix - Max. fixture thickness23,4
  • SW - Installation key8
  • L - Lenght35
  • h - Washer thickness1.1
  • Signs
  • Canopy sandwich panels
  • Wooden bridge
  • Railings
  • Wooden slats
  • Signs
icon book
Technical Sheets
FT_MAD_en_rev14.pdf
