Products / Screws / Drill, tapping and PVC screws / DIN-7504-N / DIN-7504-N HC
DIN-7504-N HC
DIN-7504-N HC

DIN-7504-N HC

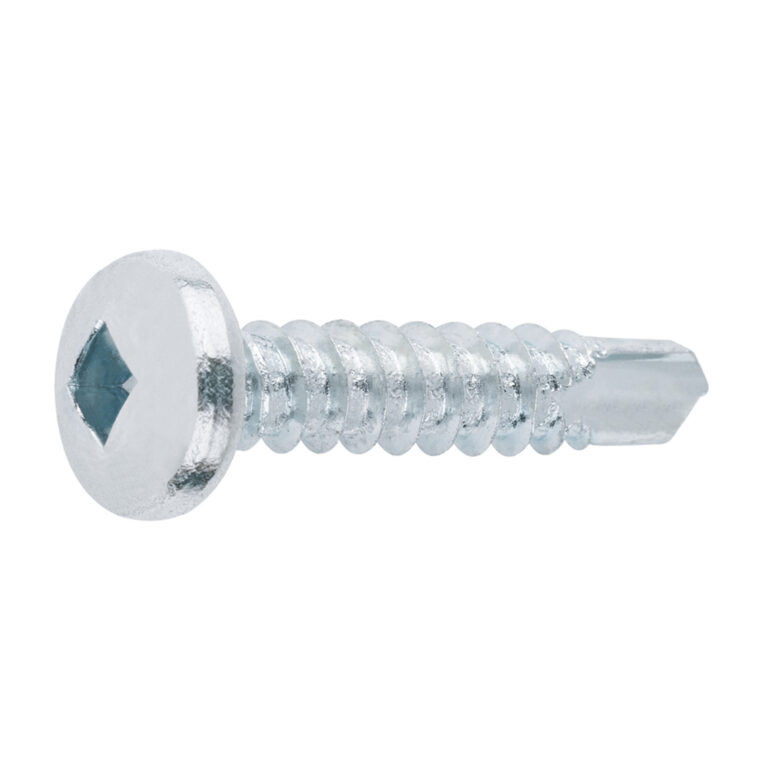

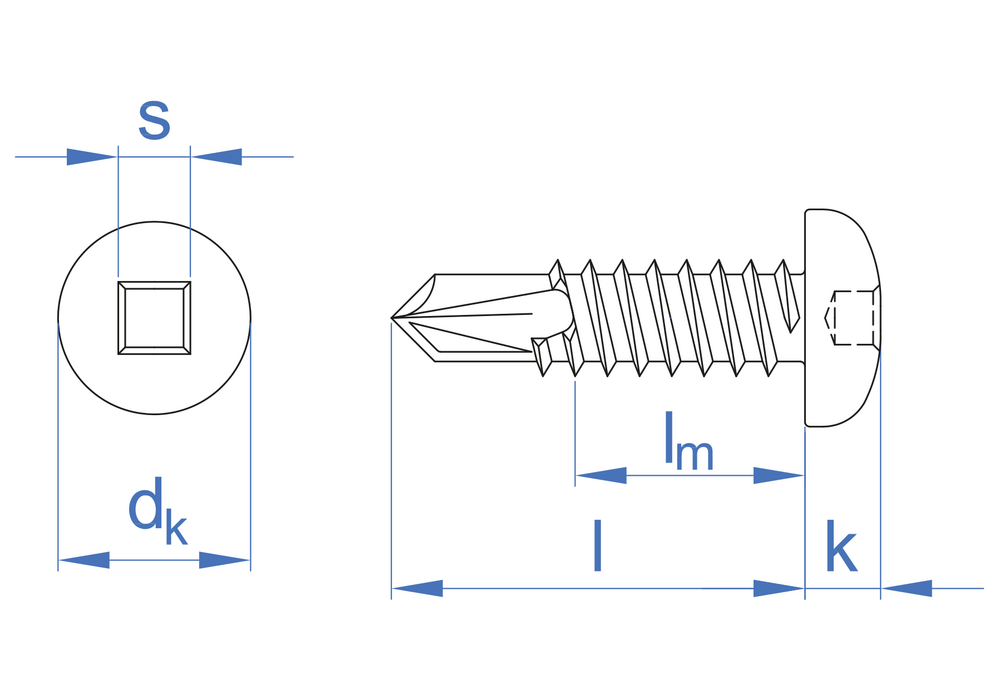

Panhead self-drilling screw. Zinc-plated. Square recess

CODESIZENº RECESSTHICKNESS MAX.FIXTURE (mm)DRILL CAPACITYMin. Order Qty.Pcs BoxPcs MasterboxEANTechnical info.
ABRC35093,5 x 9,5PC12,850,70-2,2501.00024.0008423533569981
  • tfix - Max. fixture thickness2,85
  • L - Lenght9,5
ABRC35133,5 x 13PC16,20,70-2,2501.00024.0008423533570000
  • tfix - Max. fixture thickness6,2
  • L - Lenght13
ABRC35163,5 x 16PC19,20,70-2,2501.00016.0008423533570017
  • tfix - Max. fixture thickness9,2
  • L - Lenght16
ABRC35193,5 x 19PC112,10,70-2,2501.00012.0008423533570024
  • tfix - Max. fixture thickness12,1
  • L - Lenght19
ABRC39133,9 x 13PC15,80,70-2,4001.00016.0008423533570062
  • tfix - Max. fixture thickness5,8
  • L - Lenght13
ABRC39163,9 x 16PC18,80,70-2,4001.00012.0008423533570079
  • tfix - Max. fixture thickness8,8
  • L - Lenght16
ABRC39193,9 x 19PC111,70,70-2,4001.00012.0008423533570086
  • tfix - Max. fixture thickness11,7
  • L - Lenght19
ABRC39253,9 x 25PC117,70,70-2,4005008.0008423533570109
  • tfix - Max. fixture thickness17,7
  • L - Lenght25
ABRC39383,9 x 38PC130,50,70-2,4005006.0008423533570123
  • tfix - Max. fixture thickness30,5
  • L - Lenght38
ABRC42134,2 x 13PC24,31,75-3,0001.00012.0008423533570130
  • tfix - Max. fixture thickness4,3
  • L - Lenght13
ABRC42164,2 x 16PC27,31,75-3,0001.00012.0008423533570147
  • tfix - Max. fixture thickness7,3
  • L - Lenght16
ABRC42194,2 x 19PC210,31,75-3,0001.00012.0008423533570154
  • tfix - Max. fixture thickness10,3
  • L - Lenght19
ABRC42254,2 x 25PC216,31,75-3,0005006.0008423533570178
  • tfix - Max. fixture thickness16,3
  • L - Lenght25
ABRC42324,2 x 32PC2231,75-3,0005006.0008423533570185
  • tfix - Max. fixture thickness23
  • L - Lenght32
ABRC42384,2 x 38PC2291,75-3,0005006.0008423533570192
  • tfix - Max. fixture thickness29
  • L - Lenght38
ABRC48164,8 x 16PC25,51,75-4,4001.0008.0008423533570222
  • tfix - Max. fixture thickness5,5
  • L - Lenght16
ABRC48194,8 x 19PC28,71,75-4,4001.0008.0008423533570239
  • tfix - Max. fixture thickness8,7
  • L - Lenght19
ABRC48254,8 x 25PC214,71,75-4,4005006.0008423533570253
  • tfix - Max. fixture thickness14,7
  • L - Lenght25
ABRC48324,8 x 32PC221,51,75-4,4005006.0008423533570260
  • tfix - Max. fixture thickness21,5
  • L - Lenght32
ABRC48384,8 x 38PC227,51,75-4,4005003.0008423533570277
  • tfix - Max. fixture thickness27,5
  • L - Lenght38
ABRC48454,8 x 45PC234,51,75-4,4005003.0008423533570284
  • tfix - Max. fixture thickness34,5
  • L - Lenght45
ABRC48504,8 x 50PC239,51,75-4,4005003.0008423533570291
  • tfix - Max. fixture thickness39,5
  • L - Lenght50
ABRC48604,8 x 60PC249,51,75-4,4005002.0008423533570307
  • tfix - Max. fixture thickness49,5
  • L - Lenght60
ABRC48804,8 x 80PC269,51,75-4,4002501.5008423533585936
  • tfix - Max. fixture thickness69,5
  • L - Lenght80
ABRC48904,8 x 90PC279,51,75-4,4001001.2008423533585943
  • tfix - Max. fixture thickness79,5
  • L - Lenght90
ABRC48104,8 x 100PC289,51,75-4,4001001.2008423533585950
  • tfix - Max. fixture thickness89,5
  • L - Lenght100
ABRC55255,5 x 25PC3131,75-5,2505004.0008423533570345
  • tfix - Max. fixture thickness13
  • L - Lenght25
  • Anchoring shelving
  • Installation of fire extinguishers
  • Signs
  • Sheet metal profiles
  • Sandwich sheets on canopies
  • Signs
  • Sheet metal roofing
  • Flat screws
icon book
Technical Sheets
FT_BRO_en_rev16.pdf
What are the typical causes of failure with self-drilling screws?
Why doesn´t the stainless screw drill through steel?
