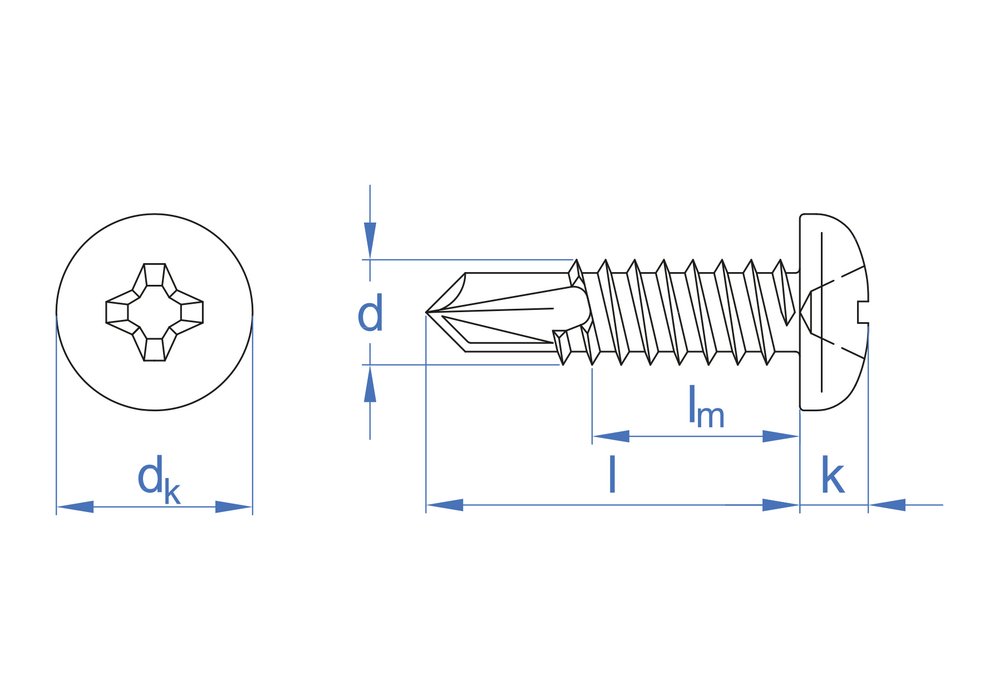

DIN-7504-N HP Z

Panhead self-drilling screw. Zinc-plated. PH recess

CODESIZENº RECESSTHICKNESS MAX.FIXTURE (mm)DRILL CAPACITYMin. Order Qty.Pcs BoxPcs/BlisterPcs/Window BoxPcs MasterboxBlisters/Bisters boxWindow boxes/MasterboxEANTechnical info.
ABR35093,5 x 9,5PH22,80,70-2,2501.00024.0008423533121004
  • tfix - Max. fixture thickness2,8
  • L - Lenght9,5
ABR35113,5 x 11PH24,20,70-2,2501.00024.0008423533121103
  • tfix - Max. fixture thickness4,2
  • L - Lenght11
ABR35133,5 x 13PH26,20,70-2,2501.00024.0008423533121202
  • tfix - Max. fixture thickness6,2
  • L - Lenght13
ABR35163,5 x 16PH29,20,70-2,2501.00016.0008423533121301
  • tfix - Max. fixture thickness9,2
  • L - Lenght16
ABR35193,5 x 19PH212,10,70-2,2501.00012.0008423533121400
  • tfix - Max. fixture thickness12,1
  • L - Lenght19
ABR35223,5 x 22PH215,10,70-2,2501.00012.0008423533121509
  • tfix - Max. fixture thickness15,1
  • L - Lenght22
ABR35253,5 x 25PH218,10,70-2,25050012.0008423533120540
  • tfix - Max. fixture thickness18,1
  • L - Lenght25
ABR35323,5 x 32PH225,10,70-2,2505006.0008423533120564
  • tfix - Max. fixture thickness25,1
  • L - Lenght32
ABR39133,9 x 13PH25,80,70-2,4001.00016.0008423533121806
  • tfix - Max. fixture thickness5,8
  • L - Lenght13
ABR39163,9 x 16PH28,80,70-2,4001.00012.0008423533121905
  • tfix - Max. fixture thickness8,8
  • L - Lenght16
ABR39193,9 x 19PH211,70,70-2,4001.00012.0008423533122001
  • tfix - Max. fixture thickness11,7
  • L - Lenght19
ABR39253,9 x 25PH217,70,70-2,4005008.0008423533121127
  • tfix - Max. fixture thickness17,7
  • L - Lenght25
ABR39323,9 x 32PH224,50,70-2,4005006.0008423533121042
  • tfix - Max. fixture thickness24,5
  • L - Lenght32
ABR42134,2 x 13PH24,31,75-3,0001.00012.0008423533122506
  • tfix - Max. fixture thickness4,3
  • L - Lenght13
ABR42164,2 x 16PH27,31,75-3,0001.00012.0008423533122605
  • tfix - Max. fixture thickness7,3
  • L - Lenght16
ABR42194,2 x 19PH210,31,75-3,0001.00012.0008423533122704
  • tfix - Max. fixture thickness10,3
  • L - Lenght19
ABR42224,2 x 22PH213,31,75-3,0005008.0008423533121165
  • tfix - Max. fixture thickness13,3
  • L - Lenght22
ABR42254,2 x 25PH217,71,75-3,0005006.0008423533119742
  • tfix - Max. fixture thickness17,7
  • L - Lenght25
ABR42324,2 x 32PH224,51,75-3,0005006.0008423533120045
  • tfix - Max. fixture thickness24,5
  • L - Lenght32
ABR42384,2 x 38PH230,51,75-3,0005006.0008423533121363
  • tfix - Max. fixture thickness30,5
  • L - Lenght38
ABR42504,2 x 50PH2411,75-3,0005003.0008423533121448
  • tfix - Max. fixture thickness41
  • L - Lenght50
ABR48134,8 x 13PH23,71,75-4,4001.0008.0008423533123305
  • tfix - Max. fixture thickness3,7
  • L - Lenght13
ABR48164,8 x 16PH25,51,75-4,4001.0008.0008423533123404
  • tfix - Max. fixture thickness5,5
  • L - Lenght16
ABR48194,8 x 19PH210,31,75-4,4001.0008.0008423533123503
  • tfix - Max. fixture thickness10,3
  • L - Lenght19
ABR48224,8 x 22PH211,71,75-4,4005006.0008423533118370
  • tfix - Max. fixture thickness11,7
  • L - Lenght22
ABR48254,8 x 25PH214,71,75-4,4005006.0008423533191458
  • tfix - Max. fixture thickness14,7
  • L - Lenght25
ABR48324,8 x 32PH221,51,75-4,4005006.0008423533122049
  • tfix - Max. fixture thickness21,5
  • L - Lenght32
ABR48384,8 x 38PH227,51,75-4,4005003.0008423533121349
  • tfix - Max. fixture thickness27,5
  • L - Lenght38
ABR48454,8 x 45PH234,51,75-4,4005003.0008423533121943
  • tfix - Max. fixture thickness34,5
  • L - Lenght45
ABR48504,8 x 50PH239,51,75-4,4005003.0008423533119971
  • tfix - Max. fixture thickness39,5
  • L - Lenght50
ABR48604,8 x 60PH249,51,75-4,4005002.0008423533124203
  • tfix - Max. fixture thickness49,5
  • L - Lenght60
ABR48754,8 x 7564,51,75-4,4002501.5008423533898166
  • tfix - Max. fixture thickness64,5
  • L - Lenght75
ABR48804,8 x 80PH269,51,75-4,4002501.5008423533009340
  • tfix - Max. fixture thickness69,5
  • L - Lenght80
ABR48904,8 x 90PH279,51,75-4,4001001.2008423533009333
  • tfix - Max. fixture thickness79,5
  • L - Lenght90
ABR48104,8 x 100PH289,51,75-4,4001001.2008423533009326
  • tfix - Max. fixture thickness89,5
  • L - Lenght100
ABR48114,8 x 110PH2-1,75-4,4001001.2008423533751706
  • tfix - Max. fixture thickness-
  • L - Lenght110
ABR48124,8 x 120PH2-1,75-4,4001001.2008423533751713
  • tfix - Max. fixture thickness-
  • L - Lenght120
ABR55195,5 x 19PH38,71,75-5,2505006.0008423533120717
  • tfix - Max. fixture thickness8,7
  • L - Lenght19
ABR55225,5 x 22PH311,71,75-5,2505006.0008423533119872
  • tfix - Max. fixture thickness11,7
  • L - Lenght22
ABR55255,5 x 25PH314,71,75-5,2505004.0008423533122063
  • tfix - Max. fixture thickness14,7
  • L - Lenght25
ABR55325,5 x 32PH321,51,75-5,2505003.0008423533117779
  • tfix - Max. fixture thickness21,5
  • L - Lenght32
ABR55385,5 x 38PH327,51,75-5,2505003.0008423533117113
  • tfix - Max. fixture thickness27,5
  • L - Lenght38
ABR55455,5 x 45PH334,51,75-5,2505003.0008423533116512
  • tfix - Max. fixture thickness34,5
  • L - Lenght45
ABR55605,5 x 60PH349,51,75-5,2502501.5008423533117878
  • tfix - Max. fixture thickness49,5
  • L - Lenght60
ABR55735,5 x 73PH362,51,75-5,2502501.5008423533118615
  • tfix - Max. fixture thickness62,5
  • L - Lenght73
VABR35093,5 x 9,5PH22,80,70-2,25027588423533757159
  • tfix - Max. fixture thickness2,8
  • L - Lenght9,5
VABR35113,5 x 11PH24,20,70-2,25025088423533774545
  • tfix - Max. fixture thickness4,2
  • L - Lenght11
VABR35133,5 x 13PH26,20,70-2,25025088423533757166
  • tfix - Max. fixture thickness6,2
  • L - Lenght13
VABR35163,5 x 16PH29,20,70-2,25022588423533757173
  • tfix - Max. fixture thickness9,2
  • L - Lenght16
VABR35193,5 x 19PH212,10,70-2,25022588423533757180
  • tfix - Max. fixture thickness12,1
  • L - Lenght19
VABR35253,5 x 25PH218,10,70-2,25018088423533757197
  • tfix - Max. fixture thickness18,1
  • L - Lenght25
VABR39133,9 x 13PH25,80,70-2,40025088423533757203
  • tfix - Max. fixture thickness5,8
  • L - Lenght13
VABR39163,9 x 16PH28,80,70-2,40020088423533774552
  • tfix - Max. fixture thickness8,8
  • L - Lenght16
VABR39193,9 x 19PH211,70,70-2,40020088423533757210
  • tfix - Max. fixture thickness11,7
  • L - Lenght19
VABR39253,9 x 25PH217,70,70-2,40015088423533757227
  • tfix - Max. fixture thickness17,7
  • L - Lenght25
VABR39323,9 x 32PH224,50,70-2,40020088423533757234
  • tfix - Max. fixture thickness24,5
  • L - Lenght32
VABR42134,2 x 13PH24,31,75-3,00020088423533757241
  • tfix - Max. fixture thickness4,3
  • L - Lenght13
VABR42164,2 x 16PH27,31,75-3,00020088423533757258
  • tfix - Max. fixture thickness7,3
  • L - Lenght16
VABR42194,2 x 19PH210,31,75-3,00017588423533757265
  • tfix - Max. fixture thickness10,3
  • L - Lenght19
VABR42224,2 x 22PH213,31,75-3,00017588423533757272
  • tfix - Max. fixture thickness13,3
  • L - Lenght22
VABR42254,2 x 25PH217,71,75-3,00012588423533757289
  • tfix - Max. fixture thickness17,7
  • L - Lenght25
VABR42324,2 x 32PH224,51,75-3,0009088423533757296
  • tfix - Max. fixture thickness24,5
  • L - Lenght32
VABR42384,2 x 38PH230,51,75-3,0007588423533757302
  • tfix - Max. fixture thickness30,5
  • L - Lenght38
VABR42504,2 x 50PH2411,75-3,0005088423533774569
  • tfix - Max. fixture thickness41
  • L - Lenght50
VABR48134,8 x 13PH23,71,75-4,40012588423533774576
  • tfix - Max. fixture thickness3,7
  • L - Lenght13
VABR48164,8 x 16PH25,51,75-4,40012588423533757319
  • tfix - Max. fixture thickness5,5
  • L - Lenght16
VABR48194,8 x 19PH210,31,75-4,40011088423533757326
  • tfix - Max. fixture thickness10,3
  • L - Lenght19
VABR48224,8 x 22PH211,71,75-4,4009088423533757333
  • tfix - Max. fixture thickness11,7
  • L - Lenght22
VABR48254,8 x 25PH214,71,75-4,4009088423533757340
  • tfix - Max. fixture thickness14,7
  • L - Lenght25
VABR48324,8 x 32PH221,51,75-4,4007588423533757357
  • tfix - Max. fixture thickness21,5
  • L - Lenght32
VABR48384,8 x 38PH227,51,75-4,4005588423533757364
  • tfix - Max. fixture thickness27,5
  • L - Lenght38
VABR48454,8 x 45PH234,51,75-4,4005088423533757371
  • tfix - Max. fixture thickness34,5
  • L - Lenght45
VABR48504,8 x 50PH239,51,75-4,4004088423533757388
  • tfix - Max. fixture thickness39,5
  • L - Lenght50
VABR48604,8 x 60PH249,51,75-4,4004088423533757395
  • tfix - Max. fixture thickness49,5
  • L - Lenght60
VABR48804,8 x 80PH269,51,75-4,4002588423533774675
  • tfix - Max. fixture thickness69,5
  • L - Lenght80
VABR55325,5 x 32PH321,51,75-5,2505088423533757401
  • tfix - Max. fixture thickness21,5
  • L - Lenght32
BZABR35093,5 x 9,5PH22,80,70-2,25040158423533423122
  • tfix - Max. fixture thickness2,8
  • L - Lenght9,5
BZABR35133,5 x 13PH26,20,70-2,25040158423533423139
  • tfix - Max. fixture thickness6,2
  • L - Lenght13
BZABR35163,5 x 16PH29,20,70-2,25040158423533423146
  • tfix - Max. fixture thickness9,2
  • L - Lenght16
BZABR42134,2 x 13PH24,31,75-3,00040158423533423153
  • tfix - Max. fixture thickness4,3
  • L - Lenght13
BZABR42164,2 x 16PH27,31,75-3,00040158423533423160
  • tfix - Max. fixture thickness7,3
  • L - Lenght16
BZABR42194,2 x 19PH210,31,75-3,00040158423533423177
  • tfix - Max. fixture thickness10,3
  • L - Lenght19
BZABR42254,2 x 25PH217,71,75-3,00020158423533423184
  • tfix - Max. fixture thickness17,7
  • L - Lenght25
BZABR42324,2 x 32PH224,51,75-3,00020158423533423191
  • tfix - Max. fixture thickness24,5
  • L - Lenght32
BZABR48164,8 x 16PH25,51,75-4,40035158423533423207
  • tfix - Max. fixture thickness5,5
  • L - Lenght16
BZABR48194,8 x 19PH210,31,75-4,40035158423533423214
  • tfix - Max. fixture thickness10,3
  • L - Lenght19
BZABR48254,8 x 25PH214,71,75-4,40020158423533423221
  • tfix - Max. fixture thickness14,7
  • L - Lenght25
BZABR48324,8 x 32PH221,51,75-4,40020158423533423238
  • tfix - Max. fixture thickness21,5
  • L - Lenght32
BZABR48384,8 x 38PH227,51,75-4,40020158423533423245
  • tfix - Max. fixture thickness27,5
  • L - Lenght38
BZABR48454,8 x 45PH234,51,75-4,40020158423533423252
  • tfix - Max. fixture thickness34,5
  • L - Lenght45
BZABR48504,8 x 50PH239,51,75-4,40020158423533423269
  • tfix - Max. fixture thickness39,5
  • L - Lenght50
BZABR48604,8 x 60PH249,51,75-4,40020158423533423276
  • tfix - Max. fixture thickness49,5
  • L - Lenght60
  • Anchoring shelving
  • Installation of fire extinguishers
  • Signs
  • Sheet metal profiles
  • Sandwich sheets on canopies
  • Signs
  • Sheet metal roofing
  • Flat screws
icon book
Technical Sheets

related products

Request more information

TÉCNICAS EXPANSIVAS S.L. informs that the personal data provided voluntarily on this website will be processed and incorporated into the corresponding files, responsibility of TÉCNICAS EXPANSIVAS S.L, is reported at the time of personal data collection, although, according to the specific case, its purpose may be any of the following: attention to your referred request, complaint or question, established relationship maintenance, comprehensive and commercial customer management, accounting and billing or sending communications, including electronic media, news and activities related to TÉCNICAS EXPANSIVAS S.L.

The data in our files are strictly confidential and shall be treated with the utmost confidentiality and shall comply with all the requirements provided for the General Data Protection Regulation (GDPR) 2016.

According to Data Protection legislation, you are strongly advised not to send high-level personal data, such as those relating to health, as they are not encoded or encrypted. Should these details be sent, it is done so under your sole responsibility.

The user may at any time exercise their rights of access, rectification, cancellation and opposition under the provisions of the General Data Protection Regulation (GDPR) 2016 by sending a letter together with a photocopy of your ID, to P.I. La Portalada II | c/ Segador 13, 26006 | Logroño (La Rioja).
Read more
DIN-7504-N HP Z

DIN-7504-N HP Z

Panhead self-drilling screw

Panhead self-drilling screw. Zinc-plated. PH recess
Mostrar distribuidores con stock disponible
Metal fixings
Chemical fixings
Plastic fixings
Fixings and accessories for thermal insulation systems (ETICS)
Fixings & accesories for plasterboard
Rivets
Rigging hardware and fencing
Accesories for fences and trellis
Fixings & accesories for Drywall
Direct fixing
Screws for decking and façades
Drill, tapping and PVC screws
Wood screws
Nails and bolts
Wood connectors
Standardized nuts and bolts
Plugs, tips and accessories
Heavy metal clamps
Light metal clamps
Fire protection systems
Gutter supports
Plastic clamps
Profiles and supports
Installation systems and fixings for solar panels
Quick beam attachament system
Threaded rod and fixing accesories
Bathroom and air conditioning fixings
DIY

TECHNICAL TRAINING

Our engineering department provides specific and personalised training on the different topics related to fixing systems: metallic or chemical fixings, installation systems, regulations, calculations, etc.



TÉCNICAS EXPANSIVAS S.L. informs that the personal data provided voluntarily on this website will be processed and incorporated into the corresponding files, responsibility of TÉCNICAS EXPANSIVAS S.L, is reported at the time of personal data collection, although, according to the specific case, its purpose may be any of the following: attention to your referred request, complaint or question, established relationship maintenance, comprehensive and commercial customer management, accounting and billing or sending communications, including electronic media, news and activities related to TÉCNICAS EXPANSIVAS S.L.

The data in our files are strictly confidential and shall be treated with the utmost confidentiality and shall comply with all the requirements provided for the General Data Protection Regulation (GDPR) 2016.

According to Data Protection legislation, you are strongly advised not to send high-level personal data, such as those relating to health, as they are not encoded or encrypted. Should these details be sent, it is done so under your sole responsibility.

The user may at any time exercise their rights of access, rectification, cancellation and opposition under the provisions of the General Data Protection Regulation (GDPR) 2016 by sending a letter together with a photocopy of your ID, to P.I. La Portalada II | c/ Segador 13, 26006 | Logroño (La Rioja).
Read more

site visits

The relationship with our customers does not end with the sale of our products. At INDEX® we understand that it is often necessary to accompany them on site, where our experience is the best ally to ensure fits works perfectly. Our engineers and technicians support the managers of each project in planning and selecting the best solution for effectively saving time and money.

TÉCNICAS EXPANSIVAS S.L. informs that the personal data provided voluntarily on this website will be processed and incorporated into the corresponding files, responsibility of TÉCNICAS EXPANSIVAS S.L, is reported at the time of personal data collection, although, according to the specific case, its purpose may be any of the following: attention to your referred request, complaint or question, established relationship maintenance, comprehensive and commercial customer management, accounting and billing or sending communications, including electronic media, news and activities related to TÉCNICAS EXPANSIVAS S.L.

The data in our files are strictly confidential and shall be treated with the utmost confidentiality and shall comply with all the requirements provided for the General Data Protection Regulation (GDPR) 2016.

According to Data Protection legislation, you are strongly advised not to send high-level personal data, such as those relating to health, as they are not encoded or encrypted. Should these details be sent, it is done so under your sole responsibility.

The user may at any time exercise their rights of access, rectification, cancellation and opposition under the provisions of the General Data Protection Regulation (GDPR) 2016 by sending a letter together with a photocopy of your ID, to P.I. La Portalada II | c/ Segador 13, 26006 | Logroño (La Rioja).
Read more

ENGINEERING SERVICES AND CALCULATIONS

TÉCNICAS EXPANSIVAS S.L. informs that the personal data provided voluntarily on this website will be processed and incorporated into the corresponding files, responsibility of TÉCNICAS EXPANSIVAS S.L, is reported at the time of personal data collection, although, according to the specific case, its purpose may be any of the following: attention to your referred request, complaint or question, established relationship maintenance, comprehensive and commercial customer management, accounting and billing or sending communications, including electronic media, news and activities related to TÉCNICAS EXPANSIVAS S.L.

The data in our files are strictly confidential and shall be treated with the utmost confidentiality and shall comply with all the requirements provided for the General Data Protection Regulation (GDPR) 2016.

According to Data Protection legislation, you are strongly advised not to send high-level personal data, such as those relating to health, as they are not encoded or encrypted. Should these details be sent, it is done so under your sole responsibility.

The user may at any time exercise their rights of access, rectification, cancellation and opposition under the provisions of the General Data Protection Regulation (GDPR) 2016 by sending a letter together with a photocopy of your ID, to P.I. La Portalada II | c/ Segador 13, 26006 | Logroño (La Rioja).
Read more
