Products / Screws / Drill, tapping and PVC screws / DIN-7504-P / DIN-7504-P HP Z
DIN-7504-P HP Z
DIN-7504-P HP Z

DIN-7504-P HP Z

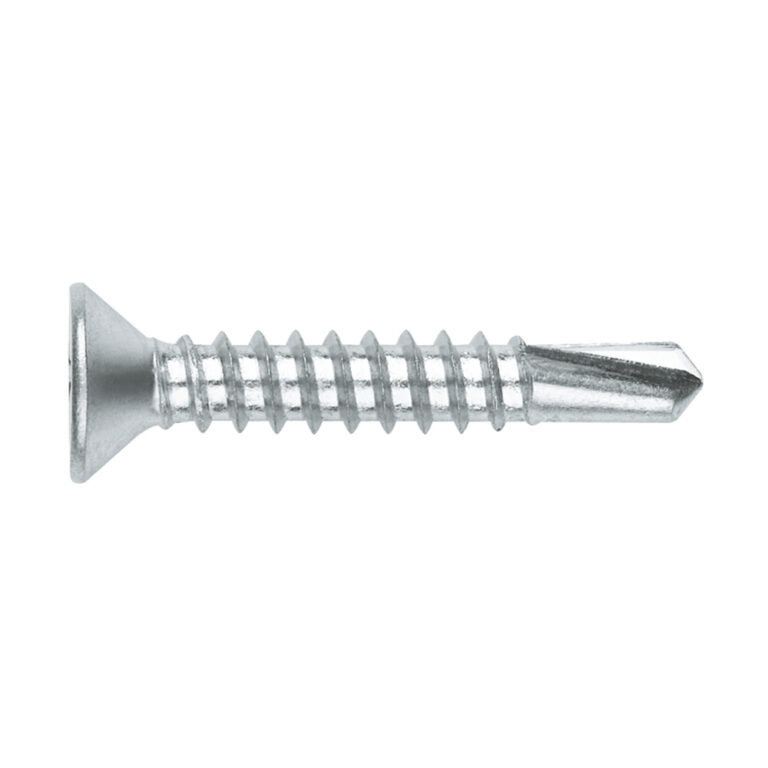

Countersunk head self-drilling screw. Zinc-plated. PH recess

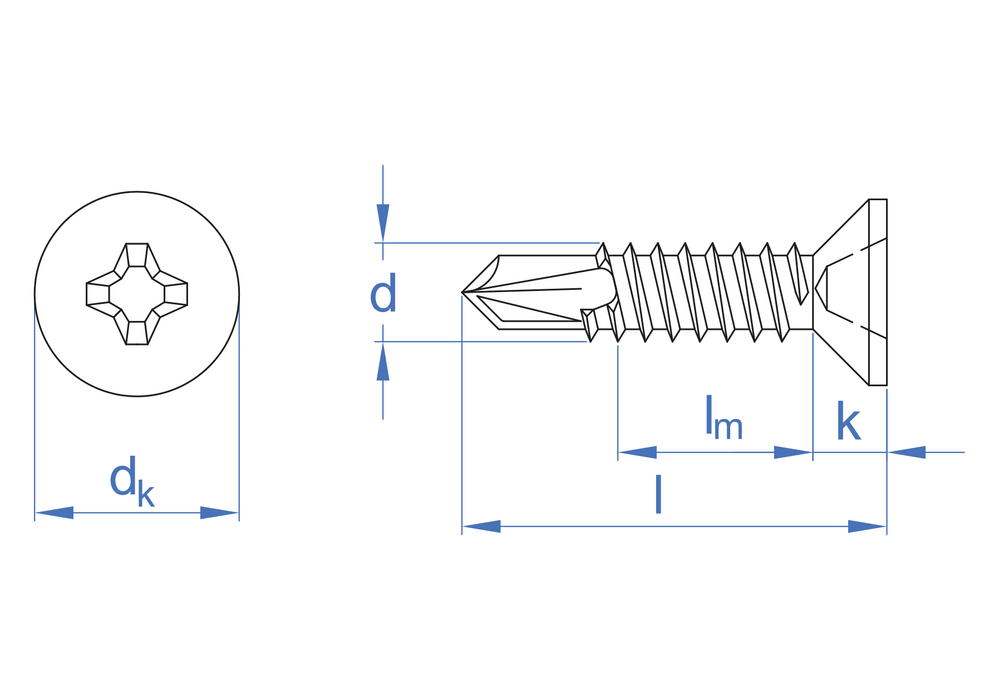

CODESIZENº RECESSTHICKNESS MAX.FIXTURE (mm)DRILL CAPACITYMin. Order Qty.Pcs BoxPcs/BlisterPcs/Window BoxPcs MasterboxBlisters/Bisters boxWindow boxes/MasterboxEANTechnical info.
ABP35093,5 x 9,5PH22,850,70-2,2501.00024.0008423533129406
  • tfix - Max. fixture thickness2,85
  • L - Lenght9,5
ABP35113,5 x 11PH24,20,70-2,2501.00024.0008423533129505
  • tfix - Max. fixture thickness4,2
  • L - Lenght11
ABP35133,5 x 13PH26,20,70-2,2501.00024.0008423533129604
  • tfix - Max. fixture thickness6,2
  • L - Lenght13
ABP35163,5 x 16PH29,20,70-2,2501.00024.0008423533129703
  • tfix - Max. fixture thickness9,2
  • L - Lenght16
ABP35193,5 x 19PH212,10,70-2,2501.00012.0008423533129802
  • tfix - Max. fixture thickness12,1
  • L - Lenght19
ABP35223,5 x 22PH215,10,70-2,2501.00012.0008423533129901
  • tfix - Max. fixture thickness15,1
  • L - Lenght22
ABP35253,5 x 25PH218,10,70-2,25050012.0008423533130068
  • tfix - Max. fixture thickness18,1
  • L - Lenght25
ABP39133,9 x 13PH25,80,70-2,4001.00024.0008423533130105
  • tfix - Max. fixture thickness5,8
  • L - Lenght13
ABP39163,9 x 16PH28,80,70-2,4001.00012.0008423533130204
  • tfix - Max. fixture thickness8,8
  • L - Lenght16
ABP39193,9 x 19PH211,70,70-2,4001.00012.0008423533130303
  • tfix - Max. fixture thickness11,7
  • L - Lenght19
ABP39223,9 x 22PH214,70,70-2,40050012.0008423533128171
  • tfix - Max. fixture thickness14,7
  • L - Lenght22
ABP39253,9 x 25PH217,70,70-2,40050012.0008423533130242
  • tfix - Max. fixture thickness17,7
  • L - Lenght25
ABP39323,9 x 32PH224,50,70-2,4005006.0008423533127563
  • tfix - Max. fixture thickness24,5
  • L - Lenght32
ABP39383,9 x 38PH230,50,70-2,4005006.0008423533129468
  • tfix - Max. fixture thickness30,5
  • L - Lenght38
ABP42134,2 x 13PH24,31,75-3,0001.00012.0008423533130808
  • tfix - Max. fixture thickness4,3
  • L - Lenght13
ABP42164,2 x 16PH27,31,75-3,0001.00012.0008423533130907
  • tfix - Max. fixture thickness7,3
  • L - Lenght16
ABP42194,2 x 19PH210,31,75-3,0001.00012.0008423533131003
  • tfix - Max. fixture thickness10,3
  • L - Lenght19
ABP42224,2 x 22PH213,31,75-3,00050012.0008423533127273
  • tfix - Max. fixture thickness13,3
  • L - Lenght22
ABP42254,2 x 25PH216,31,75-3,0005006.0008423533190659
  • tfix - Max. fixture thickness16,3
  • L - Lenght25
ABP42324,2 x 32PH2231,75-3,0005006.0008423533191557
  • tfix - Max. fixture thickness23
  • L - Lenght32
ABP42384,2 x 38PH2291,75-3,0005006.0008423533128089
  • tfix - Max. fixture thickness29
  • L - Lenght38
ABP48134,8 x 13PH23,71,75-4,4001.00012.0008423533131508
  • tfix - Max. fixture thickness3,7
  • L - Lenght13
ABP48164,8 x 16PH25,51,75-4,4001.00012.0008423533131607
  • tfix - Max. fixture thickness5,5
  • L - Lenght16
ABP48194,8 x 19PH28,71,75-4,4001.0008.0008423533131706
  • tfix - Max. fixture thickness8,7
  • L - Lenght19
ABP48254,8 x 25PH214,71,75-4,4005006.0008423533189950
  • tfix - Max. fixture thickness14,7
  • L - Lenght25
ABP48324,8 x 32PH221,51,75-4,4005006.0008423533190758
  • tfix - Max. fixture thickness21,5
  • L - Lenght32
ABP48384,8 x 38PH227,51,75-4,4005003.0008423533128843
  • tfix - Max. fixture thickness27,5
  • L - Lenght38
ABP48504,8 x 50PH239,51,75-4,4005003.0008423533128072
  • tfix - Max. fixture thickness39,5
  • L - Lenght50
ABP55195,5 x 19PH38,71,75-5,2505006.0008423533128942
  • tfix - Max. fixture thickness8,7
  • L - Lenght19
ABP55255,5 x 25PH314,71,75-5,2505006.0008423533129642
  • tfix - Max. fixture thickness14,7
  • L - Lenght25
ABP55325,5 x 32PH321,51,75-5,2505003.0008423533129567
  • tfix - Max. fixture thickness21,5
  • L - Lenght32
ABP55385,5 x 38PH327,51,75-5,2505003.0008423533126542
  • tfix - Max. fixture thickness27,5
  • L - Lenght38
ABP55505,5 x 50PH339,51,75-5,2505003.0008423533127969
  • tfix - Max. fixture thickness39,5
  • L - Lenght50
VABP35133,5 x 13PH26,20,70-2,25025088423533756572
  • tfix - Max. fixture thickness6,2
  • L - Lenght13
VABP35163,5 x 16PH29,20,70-2,25022588423533756589
  • tfix - Max. fixture thickness9,2
  • L - Lenght16
VABP35193,5 x 19PH212,10,70-2,25020088423533756596
  • tfix - Max. fixture thickness12,1
  • L - Lenght19
VABP35253,5 x 25PH218,10,70-2,25018088423533756602
  • tfix - Max. fixture thickness18,1
  • L - Lenght25
VABP39133,9 x 13PH25,80,70-2,40020088423533774583
  • tfix - Max. fixture thickness5,8
  • L - Lenght13
VABP39163,9 x 16PH28,80,70-2,40020088423533774590
  • tfix - Max. fixture thickness8,8
  • L - Lenght16
VABP39193,9 x 19PH211,70,70-2,40017588423533774606
  • tfix - Max. fixture thickness11,7
  • L - Lenght19
VABP39253,9 x 25PH217,70,70-2,40015088423533774613
  • tfix - Max. fixture thickness17,7
  • L - Lenght25
VABP39383,9 x 38PH230,50,70-2,40010088423533774620
  • tfix - Max. fixture thickness30,5
  • L - Lenght38
VABP42134,2 x 13PH24,31,75-3,00017588423533774637
  • tfix - Max. fixture thickness4,3
  • L - Lenght13
VABP42164,2 x 16PH27,31,75-3,00017588423533774644
  • tfix - Max. fixture thickness7,3
  • L - Lenght16
VABP42194,2 x 19PH210,31,75-3,00017588423533756619
  • tfix - Max. fixture thickness10,3
  • L - Lenght19
VABP42254,2 x 25PH216,31,75-3,00012588423533756626
  • tfix - Max. fixture thickness16,3
  • L - Lenght25
VABP42324,2 x 32PH2231,75-3,0009088423533756633
  • tfix - Max. fixture thickness23
  • L - Lenght32
VABP42384,2 x 38PH2291,75-3,0007588423533756640
  • tfix - Max. fixture thickness29
  • L - Lenght38
VABP48164,8 x 16PH25,51,75-4,40012588423533774651
  • tfix - Max. fixture thickness5,5
  • L - Lenght16
VABP48194,8 x 19PH28,71,75-4,40010088423533774668
  • tfix - Max. fixture thickness8,7
  • L - Lenght19
VABP48254,8 x 25PH214,71,75-4,4009088423533756657
  • tfix - Max. fixture thickness14,7
  • L - Lenght25
VABP48324,8 x 32PH221,51,75-4,4007588423533756664
  • tfix - Max. fixture thickness21,5
  • L - Lenght32
VABP48384,8 x 38PH227,51,75-4,4007588423533766908
  • tfix - Max. fixture thickness27,5
  • L - Lenght38
VABP55325,5 x 32PH321,51,75-5,2505088423533756671
  • tfix - Max. fixture thickness21,5
  • L - Lenght32
BZABP35133,5 x 13PH26,20,70-2,25040208423533423283
  • tfix - Max. fixture thickness6,2
  • L - Lenght13
BZABP35163,5 x 16PH29,20,70-2,25040208423533423290
  • tfix - Max. fixture thickness9,2
  • L - Lenght16
BZABP42194,2 x 19PH210,31,75-3,00040208423533423306
  • tfix - Max. fixture thickness10,3
  • L - Lenght19
BZABP42254,2 x 25PH216,31,75-3,00020208423533423313
  • tfix - Max. fixture thickness16,3
  • L - Lenght25
BZABP42324,2 x 32PH2231,75-3,00020208423533423320
  • tfix - Max. fixture thickness23
  • L - Lenght32
  • Anchoring shelving
  • Installation of fire extinguishers
  • Signs
  • Sheet metal profiles
  • Sandwich sheets on canopies
  • Signs
  • Sheet metal roofing
  • Flat screws
icon book
Technical Sheets
FT_BRO_en_rev16.pdf
