Products / Screws / Drill, tapping and PVC screws / DIN-7981 H / DIN-7981 HP N
DIN-7981 HP N
DIN-7981 HP N

DIN-7981 HP N

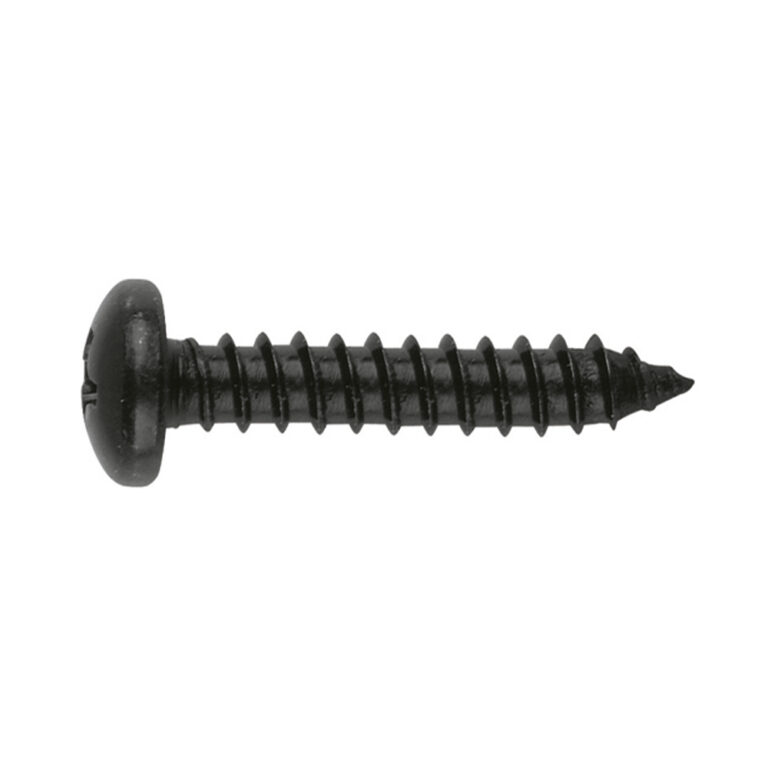

Panhead self-tapping screw. Black. PH recess

CODESIZENº RECESSMin. Order Qty.Pcs BoxPcs MasterboxEANTechnical info.
TZN8129092,9 x 9,5PH101.00030.0008423533160850
  • tfix - Max. fixture thickness5,5
  • L - Lenght9,5
TZN8135133,5 x 13PH2050015.0008423533161659
  • tfix - Max. fixture thickness8
  • L - Lenght13
TZN8135163,5 x 16PH2050012.0008423533161758
  • tfix - Max. fixture thickness11
  • L - Lenght16
TZN8135193,5 x 19PH2050012.0008423533161857
  • tfix - Max. fixture thickness14
  • L - Lenght19
TZN8135253,5 x 25PH202506.0008423533162052
  • tfix - Max. fixture thickness20
  • L - Lenght25
TZN8142164,2 x 16PH2050012.0008423533163653
  • tfix - Max. fixture thickness10
  • L - Lenght16
TZN8142194,2 x 19PH205008.0008423533163752
  • tfix - Max. fixture thickness13
  • L - Lenght19
TZN8142254,2 x 25PH202506.0008423533163950
  • tfix - Max. fixture thickness19
  • L - Lenght25
TZN8142324,2 x 32PH202506.0008423533164056
  • tfix - Max. fixture thickness26
  • L - Lenght32
TZN8142384,2 x 38PH202503.0008423533164155
  • tfix - Max. fixture thickness32
  • L - Lenght38
TZN8148164,8 x 16PH202506.0008423533164858
  • tfix - Max. fixture thickness9
  • L - Lenght16
TZN8148194,8 x 19PH202506.0008423533164957
  • tfix - Max. fixture thickness12
  • L - Lenght19
TZN8148224,8 x 22PH202506.0008423533165053
  • tfix - Max. fixture thickness15
  • L - Lenght22
TZN8148254,8 x 25PH202506.0008423533165152
  • tfix - Max. fixture thickness18
  • L - Lenght25
TZN8148384,8 x 38PH202503.0008423533165350
  • tfix - Max. fixture thickness31
  • L - Lenght38
TZN8148504,8 x 50PH202503.0008423533165558
  • tfix - Max. fixture thickness43
  • L - Lenght50
