Products / Screws / Wood screws / TP / TP-PO B

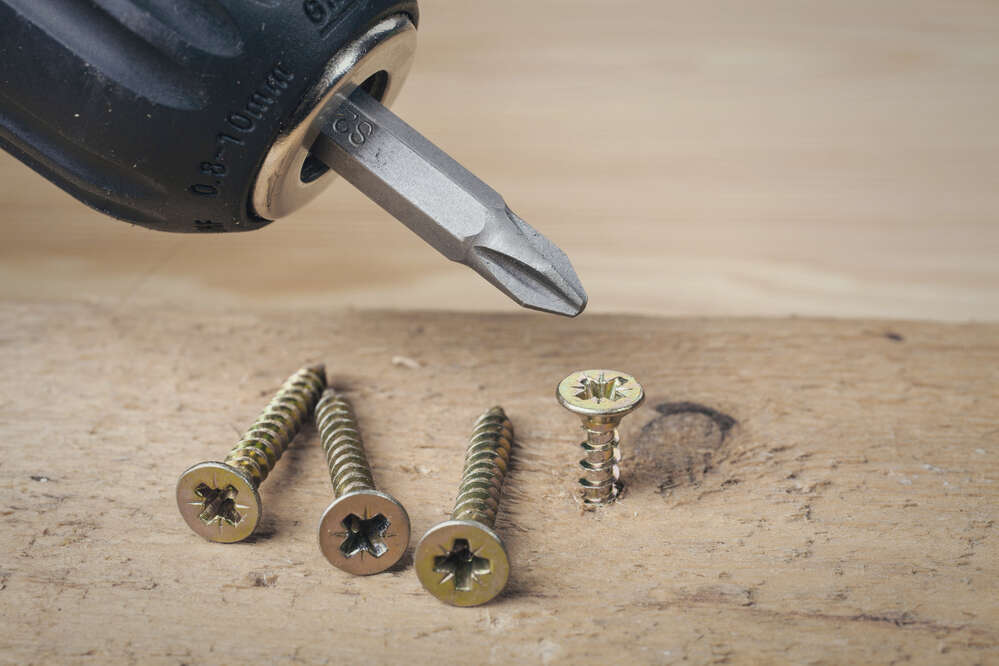

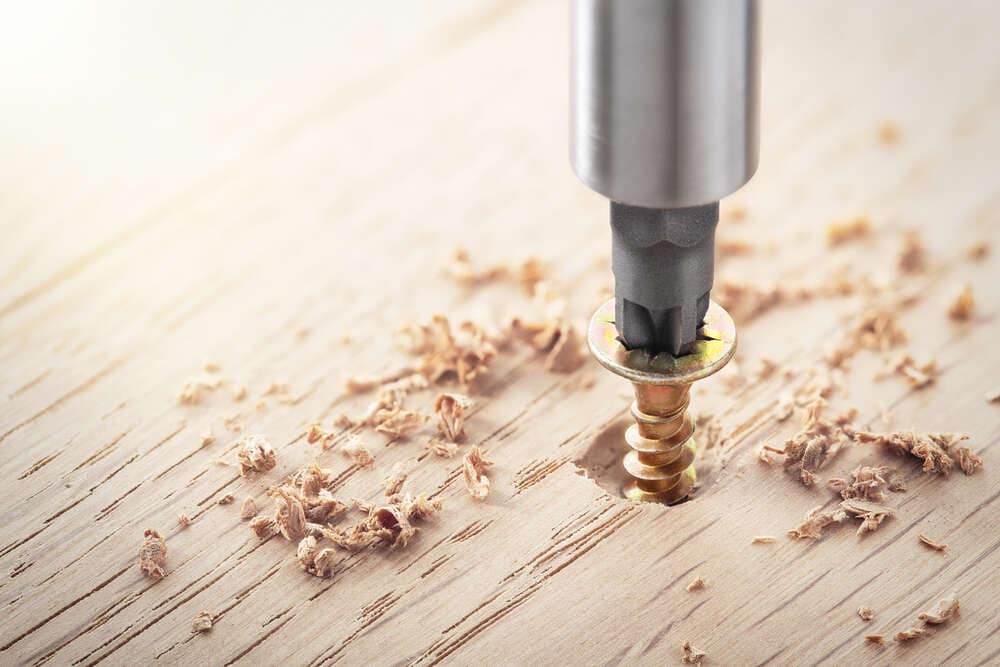

Countersunk head chipboard screw. Yellow zinc-plated. PZ recess

Countersunk head chipboard with a PZ recess. The S-type point allows direct drilling into wood. Can be used for joining hardwoods together or for fixing metal fittings to wood. It has a 40° wood thread. It is made of steel and has a bridged coating.

ASSESSMENTS AND CERTIFICATES

+ info

CODE	SIZE	Nº RECESS	THREAD LENGHT	Min. Order Qty.	Pcs BoxPcs/BlisterPcs/Window Box	Pcs MasterboxBlisters/Bisters boxWindow boxes/Masterbox	EAN
TPPO25010	2,5 x 10	PZ1	Total	2.000	1.000	45.000	8423533169907
	t_fix- Max. fixture thickness4.5 SW - Installation keyPZ1 L - Lenght10
TPPO25012	2,5 x 12	PZ1	Total	2.000	1.000	45.000	8423533170002
	t_fix- Max. fixture thickness6.5 SW - Installation keyPZ1 L - Lenght12
TPPO25016	2,5 x 16	PZ1	Total	2.000	1.000	45.000	8423533170101
	t_fix- Max. fixture thickness10.5 SW - Installation keyPZ1 L - Lenght16
TPPO25020	2,5 x 20	PZ1	Total	2.000	1.000	24.000	8423533170200
	t_fix- Max. fixture thickness14.5 SW - Installation keyPZ1 L - Lenght20
TPPO25025	2,5 x 25	PZ1	Total	2.000	1.000	24.000	8423533170309
	t_fix- Max. fixture thickness19.5 SW - Installation keyPZ1 L - Lenght25
TPPO30012	3 x 12	PZ1	Total	2.000	1.000	45.000	8423533170408
	t_fix- Max. fixture thickness5.2 SW - Installation keyPZ1 L - Lenght12
TPPO30016	3 x 16	PZ1	Total	2.000	1.000	24.000	8423533170507
	t_fix- Max. fixture thickness9.2 SW - Installation keyPZ1 L - Lenght16
TPPO30020	3 x 20	PZ1	Total	2.000	1.000	24.000	8423533170606
	t_fix- Max. fixture thickness13.2 SW - Installation keyPZ1 L - Lenght20
TPPO30025	3 x 25	PZ1	Total	2.000	1.000	12.000	8423533170705
	t_fix- Max. fixture thickness18.2 SW - Installation keyPZ1 L - Lenght25
TPPO30030	3 x 30	PZ1	Total	2.000	1.000	12.000	8423533170804
	t_fix- Max. fixture thickness23.2 SW - Installation keyPZ1 L - Lenght30
TPPO30040	3 x 40	PZ1	Total	2.000	1.000	6.000	8423533028518
	t_fix- Max. fixture thickness33.2 SW - Installation keyPZ1 L - Lenght40
TPPO35016	3,5 x 16	PZ2	Total	2.000	1.000	24.000	8423533170903
	t_fix- Max. fixture thickness8 SW - Installation keyPZ2 L - Lenght16
TPPO35020	3,5 x 20	PZ2	Total	2.000	1.000	12.000	8423533171009
	t_fix- Max. fixture thickness12 SW - Installation keyPZ2 L - Lenght20
TPPO35025	3,5 x 25	PZ2	Total	2.000	1.000	12.000	8423533171108
	t_fix- Max. fixture thickness17 SW - Installation keyPZ2 L - Lenght25
TPPO35030	3,5 x 30	PZ2	Total	2.000	1.000	12.000	8423533171207
	t_fix- Max. fixture thickness22 SW - Installation keyPZ2 L - Lenght30
TPPO35035	3,5 x 35	PZ2	Total	1.000	500	6.000	8423533171313
	t_fix- Max. fixture thickness27 SW - Installation keyPZ2 L - Lenght35
TPPO35040	3,5 x 40	PZ2	Total	1.000	500	6.000	8423533171412
	t_fix- Max. fixture thickness32 SW - Installation keyPZ2 L - Lenght40
TPPO35050	3,5 x 50	PZ2	Total	500	250	3.000	8423533009357
	t_fix- Max. fixture thickness42 SW - Installation keyPZ2 L - Lenght50
TPPO40016	4 x 16	PZ2	Total	2.000	1.000	16.000	8423533171504
	t_fix- Max. fixture thickness7 SW - Installation keyPZ2 L - Lenght16
TPPO40020	4 x 20	PZ2	Total	2.000	1.000	12.000	8423533171603
	t_fix- Max. fixture thickness11 SW - Installation keyPZ2 L - Lenght20
TPPO40025	4 x 25	PZ2	Total	2.000	1.000	12.000	8423533171702
	t_fix- Max. fixture thickness16 SW - Installation keyPZ2 L - Lenght25
TPPO40030	4 x 30	PZ2	Total	1.000	500	6.000	8423533171818
	t_fix- Max. fixture thickness21 SW - Installation keyPZ2 L - Lenght30
TPPO40035	4 x 35	PZ2	Total	1.000	500	6.000	8423533171917
	t_fix- Max. fixture thickness26 SW - Installation keyPZ2 L - Lenght35
TPPO40040	4 x 40	PZ2	Total	1.000	500	6.000	8423533172013
	t_fix- Max. fixture thickness31 SW - Installation keyPZ2 L - Lenght40
TPPO40045	4 x 45	PZ2	Total	1.000	500	3.000	8423533172105
	t_fix- Max. fixture thickness36 SW - Installation keyPZ2 L - Lenght45
TPPO40050	4 x 50	PZ2	Total	500	250	3.000	8423533172211
	t_fix- Max. fixture thickness41 SW - Installation keyPZ2 L - Lenght50
TPPO40060	4 x 60	PZ2	Total	500	250	3.000	8423533172310
	t_fix- Max. fixture thickness51 SW - Installation keyPZ2 L - Lenght60
TPPO40070	4 x 70	PZ2	Parcial 52	500	250	3.000	8423533172419
	t_fix- Max. fixture thickness61 SW - Installation keyPZ2 L - Lenght70
TPPO45020	4,5 x 20	PZ2	Total	1.000	500	12.000	8423533172518
	t_fix- Max. fixture thickness10 SW - Installation keyPZ2 L - Lenght20
TPPO45025	4,5 x 25	PZ2	Total	1.000	500	6.000	8423533172617
	t_fix- Max. fixture thickness15 SW - Installation keyPZ2 L - Lenght25
TPPO45030	4,5 x 30	PZ2	Total	1.000	500	6.000	8423533172716
	t_fix- Max. fixture thickness20 SW - Installation keyPZ2 L - Lenght30
TPPO45035	4,5 x 35	PZ2	Total	1.000	500	6.000	8423533172808
	t_fix- Max. fixture thickness25 SW - Installation keyPZ2 L - Lenght35
TPPO45040	4,5 x 40	PZ2	Total	1.000	500	3.000	8423533172907
	t_fix- Max. fixture thickness30 SW - Installation keyPZ2 L - Lenght40
TPPO45045	4,5 x 45	PZ2	Total	500	250	3.000	8423533173010
	t_fix- Max. fixture thickness35 SW - Installation keyPZ2 L - Lenght45
TPPO45050	4,5 x 50	PZ2	Total	500	250	3.000	8423533173119
	t_fix- Max. fixture thickness40 SW - Installation keyPZ2 L - Lenght50
TPPO45060	4,5 x 60	PZ2	Total	500	250	3.000	8423533173218
	t_fix- Max. fixture thickness50 SW - Installation keyPZ2 L - Lenght60
TPPO45070	4,5 x 70	PZ2	Parcial 52	500	250	1.500	8423533173317
	t_fix- Max. fixture thickness60 SW - Installation keyPZ2 L - Lenght70
TPPO45080	4,5 x 80	PZ2	Parcial 52	200	100	1.200	8423533009364
	t_fix- Max. fixture thickness70 SW - Installation keyPZ2 L - Lenght80
TPPO50020	5 x 20	PZ2	Total	1.000	500	6.000	8423533173409
	t_fix- Max. fixture thickness9 SW - Installation keyPZ2 L - Lenght20
TPPO50025	5 x 25	PZ2	Total	1.000	500	6.000	8423533173508
	t_fix- Max. fixture thickness14 SW - Installation keyPZ2 L - Lenght25
TPPO50030	5 x 30	PZ2	Total	500	250	6.000	8423533173614
	t_fix- Max. fixture thickness19 SW - Installation keyPZ2 L - Lenght30
TPPO50035	5 x 35	PZ2	Total	500	250	3.000	8423533173713
	t_fix- Max. fixture thickness24 SW - Installation keyPZ2 L - Lenght35
TPPO50040	5 x 40	PZ2	Total	500	250	3.000	8423533173812
	t_fix- Max. fixture thickness29 SW - Installation keyPZ2 L - Lenght40
TPPO50045	5 x 45	PZ2	Total	500	250	3.000	8423533173911
	t_fix- Max. fixture thickness34 SW - Installation keyPZ2 L - Lenght45
TPPO50050	5 x 50	PZ2	Total	500	250	3.000	8423533174017
	t_fix- Max. fixture thickness39 SW - Installation keyPZ2 L - Lenght50
TPPO50060	5 x 60	PZ2	Total	500	250	1.500	8423533174116
	t_fix- Max. fixture thickness49 SW - Installation keyPZ2 L - Lenght60
TPPO50070	5 x 70	PZ2	Parcial 52	200	100	1.200	8423533174215
	t_fix- Max. fixture thickness59 SW - Installation keyPZ2 L - Lenght70
TPPO50080	5 x 80	PZ2	Parcial 52	200	100	1.200	8423533174314
	t_fix- Max. fixture thickness69 SW - Installation keyPZ2 L - Lenght80
TPPO50090	5 x 90	PZ2	Parcial 60	200	100	1.200	8423533174413
	t_fix- Max. fixture thickness79 SW - Installation keyPZ2 L - Lenght90
TPPO50100	5 x 100	PZ2	Parcial 60	200	100	1.200	8423533174512
	t_fix- Max. fixture thickness89 SW - Installation keyPZ2 L - Lenght100
TPPO50120	5 x 120	PZ2	Parcial 75	200	100	1.200	8423533174529
	t_fix- Max. fixture thickness109 SW - Installation keyPZ2 L - Lenght120
TPPO60040	6 x 40	PZ3	Total	500	250	3.000	8423533174611
	t_fix- Max. fixture thickness27 SW - Installation keyPZ3 L - Lenght40
TPPO60050	6 x 50	PZ3	Total	500	250	1.500	8423533010827
	t_fix- Max. fixture thickness37 SW - Installation keyPZ3 L - Lenght50
TPPO60060	6 x 60	PZ3	Total	500	250	1.500	8423533174710
	t_fix- Max. fixture thickness47 SW - Installation keyPZ3 L - Lenght60
TPPO60070	6 x 70	PZ3	Parcial 52	200	100	1.200	8423533174819
	t_fix- Max. fixture thickness57 SW - Installation keyPZ3 L - Lenght70
TPPO60080	6 x 80	PZ3	Parcial 52	200	100	1.200	8423533174918
	t_fix- Max. fixture thickness67 SW - Installation keyPZ3 L - Lenght80
TPPO60090	6 x 90	PZ3	Parcial 60	200	100	1.200	8423533175014
	t_fix- Max. fixture thickness77 SW - Installation keyPZ3 L - Lenght90
TPPO60100	6 x 100	PZ3	Parcial 60	100	100	1.200	8423533175113
	t_fix- Max. fixture thickness87 SW - Installation keyPZ3 L - Lenght100
TPPO60110	6 x 110	PZ3	Parcial 70	100	100	600	8423533009371
	t_fix- Max. fixture thickness97 SW - Installation keyPZ3 L - Lenght110
TPPO60120	6 x 120	PZ3	Parcial 70/75	100	100	600	8423533175212
	t_fix- Max. fixture thickness107 SW - Installation keyPZ3 L - Lenght120
TPPO60130	6 x 130	PZ3	Parcial 70/75	100	100	600	8423533175267
	t_fix- Max. fixture thickness117 SW - Installation keyPZ3 L - Lenght130
TPPO60140	6 x 140	PZ3	Parcial 70/75	100	100	600	8423533175328
	t_fix- Max. fixture thickness127 SW - Installation keyPZ3 L - Lenght140
TPPO60150	6 x 150	PZ3	Parcial 70/75	100	100	600	8423533175427
	t_fix- Max. fixture thickness137 SW - Installation keyPZ3 L - Lenght150
TPPO60160	6 x 160	PZ3	Parcial 70/75	100	100	400	8423533175526
	t_fix- Max. fixture thickness147 SW - Installation keyPZ3 L - Lenght160
TPPO60180	6 x 180	PZ3	Parcial 70/75	100	100	300	8423533175625
	t_fix- Max. fixture thickness167 SW - Installation keyPZ3 L - Lenght180
TPPO60200	6 x 200	PZ3	Parcial 70/75	100	100	300	8423533175762
	t_fix- Max. fixture thickness187 SW - Installation keyPZ3 L - Lenght200
TPPO60220	6 x 220	PZ3	Parcial 70/75	100	100	300	8423533006967
	t_fix- Max. fixture thickness207 SW - Installation keyPZ3 L - Lenght220
BZTPPO25016	2,5 x 16	PZ1	Total	0	40	20	8423533424037
	t_fix- Max. fixture thickness10.5 SW - Installation keyPZ1 L - Lenght16
BZTPPO25020	2,5 x 20	PZ1	Total	0	40	20	8423533424044
	t_fix- Max. fixture thickness14.5 SW - Installation keyPZ1 L - Lenght20
BZTPPO25025	2,5 x 25	PZ1	Total	0	40	20	8423533424051
	t_fix- Max. fixture thickness19.5 SW - Installation keyPZ1 L - Lenght25
BZTPPO30016	3 x 16	PZ1	Total	0	40	20	8423533424068
	t_fix- Max. fixture thickness9.2 SW - Installation keyPZ1 L - Lenght16
BZTPPO30020	3 x 20	PZ1	Total	0	40	20	8423533424075
	t_fix- Max. fixture thickness13.2 SW - Installation keyPZ1 L - Lenght20
BZTPPO30025	3 x 25	PZ1	Total	0	40	20	8423533424082
	t_fix- Max. fixture thickness18.2 SW - Installation keyPZ1 L - Lenght25
BZTPPO30030	3 x 30	PZ1	Total	0	40	20	8423533424099
	t_fix- Max. fixture thickness23.2 SW - Installation keyPZ1 L - Lenght30
BZTPPO35016	3,5 x 16	PZ2	Total	0	40	20	8423533424105
	t_fix- Max. fixture thickness8 SW - Installation keyPZ2 L - Lenght16
BZTPPO35020	3,5 x 20	PZ2	Total	0	40	20	8423533424112
	t_fix- Max. fixture thickness12 SW - Installation keyPZ2 L - Lenght20
BZTPPO35025	3,5 x 25	PZ2	Total	0	40	20	8423533424129
	t_fix- Max. fixture thickness17 SW - Installation keyPZ2 L - Lenght25
BZTPPO35030	3,5 x 30	PZ2	Total	0	40	20	8423533424136
	t_fix- Max. fixture thickness22 SW - Installation keyPZ2 L - Lenght30
BZTPPO35035	3,5 x 35	PZ2	Total	0	20	20	8423533424143
	t_fix- Max. fixture thickness27 SW - Installation keyPZ2 L - Lenght35
BZTPPO35040	3,5 x 40	PZ2	Total	0	20	20	8423533424150
	t_fix- Max. fixture thickness32 SW - Installation keyPZ2 L - Lenght40
BZTPPO35050	3,5 x 50	PZ2	Total	0	20	20	8423533424167
	t_fix- Max. fixture thickness42 SW - Installation keyPZ2 L - Lenght50
BZTPPO40016	4 x 16	PZ2	Total	0	40	20	8423533424174
	t_fix- Max. fixture thickness7 SW - Installation keyPZ2 L - Lenght16
BZTPPO40020	4 x 20	PZ2	Total	0	40	20	8423533424181
	t_fix- Max. fixture thickness11 SW - Installation keyPZ2 L - Lenght20
BZTPPO40025	4 x 25	PZ2	Total	0	40	20	8423533424198
	t_fix- Max. fixture thickness16 SW - Installation keyPZ2 L - Lenght25
BZTPPO40030	4 x 30	PZ2	Total	0	20	20	8423533424204
	t_fix- Max. fixture thickness21 SW - Installation keyPZ2 L - Lenght30
BZTPPO40035	4 x 35	PZ2	Total	0	20	20	8423533424211
	t_fix- Max. fixture thickness26 SW - Installation keyPZ2 L - Lenght35
BZTPPO40040	4 x 40	PZ2	Total	0	20	20	8423533424228
	t_fix- Max. fixture thickness31 SW - Installation keyPZ2 L - Lenght40
BZTPPO40045	4 x 45	PZ2	Total	0	20	20	8423533424235
	t_fix- Max. fixture thickness36 SW - Installation keyPZ2 L - Lenght45
BZTPPO40050	4 x 50	PZ2	Total	0	10	20	8423533424242
	t_fix- Max. fixture thickness41 SW - Installation keyPZ2 L - Lenght50
BZTPPO40060	4 x 60	PZ2	Total	0	10	20	8423533424259
	t_fix- Max. fixture thickness51 SW - Installation keyPZ2 L - Lenght60
BZTPPO45030	4,5 x 30	PZ2	Total	0	20	20	8423533424266
	t_fix- Max. fixture thickness20 SW - Installation keyPZ2 L - Lenght30
BZTPPO45035	4,5 x 35	PZ2	Total	0	20	20	8423533424273
	t_fix- Max. fixture thickness25 SW - Installation keyPZ2 L - Lenght35
BZTPPO45040	4,5 x 40	PZ2	Total	0	20	20	8423533424280
	t_fix- Max. fixture thickness30 SW - Installation keyPZ2 L - Lenght40
BZTPPO45045	4,5 x 45	PZ2	Total	0	10	20	8423533424297
	t_fix- Max. fixture thickness35 SW - Installation keyPZ2 L - Lenght45
BZTPPO45050	4,5 x 50	PZ2	Total	0	10	20	8423533424303
	t_fix- Max. fixture thickness40 SW - Installation keyPZ2 L - Lenght50
BZTPPO45060	4,5 x 60	PZ2	Total	0	10	20	8423533424310
	t_fix- Max. fixture thickness50 SW - Installation keyPZ2 L - Lenght60
BZTPPO45070	4,5 x 70	PZ2	Parcial 52	0	10	20	8423533424327
	t_fix- Max. fixture thickness60 SW - Installation keyPZ2 L - Lenght70
BZTPPO50030	5 x 30	PZ2	Total	0	10	20	8423533424334
	t_fix- Max. fixture thickness19 SW - Installation keyPZ2 L - Lenght30
BZTPPO50035	5 x 35	PZ2	Total	0	10	20	8423533424341
	t_fix- Max. fixture thickness24 SW - Installation keyPZ2 L - Lenght35
BZTPPO50040	5 x 40	PZ2	Total	0	10	20	8423533424358
	t_fix- Max. fixture thickness29 SW - Installation keyPZ2 L - Lenght40
BZTPPO50050	5 x 50	PZ2	Total	0	10	20	8423533424365
	t_fix- Max. fixture thickness39 SW - Installation keyPZ2 L - Lenght50
BZTPPO50060	5 x 60	PZ2	Total	0	10	20	8423533424372
	t_fix- Max. fixture thickness49 SW - Installation keyPZ2 L - Lenght60
BZTPPO50070	5 x 70	PZ2	Parcial 52	0	4	20	8423533424389
	t_fix- Max. fixture thickness59 SW - Installation keyPZ2 L - Lenght70
BZTPPO50080	5 x 80	PZ2	Parcial 52	0	4	20	8423533424396
	t_fix- Max. fixture thickness69 SW - Installation keyPZ2 L - Lenght80
BZTPPO50100	5 x 100	PZ2	Parcial 60	0	4	20	8423533424402
	t_fix- Max. fixture thickness89 SW - Installation keyPZ2 L - Lenght100
BZTPPO60040	6 x 40	PZ3	Total	0	10	20	8423533424419
	t_fix- Max. fixture thickness27 SW - Installation keyPZ3 L - Lenght40
BZTPPO60050	6 x 50	PZ3	Total	0	10	20	8423533424426
	t_fix- Max. fixture thickness37 SW - Installation keyPZ3 L - Lenght50
BZTPPO60060	6 x 60	PZ3	Total	0	10	20	8423533424433
	t_fix- Max. fixture thickness47 SW - Installation keyPZ3 L - Lenght60
BZTPPO60070	6 x 70	PZ3	Parcial 52	0	4	20	8423533424440
	t_fix- Max. fixture thickness57 SW - Installation keyPZ3 L - Lenght70
BZTPPO60080	6 x 80	PZ3	Parcial 52	0	4	20	8423533424457
	t_fix- Max. fixture thickness67 SW - Installation keyPZ3 L - Lenght80
BZTPPO60090	6 x 90	PZ3	Parcial 60	0	4	20	8423533424464
	t_fix- Max. fixture thickness77 SW - Installation keyPZ3 L - Lenght90
BZTPPO60100	6 x 100	PZ3	Parcial 60	0	4	20	8423533424471
	t_fix- Max. fixture thickness87 SW - Installation keyPZ3 L - Lenght100
VTPPO30016	3 x 16	PZ1	Total	0	250	8	8423533755414
	t_fix- Max. fixture thickness9.2 SW - Installation keyPZ1 L - Lenght16
VTPPO30020	3 x 20	PZ1	Total	0	250	8	8423533755421
	t_fix- Max. fixture thickness13.2 SW - Installation keyPZ1 L - Lenght20
VTPPO30025	3 x 25	PZ1	Total	0	250	8	8423533755438
	t_fix- Max. fixture thickness18.2 SW - Installation keyPZ1 L - Lenght25
VTPPO30030	3 x 30	PZ1	Total	0	250	8	8423533755445
	t_fix- Max. fixture thickness23.2 SW - Installation keyPZ1 L - Lenght30
VTPPO30040	3 x 40	PZ1	Total	0	250	8	8423533755452
	t_fix- Max. fixture thickness33.2 SW - Installation keyPZ1 L - Lenght40
VTPPO35016	3,5 x 16	PZ2	Total	0	250	8	8423533755469
	t_fix- Max. fixture thickness8 SW - Installation keyPZ2 L - Lenght16
VTPPO35020	3,5 x 20	PZ2	Total	0	250	8	8423533755476
	t_fix- Max. fixture thickness12 SW - Installation keyPZ2 L - Lenght20
VTPPO35025	3,5 x 25	PZ2	Total	0	250	8	8423533755483
	t_fix- Max. fixture thickness17 SW - Installation keyPZ2 L - Lenght25
VTPPO35030	3,5 x 30	PZ2	Total	0	250	8	8423533755490
	t_fix- Max. fixture thickness22 SW - Installation keyPZ2 L - Lenght30
VTPPO35035	3,5 x 35	PZ2	Total	0	150	8	8423533755506
	t_fix- Max. fixture thickness27 SW - Installation keyPZ2 L - Lenght35
VTPPO35040	3,5 x 40	PZ2	Total	0	150	8	8423533755513
	t_fix- Max. fixture thickness32 SW - Installation keyPZ2 L - Lenght40
VTPPO35050	3,5 x 50	PZ2	Total	0	100	8	8423533755520
	t_fix- Max. fixture thickness42 SW - Installation keyPZ2 L - Lenght50
VTPPO40016	4 x 16	PZ2	Total	0	250	8	8423533755537
	t_fix- Max. fixture thickness7 SW - Installation keyPZ2 L - Lenght16
VTPPO40020	4 x 20	PZ2	Total	0	250	8	8423533755544
	t_fix- Max. fixture thickness11 SW - Installation keyPZ2 L - Lenght20
VTPPO40025	4 x 25	PZ2	Total	0	250	8	8423533755551
	t_fix- Max. fixture thickness16 SW - Installation keyPZ2 L - Lenght25
VTPPO40030	4 x 30	PZ2	Total	0	175	8	8423533755568
	t_fix- Max. fixture thickness21 SW - Installation keyPZ2 L - Lenght30
VTPPO40035	4 x 35	PZ2	Total	0	150	8	8423533755575
	t_fix- Max. fixture thickness26 SW - Installation keyPZ2 L - Lenght35
VTPPO40040	4 x 40	PZ2	Total	0	150	8	8423533755582
	t_fix- Max. fixture thickness31 SW - Installation keyPZ2 L - Lenght40
VTPPO40045	4 x 45	PZ2	Total	0	150	8	8423533755599
	t_fix- Max. fixture thickness36 SW - Installation keyPZ2 L - Lenght45
VTPPO40050	4 x 50	PZ2	Total	0	100	8	8423533755605
	t_fix- Max. fixture thickness41 SW - Installation keyPZ2 L - Lenght50
VTPPO40060	4 x 60	PZ2	Total	0	100	8	8423533755612
	t_fix- Max. fixture thickness51 SW - Installation keyPZ2 L - Lenght60
VTPPO45030	4,5 x 30	PZ2	Total	0	150	8	8423533755629
	t_fix- Max. fixture thickness20 SW - Installation keyPZ2 L - Lenght30
VTPPO45035	4,5 x 35	PZ2	Total	0	150	8	8423533755636
	t_fix- Max. fixture thickness25 SW - Installation keyPZ2 L - Lenght35
VTPPO45040	4,5 x 40	PZ2	Total	0	150	8	8423533755643
	t_fix- Max. fixture thickness30 SW - Installation keyPZ2 L - Lenght40
VTPPO45045	4,5 x 45	PZ2	Total	0	90	8	8423533755650
	t_fix- Max. fixture thickness35 SW - Installation keyPZ2 L - Lenght45
VTPPO45050	4,5 x 50	PZ2	Total	0	100	8	8423533755667
	t_fix- Max. fixture thickness40 SW - Installation keyPZ2 L - Lenght50
VTPPO45060	4,5 x 60	PZ2	Total	0	80	8	8423533755674
	t_fix- Max. fixture thickness50 SW - Installation keyPZ2 L - Lenght60
VTPPO45070	4,5 x 70	PZ2	Parcial 52	0	60	8	8423533755681
	t_fix- Max. fixture thickness60 SW - Installation keyPZ2 L - Lenght70
VTPPO50030	5 x 30	PZ2	Total	0	100	8	8423533755698
	t_fix- Max. fixture thickness19 SW - Installation keyPZ2 L - Lenght30
VTPPO50035	5 x 35	PZ2	Total	0	100	8	8423533755704
	t_fix- Max. fixture thickness24 SW - Installation keyPZ2 L - Lenght35
VTPPO50040	5 x 40	PZ2	Total	0	100	8	8423533755711
	t_fix- Max. fixture thickness29 SW - Installation keyPZ2 L - Lenght40
VTPPO50050	5 x 50	PZ2	Total	0	100	8	8423533755728
	t_fix- Max. fixture thickness39 SW - Installation keyPZ2 L - Lenght50
VTPPO50060	5 x 60	PZ2	Total	0	80	8	8423533755735
	t_fix- Max. fixture thickness49 SW - Installation keyPZ2 L - Lenght60
VTPPO50070	5 x 70	PZ2	Parcial 52	0	35	8	8423533755742
	t_fix- Max. fixture thickness59 SW - Installation keyPZ2 L - Lenght70
VTPPO50080	5 x 80	PZ2	Parcial 52	0	30	8	8423533755759
	t_fix- Max. fixture thickness69 SW - Installation keyPZ2 L - Lenght80
VTPPO50090	5 x 90	PZ2	Parcial 60	0	30	8	8423533755766
	t_fix- Max. fixture thickness79 SW - Installation keyPZ2 L - Lenght90
VTPPO60040	6 x 40	PZ3	Total	0	100	8	8423533767677
	t_fix- Max. fixture thickness27 SW - Installation keyPZ3 L - Lenght40
VTPPO60050	6 x 50	PZ3	Total	0	80	8	8423533755780
	t_fix- Max. fixture thickness37 SW - Installation keyPZ3 L - Lenght50
VTPPO60060	6 x 60	PZ3	Total	0	60	8	8423533755797
	t_fix- Max. fixture thickness47 SW - Installation keyPZ3 L - Lenght60
VTPPO60070	6 x 70	PZ3	Parcial 52	0	30	8	8423533755803
	t_fix- Max. fixture thickness57 SW - Installation keyPZ3 L - Lenght70
VTPPO60080	6 x 80	PZ3	Parcial 52	0	30	8	8423533755810
	t_fix- Max. fixture thickness67 SW - Installation keyPZ3 L - Lenght80

Attaching hardware to wood
Attaching wooden uprights to each other
Joining metal reinforcements to wood

FT_MAD_en_rev14.pdf

DoP_TP_en_rev1.pdf

TP-PO Z

Countersunk head chipboard screw. Zinc-plated. PZ recess

TEX-BT

High-performance chipboard screw. Yellow zinc-plated. Tx recess

TEX-ZT

High-performance chipboard screw. Zinc-plated. Tx recess

TEX-BP

High-performance chipboard screw. Yellow zinc-plated. PZ recess

TEX-ZP

High-performance chipboard screw. Zinc-plated. Pz recess

Request more information

Name

Company

Country

Email address

Phone

Message

Aceptación datos

I accept the use of my personal data by the technical staff of Técnicas Expansivas SL (Tax ID B-26220491) to contact me exclusively for my training and technical advisement regarding their products

Aceptación políticas

I have read and accept the Legal Notice and Privacy Policy. This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

TÉCNICAS EXPANSIVAS S.L. informs that the personal data provided voluntarily on this website will be processed and incorporated into the corresponding files, responsibility of TÉCNICAS EXPANSIVAS S.L, is reported at the time of personal data collection, although, according to the specific case, its purpose may be any of the following: attention to your referred request, complaint or question, established relationship maintenance, comprehensive and commercial customer management, accounting and billing or sending communications, including electronic media, news and activities related to TÉCNICAS EXPANSIVAS S.L.

The data in our files are strictly confidential and shall be treated with the utmost confidentiality and shall comply with all the requirements provided for the General Data Protection Regulation (GDPR) 2016.

According to Data Protection legislation, you are strongly advised not to send high-level personal data, such as those relating to health, as they are not encoded or encrypted. Should these details be sent, it is done so under your sole responsibility.

The user may at any time exercise their rights of access, rectification, cancellation and opposition under the provisions of the General Data Protection Regulation (GDPR) 2016 by sending a letter together with a photocopy of your ID, to P.I. La Portalada II | c/ Segador 13, 26006 | Logroño (La Rioja).

site visits

The relationship with our customers does not end with the sale of our products. At INDEX® we understand that it is often necessary to accompany them on site, where our experience is the best ally to ensure fits works perfectly. Our engineers and technicians support the managers of each project in planning and selecting the best solution for effectively saving time and money.

Name

Email address

Tell us your needs

Aceptación datos

I accept the use of my personal data by the technical staff of Técnicas Expansivas SL (Tax ID B-26220491) to contact me exclusively for my training and technical advisement regarding their products

Aceptación políticas

I have read and accept the Legal Notice and Privacy Policy. This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

ENGINEERING SERVICES AND CALCULATIONS

Name

Email address

Tell us your needs

Aceptación datos

I accept the use of my personal data by the technical staff of Técnicas Expansivas SL (Tax ID B-26220491) to contact me exclusively for my training and technical advisement regarding their products

Aceptación políticas

I have read and accept the Legal Notice and Privacy Policy. This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Countersunk head chipboard screw. Yellow zinc-plated. PZ recess

ASSESSMENTS AND CERTIFICATES

related products

TP-PO Z

TEX-BT

TEX-ZT

TEX-BP

TEX-ZP

Request more information

TP-PO B

Countersunk head chipboard screw

TECHNICAL TRAINING

site visits

ENGINEERING SERVICES AND CALCULATIONS
