Products / Screws / Wood screws / TP / TP-TO

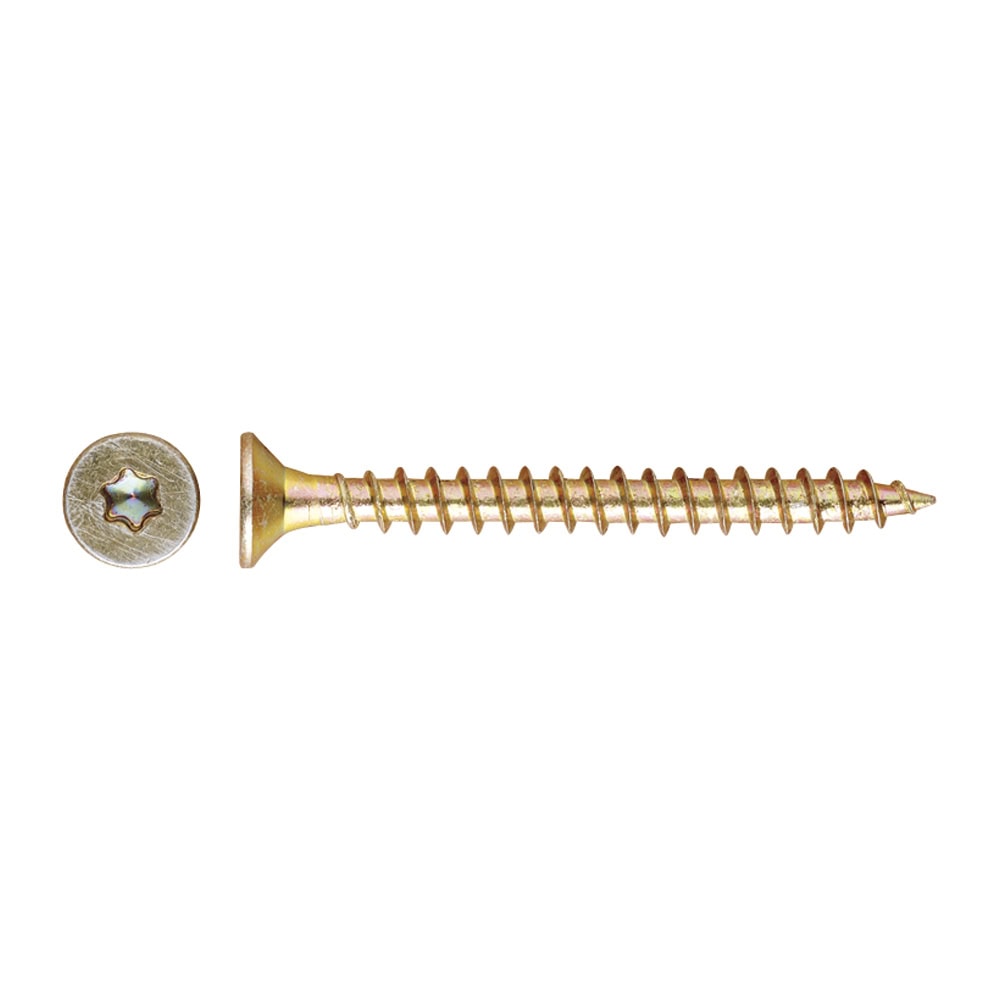

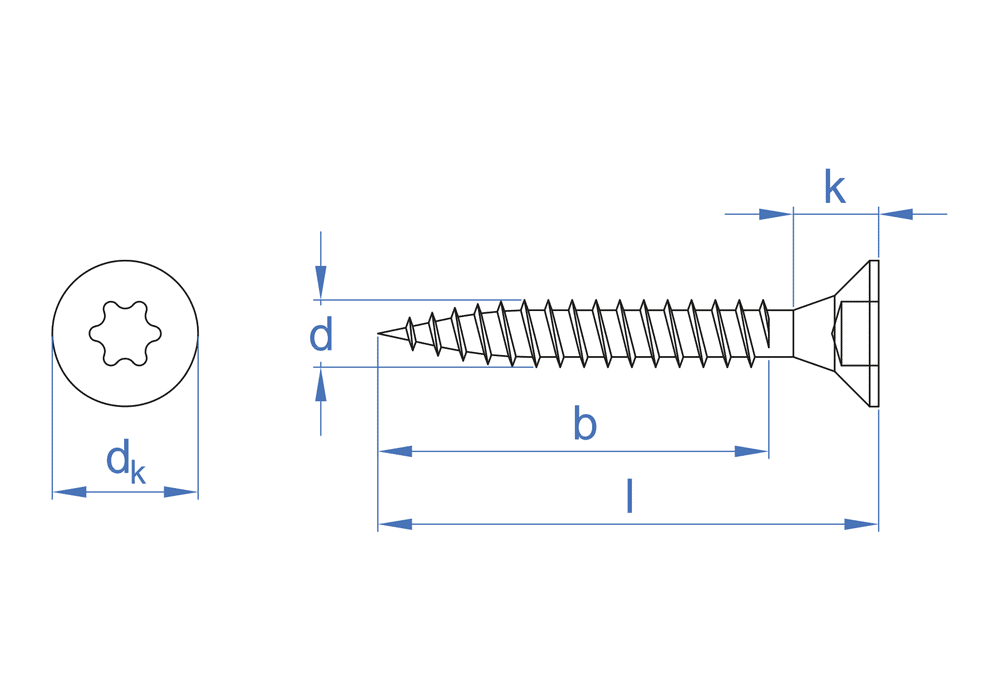

Countersunk head chipboard screw. Yellow zinc-plated. TX recess

Countersunk head screw with TX imprint. Its S-type point makes it possible to drill directly into wood. It can be used to join hardwoods together or to fasten hardware or other metal parts to wood. It has a 40° wood thread. It is made of steel and has a bridged coating.

ASSESSMENTS AND CERTIFICATES

+ info

CODE	SIZE	Nº RECESS	Min. Order Qty.	Pcs BoxPcs/Window Box	Pcs MasterboxWindow boxes/Masterbox	EAN
TPTO30025	3 x 25	TX10	2.000	1.000	12.000	8423533176202
	SW - Installation keyTX10 L - Lenght25
TPTO30030	3 x 30	TX10	2.000	1.000	12.000	8423533176301
	t_fix- Max. fixture thickness23.2 SW - Installation keyTX10 L - Lenght30
TPTO35015	3,5 x 15	TX15	2.000	1.000	24.000	8423533176509
	t_fix- Max. fixture thickness7 SW - Installation keyTX15 L - Lenght15
TPTO35017	3,5 x 17	TX15	2.000	1.000	24.000	8423533176608
	t_fix- Max. fixture thickness9 SW - Installation keyTX15 L - Lenght17
TPTO35020	3,5 x 20	TX15	2.000	1.000	12.000	8423533176707
	t_fix- Max. fixture thickness12 SW - Installation keyTX15 L - Lenght20
TPTO35025	3,5 x 25	TX15	2.000	1.000	12.000	8423533176806
	t_fix- Max. fixture thickness17 SW - Installation keyTX15 L - Lenght25
TPTO35030	3,5 x 30	TX15	2.000	1.000	12.000	8423533176905
	t_fix- Max. fixture thickness22 SW - Installation keyTX15 L - Lenght30
TPTO35040	3,5 x 40	TX15	1.000	500	6.000	8423533177117
	t_fix- Max. fixture thickness32 SW - Installation keyTX15 L - Lenght40
TPTO35050	3,5 x 50	TX15	1.000	500	3.000	8423533177315
	t_fix- Max. fixture thickness42 SW - Installation keyTX15 L - Lenght50
TPTO40020	4 x 20	TX20	2.000	1.000	12.000	8423533177605
	t_fix- Max. fixture thickness- SW - Installation keyTX20 L - Lenght20
TPTO40025	4 x 25	TX20	2.000	1.000	12.000	8423533177704
	t_fix- Max. fixture thickness16 SW - Installation keyTX20 L - Lenght25
TPTO40030	4 x 30	TX20	1.000	500	6.000	8423533177810
	t_fix- Max. fixture thickness21 SW - Installation keyTX20 L - Lenght30
TPTO40035	4 x 35	TX20	1.000	500	6.000	8423533177919
	t_fix- Max. fixture thickness26 SW - Installation keyTX20 L - Lenght35
TPTO40040	4 x 40	TX20	1.000	500	6.000	8423533178015
	t_fix- Max. fixture thickness31 SW - Installation keyTX20 L - Lenght40
TPTO40045	4 x 45	TX20	1.000	500	6.000	8423533178107
	t_fix- Max. fixture thickness36 SW - Installation keyTX20 L - Lenght45
TPTO40050	4 x 50	TX20	500	250	3.000	8423533178213
	t_fix- Max. fixture thickness41 SW - Installation keyTX20 L - Lenght50
TPTO40060	4 x 60	TX20	500	250	3.000	8423533178312
	t_fix- Max. fixture thickness51 SW - Installation keyTX20 L - Lenght60
TPTO40070	4 x 70	TX20	500	250	1.500	8423533178411
	t_fix- Max. fixture thickness61 SW - Installation keyTX20 L - Lenght70
TPTO45030	4,5 x 30	TX20	1.000	500	6.000	8423533178718
	t_fix- Max. fixture thickness20 SW - Installation keyTX20 L - Lenght30
TPTO45035	4,5 x 35	TX20	1.000	500	6.000	8423533178800
	t_fix- Max. fixture thickness25 SW - Installation keyTX20 L - Lenght35
TPTO45040	4,5 x 40	TX20	1.000	500	6.000	8423533178909
	t_fix- Max. fixture thickness30 SW - Installation keyTX20 L - Lenght40
TPTO45045	4,5 x 45	TX20	500	250	3.000	8423533179012
	t_fix- Max. fixture thickness35 SW - Installation keyTX20 L - Lenght45
TPTO45050	4,5 x 50	TX20	500	250	3.000	8423533179111
	t_fix- Max. fixture thickness40 SW - Installation keyTX20 L - Lenght50
TPTO45060	4,5 x 60	TX20	500	250	3.000	8423533179210
	t_fix- Max. fixture thickness50 SW - Installation keyTX20 L - Lenght60
TPTO45070	4,5 x 70	TX20	500	250	1.500	8423533179319
	t_fix- Max. fixture thickness60 SW - Installation keyTX20 L - Lenght70
TPTO50030	5 x 30	TX25	500	250	6.000	8423533179517
	t_fix- Max. fixture thickness19 SW - Installation keyTX25 L - Lenght30
TPTO50035	5 x 35	TX25	500	250	6.000	8423533179616
	t_fix- Max. fixture thickness24 SW - Installation keyTX25 L - Lenght35
TPTO50040	5 x 40	TX25	500	250	3.000	8423533179715
	t_fix- Max. fixture thickness29 SW - Installation keyTX25 L - Lenght40
TPTO50045	5 x 45	TX25	500	250	3.000	8423533179814
	t_fix- Max. fixture thickness34 SW - Installation keyTX25 L - Lenght45
TPTO50050	5 x 50	TX25	500	250	3.000	8423533179913
	t_fix- Max. fixture thickness39 SW - Installation keyTX25 L - Lenght50
TPTO50060	5 x 60	TX25	500	250	1.500	8423533180018
	t_fix- Max. fixture thickness49 SW - Installation keyTX25 L - Lenght60
TPTO50070	5 x 70	TX25	200	100	1.200	8423533180117
	t_fix- Max. fixture thickness59 SW - Installation keyTX25 L - Lenght70
TPTO50080	5 x 80	TX25	200	100	1.200	8423533180216
	t_fix- Max. fixture thickness69 SW - Installation keyTX25 L - Lenght80
TPTO50090	5 x 90	TX25	200	100	1.200	8423533180315
	t_fix- Max. fixture thickness79 SW - Installation keyTX25 L - Lenght90
TPTO50100	5 x 100	TX25	200	100	1.200	8423533180414
	t_fix- Max. fixture thickness89 SW - Installation keyTX25 L - Lenght100
TPTO50120	5 x 120	TX25	200	100	1.200	8423533180421
	t_fix- Max. fixture thickness109 SW - Installation keyTX25 L - Lenght120
TPTO60060	6 x 60	TX30	500	250	1.500	8423533180513
	t_fix- Max. fixture thickness47 SW - Installation keyTX30 L - Lenght60
TPTO60070	6 x 70	TX30	200	100	1.200	8423533180612
	t_fix- Max. fixture thickness57 SW - Installation keyTX30 L - Lenght70
TPTO60080	6 x 80	TX30	200	100	1.200	8423533180711
	t_fix- Max. fixture thickness67 SW - Installation keyTX30 L - Lenght80
TPTO60090	6 x 90	TX30	200	100	1.200	8423533180810
	t_fix- Max. fixture thickness77 SW - Installation keyTX30 L - Lenght90
TPTO60100	6 x 100	TX30	100	100	1.200	8423533180919
	t_fix- Max. fixture thickness87 SW - Installation keyTX30 L - Lenght100
TPTO60110	6 x 110	TX30	100	100	600	8423533181015
	t_fix- Max. fixture thickness97 SW - Installation keyTX30 L - Lenght110
TPTO60120	6 x 120	TX30	100	100	600	8423533181114
	t_fix- Max. fixture thickness107 SW - Installation keyTX30 L - Lenght120
TPTO60130	6 x 130	TX30	100	100	600	8423533181213
	t_fix- Max. fixture thickness117 SW - Installation keyTX30 L - Lenght130
TPTO60140	6 x 140	TX30	100	100	600	8423533181312
	t_fix- Max. fixture thickness127 SW - Installation keyTX30 L - Lenght140
TPTO60150	6 x 150	TX30	100	100	600	8423533181411
	t_fix- Max. fixture thickness137 SW - Installation keyTX30 L - Lenght150
TPTO60160	6 x 160	TX30	100	100	400	8423533181466
	t_fix- Max. fixture thickness147 SW - Installation keyTX30 L - Lenght160
TPTO60180	6 x 180	TX30	100	100	300	8423533181565
	t_fix- Max. fixture thickness167 SW - Installation keyTX30 L - Lenght180
TPTO60200	6 x 200	TX30	100	100	300	8423533181664
	t_fix- Max. fixture thickness187 SW - Installation keyTX30 L - Lenght200
TPTO60220	6 x 220	TX30	100	100	300	8423533007056
	t_fix- Max. fixture thickness207 SW - Installation keyTX30 L - Lenght220
VTPTO30025	3 x 25	TX10	0	250	8	8423533755834
	SW - Installation keyTX10 L - Lenght25
VTPTO30030	3 x 30	TX10	0	250	8	8423533755841
	t_fix- Max. fixture thickness23.2 SW - Installation keyTX10 L - Lenght30
VTPTO35015	3,5 x 15	TX15	0	250	8	8423533755858
	t_fix- Max. fixture thickness7 SW - Installation keyTX15 L - Lenght15
VTPTO35020	3,5 x 20	TX15	0	250	8	8423533755865
	t_fix- Max. fixture thickness12 SW - Installation keyTX15 L - Lenght20
VTPTO35025	3,5 x 25	TX15	0	250	8	8423533755872
	t_fix- Max. fixture thickness17 SW - Installation keyTX15 L - Lenght25
VTPTO35030	3,5 x 30	TX15	0	250	8	8423533755889
	t_fix- Max. fixture thickness22 SW - Installation keyTX15 L - Lenght30
VTPTO35040	3,5 x 40	TX15	0	150	8	8423533755902
	t_fix- Max. fixture thickness32 SW - Installation keyTX15 L - Lenght40
VTPTO35050	3,5 x 50	TX15	0	100	8	8423533755919
	t_fix- Max. fixture thickness42 SW - Installation keyTX15 L - Lenght50
VTPTO40020	4 x 20	TX20	0	250	8	8423533755933
	t_fix- Max. fixture thickness- SW - Installation keyTX20 L - Lenght20
VTPTO40025	4 x 25	TX20	0	250	8	8423533755940
	t_fix- Max. fixture thickness16 SW - Installation keyTX20 L - Lenght25
VTPTO40030	4 x 30	TX20	0	175	8	8423533755957
	t_fix- Max. fixture thickness21 SW - Installation keyTX20 L - Lenght30
VTPTO40035	4 x 35	TX20	0	150	8	8423533755964
	t_fix- Max. fixture thickness26 SW - Installation keyTX20 L - Lenght35
VTPTO40040	4 x 40	TX20	0	150	8	8423533755971
	t_fix- Max. fixture thickness31 SW - Installation keyTX20 L - Lenght40
VTPTO40045	4 x 45	TX20	0	150	8	8423533755988
	t_fix- Max. fixture thickness36 SW - Installation keyTX20 L - Lenght45
VTPTO40050	4 x 50	TX20	0	100	8	8423533755995
	t_fix- Max. fixture thickness41 SW - Installation keyTX20 L - Lenght50
VTPTO40060	4 x 60	TX20	0	100	8	8423533756008
	t_fix- Max. fixture thickness51 SW - Installation keyTX20 L - Lenght60
VTPTO45030	4,5 x 30	TX20	0	150	8	8423533756015
	t_fix- Max. fixture thickness20 SW - Installation keyTX20 L - Lenght30
VTPTO45035	4,5 x 35	TX20	0	150	8	8423533756022
	t_fix- Max. fixture thickness25 SW - Installation keyTX20 L - Lenght35
VTPTO45040	4,5 x 40	TX20	0	150	8	8423533756039
	t_fix- Max. fixture thickness30 SW - Installation keyTX20 L - Lenght40
VTPTO45045	4,5 x 45	TX20	0	90	8	8423533756046
	t_fix- Max. fixture thickness35 SW - Installation keyTX20 L - Lenght45
VTPTO45050	4,5 x 50	TX20	0	100	8	8423533756053
	t_fix- Max. fixture thickness40 SW - Installation keyTX20 L - Lenght50
VTPTO45060	4,5 x 60	TX20	0	80	8	8423533756077
	t_fix- Max. fixture thickness50 SW - Installation keyTX20 L - Lenght60
VTPTO45070	4,5 x 70	TX20	0	60	8	8423533756084
	t_fix- Max. fixture thickness60 SW - Installation keyTX20 L - Lenght70
VTPTO50030	5 x 30	TX25	0	100	8	8423533756091
	t_fix- Max. fixture thickness19 SW - Installation keyTX25 L - Lenght30
VTPTO50035	5 x 35	TX25	0	100	8	8423533756107
	t_fix- Max. fixture thickness24 SW - Installation keyTX25 L - Lenght35
VTPTO50040	5 x 40	TX25	0	100	8	8423533756114
	t_fix- Max. fixture thickness29 SW - Installation keyTX25 L - Lenght40
VTPTO50050	5 x 50	TX25	0	100	8	8423533756121
	t_fix- Max. fixture thickness39 SW - Installation keyTX25 L - Lenght50
VTPTO50060	5 x 60	TX25	0	80	8	8423533756138
	t_fix- Max. fixture thickness49 SW - Installation keyTX25 L - Lenght60
VTPTO50070	5 x 70	TX25	0	35	8	8423533756145
	t_fix- Max. fixture thickness59 SW - Installation keyTX25 L - Lenght70
VTPTO50080	5 x 80	TX25	0	30	8	8423533756152
	t_fix- Max. fixture thickness69 SW - Installation keyTX25 L - Lenght80
VTPTO50090	5 x 90	TX25	0	30	8	8423533756169
	t_fix- Max. fixture thickness79 SW - Installation keyTX25 L - Lenght90
VTPTO60060	6 x 60	TX30	0	60	8	8423533756183
	t_fix- Max. fixture thickness47 SW - Installation keyTX30 L - Lenght60
VTPTO60070	6 x 70	TX30	0	30	8	8423533756190
	t_fix- Max. fixture thickness57 SW - Installation keyTX30 L - Lenght70
VTPTO60080	6 x 80	TX30	0	30	8	8423533756206
	t_fix- Max. fixture thickness67 SW - Installation keyTX30 L - Lenght80

Attaching hardware to wood
Attaching wooden uprights to each other
Joining metal reinforcements to wood

FT_MAD_en_rev14.pdf

DoP_TP_en_rev1.pdf

TP-PO Z

Countersunk head chipboard screw. Zinc-plated. PZ recess

TP-PO B

Countersunk head chipboard screw. Yellow zinc-plated. PZ recess

TEX-BT

High-performance chipboard screw. Yellow zinc-plated. Tx recess

TEX-ZT

High-performance chipboard screw. Zinc-plated. Tx recess

TEX-BP

High-performance chipboard screw. Yellow zinc-plated. PZ recess

Request more information

Name

Company

Country

Email address

Phone

Message

Aceptación datos

I accept the use of my personal data by the technical staff of Técnicas Expansivas SL (Tax ID B-26220491) to contact me exclusively for my training and technical advisement regarding their products

Aceptación políticas

I have read and accept the Legal Notice and Privacy Policy. This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

TÉCNICAS EXPANSIVAS S.L. informs that the personal data provided voluntarily on this website will be processed and incorporated into the corresponding files, responsibility of TÉCNICAS EXPANSIVAS S.L, is reported at the time of personal data collection, although, according to the specific case, its purpose may be any of the following: attention to your referred request, complaint or question, established relationship maintenance, comprehensive and commercial customer management, accounting and billing or sending communications, including electronic media, news and activities related to TÉCNICAS EXPANSIVAS S.L.

The data in our files are strictly confidential and shall be treated with the utmost confidentiality and shall comply with all the requirements provided for the General Data Protection Regulation (GDPR) 2016.

According to Data Protection legislation, you are strongly advised not to send high-level personal data, such as those relating to health, as they are not encoded or encrypted. Should these details be sent, it is done so under your sole responsibility.

The user may at any time exercise their rights of access, rectification, cancellation and opposition under the provisions of the General Data Protection Regulation (GDPR) 2016 by sending a letter together with a photocopy of your ID, to P.I. La Portalada II | c/ Segador 13, 26006 | Logroño (La Rioja).

site visits

The relationship with our customers does not end with the sale of our products. At INDEX® we understand that it is often necessary to accompany them on site, where our experience is the best ally to ensure fits works perfectly. Our engineers and technicians support the managers of each project in planning and selecting the best solution for effectively saving time and money.

Name

Email address

Tell us your needs

Aceptación datos

I accept the use of my personal data by the technical staff of Técnicas Expansivas SL (Tax ID B-26220491) to contact me exclusively for my training and technical advisement regarding their products

Aceptación políticas

I have read and accept the Legal Notice and Privacy Policy. This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

ENGINEERING SERVICES AND CALCULATIONS

Name

Email address

Tell us your needs

Aceptación datos

I accept the use of my personal data by the technical staff of Técnicas Expansivas SL (Tax ID B-26220491) to contact me exclusively for my training and technical advisement regarding their products

Aceptación políticas

I have read and accept the Legal Notice and Privacy Policy. This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Countersunk head chipboard screw. Yellow zinc-plated. TX recess

ASSESSMENTS AND CERTIFICATES

related products

TP-PO Z

TP-PO B

TEX-BT

TEX-ZT

TEX-BP

Request more information

TP-TO

Countersunk head chipboard screw

TECHNICAL TRAINING

site visits

ENGINEERING SERVICES AND CALCULATIONS
