DIN-7504-K + ARVUL

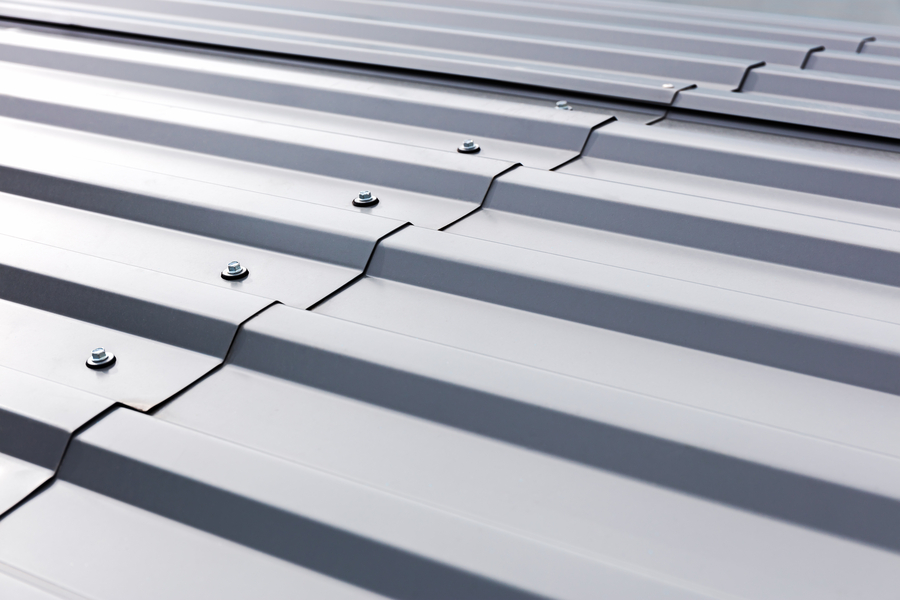

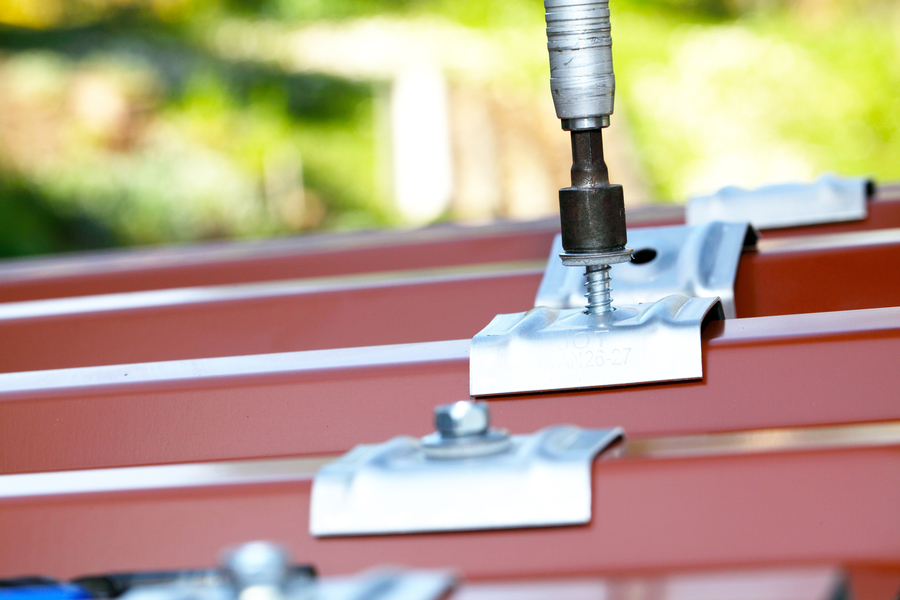

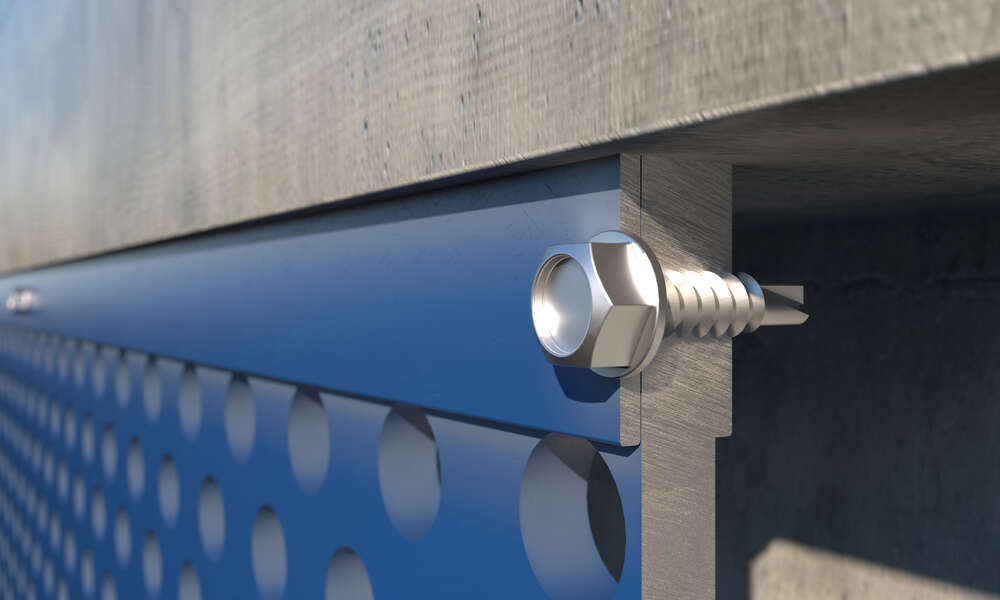

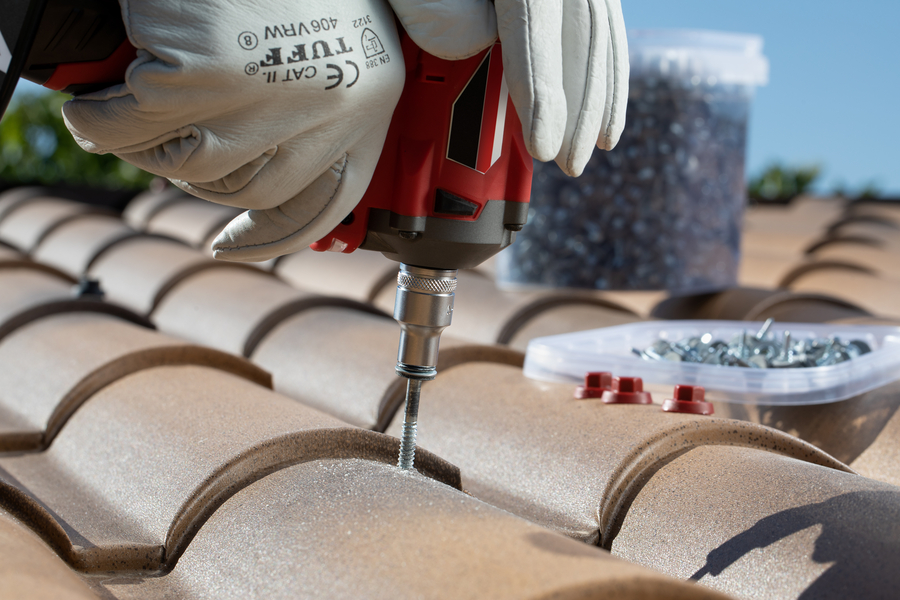

Self-drilling screw with hexagonal head. Screw with vulcanized EPDM-steel washer

CODE	SIZE	Nº RECESS	Min. Order Qty.	Pcs BoxPcs/BlisterPcs/Window Box	Pcs MasterboxBlisters/Bisters boxWindow boxes/Masterbox	EAN
ABE144219	4,2 x 19 P14	7	0	1.000	4.000	8423533104809
	t_fix- Max. fixture thickness8,3 SW - Installation key7 L - Lenght19
ABE144225	4,2 x 25 P14	7	0	500	3.000	8423533104823
	t_fix- Max. fixture thickness14,3 SW - Installation key7 L - Lenght25
ABE144816	4,8 x 16 P14	8	0	1.000	4.000	8423533105301
	t_fix- Max. fixture thickness3,5 SW - Installation key8 L - Lenght16
ABE144819	4,8 x 19 P14	8	0	1.000	4.000	8423533105400
	t_fix- Max. fixture thickness6,7 SW - Installation key8 L - Lenght19
ABE144825	4,8 x 25 P14	8	0	1.000	4.000	8423533105509
	t_fix- Max. fixture thickness12,7 SW - Installation key8 L - Lenght25
ABE144832	4,8 x 32 P14	8	0	500	3.000	8423533104878
	t_fix- Max. fixture thickness19,5 SW - Installation key8 L - Lenght32
ABE144838	4,8 x 38 P14	8	0	500	3.000	8423533104885
	t_fix- Max. fixture thickness25,5 SW - Installation key8 L - Lenght38
ABE145522	5,5 x 22 P14	8	0	1.000	4.000	8423533105905
	t_fix- Max. fixture thickness9,7 SW - Installation key8 L - Lenght22
ABE145532	5,5 x 32 P14	8	0	1.000	3.000	8423533106100
	t_fix- Max. fixture thickness19,5 SW - Installation key8 L - Lenght32
ABE164219	4,2 x 19 P16	7	0	1.000	4.000	8423533108807
	t_fix- Max. fixture thickness8,3 SW - Installation key7 L - Lenght19
ABE164816	4,8 x 16 P16	8	0	1.000	4.000	8423533109309
	t_fix- Max. fixture thickness3,5 SW - Installation key8 L - Lenght16
ABE164819	4,8 x 19 P16	8	0	1.000	3.000	8423533109408
	t_fix- Max. fixture thickness5,7 SW - Installation key8 L - Lenght19
ABE164825	4,8 x 25 P16	8	0	1.000	3.000	8423533109507
	t_fix- Max. fixture thickness12,7 SW - Installation key8 L - Lenght25
ABE164832	4,8 x 32 P16	8	0	500	3.000	8423533109521
	t_fix- Max. fixture thickness19,5 SW - Installation key8 L - Lenght32
ABE164838	4,8 x 38 P16	8	0	500	2.000	8423533109545
	t_fix- Max. fixture thickness27,5 SW - Installation key8 L - Lenght38
ABE165519	5,5 x 19 P16	8	0	1.000	3.000	8423533109804
	t_fix- Max. fixture thickness6,7 SW - Installation key8 L - Lenght19
ABE165522	5,5 x 22 P16	8	0	1.000	3.000	8423533109903
	t_fix- Max. fixture thickness9,7 SW - Installation key8 L - Lenght22
ABE165525	5,5 x 25 P16	8	0	1.000	3.000	8423533110008
	t_fix- Max. fixture thickness12,7 SW - Installation key8 L - Lenght25
ABE165532	5,5 x 32 P16	8	0	1.000	2.000	8423533110107
	t_fix- Max. fixture thickness19,5 SW - Installation key8 L - Lenght32
ABE165538	5,5 x 38 P16	8	0	1.000	2.000	8423533110206
	t_fix- Max. fixture thickness25,5 SW - Installation key8 L - Lenght38
ABE165550	5,5 x 50 P16	8	0	500	1.500	8423533110077
	t_fix- Max. fixture thickness37,5 SW - Installation key8 L - Lenght50
ABE165563	5,5 x 63 P16	8	0	250	1.500	8423533110145
	t_fix- Max. fixture thickness50,5 SW - Installation key8 L - Lenght63
ABE165575	5,5 x 75 P16	8	0	250	1.000	8423533110220
	t_fix- Max. fixture thickness62,5 SW - Installation key8 L - Lenght75
ABE166319	6,3 x 19 P16	10	0	500	3.000	8423533110626
	t_fix- Max. fixture thickness5 SW - Installation key10 L - Lenght19
ABE166325	6,3 x 25 P16	10	0	500	2.000	8423533110749
	t_fix- Max. fixture thickness11 SW - Installation key10 L - Lenght25
ABE166332	6,3 x 32 P16	10	0	500	2.000	8423533110770
	t_fix- Max. fixture thickness18 SW - Installation key10 L - Lenght32
ABE166338	6,3 x 38 P16	10	0	500	2.000	8423533110787
	t_fix- Max. fixture thickness24 SW - Installation key10 L - Lenght38
ABE166350	6,3 x 50 P16	10	0	500	1.000	8423533111005
	t_fix- Max. fixture thickness36 SW - Installation key10 L - Lenght50
ABE166363	6,3 x 63 P16	10	0	250	1.000	8423533114174
	t_fix- Max. fixture thickness49 SW - Installation key10 L - Lenght63
ABE166375	6,3 x 75 P16	10	0	250	750	8423533114273
	t_fix- Max. fixture thickness61 SW - Installation key10 L - Lenght75
ABE166380	6,3 x 80 P16	10	0	100	600	8423533111326
	t_fix- Max. fixture thickness66 SW - Installation key10 L - Lenght80
ABE166390	6,3 x 90 P16	10	0	100	600	8423533111418
	t_fix- Max. fixture thickness76 SW - Installation key10 L - Lenght90
ABE166310	6,3 x 100 P16	10	0	100	600	8423533111517
	t_fix- Max. fixture thickness86 SW - Installation key10 L - Lenght100
ABE166311	6,3 x 110 P16	10	0	100	600	8423533111616
	t_fix- Max. fixture thickness96 SW - Installation key10 L - Lenght110
ABE166312	6,3 x 120 P16	10	0	100	400	8423533111715
	t_fix- Max. fixture thickness106 SW - Installation key10 L - Lenght120
ABE166313	6,3 x 130 P16	10	0	100	400	8423533111814
	t_fix- Max. fixture thickness116 SW - Installation key10 L - Lenght130
ABE166314	6,3 x 140 P16	10	0	100	400	8423533111913
	t_fix- Max. fixture thickness126 SW - Installation key10 L - Lenght140
ABE184819	4,8 x 19 P18	8	0	500	3.000	8423533113405
	t_fix- Max. fixture thickness6,7 SW - Installation key8 L - Lenght19
ABE184825	4,8 x 25 P18	8	0	500	3.000	8423533113504
	t_fix- Max. fixture thickness12,7 SW - Installation key8 L - Lenght25
ABE184838	4,8 x 38 P18	8	0	500	2.000	8423533113702
	t_fix- Max. fixture thickness25,5 SW - Installation key8 L - Lenght38
ABE185522	5,5 x 22 P18	8	0	500	3.000	8423533113900
	t_fix- Max. fixture thickness9,7 SW - Installation key8 L - Lenght22
ABE185525	5,5 x 25 P18	8	0	500	3.000	8423533114006
	t_fix- Max. fixture thickness12,7 SW - Installation key8 L - Lenght25
ABE185532	5,5 x 32 P18	8	0	500	2.000	8423533114105
	t_fix- Max. fixture thickness19,5 SW - Installation key8 L - Lenght32
ABE185538	5,5 x 38 P18	8	0	500	2.000	8423533114204
	t_fix- Max. fixture thickness25,5 SW - Installation key8 L - Lenght38
ABE185550	5,5 x 50 P18	8	0	500	1.500	8423533114303
	t_fix- Max. fixture thickness37,5 SW - Installation key8 L - Lenght50
ABE185563	5,5 x 63 P18	8	0	250	1.000	8423533114402
	t_fix- Max. fixture thickness50,5 SW - Installation key8 L - Lenght63
ABE186319	6,3 x 19 P18	10	0	500	3.000	8423533114600
	t_fix- Max. fixture thickness5 SW - Installation key10 L - Lenght19
ABE186325	6,3 x 25 P18	10	0	500	2.000	8423533114709
	t_fix- Max. fixture thickness11 SW - Installation key10 L - Lenght25
ABE186332	6,3 x 32 P18	10	0	500	2.000	8423533114808
	t_fix- Max. fixture thickness18 SW - Installation key10 L - Lenght32
ABE186338	6,3 x 38 P18	10	0	250	1.500	8423533114914
	t_fix- Max. fixture thickness24 SW - Installation key10 L - Lenght38
ABE186350	6,3 x 50 P18	10	0	250	1.000	8423533115003
	t_fix- Max. fixture thickness36 SW - Installation key10 L - Lenght50
ABE186363	6,3 x 63 P18	10	0	250	1.000	8423533115102
	t_fix- Max. fixture thickness49 SW - Installation key10 L - Lenght63
ABE186375	6,3 x 75 P18	10	0	250	750	8423533115201
	t_fix- Max. fixture thickness61 SW - Installation key10 L - Lenght75
ABE186380	6,3 x 80 P18	10	0	100	600	8423533115317
	t_fix- Max. fixture thickness66 SW - Installation key10 L - Lenght80
ABE186390	6,3 x 90 P18	10	0	100	600	8423533115416
	t_fix- Max. fixture thickness76 SW - Installation key10 L - Lenght90
ABE186310	6,3 x 100 P18	10	0	100	400	8423533115515
	t_fix- Max. fixture thickness86 SW - Installation key10 L - Lenght100
ABE186311	6,3 x 110 P18	10	0	100	400	8423533115614
	t_fix- Max. fixture thickness96 SW - Installation key10 L - Lenght110
ABE186312	6,3 x 120 P18	10	0	100	400	8423533115713
	t_fix- Max. fixture thickness106 SW - Installation key10 L - Lenght120
ABE186313	6,3 x 130 P18	10	0	100	400	8423533115812
	t_fix- Max. fixture thickness116 SW - Installation key10 L - Lenght130
ABE186314	6,3 x 140 P18	10	0	100	400	8423533115911
	t_fix- Max. fixture thickness126 SW - Installation key10 L - Lenght140
ABE255522	5,5 x 22 P25	8	0	500	1.500	8423533117724
	t_fix- Max. fixture thickness9,7 SW - Installation key8 L - Lenght22
ABE255525	5,5 x 25 P25	8	0	500	1.500	8423533117748
	t_fix- Max. fixture thickness12,7 SW - Installation key8 L - Lenght25
ABE256325	6,3 x 25 P25	10	0	500	1.500	8423533118578
	t_fix- Max. fixture thickness11 SW - Installation key10 L - Lenght25
ABE256332	6,3 x 32 P25	10	0	500	1.000	8423533118585
	t_fix- Max. fixture thickness18 SW - Installation key10 L - Lenght32
ABE256338	6,3 x 38 P25	10	0	250	750	8423533118905
	t_fix- Max. fixture thickness24 SW - Installation key10 L - Lenght38
ABE256350	6,3 x 50 P25	10	0	250	750	8423533119018
	t_fix- Max. fixture thickness36 SW - Installation key10 L - Lenght50
ABE256363	6,3 x 63 P25	10	0	100	600	8423533119117
	t_fix- Max. fixture thickness49 SW - Installation key10 L - Lenght63
ABE256380	6,3 x 80 P25	10	0	100	300	8423533119308
	t_fix- Max. fixture thickness66 SW - Installation key10 L - Lenght80
ABE256390	6,3 x 90 P25	10	0	100	400	8423533119407
	t_fix- Max. fixture thickness76 SW - Installation key10 L - Lenght90
ABE256310	6,3 x 100 P25	10	0	100	400	8423533119506
	t_fix- Max. fixture thickness86 SW - Installation key10 L - Lenght100
ABE256311	6,3 x 110 P25	10	0	100	300	8423533119605
	t_fix- Max. fixture thickness96 SW - Installation key10 L - Lenght110
ABE256312	6,3 x 120 P25	10	0	100	300	8423533119704
	t_fix- Max. fixture thickness106 SW - Installation key10 L - Lenght120
ABE256313	6,3 x 130 P25	10	0	100	300	8423533119803
	t_fix- Max. fixture thickness116 SW - Installation key10 L - Lenght130
ABE256314	6,3 x 140 P25	10	0	100	200	8423533119902
	t_fix- Max. fixture thickness126 SW - Installation key10 L - Lenght140
VABE144819	4,8 x 19 P14	8	0	100	8	8423533754752
	t_fix- Max. fixture thickness6,7 SW - Installation key8 L - Lenght19
VABE144825	4,8 x 25 P14	8	0	80	8	8423533754769
	t_fix- Max. fixture thickness12,7 SW - Installation key8 L - Lenght25
VABE165522	5,5 x 22 P14	8	0	70	8	8423533754776
	t_fix- Max. fixture thickness9,7 SW - Installation key8 L - Lenght22
VABE165532	5,5 x 32 P14	8	0	50	8	8423533754790
	t_fix- Max. fixture thickness19,5 SW - Installation key8 L - Lenght32
VABE164819	4,8 x 19 P16	8	0	70	8	8423533766885
	t_fix- Max. fixture thickness5,7 SW - Installation key8 L - Lenght19
VABE165525	5,5 x 25 P16	8	0	60	8	8423533754783
	t_fix- Max. fixture thickness12,7 SW - Installation key8 L - Lenght25
VABE165538	5,5 x 38 P16	8	0	45	8	8423533754844
	t_fix- Max. fixture thickness25,5 SW - Installation key8 L - Lenght38
VABE165550	5,5 x 50 P16	8	0	35	8	8423533754813
	t_fix- Max. fixture thickness37,5 SW - Installation key8 L - Lenght50
VABE166325	6,3 x 25 P16	10	0	50	8	8423533754820
	t_fix- Max. fixture thickness11 SW - Installation key10 L - Lenght25
VABE166332	6,3 x 32 P16	10	0	50	8	8423533754837
	t_fix- Max. fixture thickness18 SW - Installation key10 L - Lenght32
VABE166338	6,3 x 38 P16	10	0	40	8	8423533754806
	t_fix- Max. fixture thickness24 SW - Installation key10 L - Lenght38
BZABE144819	4,8 x 19 P14	8	0	18	10	8423533422989
	t_fix- Max. fixture thickness6,7 SW - Installation key8 L - Lenght19
BZABE144825	4,8 x 25 P14	8	0	18	10	8423533422996
	t_fix- Max. fixture thickness12,7 SW - Installation key8 L - Lenght25
BZABE165522	5,5 x 22 P14	8	0	15	10	8423533423016
	t_fix- Max. fixture thickness9,7 SW - Installation key8 L - Lenght22
BZABE165532	5,5 x 32 P14	8	0	12	10	8423533423030
	t_fix- Max. fixture thickness19,5 SW - Installation key8 L - Lenght32
BZABE165525	5,5 x 25 P16	8	0	15	10	8423533423023
	t_fix- Max. fixture thickness12,7 SW - Installation key8 L - Lenght25
BZABE165538	5,5 x 38 P16	8	0	12	10	8423533423047
	t_fix- Max. fixture thickness25,5 SW - Installation key8 L - Lenght38
BZABE165550	5,5 x 50 P16	8	0	10	10	8423533423054
	t_fix- Max. fixture thickness37,5 SW - Installation key8 L - Lenght50
BZABE166325	6,3 x 25 P16	10	0	10	10	8423533423061
	t_fix- Max. fixture thickness11 SW - Installation key10 L - Lenght25
BZABE166332	6,3 x 32 P16	10	0	8	10	8423533423078
	t_fix- Max. fixture thickness18 SW - Installation key10 L - Lenght32
BZABE166338	6,3 x 38 P16	10	0	8	10	8423533423085
	t_fix- Max. fixture thickness24 SW - Installation key10 L - Lenght38

Anchoring shelving
Installation of fire extinguishers
Signs
Sheet metal profiles
Sandwich sheets on canopies
Signs
Sheet metal roofing
Flat screws

FT_BROCU_en_rev5.pdf

DIN-7504-K

Self-drilling screw with hexagonal head. Screw

DIN-7504-K CP + ARVUL

Self-drilling screw with hexagonal head. Plastic container

DIN-7504-K RE

Self-drilling screw with reduced drill point and 8 mm hexagonal head. Screw

DIN-7504-K RE + ARVUL

Self-drilling screw with reduced drill point and 8 mm hexagonal head. Screw with vulcanized EPDM-steel washer

ABE BIMETAL

Bimetal, stainless-steel, self-drilling screw with hexagonal head. Screw

Request more information

Name

Company

Country

Email address

Phone

Message

Aceptación datos

I accept the use of my personal data by the technical staff of Técnicas Expansivas SL (Tax ID B-26220491) to contact me exclusively for my training and technical advisement regarding their products

Aceptación políticas

I have read and accept the Legal Notice and Privacy Policy. This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

TÉCNICAS EXPANSIVAS S.L. informs that the personal data provided voluntarily on this website will be processed and incorporated into the corresponding files, responsibility of TÉCNICAS EXPANSIVAS S.L, is reported at the time of personal data collection, although, according to the specific case, its purpose may be any of the following: attention to your referred request, complaint or question, established relationship maintenance, comprehensive and commercial customer management, accounting and billing or sending communications, including electronic media, news and activities related to TÉCNICAS EXPANSIVAS S.L.

The data in our files are strictly confidential and shall be treated with the utmost confidentiality and shall comply with all the requirements provided for the General Data Protection Regulation (GDPR) 2016.

According to Data Protection legislation, you are strongly advised not to send high-level personal data, such as those relating to health, as they are not encoded or encrypted. Should these details be sent, it is done so under your sole responsibility.

The user may at any time exercise their rights of access, rectification, cancellation and opposition under the provisions of the General Data Protection Regulation (GDPR) 2016 by sending a letter together with a photocopy of your ID, to P.I. La Portalada II | c/ Segador 13, 26006 | Logroño (La Rioja).

site visits

The relationship with our customers does not end with the sale of our products. At INDEX® we understand that it is often necessary to accompany them on site, where our experience is the best ally to ensure fits works perfectly. Our engineers and technicians support the managers of each project in planning and selecting the best solution for effectively saving time and money.

Name

Email address

Tell us your needs

Aceptación datos

I accept the use of my personal data by the technical staff of Técnicas Expansivas SL (Tax ID B-26220491) to contact me exclusively for my training and technical advisement regarding their products

Aceptación políticas

I have read and accept the Legal Notice and Privacy Policy. This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

ENGINEERING SERVICES AND CALCULATIONS

Name

Email address

Tell us your needs

Aceptación datos

I accept the use of my personal data by the technical staff of Técnicas Expansivas SL (Tax ID B-26220491) to contact me exclusively for my training and technical advisement regarding their products

Aceptación políticas

I have read and accept the Legal Notice and Privacy Policy. This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

DIN-7504-K + ARVUL

Self-drilling screw with hexagonal head. Screw with vulcanized EPDM-steel washer

related products

DIN-7504-K

DIN-7504-K CP + ARVUL

DIN-7504-K RE

DIN-7504-K RE + ARVUL

ABE BIMETAL

Request more information

DIN-7504-K + ARVUL

Self-drilling screw with hexagonal head

TECHNICAL TRAINING

site visits

ENGINEERING SERVICES AND CALCULATIONS
