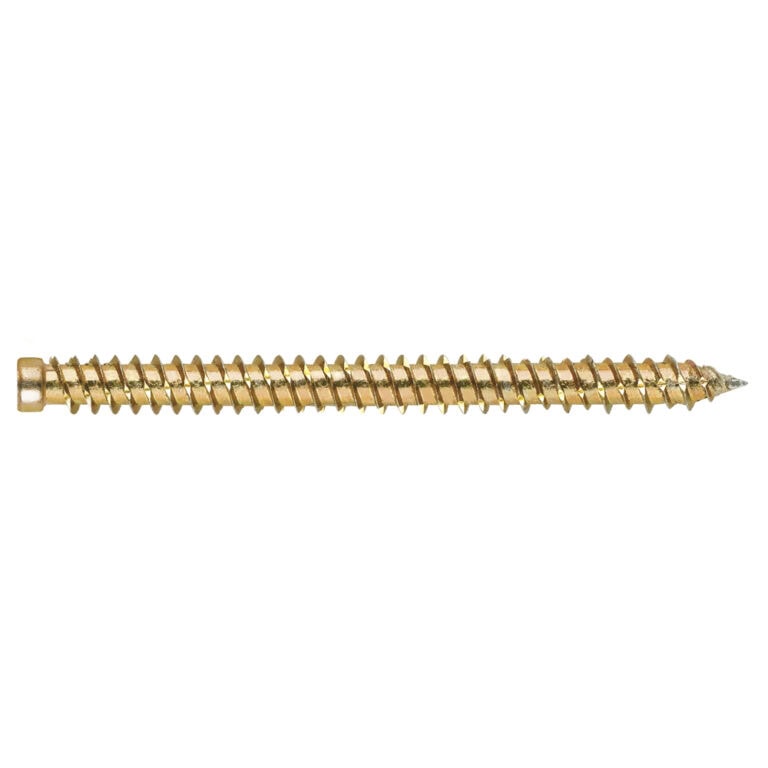

Screw for direct fixing with cylindrical head HR

Direct fixing screw for concrete, solid brick or wood. With cylindrical head and TX recess. Special high-low 60° / 30° fluted thread. Made of carbon steel with yellow zinc-plated coating.
CODESIZEINSTALLATION KEYDRILL ØMin. Order Qty.Pcs BoxPcs MasterboxEANTechnical info.
HR750727,5 x 72 Ø6TX30601001.2008423533155405
  • tfix - Max. fixture thickness32
  • SW - Installation keyTX30
  • df - Ø Element to fix9
  • Tins - Torque (Nm)15
  • hnom - Min. anchor depth40
  • h1 - Drill hole depth min.45
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght72
HR750927,5 x 92 Ø6TX30601001.2008423533155504
  • tfix - Max. fixture thickness52
  • SW - Installation keyTX30
  • df - Ø Element to fix9
  • Tins - Torque (Nm)15
  • hnom - Min. anchor depth40
  • h1 - Drill hole depth min.45
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght92
HR751127,5 x 112 Ø6TX30601008008423533155603
  • tfix - Max. fixture thickness72
  • SW - Installation keyTX30
  • df - Ø Element to fix9
  • Tins - Torque (Nm)15
  • hnom - Min. anchor depth40
  • h1 - Drill hole depth min.45
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght112
HR751327,5 x 132 Ø6TX30601006008423533155702
  • tfix - Max. fixture thickness92
  • SW - Installation keyTX30
  • df - Ø Element to fix9
  • Tins - Torque (Nm)15
  • hnom - Min. anchor depth40
  • h1 - Drill hole depth min.45
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness100
  • L - Lenght132
  • Air conditioning units
  • Fire extinguisher installation
  • Door frame
  • Window frame
  • Railings
  • Balcony railings
  • Balcony railings
  • Road railings
  • Wooden railings
PR42BI14005 CP HR HR SZ4
icon book
Technical Sheets
FT_HOR_en_rev8.pdf
