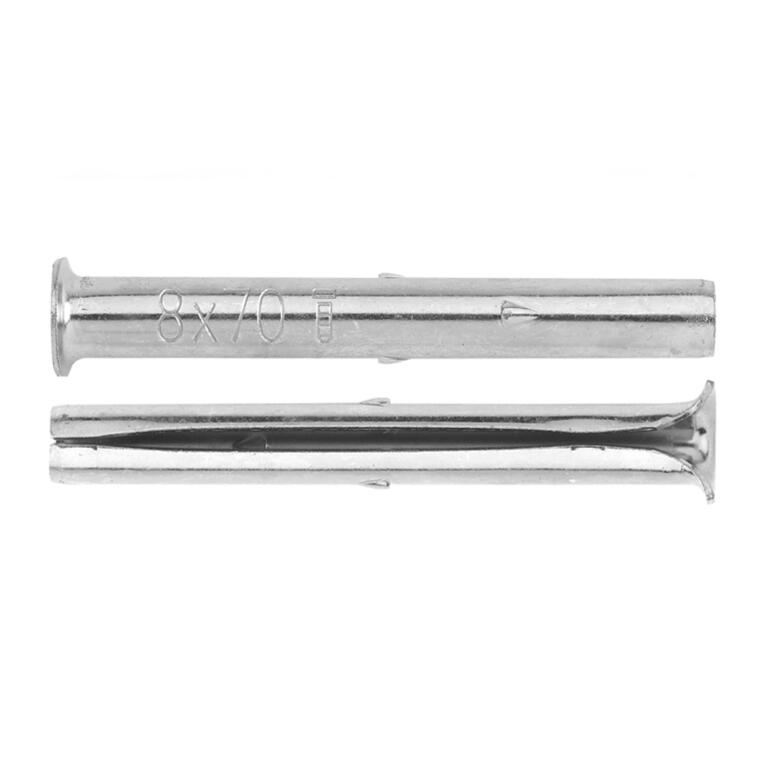

Express nail for concrete floors TRA

Express nail for batten fixings to concrete or stone floors. It allows movement between the floor and the batten, preventing the anchor from breaking. It has a zinc-plated coating, which helps to prevent corrosion.
CODEDRILL Ø X LENGTHNº RECESSTHICKNESS MAX.FIXTURE (mm)Pcs BoxPcs/BlisterPcs MasterboxBlisters/Bisters boxEANTechnical info.
TRA60506 x 50 Ø6202002.4008423533042200
  • tfix - Max. fixture thickness20
  • df - Ø Element to fix6
  • hnom - Min. anchor depth30
  • h1 - Drill hole depth min.40
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness35
  • L - Lenght50
TRA60606 x 60 Ø6302001.2008423533042309
  • tfix - Max. fixture thickness30
  • df - Ø Element to fix6
  • hnom - Min. anchor depth30
  • h1 - Drill hole depth min.40
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness35
  • L - Lenght60
TRA60806 x 80 Ø6502001.2008423533042408
  • tfix - Max. fixture thickness50
  • df - Ø Element to fix6
  • hnom - Min. anchor depth30
  • h1 - Drill hole depth min.40
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness35
  • L - Lenght80
TRA80708 x 70 Ø8301001.2008423533042507
  • tfix - Max. fixture thickness30
  • df - Ø Element to fix8
  • hnom - Min. anchor depth40
  • h1 - Drill hole depth min.50
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness45
  • L - Lenght70
TRA80908 x 90 Ø8501006008423533042606
  • tfix - Max. fixture thickness50
  • df - Ø Element to fix8
  • hnom - Min. anchor depth40
  • h1 - Drill hole depth min.50
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness45
  • L - Lenght90
TRA81108 x 110 Ø8701006008423533042705
  • tfix - Max. fixture thickness70
  • df - Ø Element to fix8
  • hnom - Min. anchor depth40
  • h1 - Drill hole depth min.50
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness45
  • L - Lenght110
TRA81308 x 130 Ø8901006008423533042804
  • tfix - Max. fixture thickness90
  • df - Ø Element to fix8
  • hnom - Min. anchor depth40
  • h1 - Drill hole depth min.50
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness45
  • L - Lenght130
TRA81508 x 150 Ø81101006008423533042903
  • tfix - Max. fixture thickness110
  • df - Ø Element to fix8
  • hnom - Min. anchor depth40
  • h1 - Drill hole depth min.50
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness45
  • L - Lenght150
BZTRA60506 x 50 Ø62010158423533800756
  • tfix - Max. fixture thickness20
  • df - Ø Element to fix6
  • hnom - Min. anchor depth30
  • h1 - Drill hole depth min.40
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness35
  • L - Lenght50
BZTRA60606 x 60 Ø63010158423533800763
  • tfix - Max. fixture thickness30
  • df - Ø Element to fix6
  • hnom - Min. anchor depth30
  • h1 - Drill hole depth min.40
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness35
  • L - Lenght60
BZTRA60806 x 80 Ø65010158423533800770
  • tfix - Max. fixture thickness50
  • df - Ø Element to fix6
  • hnom - Min. anchor depth30
  • h1 - Drill hole depth min.40
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness35
  • L - Lenght80
BZTRA80708 x 70 Ø83010158423533800787
  • tfix - Max. fixture thickness30
  • df - Ø Element to fix8
  • hnom - Min. anchor depth40
  • h1 - Drill hole depth min.50
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness45
  • L - Lenght70
  • Wooden rails and slats
TRA
icon book
Technical Sheets
FT_RAST_en_rev4.pdf
