6 flange socket with countersunk screw TC-6A

Nailing plug with 6 flanges with countersunk head screw and TX recess. Allows the fastening of heavy duty elements in solid and hollow materials. The collar of the dowel is countersunk so that it is flush with the base material. The dowel is made of nylon and the screw is made of zinc-plated steel.
CODESIZENº RECESSTHICKNESS MAX.FIXTURE (mm)Min. Order Qty.Pcs BoxPcs MasterboxEANTechnical info.
TC6A080808 x 80 Ø8TX301501006008423533088352

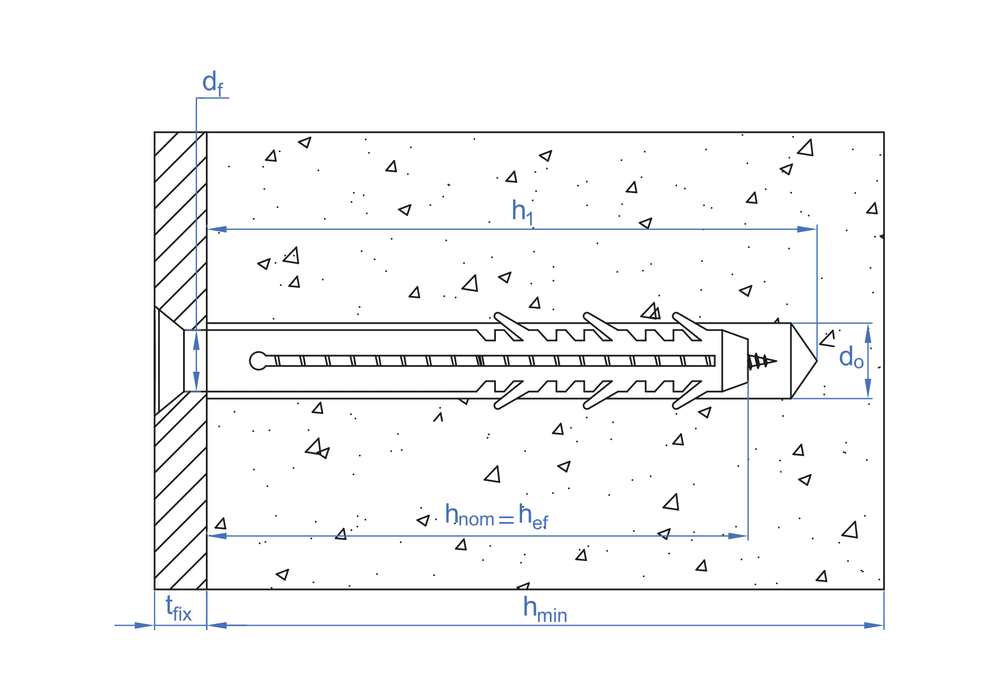

  • tfix - Max. fixture thickness15
  • h1 - Drill hole depth min.70
  • d0 - Ø Drill8
  • L - Lenght80
TC6A081008 x 100 Ø8TX303501004008423533088451
  • tfix - Max. fixture thickness35
  • h1 - Drill hole depth min.70
  • d0 - Ø Drill8
  • L - Lenght100
TC6A081208 x 120 Ø8TX305501004008423533088550
  • tfix - Max. fixture thickness55
  • h1 - Drill hole depth min.70
  • d0 - Ø Drill8
  • L - Lenght120
TC6A1010010 x 100 Ø10TX402501003008423533088758
  • tfix - Max. fixture thickness25
  • h1 - Drill hole depth min.80
  • d0 - Ø Drill10
  • L - Lenght100
TC6A1012010 x 120 Ø10TX404001003008423533088857
  • tfix - Max. fixture thickness40
  • h1 - Drill hole depth min.80
  • d0 - Ø Drill10
  • L - Lenght120
TC6A1014010 x 140 Ø10TX406001003008423533088956
  • tfix - Max. fixture thickness60
  • h1 - Drill hole depth min.80
  • d0 - Ø Drill10
  • L - Lenght140
TC6A1016010 x 160 Ø10TX408501002008423533089052
  • tfix - Max. fixture thickness85
  • h1 - Drill hole depth min.80
  • d0 - Ø Drill10
  • L - Lenght160
TC6A1020010 x 200 Ø10TX40125010008423533089151
  • tfix - Max. fixture thickness125
  • h1 - Drill hole depth min.80
  • d0 - Ø Drill10
  • L - Lenght200
  • Air conditioning units
  • Trellis anchoring
  • Shelf anchoring
  • Fire extinguisher installation
  • Clothesline
  • Kitchen cupboard
  • Street furniture
  • Railings
  • Signposts
  • Street lamp
