Plug with stainless steel countersunk screw T-NUX A A4

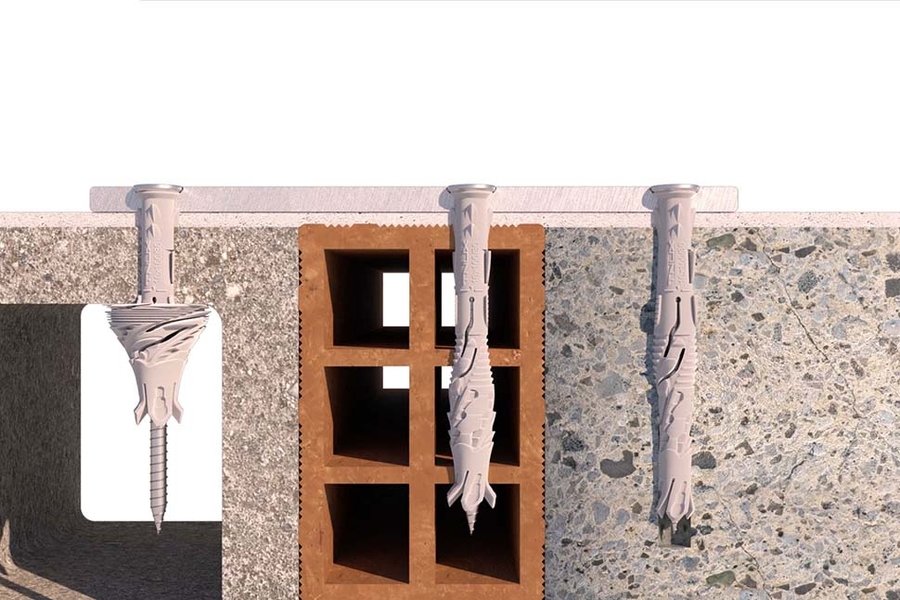

High-performance nylon dowel, with countersunk head screw and TX recess. It can be used to fix medium-load elements on hollow and solid materials. It is approved for non-structural uses. The screw is made of A4 stainless steel, which allows it to be used in particularly demanding environments.
Amplify information
> CAD Data

ASSESSMENTS AND CERTIFICATES

+ info
TDDU13BI9303 ETA NS 14 0467 ETA NS 14 0467 SZ6
EKOU2BI8304 HO FUEGO Resistente al fuego SZ7
EKOU19BI9350 HO CE 14 CE 2014 SZ7
CODESIZENº RECESSTHICKNESS MAX.FIXTURE (mm)Min. Order Qty.Pcs BoxPcs MasterboxEANTechnical info.
TNXA4080808 x 80 Ø8TX30100506008423533724786

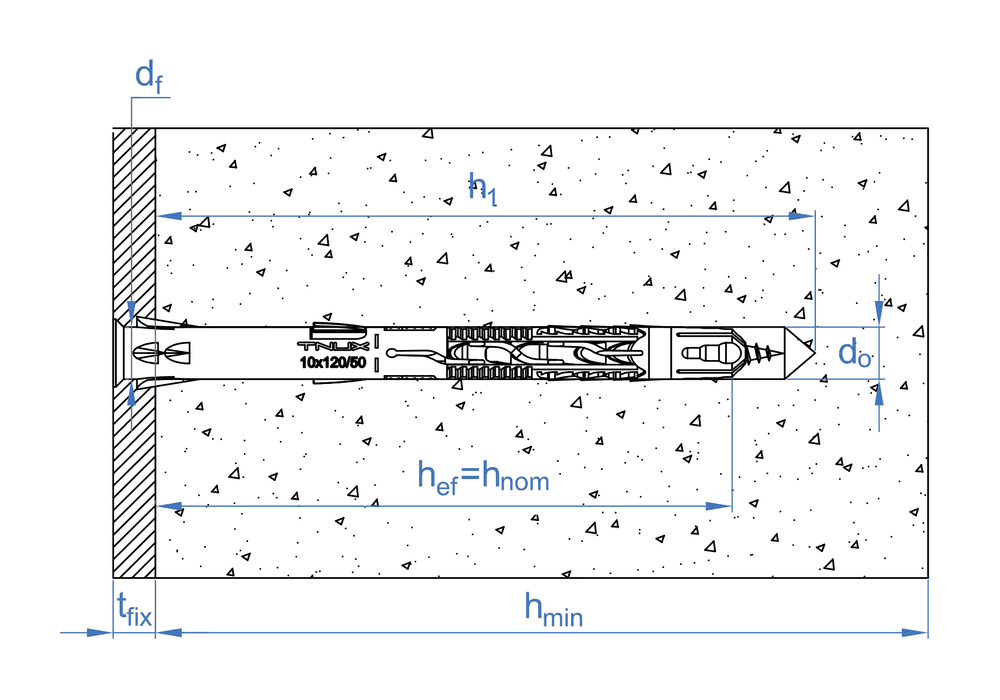

  • tfix - Max. fixture thickness10
  • SW - Installation keyTX30
  • df - Ø Element to fix8 - 8,5
  • hef - Effective depth70
  • hnom - Min. anchor depth70
  • h1 - Drill hole depth min.90
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght80
TNXA4081008 x 100 Ø8TX30300506008423533724793
  • tfix - Max. fixture thickness30
  • SW - Installation keyTX30
  • df - Ø Element to fix8 - 8,5
  • hef - Effective depth70
  • hnom - Min. anchor depth70
  • h1 - Drill hole depth min.90
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght100
TNXA4081208 x 120 Ø8TX30500503008423533724809
  • tfix - Max. fixture thickness50
  • SW - Installation keyTX30
  • df - Ø Element to fix8 - 8,5
  • hef - Effective depth70
  • hnom - Min. anchor depth70
  • h1 - Drill hole depth min.90
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght120
TNXA41008010 x 80 Ø10TX40100503008423533724816
  • tfix - Max. fixture thickness10
  • SW - Installation keyTX40
  • df - Ø Element to fix10 - 11
  • hef - Effective depth70
  • hnom - Min. anchor depth70
  • h1 - Drill hole depth min.90
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght80
TNXA41010010 x 100 Ø10TX40300503008423533724823
  • tfix - Max. fixture thickness30
  • SW - Installation keyTX40
  • df - Ø Element to fix10 - 11
  • hef - Effective depth70
  • hnom - Min. anchor depth70
  • h1 - Drill hole depth min.90
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght100
TNXA41012010 x 120 Ø10TX40500503008423533724830
  • tfix - Max. fixture thickness50
  • SW - Installation keyTX40
  • df - Ø Element to fix10 - 11
  • hef - Effective depth70
  • hnom - Min. anchor depth70
  • h1 - Drill hole depth min.90
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght120
TNXA41014010 x 140 Ø10TX40700503008423533724847
  • tfix - Max. fixture thickness70
  • SW - Installation keyTX40
  • df - Ø Element to fix10 - 11
  • hef - Effective depth70
  • hnom - Min. anchor depth70
  • h1 - Drill hole depth min.90
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght140
  • Clamp
  • Support clamp
  • Pipe clamp
  • Flange clamp
  • Air conditioning units
  • Roof anchor
  • Trellis anchor
  • Rack anchor
  • Shelf anchor
PR82BI10428 CP T NUX A A4 T NUX A A4 SZ4
T-NUX A A4
icon book
Technical Sheets
FT_TNUX_en_rev7.pdf
FTA_TNUX_en_rev0.pdf
icon security
Assessments
ETA_TNUX-n-en-rev3.pdf
icon camera
Multimedia
Video
icon table
Declaration of Performances
DoP_TNUX_n_en_rev3.pdf
