Hexagon socket stainless steel T-NUX E A4

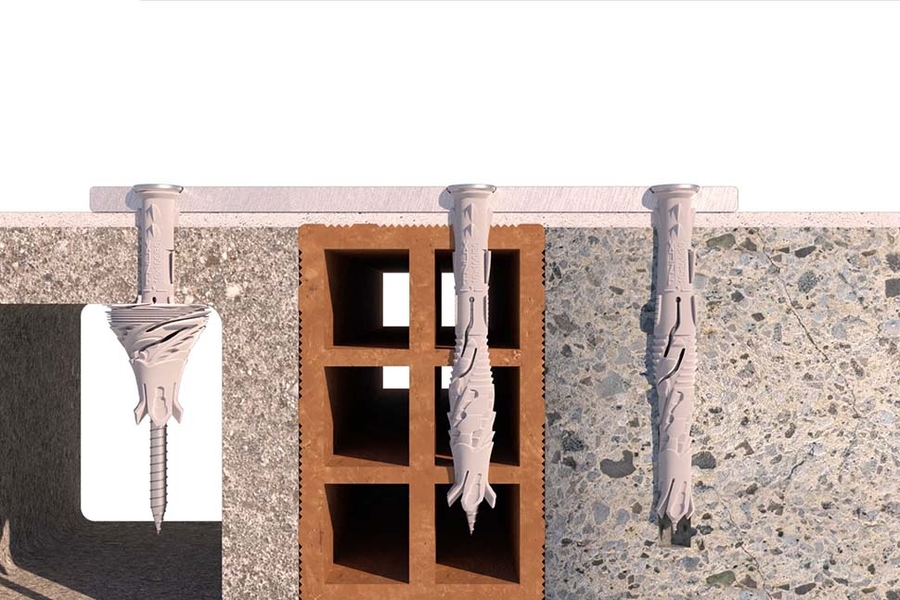

High-performance nylon dowel, with hexagonal head screw and TX footprint. Universal dowel, designed for fixing medium-load elements in hollow and solid materials. It is approved for non-structural uses. The screw is made of A4 stainless steel, which allows it to be used in all types of environments.
Amplify information
> CAD Data

ASSESSMENTS AND CERTIFICATES

+ info
TDDU13BI9303 ETA NS 14 0467 ETA NS 14 0467 SZ6
EKOU2BI8304 HO FUEGO Resistente al fuego SZ7
EKOU19BI9350 HO CE 14 CE 2014 SZ7
CODESIZENº RECESSTHICKNESS MAX.FIXTURE (mm)Min. Order Qty.Pcs BoxPcs MasterboxEANTechnical info.
TNXE4080808 x 80 Ø8SW10/TX30100506008423533724700
  • tfix - Max. fixture thickness10
  • SW - Installation keySW10/TX30
  • df - Ø Element to fix8 - 8,5
  • hef - Effective depth70
  • hnom - Min. anchor depth70
  • h1 - Drill hole depth min.90
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght80
TNXE4081008 x 100 Ø8SW10/TX30300503008423533724717
  • tfix - Max. fixture thickness30
  • SW - Installation keySW10/TX30
  • df - Ø Element to fix8 - 8,5
  • hef - Effective depth70
  • hnom - Min. anchor depth70
  • h1 - Drill hole depth min.90
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght100
TNXE41008010 x 80 Ø10SW13/TX40100503008423533724731
  • tfix - Max. fixture thickness10
  • SW - Installation keySW13/TX40
  • df - Ø Element to fix10 - 11
  • hef - Effective depth70
  • hnom - Min. anchor depth70
  • h1 - Drill hole depth min.90
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght80
TNXE41010010 x 100 Ø10SW13/TX40300503008423533724748
  • tfix - Max. fixture thickness30
  • SW - Installation keySW13/TX40
  • df - Ø Element to fix10 - 11
  • hef - Effective depth70
  • hnom - Min. anchor depth70
  • h1 - Drill hole depth min.90
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght100
TNXE41012010 x 120 Ø10SW13/TX40500503008423533724755
  • tfix - Max. fixture thickness50
  • SW - Installation keySW13/TX40
  • df - Ø Element to fix10 - 11
  • hef - Effective depth70
  • hnom - Min. anchor depth70
  • h1 - Drill hole depth min.90
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght120
TNXE41014010 x 140 Ø10SW13/TX40700502008423533724762
  • tfix - Max. fixture thickness70
  • SW - Installation keySW13/TX40
  • df - Ø Element to fix10 - 11
  • hef - Effective depth70
  • hnom - Min. anchor depth70
  • h1 - Drill hole depth min.90
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght140
  • Clamp
  • Support clamp
  • Pipe clamp
  • Flange clamp
  • Air conditioning units
  • Roof anchor
  • Trellis anchor
  • Rack anchor
  • Shelf anchor
PR83BI10430 CP T NUX E A4 T NUX E A4 SZ4
T-NUX E A4
icon book
Technical Sheets
FT_TNUX_en_rev7.pdf
FTA_TNUX_en_rev0.pdf
icon security
Assessments
ETA_TNUX-n-en-rev3.pdf
icon camera
Multimedia
Video
icon table
Declaration of Performances
DoP_TNUX_n_en_rev3.pdf
How can I check if an anchor has been properly installed?

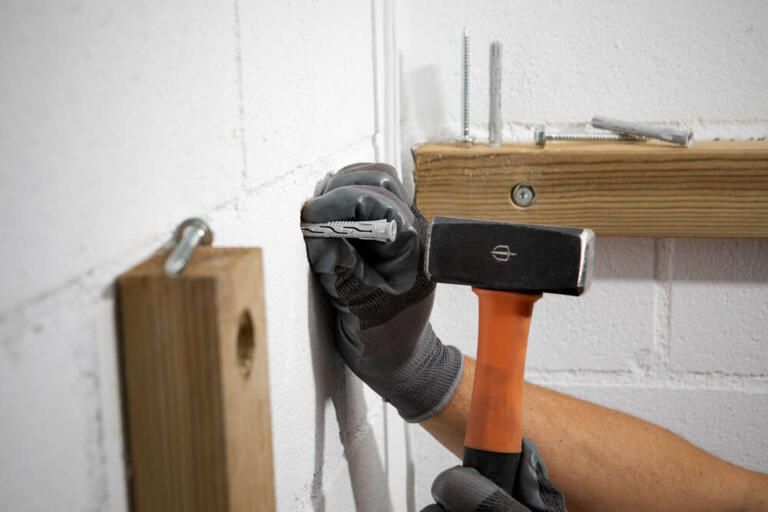

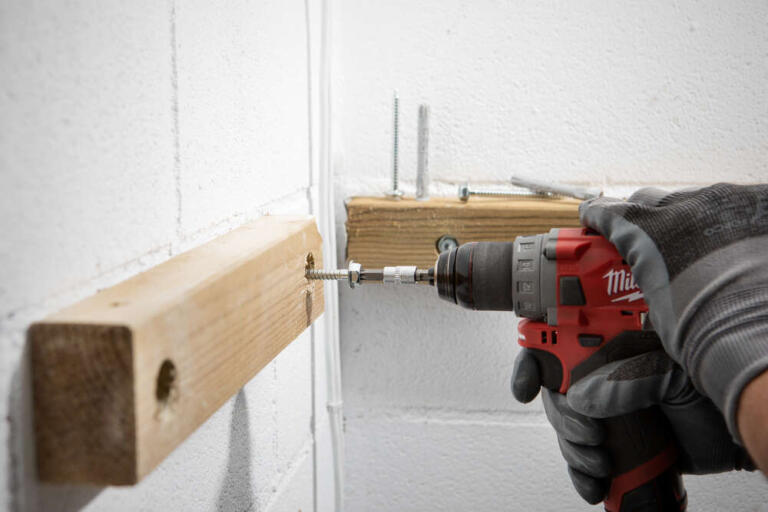

Correct installation of TNUX
What testing machines do you recommend for on-site tests?
What should I do in the event a drilling is aborted (e.g
