Nylon block TACON

Knottable nylon dowel, designed to tackle fixings in solid materials such as concrete, stone, solid bricks or adobe. It allows easy installation of elements such as brackets, shelves, air conditioning units or fire extinguishers. The side wings prevent the dowel from turning during knot formation, ensuring optimum installation.
CODESIZESCREW SIZEMin. Order Qty.Pcs BoxPcs/BlisterPcs MasterboxBlisters/Bisters boxEANTechnical info.
BZTACON044 x 20 Ø4TPPO 2,5-3025158423533422392

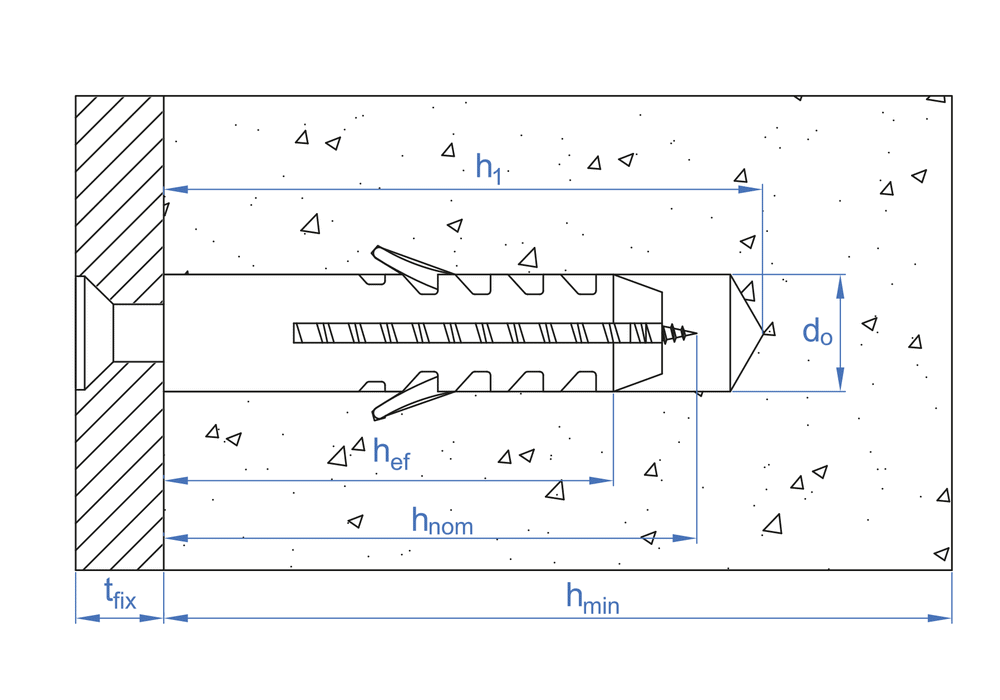

  • hnom - Min. anchor depth20
  • h1 - Drill hole depth min.25
  • d0 - Ø Drill4
  • hmin - Min. substrate thickness30
  • L - Lenght20
BZTACON055 x 25 Ø5TPPO 2,5-4025158423533422408
  • hnom - Min. anchor depth25
  • h1 - Drill hole depth min.35
  • d0 - Ø Drill5
  • hmin - Min. substrate thickness40
  • L - Lenght25
BZTACON066 x 30 Ø6TPPO 3,5-4025158423533422415
  • hnom - Min. anchor depth30
  • h1 - Drill hole depth min.40
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness45
  • L - Lenght30
BZTACON088 x 40 Ø8TPPO 4,5 , TB 5-6015108423533422422
  • hnom - Min. anchor depth40
  • h1 - Drill hole depth min.50
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness55
  • L - Lenght40
BZTACON1010 x 50 Ø10TB 6-8010108423533422439
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.60
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness70
  • L - Lenght50
BZTACON1212 x 60 Ø12TB 8-1005108423533422446
  • hnom - Min. anchor depth60
  • h1 - Drill hole depth min.70
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness80
  • L - Lenght60
TACON044 x 20 Ø4TPPO 2,5-34001008.0008423533990006
  • hnom - Min. anchor depth20
  • h1 - Drill hole depth min.25
  • d0 - Ø Drill4
  • hmin - Min. substrate thickness30
  • L - Lenght20
TACON055 x 25 Ø5TPPO 2,5-44001008.0008423533990105
  • hnom - Min. anchor depth25
  • h1 - Drill hole depth min.35
  • d0 - Ø Drill5
  • hmin - Min. substrate thickness40
  • L - Lenght25
TACON066 x 30 Ø6TPPO 3,5-44001009.0008423533990204
  • hnom - Min. anchor depth30
  • h1 - Drill hole depth min.40
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness45
  • L - Lenght30
TACON077 x 30 Ø7TPPO 4-4,54001005.0008423533990303
  • hnom - Min. anchor depth30
  • h1 - Drill hole depth min.45
  • d0 - Ø Drill7
  • hmin - Min. substrate thickness45
  • L - Lenght30
TACON088 x 40 Ø8TPPO 4,5 , TB 5-64001005.0008423533990402
  • hnom - Min. anchor depth40
  • h1 - Drill hole depth min.50
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness55
  • L - Lenght40
TACON1010 x 50 Ø10TB 6-8200502.5008423533990501
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.60
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness70
  • L - Lenght50
TACON1212 x 60 Ø12TB 8-10100251.2508423533990600
  • hnom - Min. anchor depth60
  • h1 - Drill hole depth min.70
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness80
  • L - Lenght60
TACON1414 x 70 Ø14TB 10-1280201.0008423533990709
  • hnom - Min. anchor depth70
  • h1 - Drill hole depth min.80
  • d0 - Ø Drill14
  • hmin - Min. substrate thickness95
  • L - Lenght70
TACON1616 x 80 Ø16TB 12-1440105008423533990808
  • hnom - Min. anchor depth80
  • h1 - Drill hole depth min.90
  • d0 - Ø Drill16
  • hmin - Min. substrate thickness100
  • L - Lenght80
  • Clamp
  • Support clamp
  • Pipe clamp
  • Air conditioning units
  • Ceiling anchorage
  • Trellis anchorage
  • Shelf anchorage
  • Fire extinguisher installation
  • Fire extinguisher installation
  • Roof anchorage
  • Rack anchorage
  • Installation of fire extinguishers
PR90BI10414 CP TACON TACON SZ4
PR90BI14016 CP TACON TACON SZ4
PR90BI14015 CP TACON TACON SZ4
PR90BI14014 CP TACON TACON SZ4
TACON
icon book
Technical Sheets
FT_TACO_en_rev12.pdf
