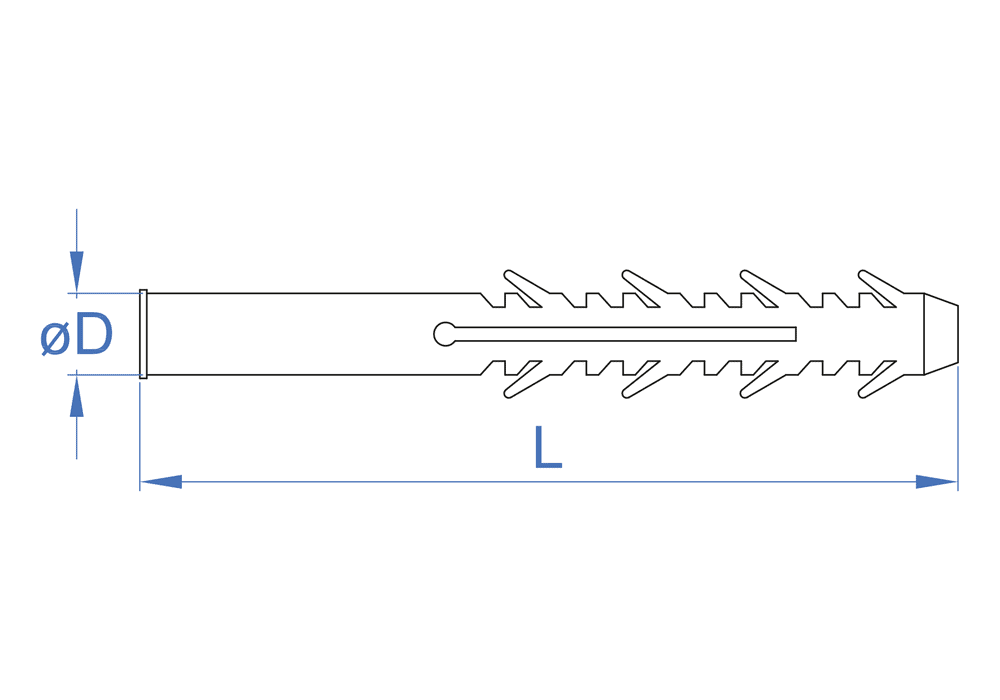

Nylon plug, 8 wings TC-SO 8

Nylon plug with 8 wings, suitable for fixing elements of medium or light loads in solid and hollow materials. Allows efficient assembly of scaffolding together with the AN-23 / AN-51 eye anchor.
CODESIZEMin. Order Qty.Pcs. x jarPcs BoxPcs MasterboxEANTechnical info.
TCSO1413014 x 130 Ø1400202408423533091956
  • df - Ø Element to fix12
  • h1 - Drill hole depth min.140
  • hmin - Min. substrate thickness140
  • L - Lenght130
TCSO1416014 x 160 Ø1400201208423533092076
  • df - Ø Element to fix12
  • hnom - Min. anchor depth120
  • h1 - Drill hole depth min.170
  • hmin - Min. substrate thickness170
  • L - Lenght160
TCSO1614016 x 140 Ø1600201208423533092175
  • df - Ø Element to fix14
  • hnom - Min. anchor depth150
  • h1 - Drill hole depth min.180
  • hmin - Min. substrate thickness150
  • L - Lenght140
TCSO1616016 x 160 Ø160020808423533092250
  • tfix - Max. fixture thickness17
  • df - Ø Element to fix14
  • hef - Effective depth42
  • hnom - Min. anchor depth55
  • h1 - Drill hole depth min.170
  • hmin - Min. substrate thickness170
  • L - Lenght160
TCSO1620016 x 200 Ø160020608423533092359
  • tfix - Max. fixture thickness37
  • df - Ø Element to fix14
  • hef - Effective depth42
  • hnom - Min. anchor depth55
  • h1 - Drill hole depth min.210
  • hmin - Min. substrate thickness210
  • L - Lenght200
TCSO1624016 x 240 Ø160020408423533092458
  • tfix - Max. fixture thickness57
  • df - Ø Element to fix14
  • hef - Effective depth42
  • hnom - Min. anchor depth55
  • h1 - Drill hole depth min.250
  • hmin - Min. substrate thickness250
  • L - Lenght240
  • Scaffolding
  • Banners
  • Banners
  • Marquees
  • Signs
PR60BI11500 CP TC SO 8 TC SO 8 SZ4
PR60BI14001 CP TC SO 8 TC SO 8 SZ4
icon book
Technical Sheets
FT_ANFA_en_rev4.pdf
